142.6185.4302 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> 142.6185.4302

142.6185.4302: DescriptionCar Fuse 3A Purple; CategoryCircuit protection Circuit protection; File Size271KB，3 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com; Environmental Compliance

Download Datasheet Parametric View All

142.6185.4302 Overview

Car Fuse 3A Purple

142.6185.4302 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	RATED BREAKING CAPACITY AT 58 VDC: 1000A
body width	5 mm
body height	13.2 mm
Body length or diameter	19 mm
Circuit protection type	ELECTRIC FUSE
JESD-609 code	e3
Joule integral nominal	15 J
Installation features	INLINE/HOLDER
physical size	19mm x 5mm x 13.2mm
Rated current	3 A
Rated voltage (DC)	58 V
Guideline	UL
surface mount	NO
Terminal surface	Tin (Sn)
Terminal shape	TAB/BLADE
Base Number Matches	1

Preview

Download Datasheet

View All

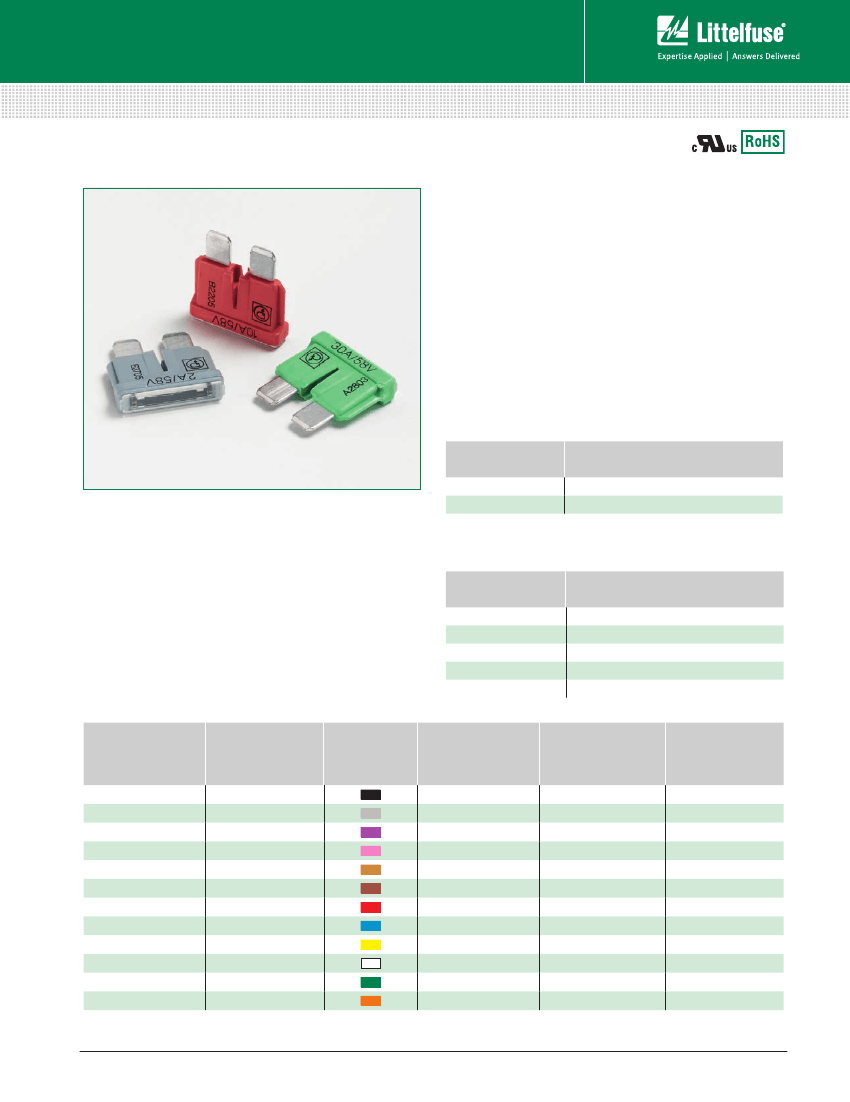

Blade Fuses

TAC ATO

STYLE BLADE FUSE RATED 58V

Specifications

Interrupting Rating:

Insulating Body:

Cover:

Terminals:

1000 A @ 58 VDC

Out of thermoplastic (UL 94-V0, heat-resistant)

Out of thermoplastic (V0, transparent),

Visible melting-element

Blade contacts

Copper alloy, gal. Sn plated

Edge-protected

ISO 8820-3:2002(E)

UL 248 Special Purpose Fuses

File No. E10480

Complies with:

cULus Recognized:

Ordering Information

Part Number

142.6185.xxx.2

142.6185.xxx6

Package Size

2000

100

Description

The TAC is an ATO

style blade fuse rated at 58V, featuring a three

part construction with copper contacts for excellent reliability in

harsh environment conditions and low voltage drop. Current

ratings 1A thru 40A. With see-through cover for easy detection of

blown fuses.

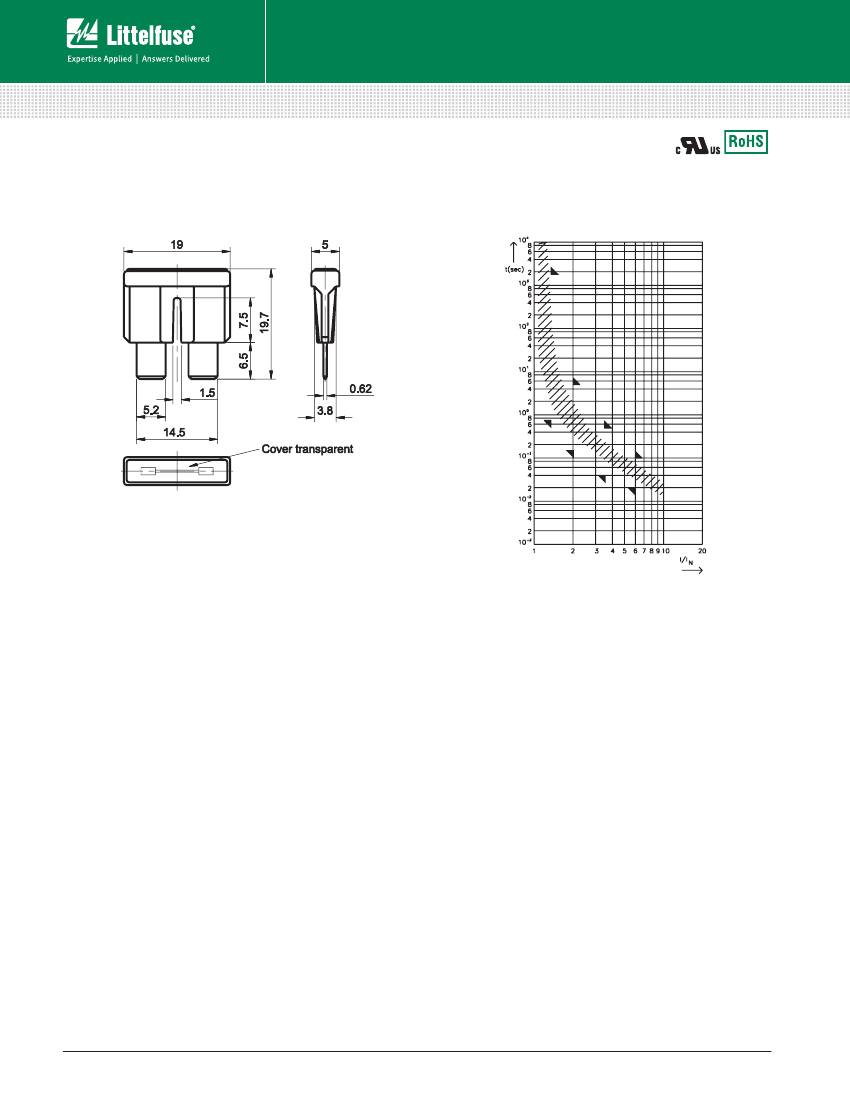

Time-Current Characteristics

% of Rating

110

135

200

350

600

Opening Time Min / Max (s)

360,000 s / –

0.750 s / 1,800 s

0.150 s / 5 s

0.040 s / 0.500 s

0.020 s / 0.100 s

Ratings

Part Number

142.6185.410_

142.6185.420_

142.6185.430_

142.6185.440_

142.6185.450_

142.6185.475_

142.6185.510_

142.6185.515_

142.6185.520_

142.6185.525_

142.6185.530_

142.6185.540_

Current Rating

1 A*

2 A*

7.5 A

10 A

15 A

20 A

25 A

30 A

40 A

Housing Color

Typ. Voltage Drop

Littelfuse max.

150 mV

130 mV

140 mV

120 mV

145 mV

115 mV

95 mV

90 mV

80 mV

100 mV

Cold Resistance

108 mΩ

45.0 mΩ

28.5 mΩ

22.5 mΩ

16.5 mΩ

11.5 mΩ

6.80 mΩ

4.30 mΩ

3.10 mΩ

2.30 mΩ

1.90 mΩ

1.40 mΩ

2.00 A²s

8.00 A²s

15.0 A²s

25.0 A²s

35.0 A²s

60.0 A²s

115 A²s

250 A²s

600 A²s

1,070 A²s

2,000 A²s

* Not mentioned in the standards

Corresponding holder see Section “Fuse Holders.”
