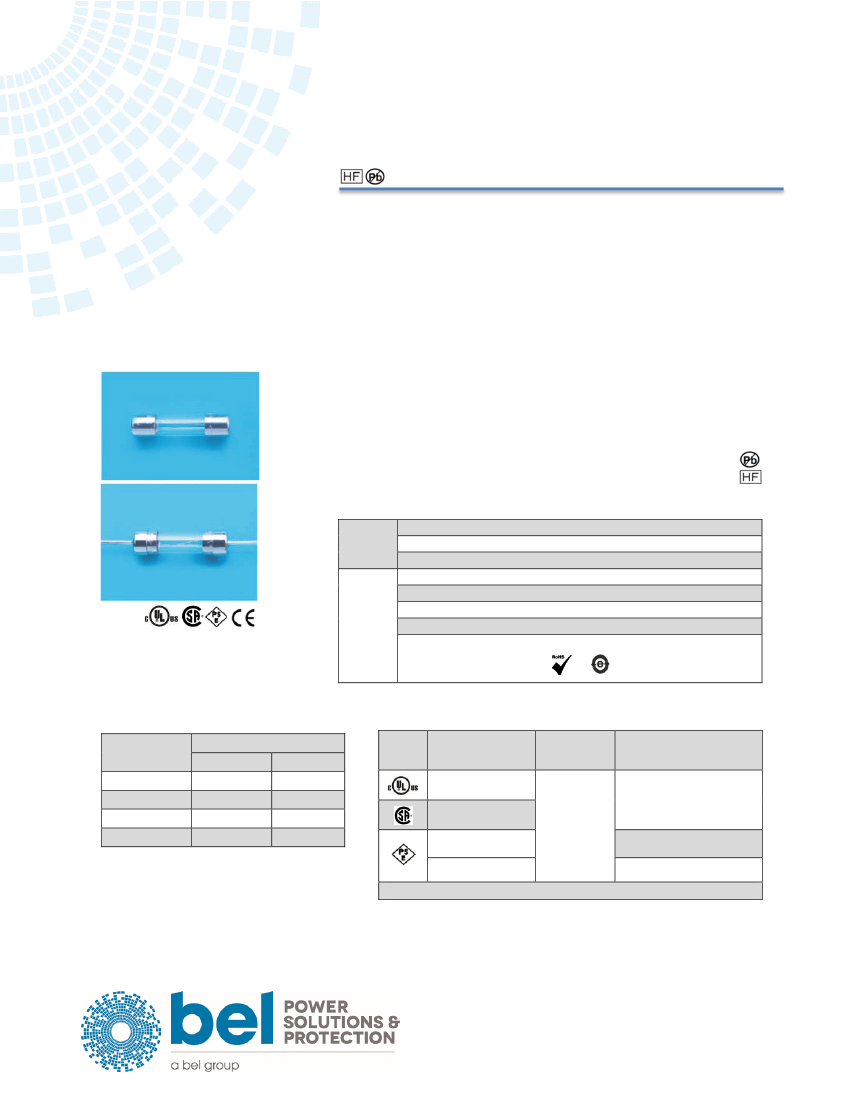

Type 5MT / 5MTP
Medium Blow Fuse Series
5MT/5MTP Series, 5x20mm Glass Tube Medium Blow Fuse
RoHS 2 Compliant
Description
5x20mm Medium Blow, glass tube body cartridge fuse designed, approved and
complied with UL and CSA standard 248-14.
Features
- Meet UL and CSA standard 248-14
- Wide operating temperature range
- Bulk and Tape & Reel packing available
- RoHS 2 compliant
- Halogen Free
- Leadfree
Applications
Provide individual protection for components or internal circuits.
- Power supplies
- Battery charger
- Monitor
LEAD FREE =
- Adapter
HALOGEN FREE =
Physical Specifications
Materials
Body : Glass
Cap: Nickel Plated Brass Caps
Leads: Matte Tin Plated Copper
On Fuse :
“bel”, ”5MT”, ”Current Rating”, “Voltage Rating”,
”Appropriate Safety Logos”, ”
”（
RoHS 2 compliant）
On Label :
"bel", "5MT”or”5MTP", "Current Rating", "Voltage Rating", "Interrupting Rating",
"Appropriate Safety Logos" and "
", "
"(China RoHS compliant).
Marking
Electrical Characteristics
(UL/CSA STD,248-14)
Safety Agency Approvals
Testing Current
100%
135%
200%
1000%
Blow Time
Minimum
4 Hrs.
N/A
N/A
10 mSec
Maximum
N/A
1 Hr.
15 sec
N/A
LR39772
JET1037-31003-1010
JET1037-31003-1011
JET1037-31003-1007
Safety
Agency
Safety Agency
Certificate
E20624
Voltage
Rating
(V)
Ampere Range / Volt
@ I.R. ability*
100mA-800mA/250V AC@35A
100mA-3A/250V 1A-3A/250V AC@100A
100mA-5A/125V AC@10,000A
AC
3.15A-7A/125V
AC
1A-5A/125V AC@500A
>5A-15A/125V AC@300A
*I.R.= Interrupting Rating = Short Circuit Rating(Amps)
Specifications subject to change without notice
belfuse.com/circuit-protection
Type 5MT / 5MTP
Environmental Specifications
Shock Resistance
Vibration Resistance
Salt Spray Resistance
Insulation Resistance
Solderability
Resistance to solder Heat
Thermal Shock
Operating Temperature
Terminal Strength
MIL-STD-202G, Method 213B, Test Condition 1
(100 G's peak for 6 milliseconds; Sawtooth waveform)
MIL-STD-202G, Method 201A (10-55 Hz, 0.06 inch, total excursion).
MIL-STD-202G, Method 101E, Test Condition B (48 hrs).
MIL-STD-202G, Method 302, Test Condition A
(After Opening) 10,000 ohms minimum.
MIL-STD-202G, Method 208H
MIL-STD-202G, Method 210F, Test Condition B. (260+/-5℃,10+/-1 sec)
MIL-STD-202G, Method 107G, Test Condition B (-65℃ to +125℃).
-55℃ to +125℃
IEC-68-2-21
2
/
4
Electrical Specifications
Catalog
Number
5MT(P) 100-R
5MT(P) 125-R
5MT(P) 160-R
5MT(P) 200-R
5MT(P) 250-R
5MT(P) 300-R
5MT(P) 375-R
5MT(P) 500-R
5MT(P) 600-R
5MT(P) 700-R
5MT(P) 750-R
5MT(P) 800-R
5MT(P) 1-R
5MT(P) 1.25-R
5MT(P) 1.6-R
5MT(P) 2-R
5MT(P) 2.5-R
5MT(P) 3-R
5MT(P) 3.5-R
5MT(P) 4-R
5MT(P) 5-R
5MT(P) 6-R
5MT(P) 7-R
Ampere
Rating
100mA
125mA
160mA
200mA
250mA
300mA
375mA
500mA
600mA
700mA
750mA
800mA
1A
1.25A
1.6A
2A
2.5A
3A
3.5A
4A
5A
6A
7A
Typical
Cold
Resistance
(ohms)
11.9
7.92
4.82
3.11
2.12
1.51
1.07
0.61
0.430
0.340
0.290
0.261
0.183
0.124
0.081
0.061
0.043
0.036
0.029
0.025
0.019
0.014
0.012
Volt-drop
@100%In
(Volt) max.
2.02
1.77
1.33
1.13
0.94
0.80
0.73
0.57
0.44
0.42
0.39
0.36
0.33
0.28
0.23
0.22
0.19
0.19
0.18
0.18
0.17
0.16
0.15
Voltage and
Interrupting
Ratings
Melting I²T
<10 mSec
(A² Sec)
0.02
0.04
0.06
0.11
0.18
0.31
0.47
0.88
1.5
Melting I²T
@10 In
(A² Sec)
0.04
0.07
0.11
0.18
0.30
0.50
0.75
1.40
2.3
2.5
3.5
4.2
6.4
11
18
29
49
82
105
136
226
428
1059
Maximum
Power
Dissipation
(W)
0.30
0.32
0.34
0.36
0.38
0.37
0.40
0.43
0.45
0.48
0.49
0.49
0.49
0.52
0.55
0.59
0.65
0.74
0.84
0.91
1.10
1.30
2.10
Agency
Approvals
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
See Table of
Safety Approvals
on Page 1 for
Voltage and
associated
Interrupting
Ratings
2.2
2.3
3.8
4.2
7.2
12
20
35
58
76
99
167
315
750
Consult manufacturer for other ratings
Specifications subject to change without notice
Bel Fuse Inc.
206 Van Vorst Street
Jersey City, NJ 07302 USA
© 2018 Bel Fuse, Inc.
+1 201.432.0463
Bel.US.CS@belf.com
belfuse.com/circuit-protection
Rev. 5MT Nov2018
Type 5MT / 5MTP

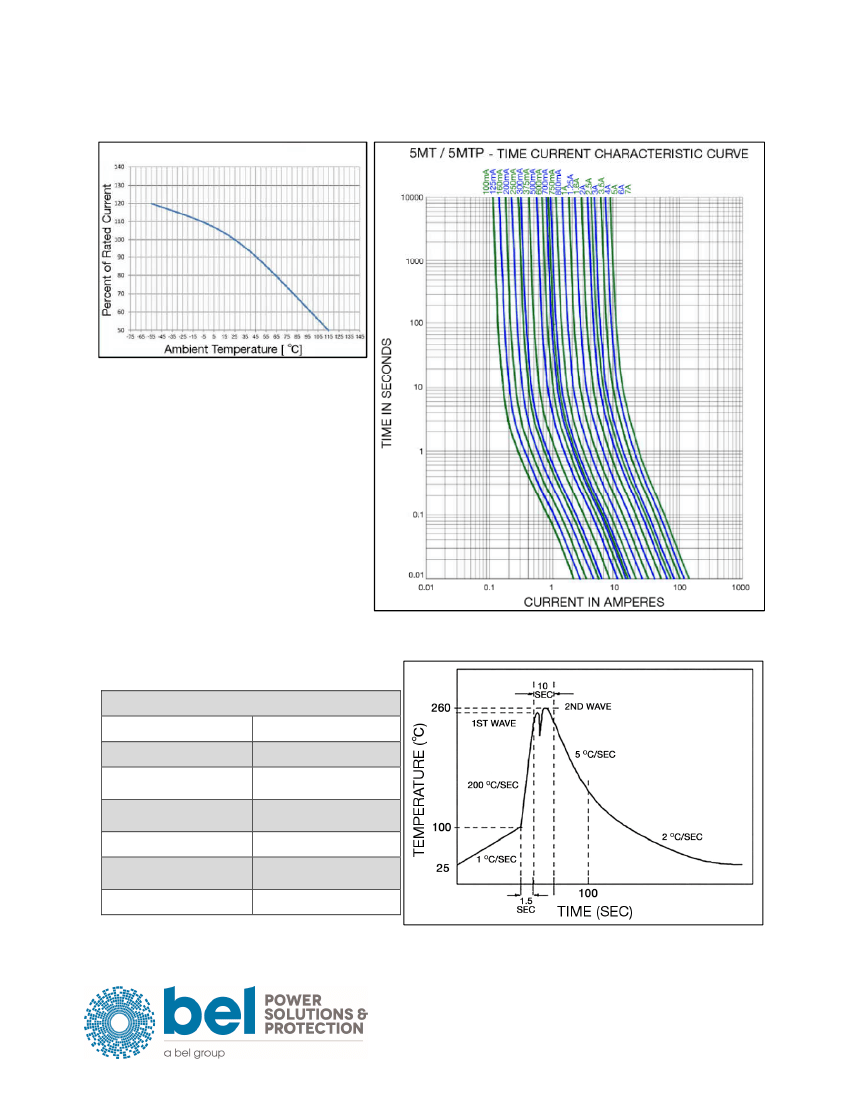

Temperature Derating Curve
Average Time Current Curve
3
/
4
Soldering Parameters
Lead-free Wave Soldering Profile
Wave Soldering Parameter
Average ramp-up rate
Heating rate during preheat
Final preheat temperature
Peak temperature Tp
Time within +0℃ / -5℃ of
actual peak temperature
Ramp-down rate
200℃ / second
typical 1 - 2℃ / second
Max 4℃ / second
within 125℃ of soldering
temperature
260℃
10 seconds
5℃ / second max.
Specifications subject to change without notice
Bel Fuse Inc.
206 Van Vorst Street
Jersey City, NJ 07302 USA
© 2018 Bel Fuse, Inc.
+1 201.432.0463
Bel.US.CS@belf.com
belfuse.com/circuit-protection
Rev. 5MT Nov2018
Type 5MT / 5MTP
Fuse FGNO Explanation
0652 R [XXXX] -XX
[XXXX]=Ampere Rating; XX=See Ordering Information as below
Fraction
1/10
1/8
4
/
4
Decimal
0.100
.125
.160
Milliamps
100
125
160
200
250
300
375
500
600
700
750
800
Bel FGNO[XXXX]
0100
0125
0160
0200
0250
0300
0375
0500
0600
0700
0750
0800
Fraction
Decimal
1.0
Amps
1
1.25
1.6
2
2.5
3
3.5
4
5
6
7
Bel FGNO[XXXX]
1000
1250
1600
2000
2500
3000
3500
4000
5000
6000
7000
1-1/4
1.25
1.60
2.0
2/10
1/4
3/10
3/8
1/2
6/10
7/10
3/4
8/10
.200
.250
.300
.375
.500
.600
.700
.750
.800
2-1/2
2.5
3.0
3-1/2
3.5
4.0
5.0
6.0
7.0

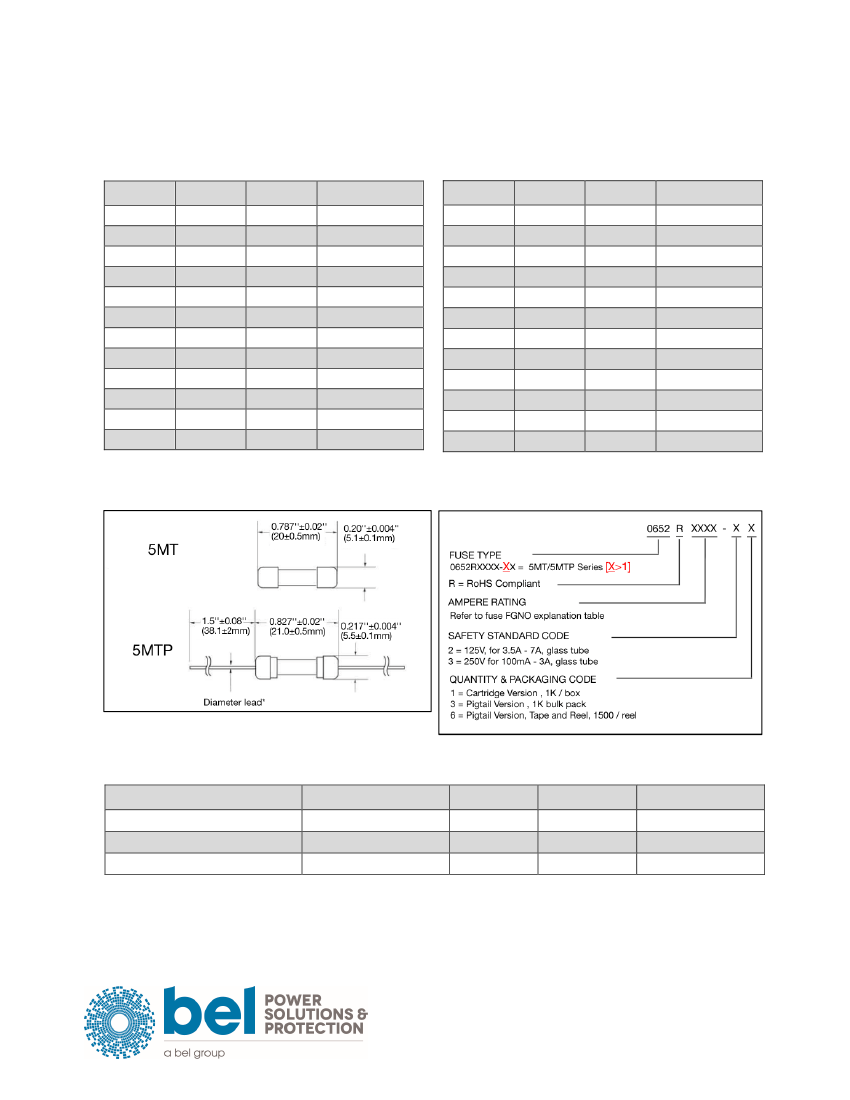

Mechanical Dimensions
Ordering Information
*Ratings 5A and less have 0.032'' diameter lead;
*Ratings 6A and above have 0.040'' diameter lead.
Packaging
Packaging Option
Bulk
Bulk (Pigtail Type)
Tape & Reel，10mm Pitch
Packaging Specification
N/A
N/A
EIA-296-F
Quantity
1000
1000
1500
Packaging Code
33 / 21
33 / 23
36 / 26
Inside Tape Spacing
N/A
N/A
63
Specifications subject to change without notice
Bel Fuse Inc.
206 Van Vorst Street
Jersey City, NJ 07302 USA
© 2018 Bel Fuse, Inc.
+1 201.432.0463
Bel.US.CS@belf.com
belfuse.com/circuit-protection
Rev. 5MT Nov2018
