DF18B-70DS-0.4V(81) datasheet, PDF

Datasheet> All Categories > The connector> The connector> DF18B-70DS-0.4V(81)

DF18B-70DS-0.4V(81): DescriptionBoard to Board & Mezzanine Connector 70P DBL ROW RECEPT MTL HLD DN VERT SMT; CategoryThe connector The connector; File Size299KB，9 Pages; ManufacturerHirose; Websitehttp://www.hirose-connectors.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

DF18B-70DS-0.4V(81) Overview

Board to Board & Mezzanine Connector 70P DBL ROW RECEPT MTL HLD DN VERT SMT

DF18B-70DS-0.4V(81) Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Hirose
Reach Compliance Code	unknown
ECCN code	EAR99
Is Samacsys	N
Body/casing type	RECEPTACLE
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	TIN
Contact completed and terminated	Tin (Sn)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	60 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	100VAC V
Durability	50 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	50000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.016 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-35 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.699 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	0.3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.4 mm
Termination type	SURFACE MOUNT
Total number of contacts	70
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

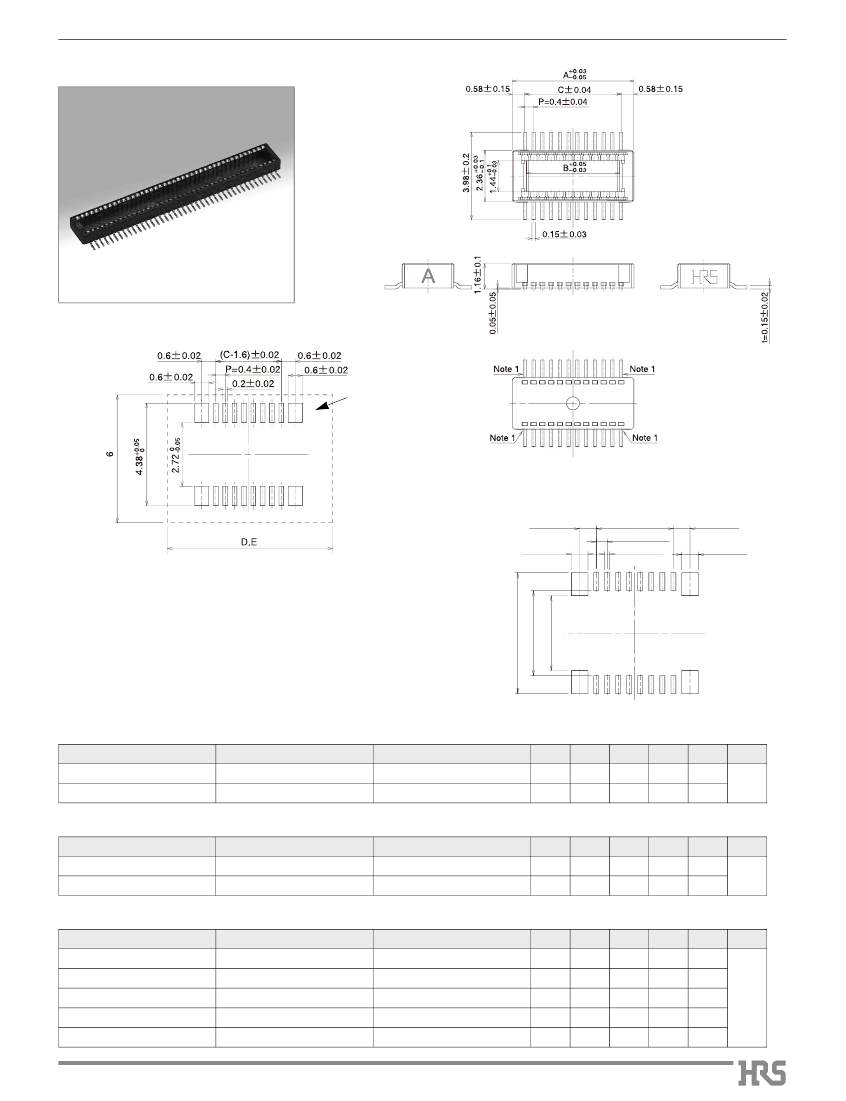

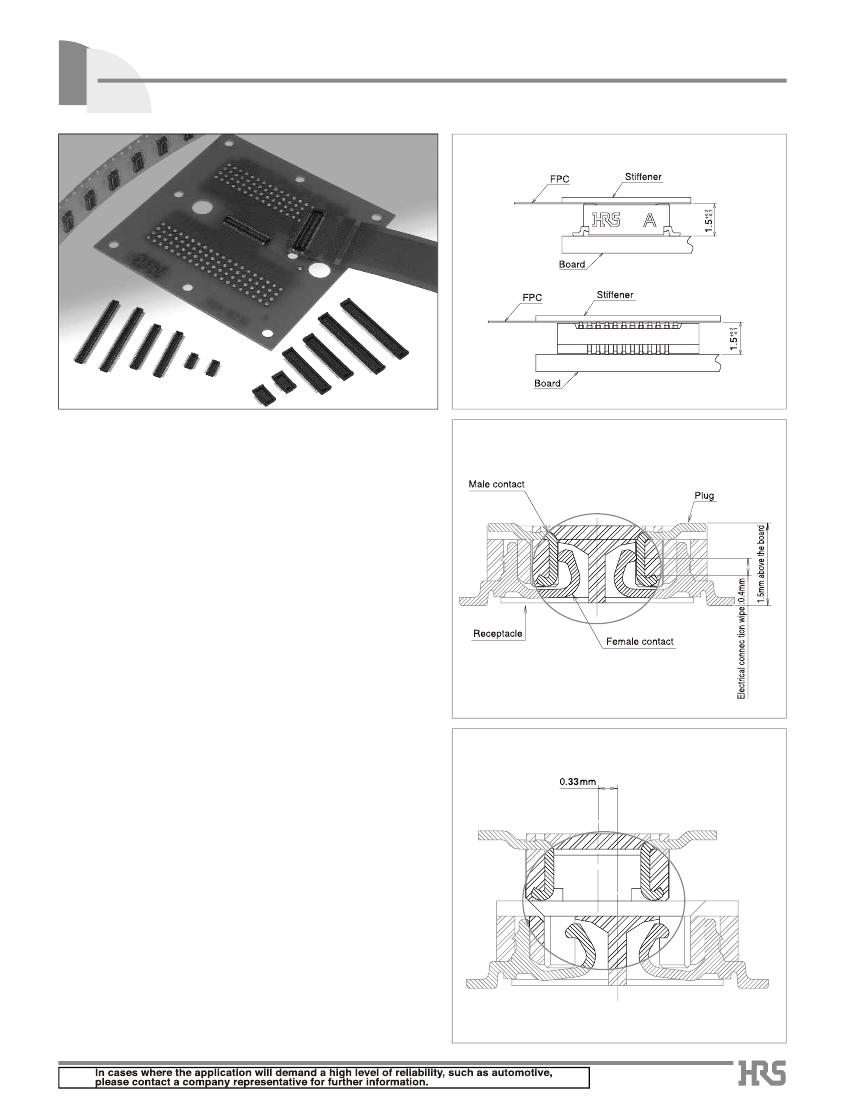

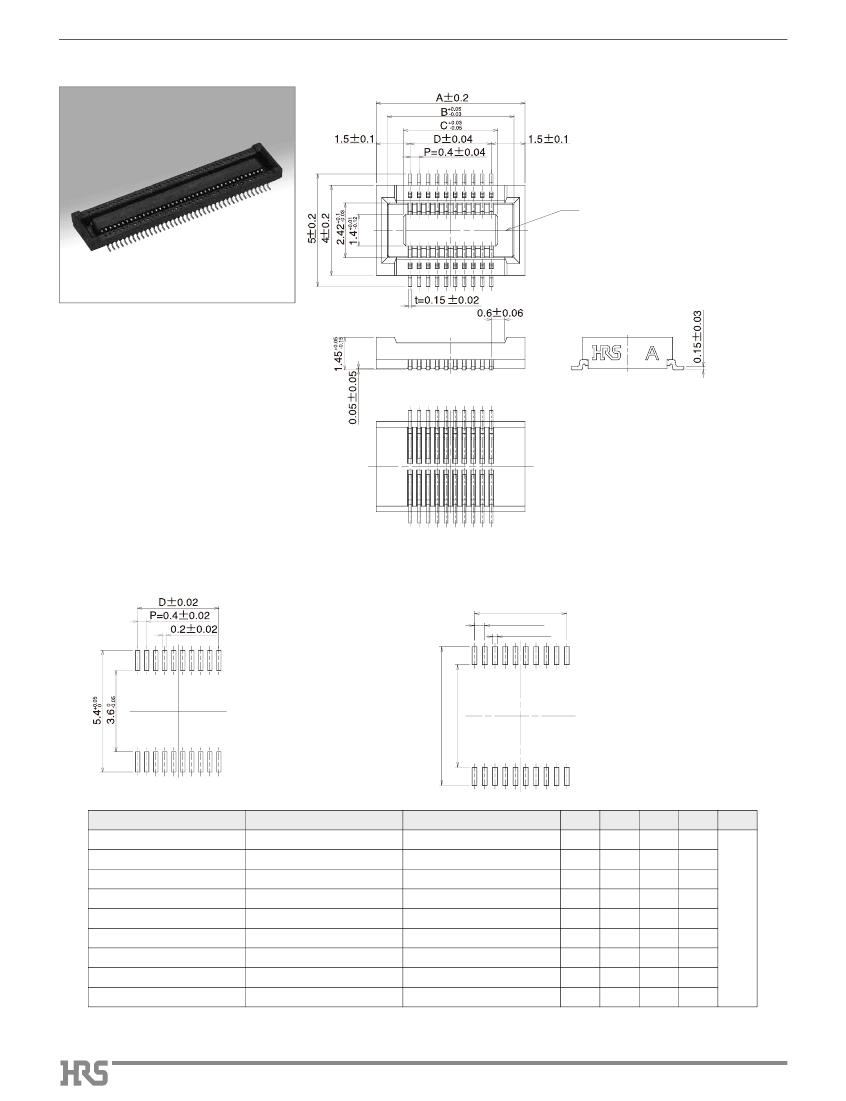

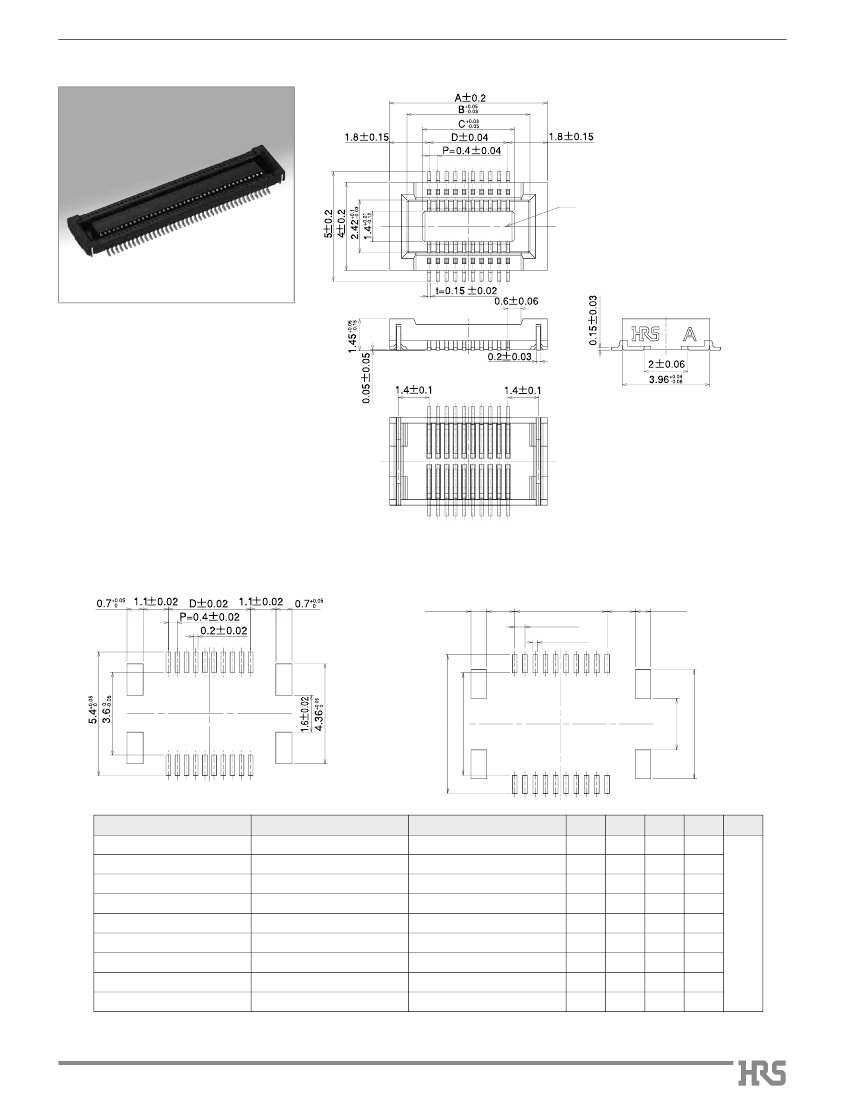

0.4mm Contact Pitch, 1.5mm above the board, Board-to-Board / Board-to-FPC Connectors

DF18 Series

Low profile – Board-to-board distance of 1.5 mm

■

Features

1. Allows higher mounting density of board components

Extremely small board mounting pattern and low above-the-

board profile makes the connector suitable for small device

applications.

High Contact Reliability --- Effective connection wipe of 0.4 mm

2. High Contact Reliability

Despite it’s small size and low profile the contacts have large

deflection distance, guaranteeing reliable electrical

performance.

3. Good Mating Characteristics

Large lead-in distance of 0.33 mm in horizontal directions and

tactile “click” confirms fully mated condition of connectors.

4. Optional Additional Board Retention

For applications requiring extra-strong hold of connectors to the

board connectors can be ordered with optional metal hold-

down.

5. Automatic Board Placement

Connectors have large flat width (Plug: 1.4 mm, Receptacle:

1.44mm) to accommodate pick-up with automatic placement

machines.

Self-alignment distance: 0.33 mm

■

Applications

Digital video cameras, Digital still cameras, cellular phones,

miniature displays, cameras portable equipment and other

applications requiring small reliable board-to-board and FPC-

to-Board connections.

A245

DF18B-70DS-0.4V(81) Related Products

	DF18B-70DS-0.4V(81)	DF18B-100DS-0.4V(81)	DF18E-40DP-0.4V(51)	DF18C-100DP-0.4V(51)	DF18C-70DS-0.4V(81)
Description	Board to Board & Mezzanine Connector 70P DBL ROW RECEPT MTL HLD DN VERT SMT	Board to Board & Mezzanine Connectors 100P DBL ROW RECEPT MTL HLD DN VERT SMT	Board to Board & Mezzanine Connector 40P DR SMT PLUG W/HOLD DOWN	Board to Board and Mezzanine Connectors 100P BOARD PLUG SMT GOLD	Board to Board & Mezzanine Connector 70P DBL ROW RECEPT HLD-DN CNCT VERT SMT
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Maker	Hirose	Hirose	Hirose	Hirose	Hirose
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Body/casing type	RECEPTACLE	RECEPTACLE	PLUG	PLUG	RECEPTACLE
Connector type	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR	FFC/FPC CONNECTOR
Contact to complete cooperation	TIN	AU	TIN	AU	TIN
Contact completed and terminated	Tin (Sn)	Gold (Au)	Tin (Sn)	Gold (Au)	Tin (Sn)
Contact point gender	FEMALE	FEMALE	MALE	MALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	60 mΩ	60 mΩ	60 mΩ	60 mΩ	60 mΩ
DIN compliance	NO	NO	NO	NO	NO
Dielectric withstand voltage	100VAC V	100VAC V	100VAC V	100VAC V	100VAC V
Durability	50 Cycles	50 Cycles	50 Cycles	50 Cycles	50 Cycles
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
Insulation resistance	50000000 Ω	50000000 Ω	50000000 Ω	50000000 Ω	50000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3	e4	e3	e4	e3
MIL compliance	NO	NO	NO	NO	NO
Plug contact pitch	0.016 inch	0.016 inch	0.016 inch	0.016 inch	0.016 inch
Mixed contacts	NO	NO	NO	NO	NO
Installation option 1	LOCKING	LOCKING	LOCKING MECH	LOCKING MECH	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2
Number of rows loaded	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-35 °C	-35 °C	-35 °C	-35 °C	-35 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	4.699 mm	4.699 mm	3.556 mm	3.556 mm	4.699 mm
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	ENDS	ENDS	POLARIZED HOUSING
Rated current (signal)	0.3 A	0.3 A	0.3 A	0.3 A	0.3 A
Guideline	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	0.4 mm	0.4 mm	0.4 mm	0.4 mm	0.4 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	70	100	40	100	70
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0
Is it lead-free?	Lead free	-	Lead free	-	Lead free
ECCN code	EAR99	EAR99	-	EAR99	EAR99
Is Samacsys	N	N	-	-	N
Contact style	BELLOWED TYPE	BELLOWED TYPE	-	-	BELLOWED TYPE
Base Number Matches	1	1	-	-	1
Other features	-	EMBOSSED TAPE PKG	LOW PROFILE	LOW PROFILE	-
