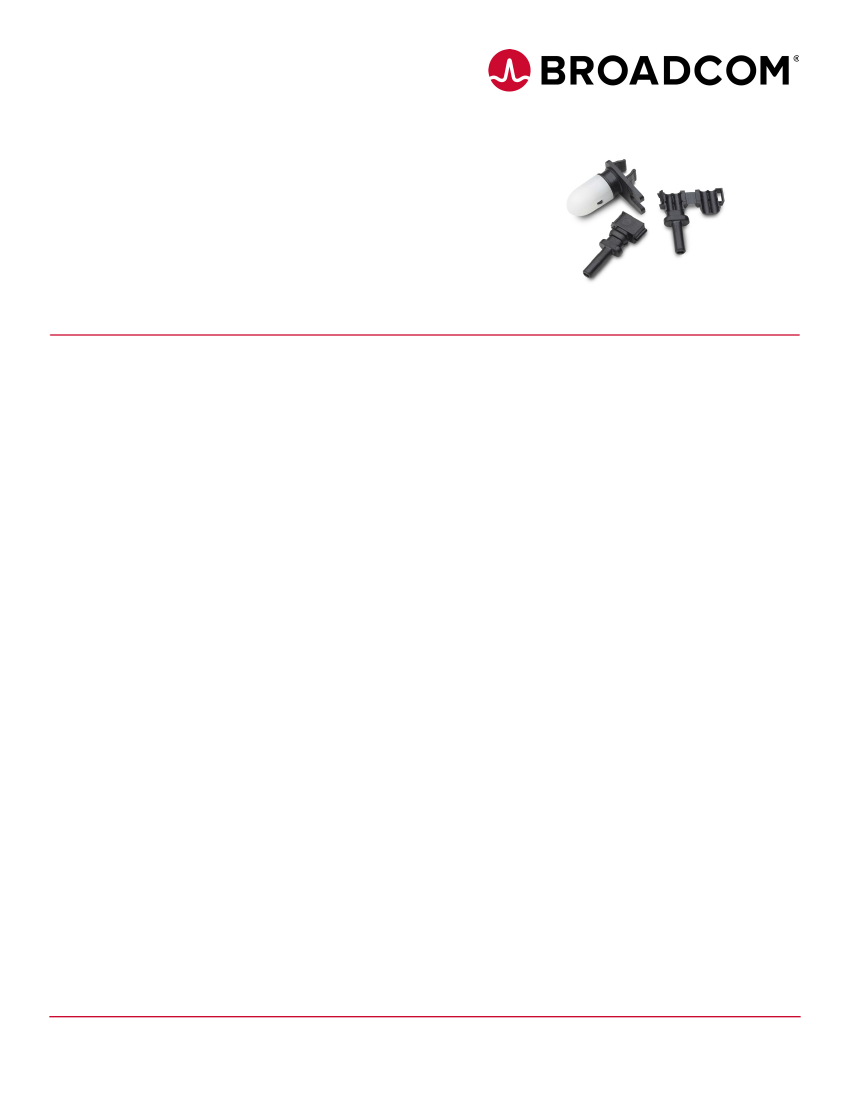

self-supervision functionality. The light that meets the point
sensor is captured and fed into a plastic optical fiber (POF). The
self-supervision functionality is achieved by an in-built
coupling between two fibers. AFBR-S10PS011Z is a miniature
connector used to connect a duplex POF cable to the point
sensor. The special POF-based sensor design allows the system
engineer to avoid any galvanic contact between the arc flash
area and the detection electronics.
Both AFBR-S10PS010Z and AFBR-S10PS011Z are part of the
Broadcom’s comprehensive arc flash detection portfolio. In
combination with Broadcom’s sensor transceiver
AFBR-S10TR001Z, they are intended to be used for the
detection of arc flash events in electrical power grids.
Features
Light capturing through the translucent head of the point
sensor
Light coupling into a plastic optical fiber by means of the
plastic optical fiber connector
Optical link self-supervision supported (heartbeat signal)
Low Halogen and RoHS compliance
UL flammability UL94HB
Good chemical resistance
Operating temperature range –40°C to 85°C
Acceptance cone exceeds 180° spherical with high
homogeneity
Suitable for 1.0/2.2-mm diameter duplex plastic optical
fiber (POF)
Applications
Arc flash event detection
Light detection
Broadcom
-1-
AFBR-S10PS010Z and AFBR-S10PS011Z
Data Sheet
Absolute Maximum Ratings
Stresses in excess of the absolute maximum ratings can cause catastrophic damage to the device. Limits apply to each parameter in
isolation, all other parameters having values within the recommended operation conditions. It should not be assumed that limiting
values of more than one parameter can be applied to the products at the same time. Exposure to the absolute maximum ratings for
extended periods can adversely affect device reliability.
Parameter
Storage Temperature
Installation Temperature
a.
Symbol
T
S
T
i
Min.
–40
0
Max.
+85
+40
Unit
°C
°C
a
a
Notes
Storage and operating temperatures refer to the ranges over which the connectors can be used when not subjected to mechanical stress. Installation
temperature refers to the ranges over which connectors may be installed onto the fiber and over which connectors can be connected and disconnected from
the transceiver.
Recommended Operating Conditions
Parameter
Operating Temperature
Symbol
T
O
Min.
-40
Max.
+85
Unit
°C
—
Notes
Mechanical Characteristics
Parameter
Retention force, connector to point sensor
Insertion force, connector to point sensor
Tensile force, connector to cable
Screw tightening torque
a.
b.
Typical data is at 25°C.
Values applicable when an M3 screw and an M3 washer are used.
Min.
—
—
—
—
Typ.
14
15
35
0.7
Max.
—
—
—
—
Unit
N
N
N
Nm
a
a
a
b
Note
Optical Characteristics
Parameter
Capturing Constant
Insertion Loss
a.
b.
Symbol
Cp
aT
Min.
1.1 × 10
–8
—
Typ.
1.8 × 10
–8
13
Max.
—
20
Unit
m
2
dB
a, b
c
Notes
Valuesmeasured with 10 m of POF duplex cable (1.0-mm core diameter, 2.2-mm jacket diameter, NA 0.5).
Cp definition: The capturing properties of a point sensor are characterized by Cp, called "Capturing Constant" of the point sensor, which is defined as follows:
The optical power P at the photo detector can be calculated as P = Cp × E / K
P: Optical power on photo detector (W).
Cp: Capturing constant (m
2
)
E: Optical power density in illuminated area (W / m
2
), halogen lamp used as a light source.
K: Correction factor for transmission losses, calculated as: K = 10
(A × L2 / 10)
.
A: Fiber transmission loss 0.34 dB/m.
L2: Length of fiber between illuminated area and photo detector (m).
For heartbeat signal at 650 nm coupled from one fiber to the other fiber in a duplex cable.
c.
Broadcom
-2-
AFBR-S10PS010Z and AFBR-S10PS011Z
Data Sheet
Acceptance Cone
Minimum 180° spherical.

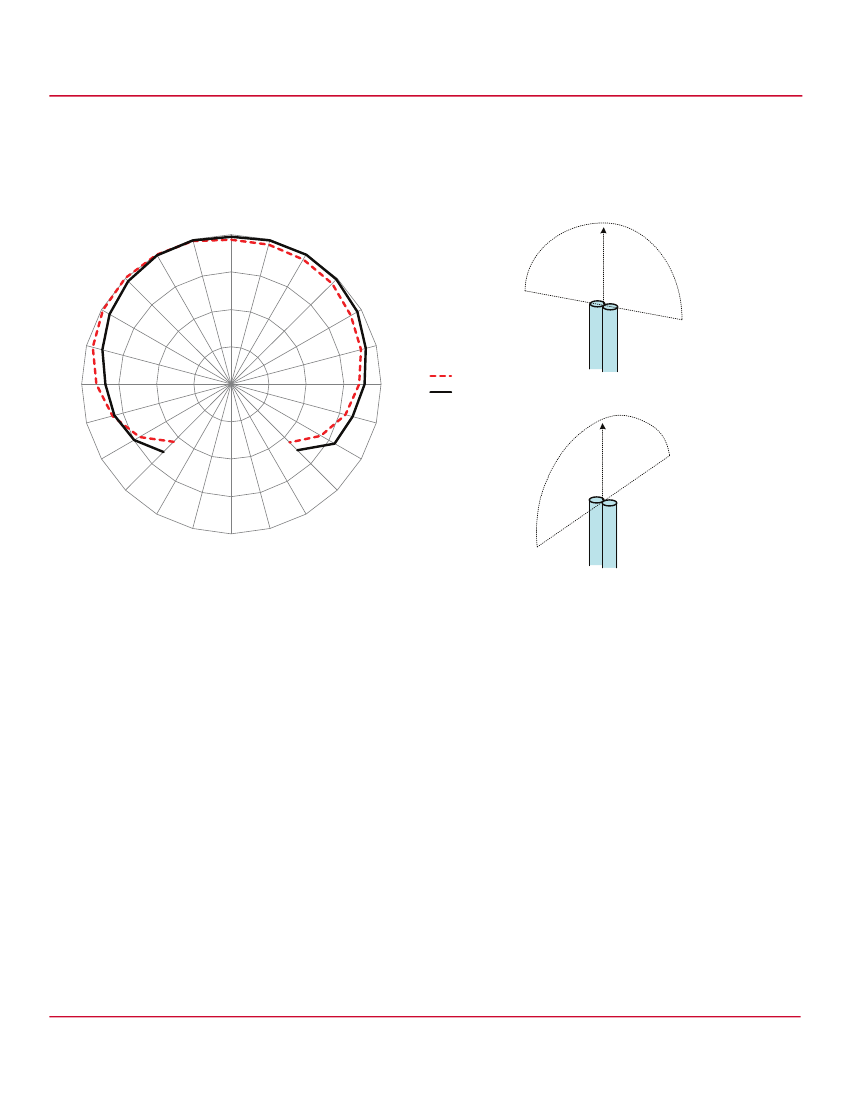

Figure 1 Typical Acceptance Cone
0°
0
330°
-3
300°
60°
30°
0°
alpha
-90°
+90°
Rx
90°
alpha
beta
-6
-9
270°
-12
Tx
0°
beta
+90°
240°
120°
210°
180°
150°
-90°
Rx
Tx
NOTE
The values in the vertical axis are in dB.
Broadcom
-3-
AFBR-S10PS010Z and AFBR-S10PS011Z
Data Sheet
Mechanical Dimensions
Figure 2 AFBR-S10PS010Z
Figure 3 AFBR-S10PS11Z
3.47
18.6
12
2.9
.7
R1
9.9
19
25
5
1.5
9.5
21.35
Figure 4 AFBR-S10PS010Z and AFBR-S10PSZ Assembled
32.1
NOTE
All dimensions in mm.
Broadcom
-4-
4.6
3.05
25.4
9.8
6
11.4
