AMAX-4850
AMAX-4860

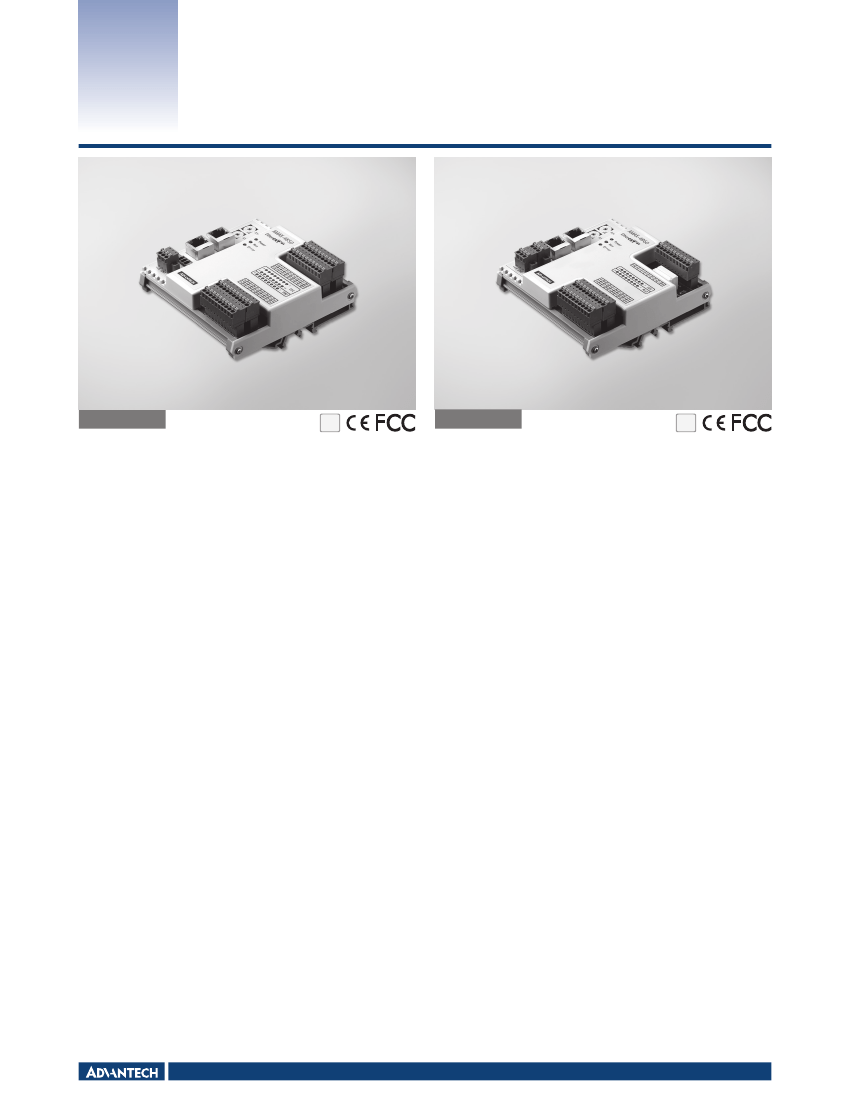

16-ch IDI & 8-ch PhotoMOS EtherCAT
Remote I/O module
8-ch IDI & 8-ch Relay EtherCAT Remote I/O
module
AMAX-4850
RoHS
2002/95/EC
COMPLIANT
AMAX-4860
RoHS
2002/95/EC
COMPLIANT
Features
Suitable for EtherCAT networks
16-ch digital input and 8-ch PhotoMOS Relay output (Form A)
1500 V
DC
optical isolation for relay outputs
Quick removable European type connector
LED indicators for I/O status
Supports EtherCAT Distributed Clock (DC) mode and SyncManager mode
Two Rotary switches for up to 256 slave IDs
Features
Suitable for EtherCAT networks
8-ch Isolated Digital Input and 8-ch Form A-type Relay Output
High-voltage isolation on input channel (2,500 V
DC
)
Quick removable European type connector
LED indicators for I/O status
Supports EtherCAT Distributed Clock (DC) mode and SyncManager mode
Two Rotary switches for up to 256 slave IDs
Introduction
The AMAX-4850 is an industrial EtherCAT slave module equipped with the EtherCAT protocol. Its
compact size and DIN-rail mount kit can install easily in a cabinet. Euro type pluggable terminal blocks
and LED indicator help users to maintain and set up their system. All digital input and PhotoMOS
Relay Output channels are protected by isolation circuits.
Introduction
The AMAX-4860 is an industrial EtherCAT slave module equipped with the EtherCAT protocol. Its
compact size and DIN-rail mount kit can install easily in a cabinet. Euro type pluggable terminal
blocks and LED indicator help users to maintain and set up their system. All digital input channels
are protected by 2,500 V
DC
isolation circuits.
Specifications
Communication
Interface
Data transfer medium
Distance between modules
Communication Cycle Time
Data transfer rates
Configuration
EtherCAT
Ethernet/EtherCAT cable (min. CAT 5), shielded
Max. 100 m (100BASE-TX)
200us
100 Mbps
Not required
Specifications
Communication
Interfac
Data transfer medium
Distance between modules
Data transfer rates
Configuration
Communication Cycle Time
Channels
Input voltage
Isolation protection
Channels
Relay Type
Contact Rating (resistive)
Max. Switching Power
Max. Switching Voltage
Resistance
Operating Time
Releasing Time
Life Expectancy
EtherCAT
Ethernet/EtherCAT cable (min. CAT 5), shielded
Max. 100 m (100BASE-TX)
100 Mbps
Not required
200us
8
Logic 0: 3 V max.; Logic 1: 10 V min. (30 V max.)
2,500 V
DC
8
Form A
2A@250V
AC
, 2A@30V
DC
500VA , 60W
270V
AC
, 125V
DC
30mΩ max.
Max. 10ms
Max. 5ms
Mechanical 2 x 10
7
ops. at no load.
Electrical 3 x 10
4
ops. @2A/250V
AC
10-pin 3.81 mm terminal block * 3 (I/O)
3-pin 3.81 mm screw terminal block (power)
RJ-45 * 2 (EtherCAT)
120 mm x 120 mm x 40 mm
-20 ~ 60°C (32 ~ 140°F)
-40 ~ 70°C (-40 ~ 158°F)
5 ~ 95% RH (non-condensing)
10 ~ 30 V
DC
Typical 85mA @24V; Max. 110mA @24V
Digital Input
Channels
Input voltage
Isolation protection
16
Logic 0: 3 V max.; Logic 1: 10 V min. (30 V max.)
2,500 V
DC
Digital Input
PhotoMOS Relay Output
Channels
Relay type
Load Voltage
Load current
Peak load current
Isolation protection
Turn-on time
Turn-off time
Connectors
Dimensions
Operating temperature
Storage temperature
Storage humidity
Power supply
Power Consumption
8
PhotoMOS SPST(Form A)
60V (AC peak or DC)
1.2A
4A @100ms(1 pulse)
1,500 V
DC
1 ms typical
0.6 ms typical
10-pin 3.81 mm terminal block * 4 (I/O)
3-pin 3.81 mm screw terminal block (power)
RJ-45 * 2 (EtherCAT)
120 mm x 120 mm x 40 mm
-20 ~ 60°C (32 ~ 140°F)
-40 ~ 70°C (-40 ~ 158°F)
5 ~ 95% RH (non-condensing)
10 ~ 30 V
DC
Typical 85mA @24V; Max. 110mA @24V
Relay Output
General
General
Connectors
Dimensions
Operating temperature
Storage temperature
Storage humidity
Power supply
Power Consumption
Ordering Information
AMAX-4850-AE
96PSD-A40W24-MM
16 IDI & 8 PhotoMOS EtherCAT Remote I/O module
DIN RAIL A/D 100-240V 40W 24V
Ordering Information
AMAX-4860-AE
96PSD-A40W24-MM
8-ch IDI & 8-ch Relay EtherCAT Remote I/O module
DIN RAIL A/D 100-240V 40W 24V
Intelligent Motion Control and Machine Vision
All product specifications are subject to change without notice
Last updated: 4-Dec-2017
