2 |
Tippette Actuator Styles & Special Circuits - General Specifications
Electrical
Contact Rating
Life
Contacts
Terminals
15 amps, 125 VAC
10 amps, 250 VAC
3/4 HP 125-250 VAC
15 amps, 12-30 VDC
25,000 cycles circuit dependent
50,000 cycles circuit dependent
consult factory for applicable
circuits.
Fine silver, silver cad-oxide
Brass or copper/silver plate
1/4” (6.3mm) Quick Connect
terminations standard.
Solder lug - Brass Tin Plated
Wire Lead 16 gauge standard 105°C
600VAC
Screw Terminals - Brass
Physical
Lighted
Seals
Base
Rocker/Bracket
Incandescent - rated 10,000 hours
Neon - rated 25,000 hours
Bracket - Actuator WBL/MBL
optional external gasket panel seal
Phenolic (150°C)
Nylon 66 (105°C)
Mechanical
Endurance
100,000 cycles minimum

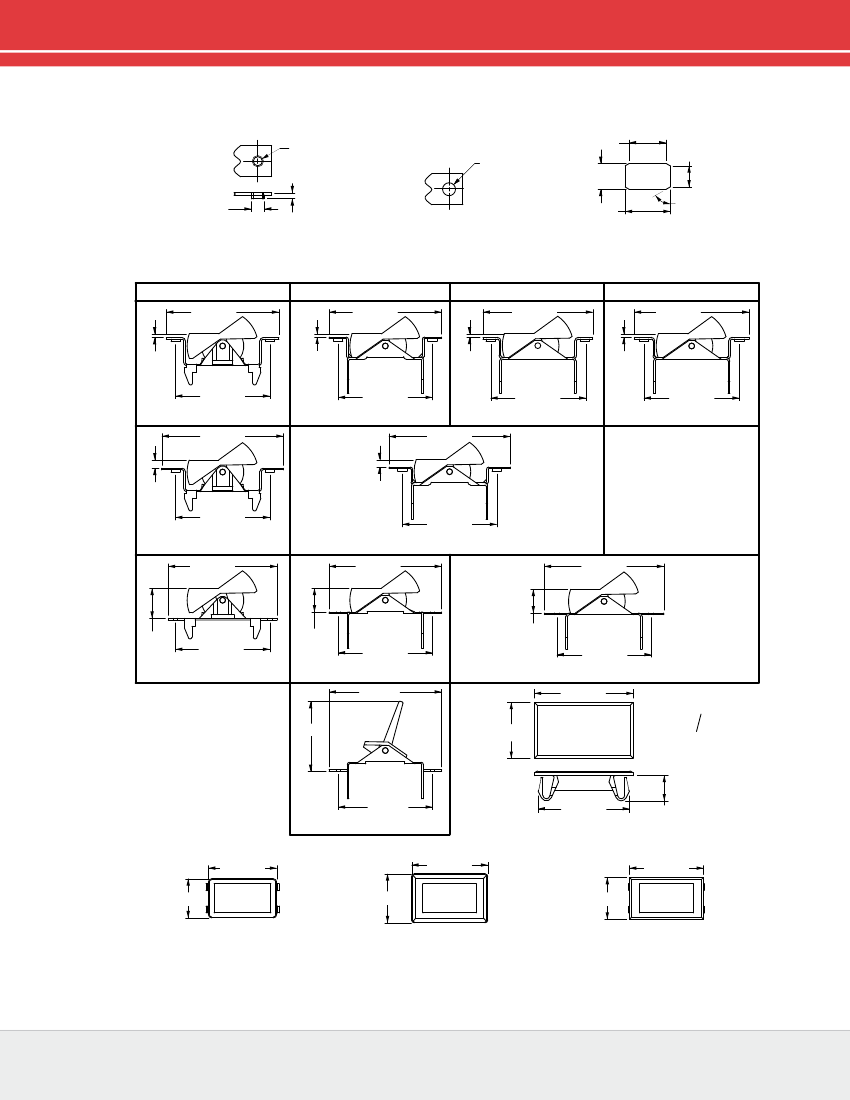

Mounting
MOUNTING HOLE
(Nylon Snap-in Brackets)
Panel Thickness:
.040 min. - .250 max.
1.190 [30.22]
.680 [17.27]
.830 [21.08]
55˚ - 4 places
1.450 [36.83]
*Angled corners are suggested for optimum fit.
Standard rectangular cutout is acceptable.
Agency Certifications
Select circuits and constructions with VDE/IEC approvals
are available. Consult factory
*Manufacturer reserves the right to change product specification without prior notice.
Email: sales
@
carlingtech.com Application Support: team2@carlingtech.com
Phone: (860) 793–9281 Fax: (860) 793–9231
www.carlingtech.com
TIG/TIH/TII & LTIL/LTIG-Series Rocker & Paddle Switches - Ordering Schemes
| 3
1
Base Part Number
TIGA51
2
Actuator Style
6M
3
Actuator Color
BL
4
Bracket
MBL
3 ACTUATOR COLOR
9
BL
Black
WH
White
RD
Red
4 BRACKET STYLE
9
A
Screw Mount
5
B
Screw Mount
5,12
C
Screw Mount
5
H
Screw Mount
5
NBL
Nylon Black
WBL
Water shedding Black
4
MBL
Marine Style Black
4,6
FN
Metal Snap-In
5
FN BLK
Black Metal Snap-In
5
FN SS
Stainless Steel Snap-In
5
FW
Wide Stainless Steel Snap-In
5
Notes:
1
NBL, FN, & FW brackets only.
2
For single pole switch in a single pole base, specify TIL
with single pole circuitry/rating/termination.
3
NBL, WBL, & MBL brackets only. With 6M actuator,
brackets also will be matte finish.
4
6M & 6S actuators only
5
Not available with 6M & 6S actuators.
6
Consists of WBL bracket, neoprene seal, and dummy
rivets at open holes. Consult factory for agency approval
status.
7
All ratings are appropriate for usage in low voltage
applications.
8
For additional special circuits, see catalog.
9
Custom colors are available, consult factory.
10 .187 tab and PC terminations are also available. Consult
factory for catalog number callout.
11 ( ) momentary
12 Not available with WBL or MBL style brackets.
13 Available with bracket A, C or H only.
14 Not available with MBL, WBL or H brackets. Can be
supplied as a double rocker to control separate poles of
a TIG,TIH or TII switch. Consult factory for details.
1 BASE PART NUMBER: SERIES/POLES / CIRCUITRY
8,11
/ RATING
7
/ TERMINATION
10
10A 250VAC, 15A 125VAC, 3/4 HP 125-250VAC, 15A 6-28VDC
Single Pole in Double Pole base
2
Double Pole
solder
.250
screw
wire
solder
.250
screw
lug
tab
term.
leads
lug
tab
term.
TIGA50 TIGA51 TIGA54
TIGA55
On-None-Off
TIGK50 TIGK51 TIGK54
TIGA5A TIGA5B TIGA5E
TIGA5F
(On)-None-Off
TIGK5A TIGK5B TIGK5E
TIGA5L TIGA5M TIGA5S
TIGA5T
On-None-(Off)
TIGK5L TIGK5M TIGK5S
TIGB50 TIGB51 TIGB54
TIGB55
On-None-On
TIGL50
TIGL51 TIGL54
TIGB5A TIGB5B TIGB5E
TIGB5F
On-None-(On)
TIGL5A TIGL5B TIGL5E
TIGC50 TIGC51 TIGC54
TIGC55
On-Off-On
TIGM50 TIGM51 TIGM54
TIGC5A TIGC5B TIGC5E
TIGC5F
On-Off-(On)
TIGM5A TIGM5B TIGM5E
TIGC5L TIGC5M TIGC5S
TIGC5T
(On)-Off-(On)
TIGM5L TIGM5M TIGM5S
Three Pole
Four Pole
solder
.250
screw
wire
solder
.250
screw
lug
tab
term.
leads
lug
tab
term.
TIHK50 TIHK51 TIHK54
TIHK55
On-None-Off
TIIK50
TIIK51 TIIK54
TIHK5A TIHK5B TIHK5E
TIHK5F
(On)-None-Off
TIIK5A
TIIK5B TIIK5E
TIHK5L TIHK5M TIHK5S
TIHK5T
On-None-(Off)
TIIK5L
TIIK5M TIIK5S
TIHL50 TIHL51 TIHL54
TIHL55
On-None-On
TIIL50
TIIL51
TIIL54
TIHL5A TIHL5B TIHL5E
TIHL5F
On-None-(On)
TIIL5A
TIIL5B TIIL5E
TIHM50 TIHM51 TIHM54
TIHM55
On-Off-On
TIIM50
TIIM51 TIIM54
TIHM5A TIHM5B TIHM5E TIHM5F
On-Off-(On)
TIIM5A
TIIM5B TIIM5E
TIHM5L TIHM5M TIHM5S TIHM5T
(On)-Off-(On)
TIIM5L
TIIM5M TIIM5S
VDE APPROVED
10A 250VAC, 15A 125VAC, 12(6)A 250VAC T85
Single Pole in Double Pole base
2
Double Pole
solder
.250
wire
solder
.250
wire
lug
tab
lead
lug
tab
lead
TIGA90 TIGA91 TIGA95
On-None-Off
TIGK90 TIGK91 TIGK95
TIGB90 TIGB91 TIGB95
On-None-On
TIGL90
TIGL91 TIGL95
TIGC90 TIGC91 TIGC95
On-Off-On
TIGM90 TIGM91 TIGM95
wire
leads
TIGK55
TIGK5F
TIGK5T
TIGL55
TIGL5F
TIGM55
TIGM5F
TIGM5T
wire
leads
TIIK55
TIIK5F
TIIK5T
TIIL55
TIIL5F
TIIM55
TIIM5F
TIIM5T
Additional ratings up to 20A 125-277VAC, 1 1/2HP 125 VAC, 2HP 250VAC are available.
Consult factory for specifics.

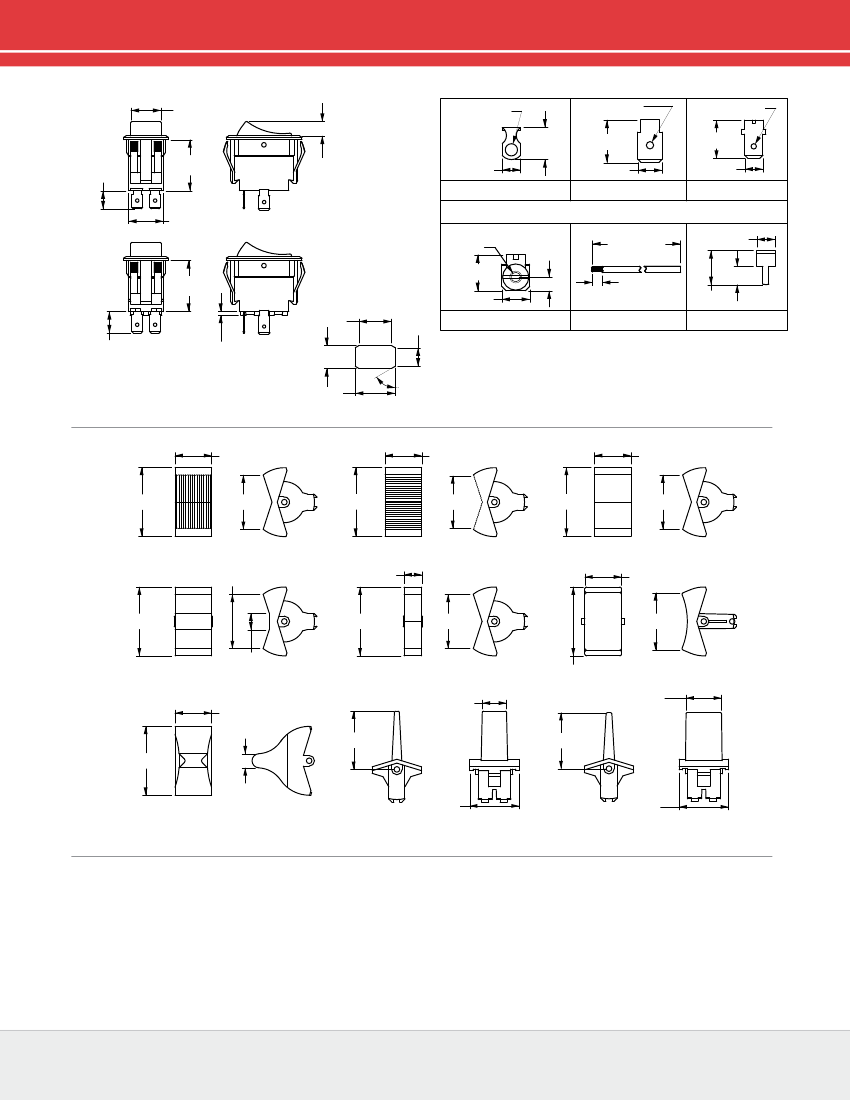

2 ACTUATOR STYLE
1S
Angular/Smooth Face Gloss
12
1C
Angular/Cross Serrations Gloss
12
1F
Flatted/Smooth Face Gloss
12
1L
Angular/Longline Serrations Gloss
1,12
2L
Long Smooth/Narrow
14
6M
6S
7S
7N
7P
Curved/Smooth Face Matte
3
Curved/Smooth Face Gloss
3
Rounded Paddle/Smooth Face Gloss
1
Witch’s Hat/Narrow
14
Witch’s Hat/Wide
14
1
Base Part Number
LTILA51
2
Actuator Style
6M
3
Actuator Color
BL
4
Lens Color
RC
5
Bracket
MBL
6
Lamp Voltage
12V
1 BASE PART NUMBER: SERIES / POLES / ILLUMINATION / CIRCUITRY
12
/ RATING
10
/
TERMINATION
14
10A 250VAC, 15A 125VAC, 3/4 HP 125-250VAC, 15A 15-28VDC
illuminated Single Pole in Double Pole base
illuminated Double Pole
solder
.250
screw
wire
solder
.250
screw
wire
lug
tab
term.
leads
lug
tab
term
leads
LTILA50 LTILA51 LTILA54 LTILA55
On-None-Off
LTIGK50 LTIGK51 LTIGK54 LTIGK55
LTILA5A LTILA5B LTILA5E LTILA5F
(On)-None-Off
LTIGK5A LTIGK5B LTIGK5E LTIGK5F
LTILA5L LTILA5M LTILA5S LTILA5T
On-None-(Off)
LTIGK5L LTIGK5M LTIGK5S LTIGK5T
LTILB50 LTILB51 LTILB54 LTILB55
On-None-On
LTIGL50 LTIGL51 LTIGL54 LTIGL55
LTILB5A LTILB5B LTILB5E LTILB5F
On-None-(On)
LTIGL5A LTIGL5B LTIGL5E LTIGL5F
LTILC50 LTILC51 LTILC54 LTILC55
On-Off-On
LTIGM50 LTIGM51 LTIGM54 LTIGM55
LTILC5A LTILC5B LTILC5E LTILC5F
On-Off-(On)
LTIGM5A LTIGM5B LTIGM5E LTIGM5F
LTILC5L LTILC5M LTILC5S LTILC5T
(On)-Off-(On)
LTIGM5L LTIGM5M LTIGM5S LTIGM5T
Additional ratings up to 12A 250VAC, 17A 125 VAC, 3/4 HP 125 VAC, 1HP 250VAC are available.
Consult factory for specifics.
Three pole switch is also available: Substitute H for fourth digit of part number. ex. LTIHK51
Notes:
1
NBL, FN, & FW brackets only. Double pole circuits provided with 3 pole base.
2
LTIL-Series with NBL, FN, & FW brackets only.
NBL, WBL, & MBL brackets only. With 6M actuator, bracket will also be matte finish.
3
4
1S, 1C, 1L & 7S with NBL bracket only available with LTIL-Series.
5
6M, 6S actuators only.
6
Not available with 6M and 6S actuators.
Not recommended with neon lamps.
7
8
Consists of WBL bracket, neoprene seal, dummy rivets at open holes. Consult factory for agency approval status.
9
Not recommended with blue or green lenses.
10 All ratings are appropriate for usage in low voltage applications.
11 Custom colors and additional bracket styles are available, consult factory.
12 ( ) - momentary
13 All double throw circuits supplied with two lenses. To specify two different lens colors, specify second color, after first color.
(ex. LTIGM51-6S-BL-RC/GN-WBL-12V)
14 .187 tab and PC terminations are also available. Consult factory for catalog number callout.
2 ACTUATOR STYLE
4
1S
Angular/Smooth Face Gloss
1
1C
Angular/Cross Serrations Gloss
1
1L
Angular/Longline Serrations Gloss
1
6M
Curved/Smooth Face Matte
3
6S
Curved/Smooth Face Gloss
3
7S
Rounded Paddle/Smooth Face Gloss
2
3 ACTUATOR COLOR
11
BL
Black
WH
White
RD
Red
4 LENS COLOR
13
AM
Amber
RC
Red
LU
Blue
7
CL
Clear
GN
Green
7
WH
White
5 BRACKET STYLE
11
NBL
Nylon Black
WBL
Water shedding Black
5
MBL
Marine Style Black
5,8
FN
Metal Snap-In
4,6
FN BLK
Black Metal Snap-In
4,6
FN SS
Stainless Steel Snap-In
4,6
6 LAMP VOLTAGE
neon
9
125N
125 volt
250N
250 volt
incandescent
6V
6 volt
12V
12 volt
18V
18 volt
24V
24 volt
28V
28 volt
