1.30.270.051/2208 Overview

Switch Actuator RAFIX PshBtn Illum White/Weiss

1.30.270.051/2208 Parametric

Parameter Name	Attribute value
Maker	RAFI
Product Category	switch actuator
Shipping restrictions	Mouser does not currently sell this product.
Factory packaging quantity	10

Preview

Download Datasheet

View All

02.12.2018

RAFIX 22 FS

- Pushbutton, illuminated, flush lens, square

collar, plastic front ring, momentary

1.30.270.051/2208

General information

Form of lens

Color of lens

Color of front ring

Form of collar

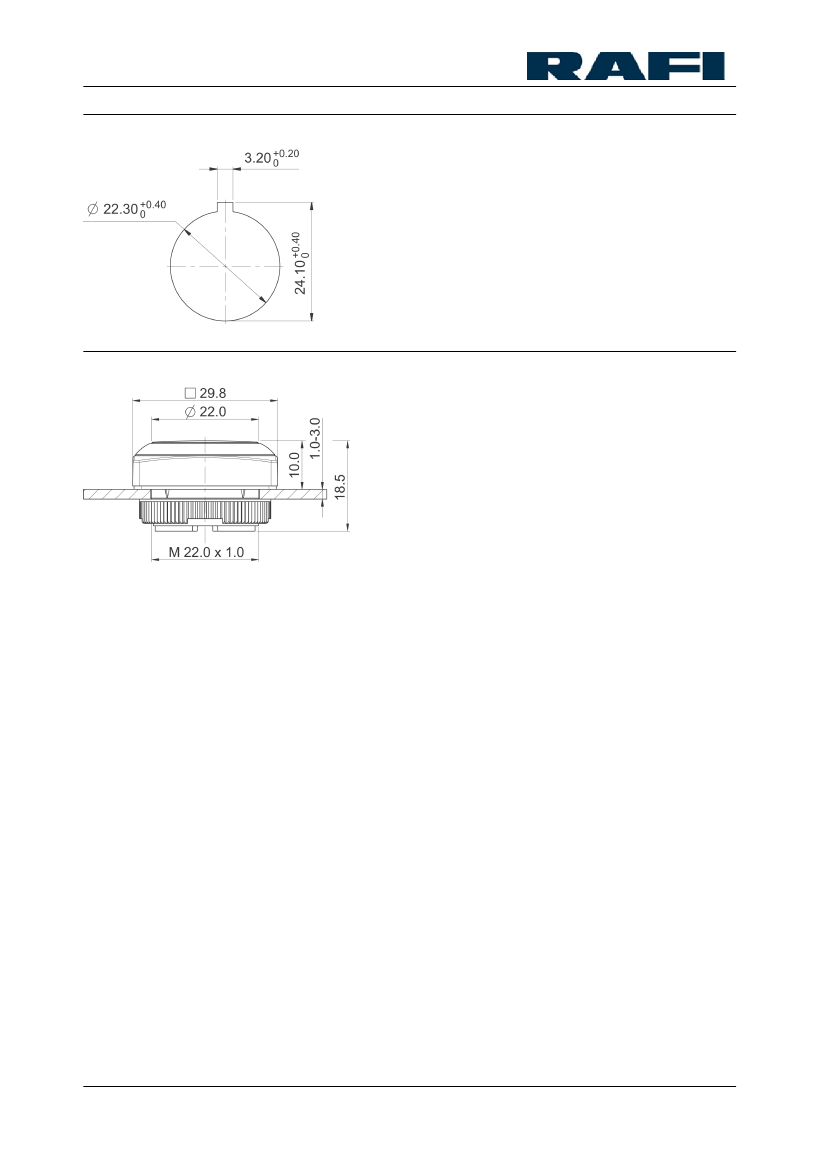

Dimensions

Dimensions of collar

Width of collar

Overall height

Mounting depth

Mounting hole

Key grid

Mechanical design

Mounting

Contact function

Illuminability

Torque for nut ring

Mechanical characteristics

Operating travel

Robustness max.

Other specifications

Ambient temp. operating min.

Ambient temp. operating max.

Storage temperature min.

Storage temperature max.

Operating life

B10

Degree of protection from front side

Environmental restistance

Salt spray

ROHS compliant

REACH compliant

flat lens

translucent white

silver-grey

square

29.8 x 29.8 mm

29.8 mm

9.85 mm

PCB 9.2 mm, QC 27 mm

22.3 mm

30 x 30 mm

ring nut

momentary

yes

1.2 Nm

4 mm

100 N

-25 °C

+70 °C

-40 °C

+80 °C

1,000,000 momentary / 500,000 latching cycle

1,300,000 momentary / 650,000 latching cycle

IP65 (DIN EN 60529)

acc. to IEC 60068-2-14, -30, -33 and -78

IEC 600 68-2-11

yes

Technical data are approximate and intended solely for general orientation in the selection of a product.

Subject to modifications and errors. Images and other graphics may only be similar.

For more information, refer to www.rafi.de chapter Imprint / Data Protection.
