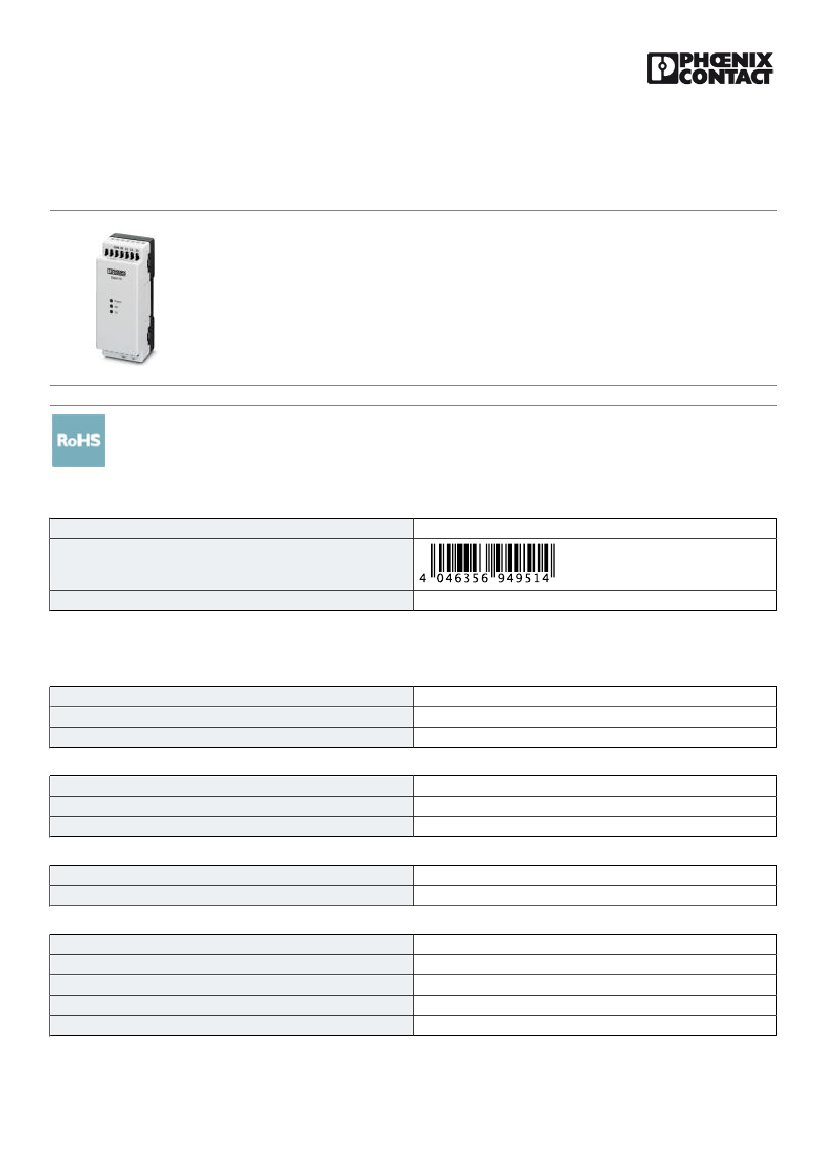

I/O extension module - NLC-IOX-04I-02QRD-05A - 2702032
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
I/O extension module for use with NLC-035... and NLC-040 base units. Equipped with 4 digital input and 2
relay output channels. A maximum of one I/O extension modules can be attached to the base unit.
Key Commercial Data
Packing unit
GTIN
GTIN
4046356949514
1 pc
Technical data
Dimensions
Width
Height
Depth
40 mm
103.5 mm
43 mm
Ambient conditions
Degree of protection
Ambient temperature (operation)
Ambient temperature (storage/transport)
IP20
-25 °C ... 70 °C
-25 °C ... 85 °C
Supply
Supply voltage
Supply voltage range
24 V DC
18 V DC ... 24 V DC
Digital inputs
Input name
Description of the input
Connection method
Number of inputs
Typical response time
Digital inputs
PNP
Screw connection
4
100 µs (on)
11/05/2018 Page 1 / 3
https://www.phoenixcontact.com/pi/products/2702032
I/O extension module - NLC-IOX-04I-02QRD-05A - 2702032
Technical data
Digital inputs
200 µs (OFF)
Input voltage range "0" signal
Input voltage range "1" signal
Nominal input current at U
IN
0 V DC ... 5 V DC
11 V DC ... 30 V DC
1.2 mA
Digital outputs
Output name
Output description
Connection method
Number of outputs
Maximum output current per channel
Maximum output current per module / terminal block
Maximum output current per module
Relay output
Relay output
Screw connection
2
5A
10 A
10 A
General
Mounting type
DIN rail mounting
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Drawings
Dimensional drawing
40
43
nanoLine Controller
Approvals
Approvals
Approvals
UL Listed / cUL Listed / cULus Listed
Ex Approvals
11/05/2018 Page 2 / 3
103,5
https://www.phoenixcontact.com/pi/products/2702032
I/O extension module - NLC-IOX-04I-02QRD-05A - 2702032
Approvals
Approval details
UL Listed
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
FILE E 238705
cUL Listed
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
FILE E 238705
cULus Listed
