FC4459-440-A datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Mechanical and electronic products> hardware> Supports and gasket> FC4459-440-A

Preview

FC4459-440-A: DescriptionBracket and spacer 5/32 HEX 440 THREAD M/F 3/4 ALUMINUM; CategoryMechanical and electronic products hardware Supports and gasket; File Size116KB，2 Pages; ManufacturerFascomp; Environmental Compliance

Download Datasheet Parametric View All

FC4459-440-A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	FC4459-440-A	-	-	View	Buy Now

FC4459-440-A Overview

Bracket and spacer 5/32 HEX 440 THREAD M/F 3/4 ALUMINUM

FC4459-440-A Parametric

Parameter Name	Attribute value
Maker	Fascomp
Product Category	Brackets and spacers
Shipping restrictions	Mouser does not currently sell this product.
product	Standoffs
type	Hex
Thread size	4-40
length	19.05 mm
Material	Aluminum
outer diameter	-
Type	Male/Female
Factory packaging quantity	100

Preview

Download Datasheet

View All

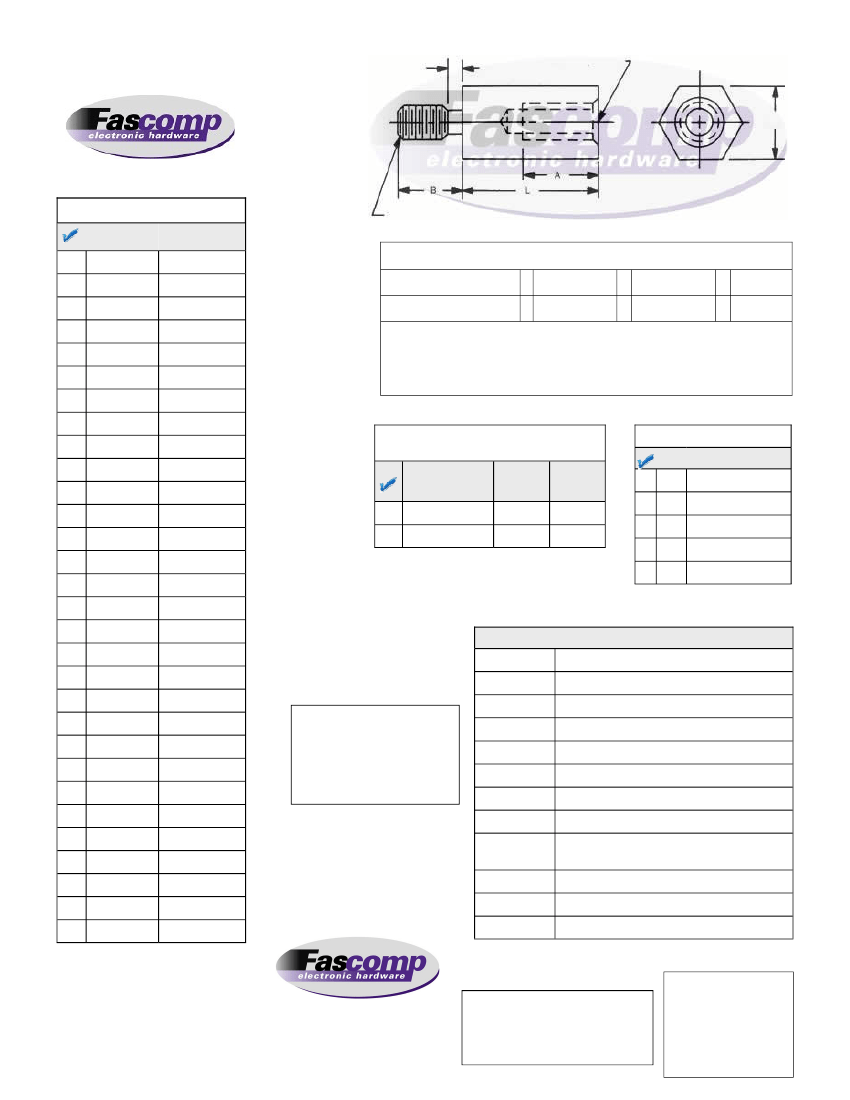

5/32 Hex Male-Female

1-1/2 THREAD

MAX. TO MINOR

DIA.

THREAD

5/32

Hex Length Table

FCXXXX

FC4450

FC4451

FC4452

FC4453

FC4454

FC4455

FC4456

FC4457

FC4458

FC4459

FC4460

FC4461

FC4462

FC4463

FC4464

FC4465

FC4466

FC4467

FC4468

FC4469

FC4470

FC4471

FC4472

FC4473

FC4474

FC4475

FC4476

FC4477

FC4478

FC4479

THREAD

Length (L)

3/16

1/4

5/16

3/8

7/16

1/2

9/16

5/8

11/16

3/4

13/16

7/8

15/16

1

1-1/16

1-1/8

1-3/16

1-1/4

1-5/16

1-3/8

1-7/16

1-1/2

1-9/16

1-5/8

1-11/16

1-3/4

1-13/16

1-7/8

1-15/16

2

A

B, S. SS

B, S

24 - Black Anodize (MIL-A-8625)

26 - Black Oxide

28 - Zinc Yellow (ASTM-B-633)

Tolerances

Unless otherwise Specified

.xxx +/-.005

.xx +/-.010

Angular +/- 1 Degree

Linear +/-.005

Break all sharp edges

Create a part number:

Length

FCXXXX

Thread

XXX

Material

XX

Finish

XX

_______________

-

________

-

_______

-

______

Thread

Short lengths, 'A' tapped to maximum depth

Material

Material Code (XX)

Depth

(A)

Length

(B)

Thread Code

(XXX)

A

B

S

SS

N

Aluminum

Brass

Steel

Stainless Steel

Nylon

256

440

3/16

1/4

5/32

3/16

Compatible Finish (XX)

A, B, S, SS

B, S

A

B, S

SS

A

0 - Plain

5 - Nickel Plate (QQ-N-290)

6 - Iridite #14 Gold (MIL-C-5541E)

7 - Iridite Clear (MIL-C-5541E)

9 - Alodine 1200

12 - Zinc Clear (ASTM-B-633)

16 - Electro Tin (MIL-T-10727 TYPE 1)

20 - Passivation (MIL-F-14072D)

22 - Clear Anodize (MIL-A-8625-TYPE2)

Facomp Electronic Hardware

7814 Kingspointe Pkwy

Orlando, FL 32819

www.fascomp.com

Tel: (407) 226-2112

Fax: (407) 226-3370

Source Contral Drawing:

To be produced by

Fascomp Electronic Hardware

This document is the

property of Fascomp

Inc. and shall not be

reproduced, distributed,

or used as a basis for

manufacturing without

written permission

from Fascomp Inc.
