04.12.2018
RG 85 III - Keylock switch, round design, 1 NO, without lens
3.99.400.141/2000
Please order lenses separately.

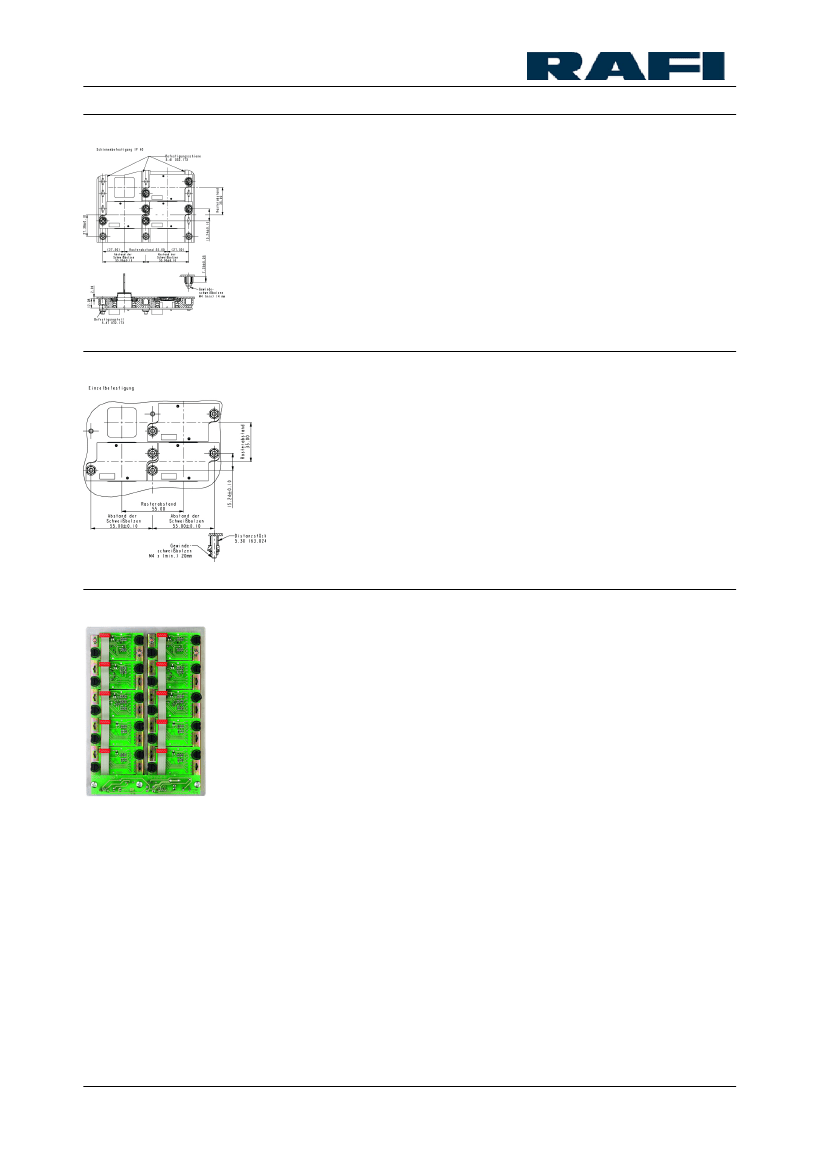

Dimensions
Mounting grid min.
Length
Width
Mechanical design
Version
Mounting
Terminals
Contact system
Contact arrangement
Contact materials
Symbol illumination
Edge illumination
Lock
Key removal position
Mechanical characteristics
Rotating angle
Switching travel NO
Electrical characteristics
Rated voltage min.
Rated voltage max.
Rated current min.
Rated current max.
Rated power max.
Contact resistance when new max.
Contact resistance acc. to life max.
Bouncing time max.
Operating voltage for LED
Input current LED
Other specifications
Ambient temp. operating min.
Ambient temp. operating max.
Storage temperature min.
Storage temperature max.
Environmental restistance
55 x 35 mm
64 mm
34 mm (35 mm with sealing)
round
on U-rails or single mounting
8-pin Micro-Match® female connector
cross contact
1 NO
Au alloy
none
4 LED white
cylinder lock, lock type 5201
Pos. 0 + 1
1 x 90°
1 mm
3V
35 V
0.1 mA
100 mA
1W
100 mΩ
3Ω
10 ms
24
±20%
V
per color/LED row 9 - 16 mA
-25 °C
+70 °C
-40 °C
+80 °C
acc. to IEC 60068-2-14, -30, -33 and -78
Technical data are approximate and intended solely for general orientation in the selection of a product.
Subject to modifications and errors. Images and other graphics may only be similar.
For more information, refer to www.rafi.de chapter Imprint / Data Protection.

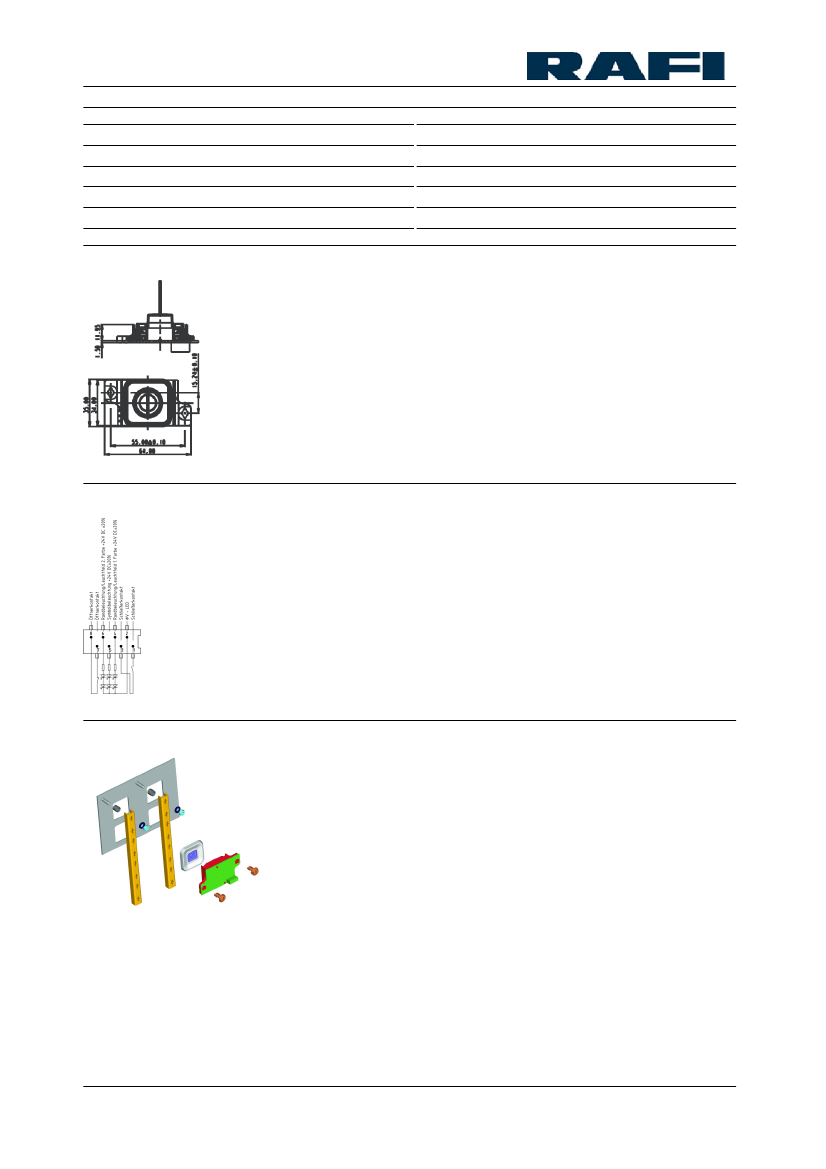

04.12.2018
Operating life min. (operations)
Degree of protection rail mounting
Degree of protection single mounting
Flammability of materials
ROHS compliant
REACH compliant
50,000 cycle
IP40 (DIN EN 60529)
IP65 (DIN EN 60529)
according to UL 94 HB
yes
yes
