Features
□Miniature
PCB automotive relay.
□High
rating 20A/14VDC ; motor load 5A/14VDC ;
maximum carry current up to 35A.
□Optional
SPNO, SPDT, DPNO contact configurations.
□Available
for sealed flux free and sealed washable
versions.
□General
purpose application for motor control for
power window, sunroof, door lock, and flashing
lamp control, etc.
Type List
Terminal
style
Contact
form
1A (SPNO)
PCB terminal
Flux tight
895-1A-C
895-1A-C-H
895-1C-C
895-1C-C-H
895-2A-C
Designation (provided with)
Sealed type
895-1A-V
895-1A-V-H
895-1C-V
895-1C-V-H
895-2A-V
Sealed type
washable
895-1A-S
895-1A-S-H
895-1C-S
895-1C-S-H
895-2A-S
1C (SPDT)
2A (DPNO)
Ordering Information
895
1
2. 1A
1C
2A
-
1A
2
-
C
3
-
H
4
3. C
V
S
-- Flux tight
-- Sealed type
-- Sealed type washable
1. 895
-- Basic series designation
-- Single pole normally open
-- Single pole double throw
-- Single pole normally open with
two N.O. terminals
4. Blank -- Standard type
H
-- Enlarge contact spacing
Contact Rating
◆
1P
Resistive load
Motor load
Max. carry current
NC：10A 14VDC , NO：20A 14VDC
，
on 1 sec , off 9 sec , 100,000 ops.
5A 14VDC Inrush 25A
，on
0.5 sec , off 9.5 sec , 200,000 ops.
35A/2min. , 25A/1hr (25℃ nominal voltage)
30A/2min. , 20A/1hr (85℃ nominal voltage)
◆
2A
Lamp load
Max. carry current
2 NO 21WX6 Lamps 14VDC
2X6A (25℃ nominal voltage)
2X4A (85℃ nominal voltage)
243
895
Coil Rating (DC)
◆
1P
Rated
voltage
(V)
5
9
12
24
Rated current
(mA)
128
71.1
53.3
26.7
SONG CHUAN
SONG CHUAN
895
Power consumption
at rated
voltage
approx. 0.64W
Coil resistance Max. continuous
voltage
at 85˚C
120% of
rated
voltage
(Ω)
39
127
225
900
Pick up
voltage(Max)
at 23˚C
60% of
rated
voltage
Drop out
voltage(Min)
at 23˚C
8% of
rated
voltage
±10
% at 23˚C
±10
% at 23˚C
◆
2A
Rated
(V)
9
12
Rated current
(mA)
111.1
83.3
Coil resistance Max. continuous
voltage
at 85˚C
130% of
rated
voltage
(Ω)
81
144
Pick up
voltage(Max)
at 23˚C
60% of
rated
voltage
Drop out
voltage(Min)
at 23˚C
8% of
rated
voltage
approx. 1.0W
Power consumption
at rated
voltage
voltage
±10
% at 23˚C
±10
% at 23˚C
◆
1P(- H)
-
Rated
voltage
(V)
12
24
Rated current
(mA)
67.4
33.3
Coil resistance Max. continuous
voltage
at 85˚C
120% of
rated
voltage
(Ω)
178
720
Pick up
voltage(Max)
at 23˚C
60% of
rated
voltage
Drop out
voltage(Min)
at 23˚C
8% of
rated
voltage
Power consumption
at rated
voltage
±10
% at 23˚C
±10
% at 23˚C
approx. 0.8W
Specification
Contact material
Contact voltage drop
Operate time
Release time
(1)
(1)
(1)
AgSnO alloy
Typ. 80mV at 10A
10ms Max.
5ms Max.
100MΩ Min. (DC 500V)
Between open contact
Between contact and coil
Operating extremes
Damage limits
Operating extremes
Damage limits
Mechanical
:
AC 500V , 50/60Hz 1 min.
:
AC 500V , 50/60Hz 1 min.
Insulation resistance
(1)
Dielectric strength
(1)
Vibration resistance
10∼55Hz , amplitude 1.5 mm
10∼55Hz , amplitude 1.5 mm
10G
100G
10,000,000 operations
(frequency 18,000 operations/hr)
100,000 operations
(for 2A)
Shock resistance
Life expectancy
Electrical
Operating ambient temperature
Weight
Note：(1) initial value
(frequency 240 operations/hr)
-40∼+85˚C (no freezing)
Approx. 6 g
244
895

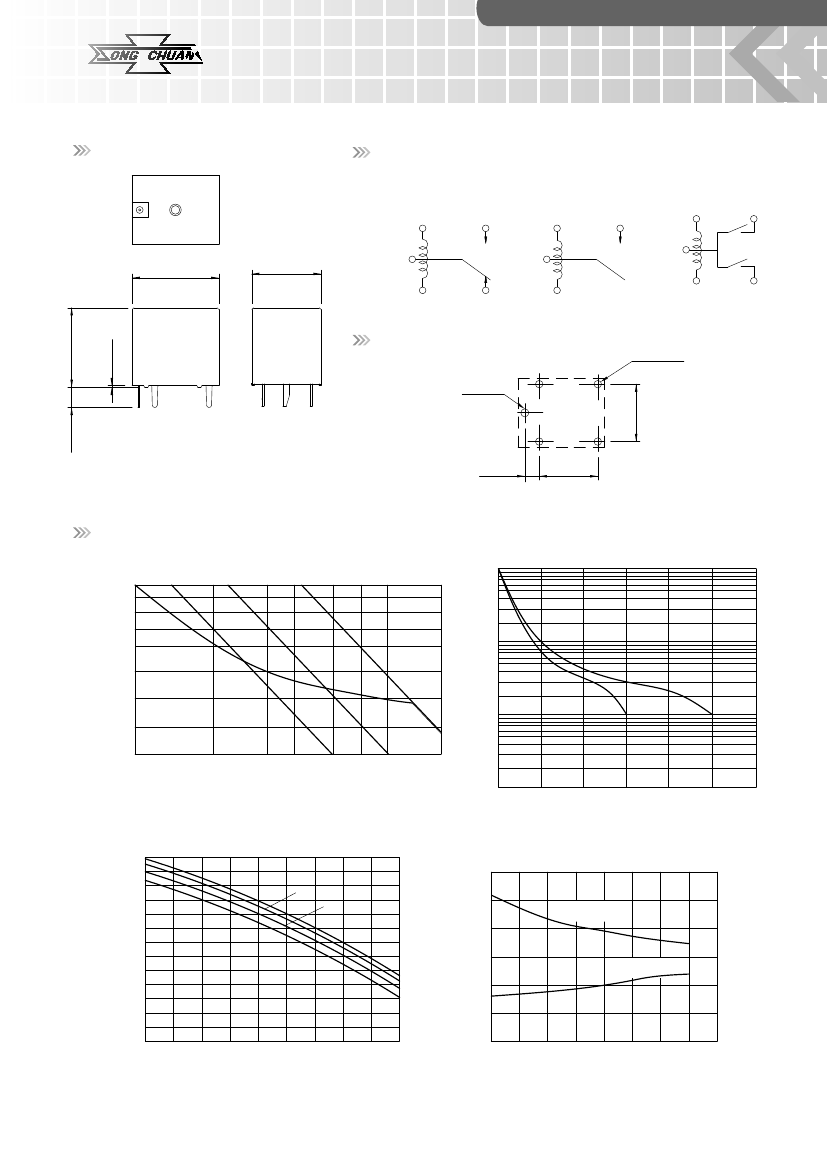

Outline Dimensions
15.5
(0.610)
SONG CHUAN
SONG CHUAN
895
2A
Wiring Diagram
BOTTOM VIEW
1C
1A
12
(0.472)
(0.543)
13.8
PC Board Layout
(0.012)
0.3
BOTTOM VIEW
φ
1.3-4
(0.051)
φ
1.4
(0.394)
(0.138)
3.5
2.5
(0.098)
10.2
(0.402)
Engineering Data
Safe breaking,arc extinguished
(normally open contact) for resistive loads.
75
70
Life expectancy
10
7
Switching voltage(VDC)
60
50
40
10
0W
Number of operations
10
6
30
20
10
5
1B
10
(0.055)
28
0W
1A
50
W
15
10
0.5
1
2
3
5
7
10
20
0
Switching current(A)
1
5
10
15
20
25
14VDC resistive load/Switching current(A)
Ambient temperature vs coil voltage for continuous duty
Max.allowable ambient temperature
140
130
120
110
100
90
80
70
60
50
40
30
20
70
80
90
100
110
120
130
140
150
160
60
70
80
90
100
110
120
130
140
Operate time/Release time
A
B
C
D
6
5
Operate time
Time (ms)
4
3
2
1
Release time
Applied coil voltage (% of rated nominal)
A:5A B:10A C:15A D:20A Contact load(resistive)
Maximum mean coil temperature=155℃
% of Nominal coil voltage (at 23℃)
