805WP-1AC-F-CF-12VDC datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> relay> General relay> 805WP-1AC-F-CF-12VDC

805WP-1AC-F-CF-12VDC: DescriptionGeneral purpose relay 20A 1SPNO 12VDC Class F, Flux tight; CategoryMechanical and electronic products relay General relay; File Size142KB，6 Pages; ManufacturerSong Chuan; Environmental Compliance

Download Datasheet Parametric View All

805WP-1AC-F-CF-12VDC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	805WP-1AC-F-CF-12VDC	-	-	View	Buy Now

805WP-1AC-F-CF-12VDC Overview

General purpose relay 20A 1SPNO 12VDC Class F, Flux tight

805WP-1AC-F-CF-12VDC Parametric

Parameter Name	Attribute value
Maker	Song Chuan
Product Category	General purpose relay
product	Power Relays
series	805
Factory packaging quantity	25

Preview

Download Datasheet

View All

SONG CHUAN

805

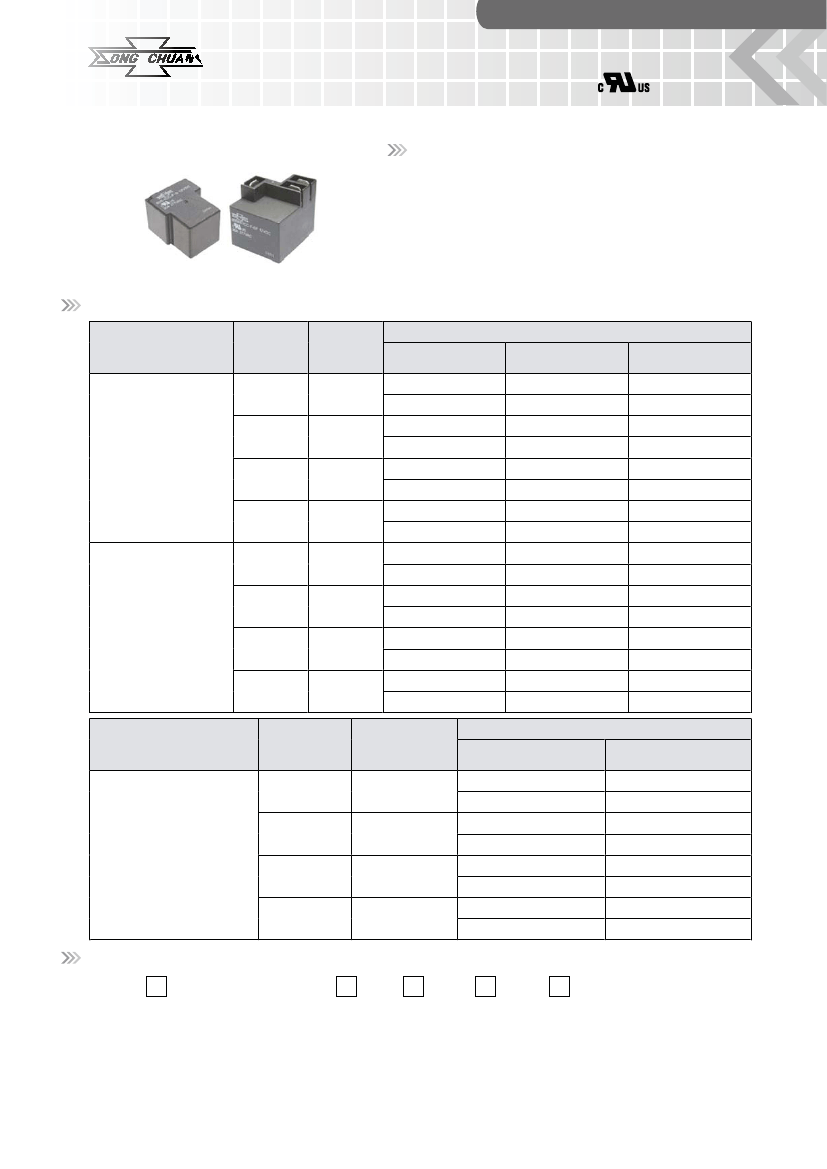

Features

Optional for open frame, dust cover, sealed type and

with/without quick terminal on top.

High rating 20A 240VAC.

Ideal for home appliances application, specially for

heating control use.

Complies with RoHS-Directive 2011/65/EU.

Type List

Terminal

style

Contact

form

(SPNO)

(SPDT)

PCB terminal

(SPNO)

(SPDT)

(SPNO)

(SPDT)

(SPNO)

(SPDT)

Terminal

style

Contact

form

(SPNO)

(SPDT)

(SPNO)

(SPDT)

----

Insulation

system

----

-----

Flux tight

805-1AC-C

805-1AH-C

805-1CC-C

805-1CH-C

805-1AC-F-C

805-1AH-F-C

805-1CC-F-C

805-1CH-F-C

805WP-1AC-C

805WP-1AH-C

805WP-1CC-C

805WP-1CH-C

805WP-1AC-F-C

805WP-1AH-F-C

805WP-1CC-F-C

805WP-1CH-F-C

Designation

Sealed type

805-1AC-V

805-1AH-V

805-1CC-V

805-1CH-V

805-1AC-F-V

805-1AH-F-V

805-1CC-F-V

805-1CH-F-V

805WP-1AC-V

805WP-1AH-V

805WP-1CC-V

805WP-1CH-V

805WP-1AC-F-V

805WP-1AH-F-V

805WP-1CC-F-V

805WP-1CH-F-V

Sealed type

washable

805-1AC-S

805-1AH-S

805-1CC-S

805-1CH-S

805-1AC-F-S

805-1AH-F-S

805-1CC-F-S

805-1CH-F-S

805WP-1AC-S

805WP-1AH-S

805WP-1CC-S

805WP-1CH-S

805WP-1AC-F-S

805WP-1AH-F-S

805WP-1CC-F-S

805WP-1CH-F-S

WP (PCB terminal &

Quick terminal)

Insulation

system

----

-----

Designation

Flux tight

Sealed type washable

(with shroud)

805WP-1AC-CF

805WP-1AC-SF

805WP-1AH-CF

805WP-1CC-CF

805WP-1CH-CF

805WP-1AC-F-CF

805WP-1AH-F-CF

805WP-1CC-F-CF

805WP-1CH-F-CF

805WP-1AH-SF

805WP-1CC-SF

805WP-1CH-SF

805WP-1AC-F-SF

805WP-1AH-F-SF

805WP-1CC-F-SF

805WP-1CH-F-SF

WP (PCB terminal &

Quick terminal)

Ordering Information

805

1. 805

3. 1A

4. C

-- Single pole normally open

-- Single pole double throw

-- Contact material AgNi

-- Contact material AgSnO

-- Basic series designation

2. Blank -- PCB terminal

-- Quick terminal (only for C1 cover)

-- PCB terminal & Quick terminal

131
