EM322617 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> connection terminal > Fixed terminal> EM322617

Preview

EM322617: DescriptionFixed terminal block 17P EM3226 Series; CategoryThe connector connection terminal Fixed terminal; File Size872KB，2 Pages; ManufacturerBussmann (Eaton); Environmental Compliance

Download Datasheet Parametric View All

EM322617 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	EM322617	-	-	View	Buy Now

EM322617 Overview

Fixed terminal block 17P EM3226 Series

EM322617 Parametric

Parameter Name	Attribute value
Maker	Bussmann (Eaton)
Product Category	Fixed terminal block
Shipping restrictions	Mouser does not currently sell this product.
Number of locations	17 Position
Pitch	7.62 mm
connection method	Spring Cage
Current rating	16 A
Voltage rating	300 V
Wire gauge range	26 AWG to 12 AWG
series	EM3226
Encapsulation	Bulk
Contact plating	Tin
product	Fixed Terminal Blocks
Termination type	Through Hole
Contact material	Brass
Flammability rating	UL 94 V-0
Factory packaging quantity	100

Preview

Download Datasheet

View All

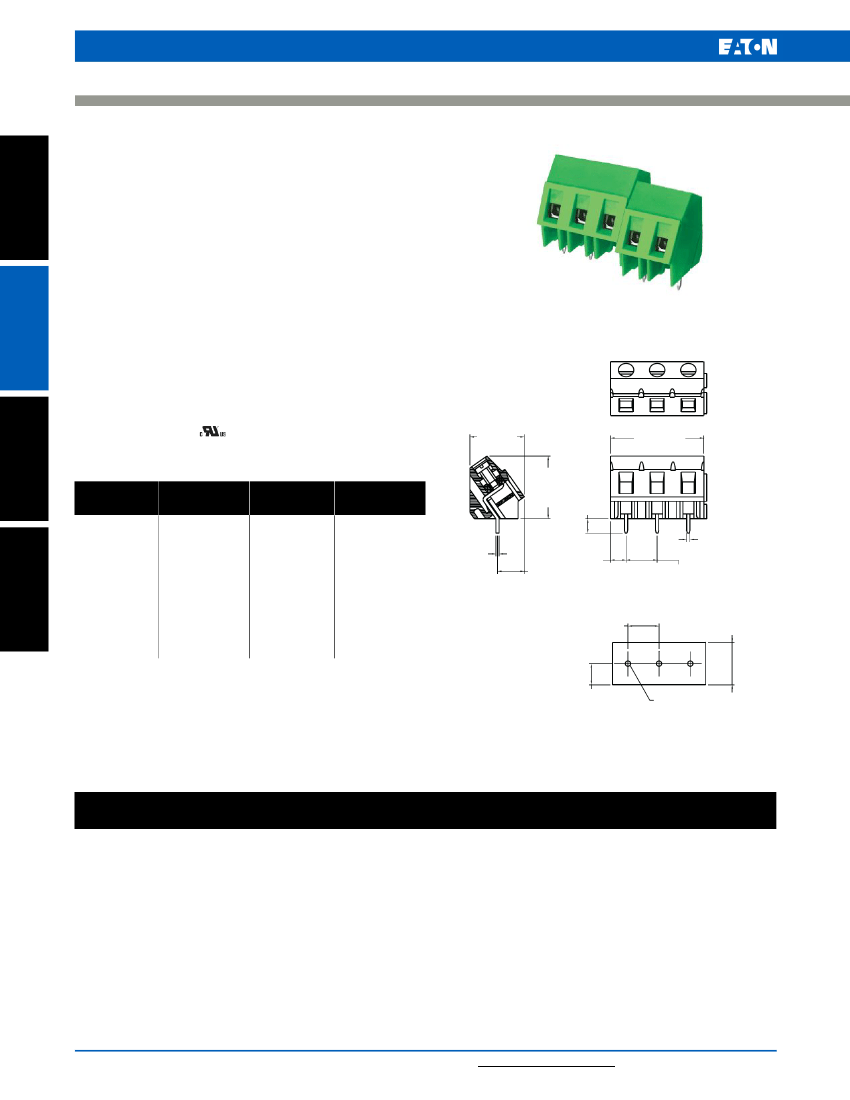

EuroMag Series PCB Mount Terminal Blocks

Terminal Blocks:

Single Row

EM3226 Series

EuroMag Terminal Blocks

35° Angle, 7.62 Centers; Modular

SPECIFICATIONS

Rating:

16A, 300V

Center Spacing:

0.30” (7.62mm)

Wire Range:

#12-26 AWG

Housing Material:

UL rated 94V0 Thermoplastic

Contact Material:

Brass Tin-Plated

Cage Material:

Brass, Nickel-Plated

Screw Size:

M2.6

Zinc-Plated

Steel

Operating Temperature:

105°C (221°F) max., -40°C

(-40°F) min.

Torque Rating:

5.0 lb-in.

Recommended PCB Hole Diameters:

0.055" (1.40mm)

Construction:

Modular design features dovetails for

interlocking to achieve longer lengths

Agency Information:

File E62622; CE Certified

EuroMag Series

Cage

& Screw

EM322605

Dimensions - mm (in)

Edge Connectors,

One-Sided Boards

13.3+0.3

_

(0.524")

15.3+0.3

_

(0.602")

3.5+0.3

_

(0.138")

L+0.5

_

Poles

2*

3*

4

5

6

7

8

9

10

11

12

13

L (mm)

15.24

22.86

30.48

38.10

45.72

53.34

60.96

68.58

76.20

83.82

91.44

99.07

Poles

14

15

16

17

18

19

20

21

22

23

24

L (mm)

106.69

114.31

121.93

129.55

137.17

144.79

152.41

160.03

167.65

175.27

182.89

Compliance

References

0.8+0.1

_

(0.031")

7.62+0.1

_

(0.300")

PCB Hole Layout

* Mold-to-Length

To convert to inches, divide by 25.4

Part Numbering System

EM322 6

nnnnnn nn

Series

02

to

24

# of Poles

7+0.3

_

(0.276")

ø1.4~1.5

(ø0.055"~0.059")

13.3+0.3

_

(0.524")

3.81+0.3

_

(0.150")

7+0.3

_

(0.276")

0.9+0.1

_

(0.035")

7.62+0.1

_

(0.300")

For additional product information, visit

www.eaton.com/connectors
