DR24S05012NAFA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The power supply> DC/DC converters> Isolated DC/DC converter> DR24S05012NAFA

DR24S05012NAFA: DescriptionIsolated DC/DC Converter 60W 9-36Vin 5V 12A DIN Rail Neg Logic; CategoryThe power supply DC/DC converters Isolated DC/DC converter; File Size1MB，12 Pages; ManufacturerDelta Electronics; Environmental Compliance

Download Datasheet Parametric Compare View All

DR24S05012NAFA Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DR24S05012NAFA	-	-	View	Buy Now

DR24S05012NAFA Overview

Isolated DC/DC Converter 60W 9-36Vin 5V 12A DIN Rail Neg Logic

DR24S05012NAFA Parametric

Parameter Name	Attribute value
Maker	Delta Electronics
Product Category	Isolated DC/DC converter
Shipping restrictions	Mouser does not currently sell this product.
Number of outputs	1 Output
Output Power	60 W
Input voltage	9 VDC to 36 VDC
Output voltage—channel 1	5 VDC
Output current—channel 1	12 A
Insulation voltage	1500 VDC
Installation style	DIN Rail
length	118.6 mm
width	67.1 mm
high	23.5 mm
industry	Medical, Industrial, Commercial
product	Isolated
series	DR24
application	Process Control and Automation, Transportation, Data communication, and Telecom Equipment, Test Equipment, Medical Device
size	118.6 mm x 67.1 mm x 23.5 mm
Maximum operating temperature	+ 85 C
Minimum operating temperature	- 40 C
Factory packaging quantity	100
unit weight	135 g

Preview

Download Datasheet

View All

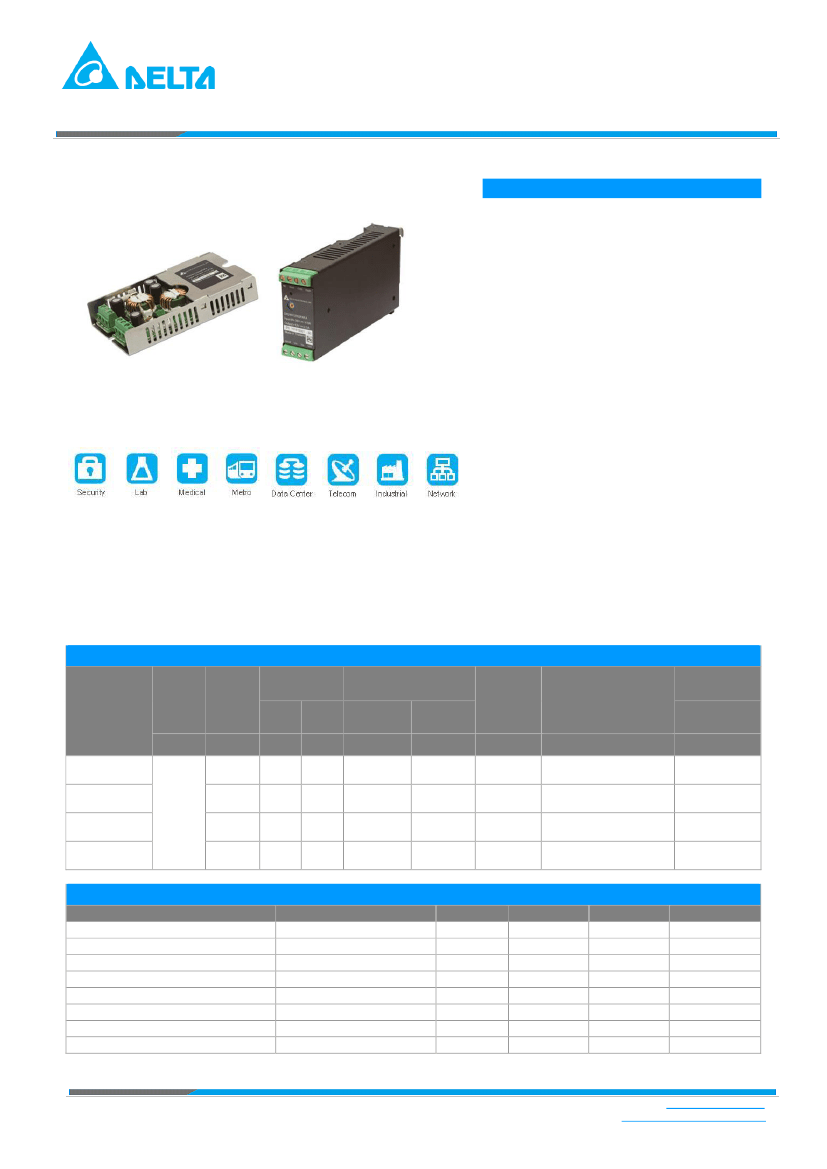

PM24S/DR24S series

60W Single Output DC/DC Converter

FEATURES



Efficiency up to 92%

Wide input range, 9V-36V

Package Dimension:

Panel Mount:

100.0*56.0*19.0mm (3.94”* 2.20”*0.75”)

Din Rail:

118.6*67.1*23.5mm (4.67”*2.64”*0.93”)

Over voltage protection, hiccup mode

Over current protection, hiccup mode

Positive or Negative Remote ON/OFF

Without tantalum capacitor inside module

Operating Temperature range - 40°C to +85°C

Input to Output Isolation: 1500VDC

RoHS Compliant

3 Years Product Warranty

Heat-sink is option

EN 50155 Certified for built-in module

UL 60950-1 & CSA C22.2 No.60950-1-07(pending)

CE Marked (pending)



The DR24/PM24 family is designed particularly for industrial applications where no PCB mounting is possible the module has to be

mounted on a panel or din-rail. the highest power density (60W), isolated power converter. The DR24/PM24 series comes with a host of

industry-standard features, such as over current protection, over voltage protection, over temperature protection and remote on/off. An

optional heatsink is available for more extreme thermal requirements. All models have an ultra-wide 4:1 input voltage range (9V to 36V). With

operating temperature of -40°C to +85°C, it is suitable for customers’ critical applications, such as process control and automation,

transportation, data communication and telecom equipment, test equipment, medical device and everywhere where space on the PCB is

critical.

Model List

Model

Number

Input

Voltage

(Range)

VDC

PM24S05012

DR24S05012

PM24S12005

DR24S12005

PM24S15004

DR24S12005

PM24S24003

DR24S24003

Output

Voltage

Output Current

Input Current

(typ input voltage)

@Max. Load @No Load

mA(typ.)

2700

2695

2680

2688

mA(typ.)

Load

Maxcapacitive Load

Regulation (Cap ESR>=10mohm;Full

load;5%overshoot of Vout

at startup)

mV(max)

±25

±60

±75

±120

20000

6000

4000

2000

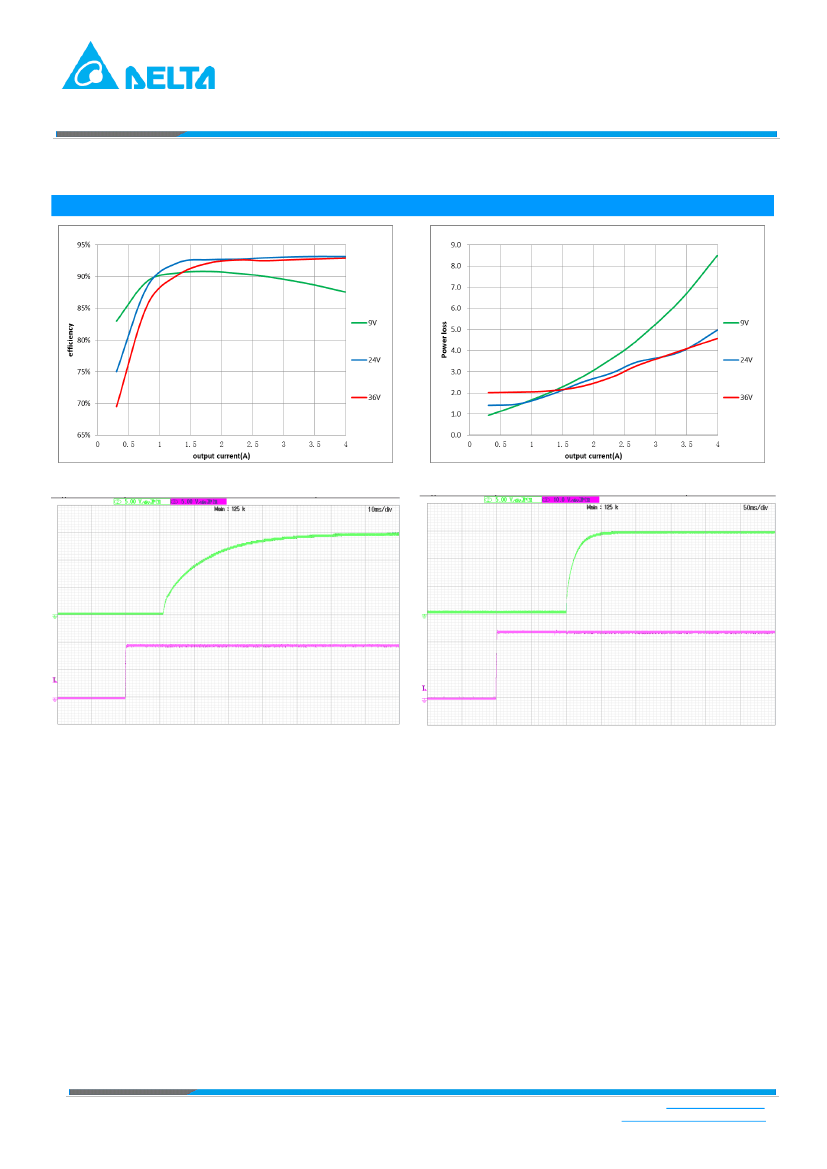

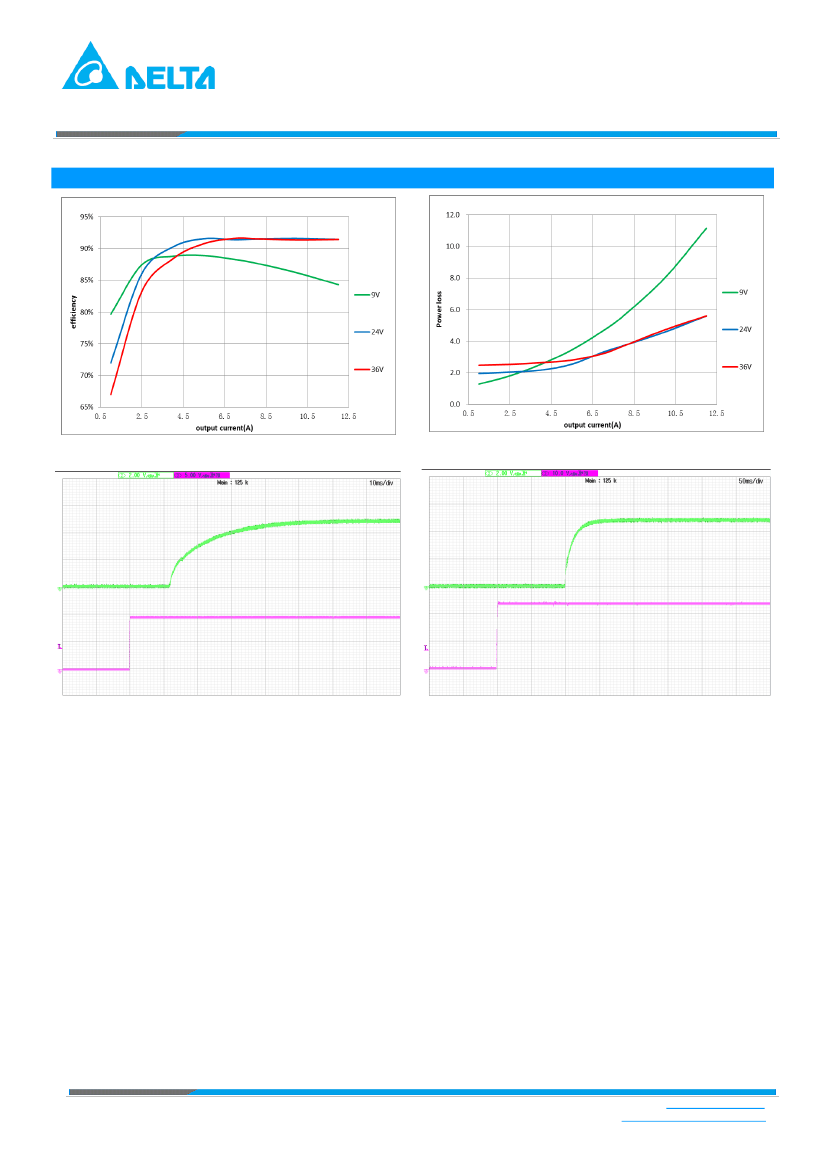

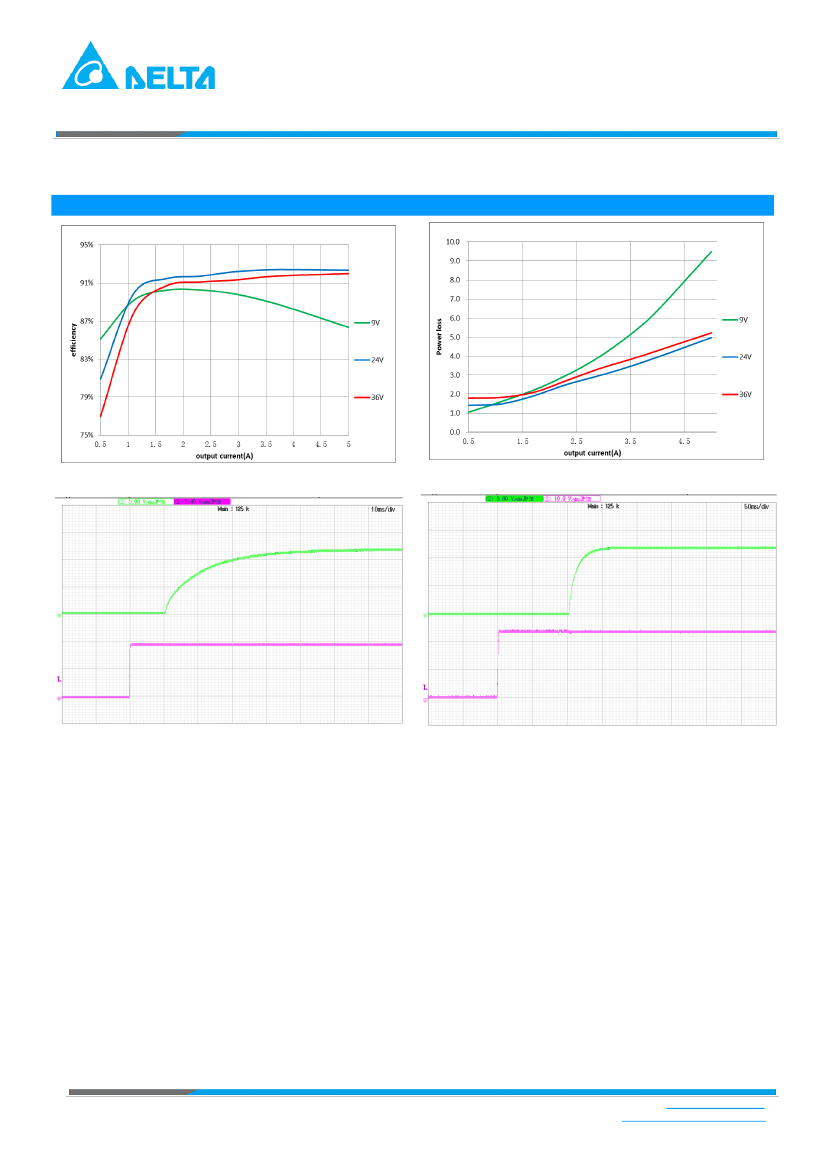

Efficiency

(typ.)

@Max. Load

92 %

92.3%

92.8%

92.5%

Max.

VDC

12000

5000

4000

2500

Min.

(9 ~ 36)

12V

15V

24V

Input Characteristics

Item

Input Surge Voltage (100 msec)

Input Turn-On Voltage Threshold

Input Turn-Off Voltage Threshold

Input Under-Voltage Lockout Hysteresis

Off-Converter Input Current

Reverse Polarity Input Current

ON/OFF Control, Logic High

ON/OFF Control, Logic Low

Model

All Models

All Models,Vin=24V

All Models

Min.

---

7.2

0.2

---

2.4

-0.7

Typ.

---

8.5

7.7

---

Max.

8.2

1.5

---

0.5

0.8

Unit

VDC

Datasheet

DS_PM24S_60W_07052017

E-mail: dcdc@deltaww.com

http://www.deltaww.com/dcdc

DR24S05012NAFA Related Products

	DR24S05012NAFA	DR24S15004NAFA	PM24S24003NAFA	DR24S24003NAFA	PM24S15004NAFA	PM24S12005PAFA	DR24S12005PAFA
Description	Isolated DC/DC Converter 60W 9-36Vin 5V 12A DIN Rail Neg Logic	Isolated DC/DC Converter 60W 9-36Vin 15V 4A DIN Rail Neg Logic	Isolated DC/DC Converter 60W 9-36Vin 24V 2.5A Panel Mnt Neg Logic	Isolated DC/DC Converter 60W 9-36Vin 24V 2.5A DIN Rail Neg Logic	Isolated DC/DC Converter 60W 9-36Vin 15V 4A Panel Mnt Neg Logic	Isolated DC/DC Converter 60W 9-36Vin 12V 5A PosLogic W/filter	Isolated DC/DC Converter 60W 9-36Vin 12V 5A DIN Pos W/filter
Maker	Delta Electronics	Delta Electronics	Delta Electronics	Delta Electronics	Delta Electronics	Delta Electronics	Delta Electronics
Product Category	Isolated DC/DC converter	Isolated DC/DC converter	Isolated DC/DC converter	Isolated DC/DC converter	-	-	-
Shipping restrictions	Mouser does not currently sell this product.	Mouser does not currently sell this product.	Mouser does not currently sell this product.	Mouser does not currently sell this product.	-	-	-
Number of outputs	1 Output	1 Output	1 Output	1 Output	-	-	-
Output Power	60 W	60 W	60 W	60 W	-	-	-
Input voltage	9 VDC to 36 VDC	9 VDC to 36 VDC	9 VDC to 36 VDC	9 VDC to 36 VDC	-	-	-
Output voltage—channel 1	5 VDC	15 VDC	24 VDC	24 VDC	-	-	-
Output current—channel 1	12 A	4 A	2.5 A	2.5 A	-	-	-
Insulation voltage	1500 VDC	1500 VDC	1500 VDC	1500 VDC	-	-	-
Installation style	DIN Rail	DIN Rail	Panel Mount	DIN Rail	-	-	-
length	118.6 mm	118.6 mm	99.5 mm	118.6 mm	-	-	-
width	67.1 mm	67.1 mm	56 mm	67.1 mm	-	-	-
high	23.5 mm	23.5 mm	19 mm	23.5 mm	-	-	-
industry	Medical, Industrial, Commercial	Medical, Industrial, Commercial	Medical, Industrial, Commercial	Medical, Industrial, Commercial	-	-	-
product	Isolated	Isolated	Isolated	Isolated	-	-	-
series	DR24	DR24	PM24	DR24	-	-	-
application	Process Control and Automation, Transportation, Data communication, and Telecom Equipment, Test Equipment, Medical Device	Process Control and Automation, Transportation, Data communication, and Telecom Equipment, Test Equipment, Medical Device	Process Control and Automation, Transportation, Data communication, and Telecom Equipment, Test Equipment, Medical Device	Process Control and Automation, Transportation, Data communication, and Telecom Equipment, Test Equipment, Medical Device	-	-	-
size	118.6 mm x 67.1 mm x 23.5 mm	118.6 mm x 67.1 mm x 23.5 mm	99.5 mm x 56 mm x 19 mm	118.6 mm x 67.1 mm x 23.5 mm	-	-	-
Maximum operating temperature	+ 85 C	+ 85 C	+ 85 C	+ 85 C	-	-	-
Minimum operating temperature	- 40 C	- 40 C	- 40 C	- 40 C	-	-	-
Factory packaging quantity	100	100	100	100	-	-	-
unit weight	135 g	135 g	135 g	135 g	-	-	-
