Antenna, Sensor, and Communications Trunk Line Connections
GT 1
GT 5
GT 13

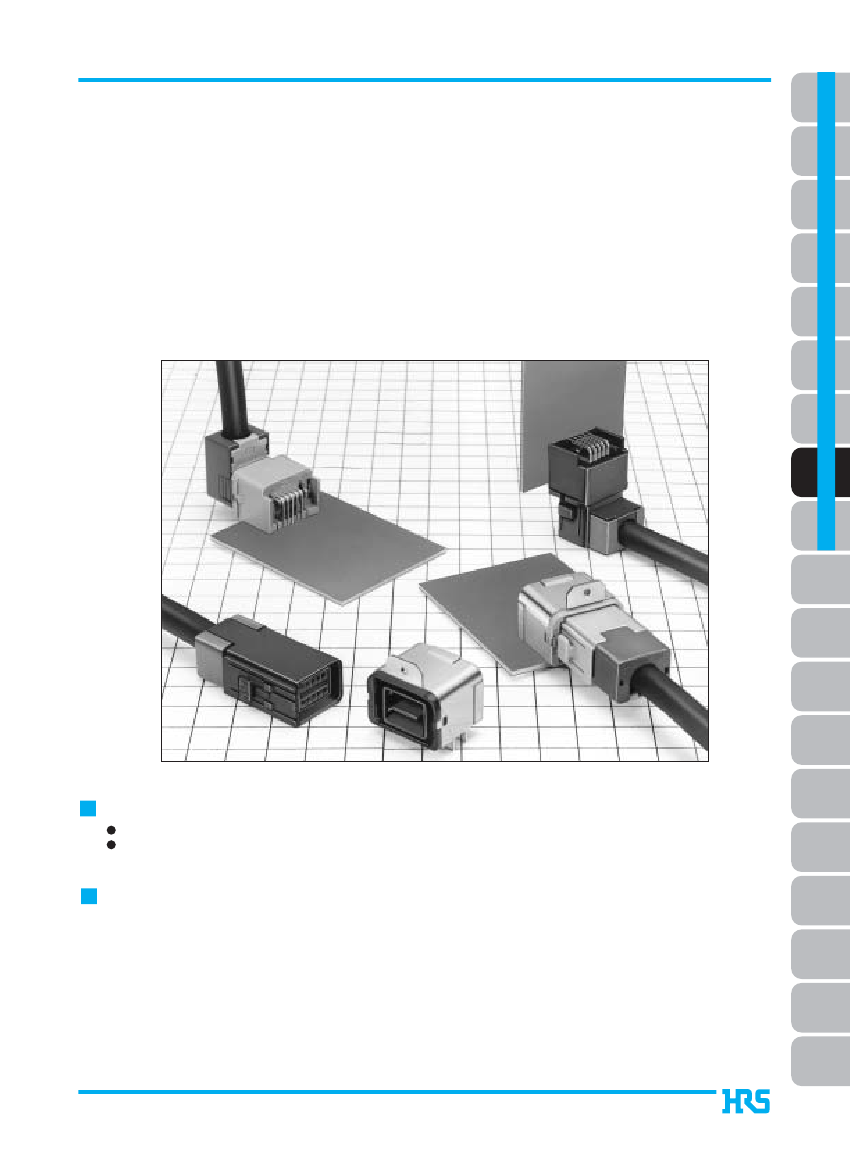

Coaxial cable connection of Antennas, Sensors, and Communication Trunk Lines
GT17 Series
— Ideal as Automotive USB Connectors —
<
2 mm pitch
>
GT 16
PO5G
GT 11
GT 14
GT 17
GT 19N
GT 2
GT 3
GT 6W
GT 7
GT 10
Features
All surface shielded construction.
Ideal for use as Automotive USB connectors.
GT 12 GT 18W GT 15
Applications
In-car data communications, etc.
119
GT 8
GT 9
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
GT17 Series
Coaxial cable connection of Antennas, Sensors, and Communication Trunk Lines
GT 1

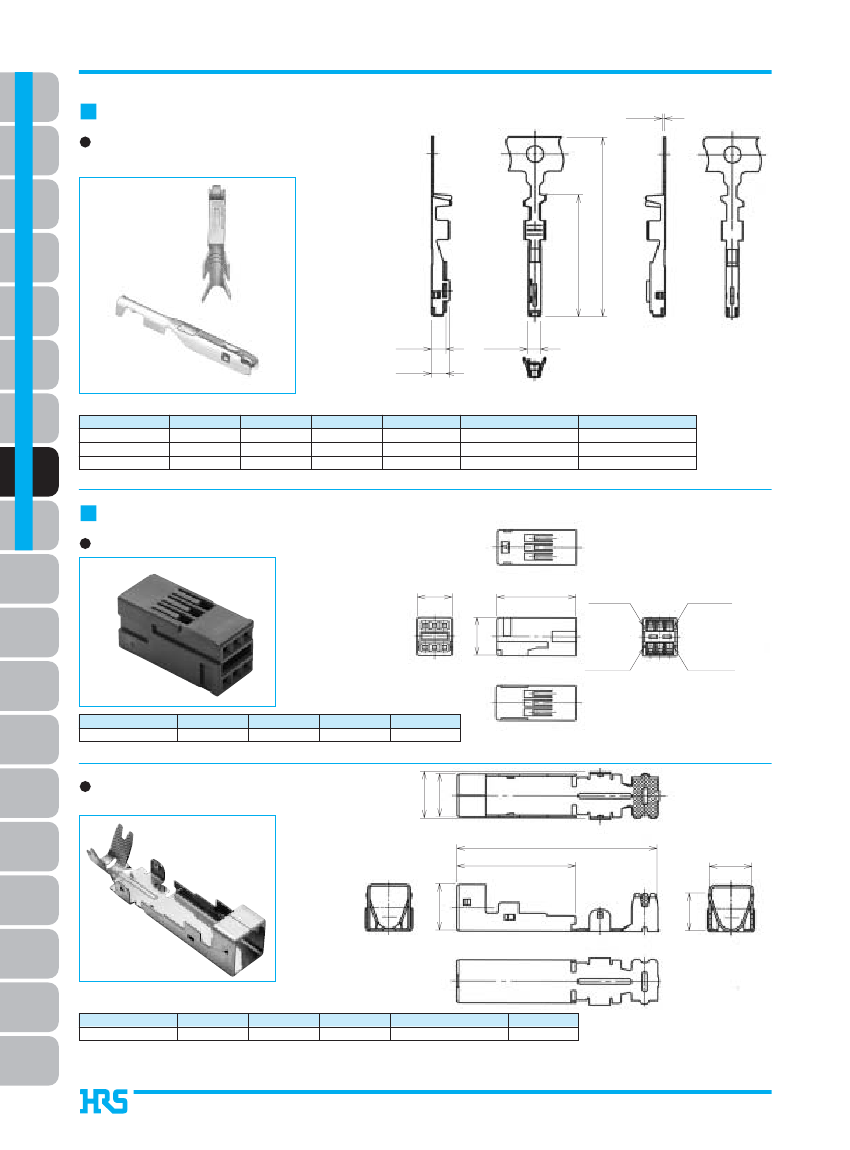

F Connectors
Center Terminals
(Used with 6, 8, and 10 conductor cable)
T=0.2
GT 13
GT 5
GT 16
PO5G
1.7
1.45
GT 11
2.1
GT 14
GT 19N
GT 17
Part Number
GT17-2022SCF
GT17-2428SCF
GT17-30SCF
CL No.
767-0009-0
767-0010-0
767-0064-9
Material
Copper alloy
Copper alloy
Copper alloy
Finish
Tin plating
Tin plating
Tin plating
Conductor Size (AWG)
#20 to 22
#24 to 28
#30
Outer Diameter
1.1 to 1.3 mm
0.7 to 1.0 mm
1.1 to 1.3 mm
14.35
Packaging
10,000 pcs. per reel
10,000 pcs. per reel
10,000 pcs. per reel
F Connectors (6-Conductor Type)
Insulator
GT 2
7.45
16.9
Contact No.1
21.1
Contact No.3
GT 3
8.15
GT 6W
Contact No.4
Contact No.6
Part Number
CL No.
Material
Color
Packaging
GT17V-6DS-2C
767-0026-0
PBT
Dark gray
1
Note: Applicable Cable will have an Insulator diameter of 0.7 to 1.3 mm.
GT 10
GT 7
9.15
GT 15 GT 18W GT 12
8.3
Outer terminal
38.6
22.9
8.3
9
GT 8
Part Number
GT17V-6DS-5CF
CL No.
767-0027-2
Material
Copper alloy
Finish
Tin plating
Outer Diameter
4.8 to 5.2 mm
Packaging
1
GT 9
Note: The crimping conditions will differ depending on the construction and material of the cable. In view of this, please make arrangements to
ascertain whether crimping is possible for each cable.
120
7.3
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
GT17 Series
Coaxial cable connection of Antennas, Sensors, and Communication Trunk Lines
GT 1

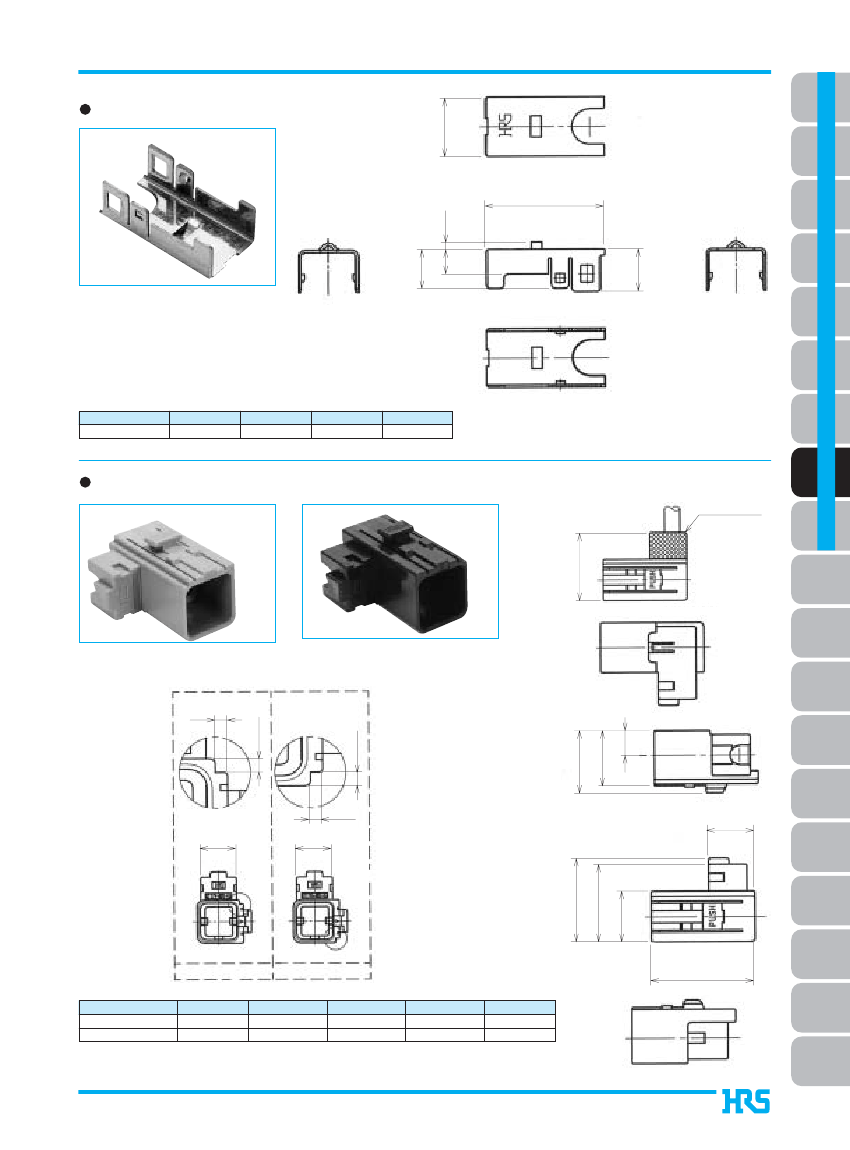

Shield Cover
8.3
GT 5
GT 13
16.6
1
GT 16
5.5
3.5
6
PO5G
GT 11
GT 14
Part Number
GT17V-6DS-SC
CL No.
767-0028-5
Material
Copper alloy
Finish
Tin plating
Packaging
1
GT 17
Housing
BShown
with inserted retainer
GT17V-6DS-R
GT 19N
22
GT 2
GT 3
GT17V-6DS-HU
GT17VA-6DS-HU
GT 6W
1.2
1.35
GT 7
1.35
16.6
14.7
6.6
GT 10
1.2
12
11
11
GT 12 GT 18W GT 15
20.4
22
Key Configuration
Key Configuration
13.3
27
GT 8
Part Number
GT17V-6DS-HU
GT17VA-6DS-HU
CL No.
767-0029-8
767-0030-7
Material
PBT
PBT
Color
Light gray
Black
Key Configurations
Packaging
1
1
GT 9
Note 1: Used with the separate retainer (GT17V-6DS-R).
Note 2: Applicable Cable will have an outside sheath diameter of 4.8 to 5.2 mm.
121
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
GT17 Series
Coaxial cable connection of Antennas, Sensors, and Communication Trunk Lines
GT 1

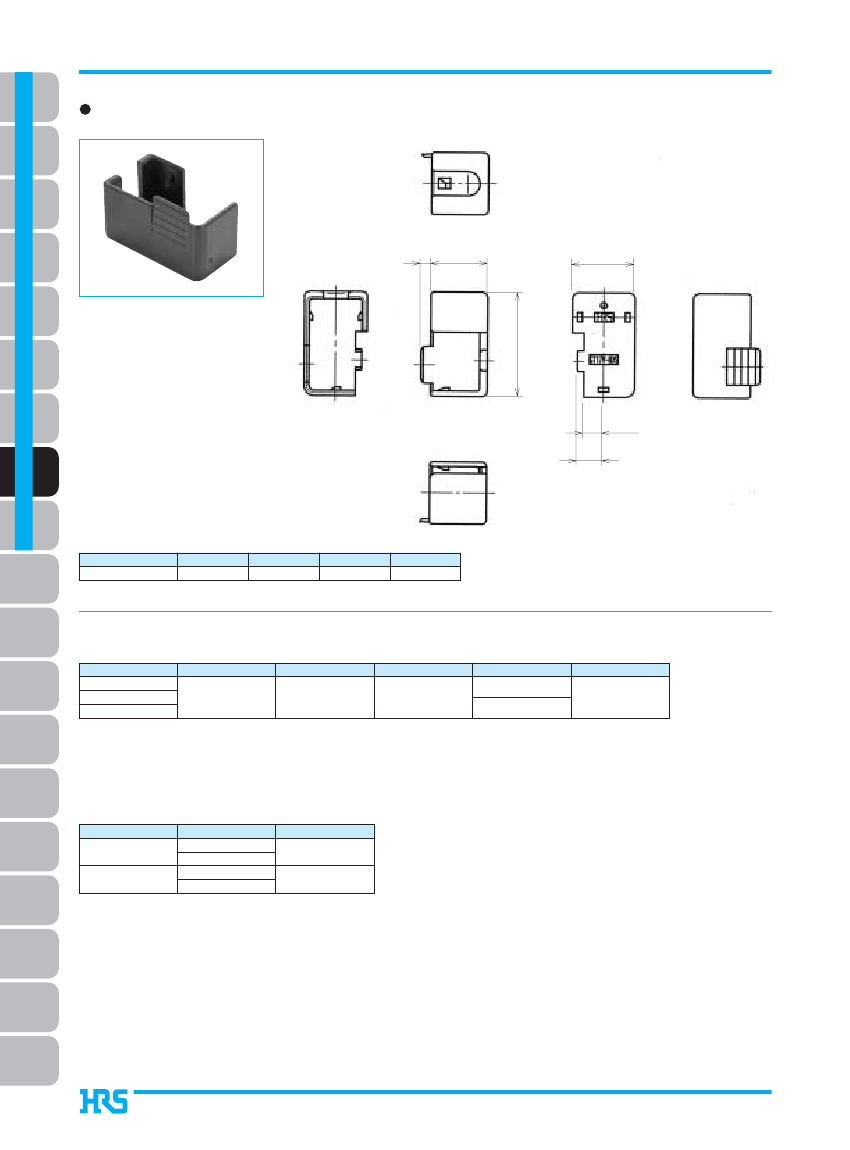

Retainer (Used with GT17V-6DS-HU and GT17VA-6DS-HU)
GT 16
GT 13
GT 5
2
12
13.2
PO5G
GT 14
GT 11
22
4.15
5.5
GT 19N
GT 17
GT 2
Part Number
GT17V- 6DS -R
CL No.
767- 0031-0
Material
PBT
Color
Dark gray
Packaging
1
Note: Applicable Cable will have an Insulator diameter of 4.8 to 5.2 mm.
GT 3
GT 6W
BF
Connector (6-Conductor Type) Composition Table
Inner Terminal
GT17-2022SCF
GT17-2428SCF
GT17-30SCF
Insulator
GT17V-6DS-2C
Outer Terminal
GT17V-6DS-5CF
Shield Cover
GT17V-6DS-SC
GT17VA- 6DS-HU
Housing
GT17V- 6DS-HU
GT17V-6DS-R
Retainer
GT 10
GT 7
B6-Conductor
Type Mating Table
F Connector
GT17V-6DS-HU
GT17VA-6DS-HU

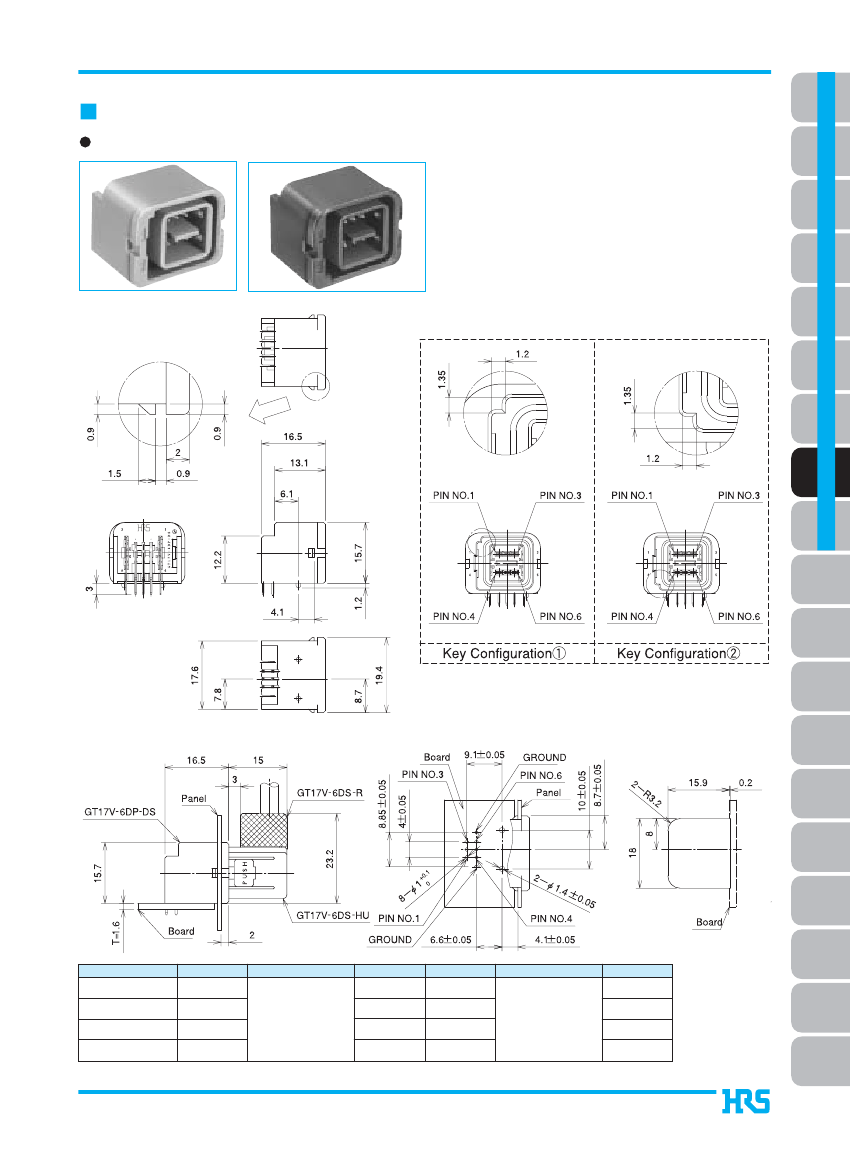

M Connector
GT17V-6DP-DS
GT17VB-6DP-DS
GT17VA-6DP-DS
GT17VC-6DP-DS
Color
Light gray
Black
122
GT 9
GT 8
GT 15 GT 18W GT 12
