68402-317 datasheet, PDF - EEWORLD Datasheet

68402-317: DescriptionBoard-to-board and mezzanine connectors DUBOX RECPT, VERT.-SR, SMT, 30 GOLD, 17 POS; CategoryThe connector The connector; File Size315KB，6 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

68402-317 Overview

Board-to-board and mezzanine connectors DUBOX RECPT, VERT.-SR, SMT, 30 GOLD, 17 POS

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Connector type	BOARD CONNECTOR

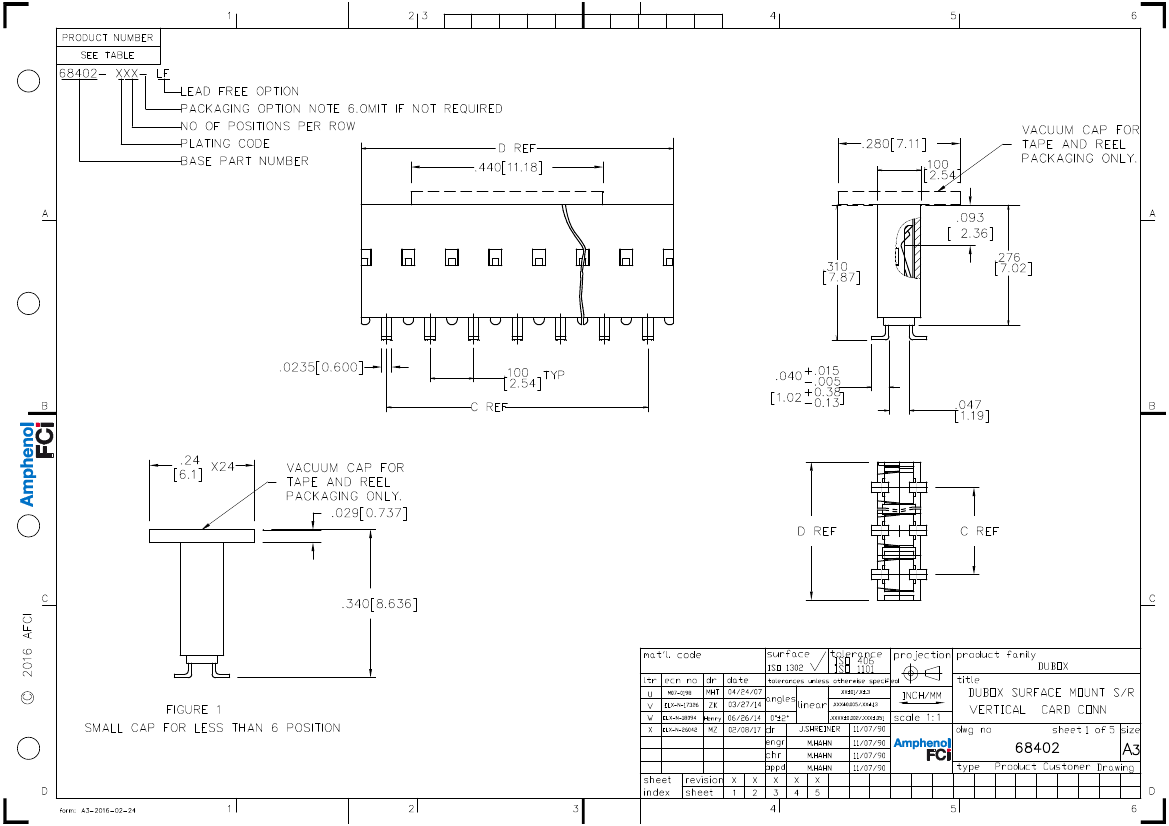

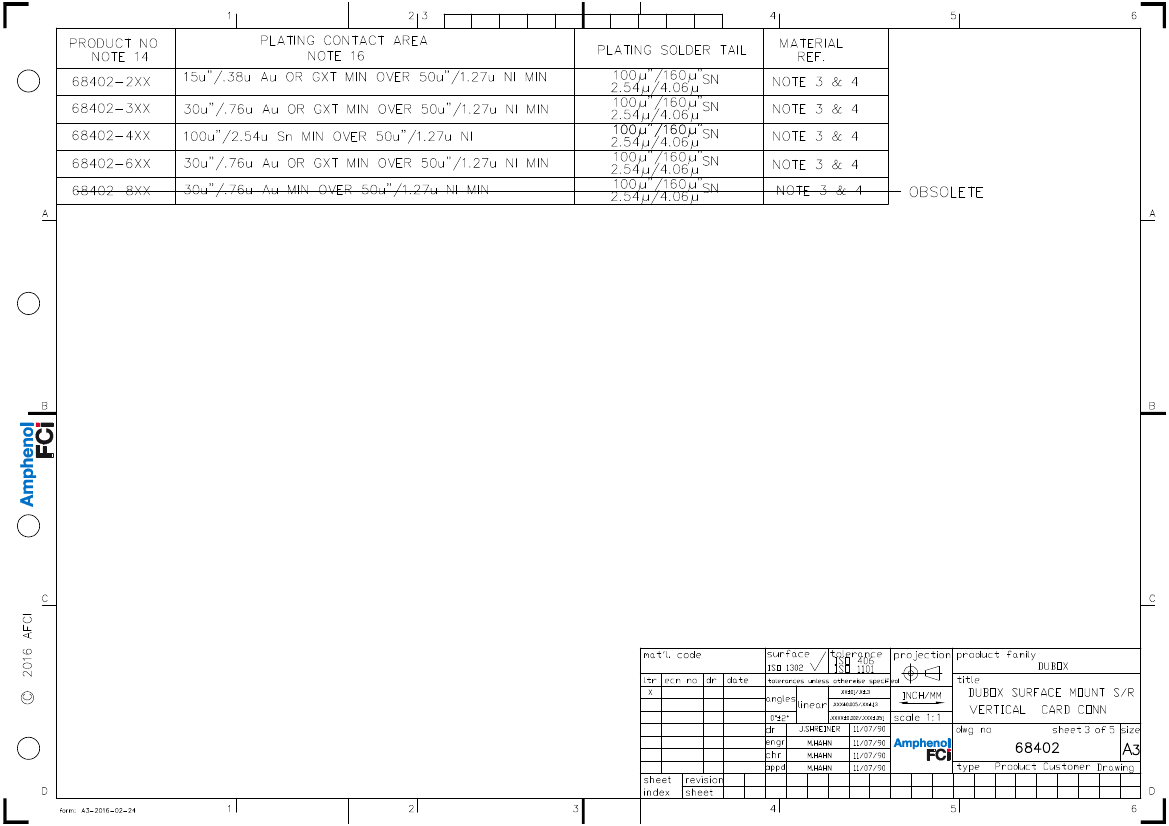

Contact to complete cooperation	GOLD (50) OVER NICKEL
Contact completed and terminated	TIN (100)
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	68402
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	17
UL Flammability Code	94V-0

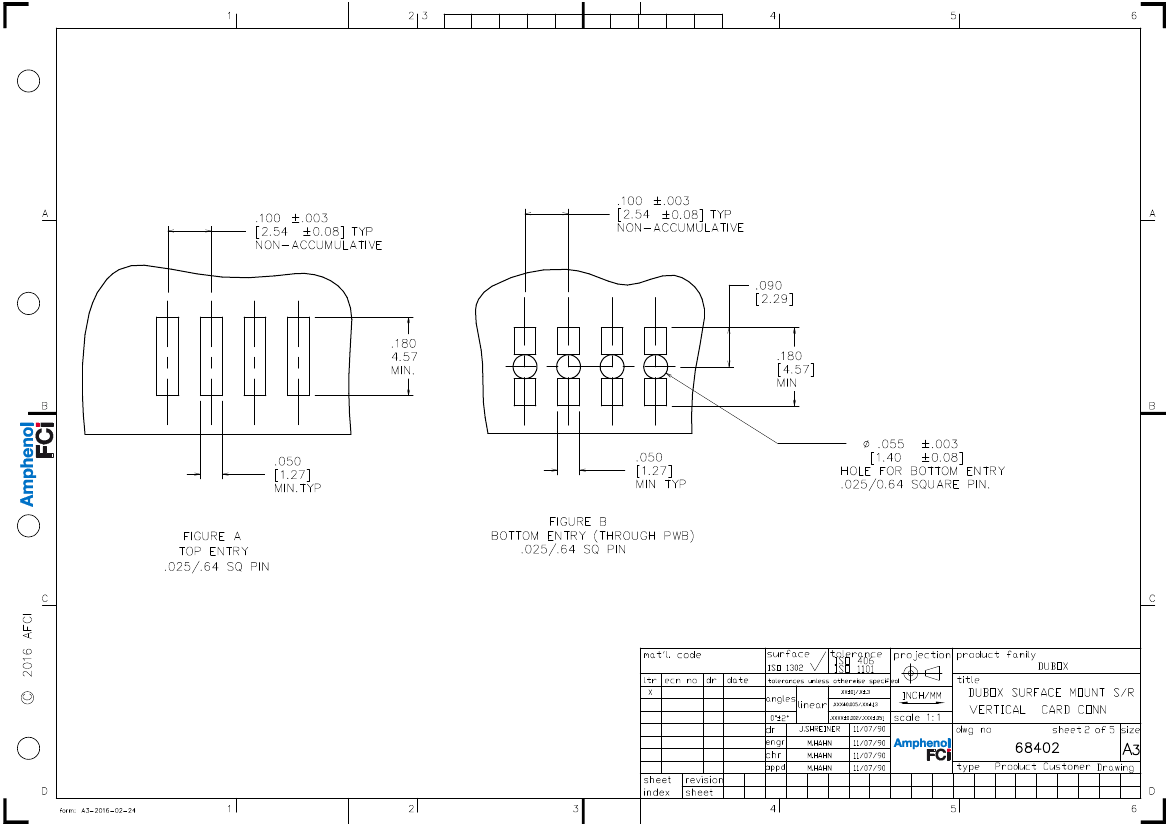

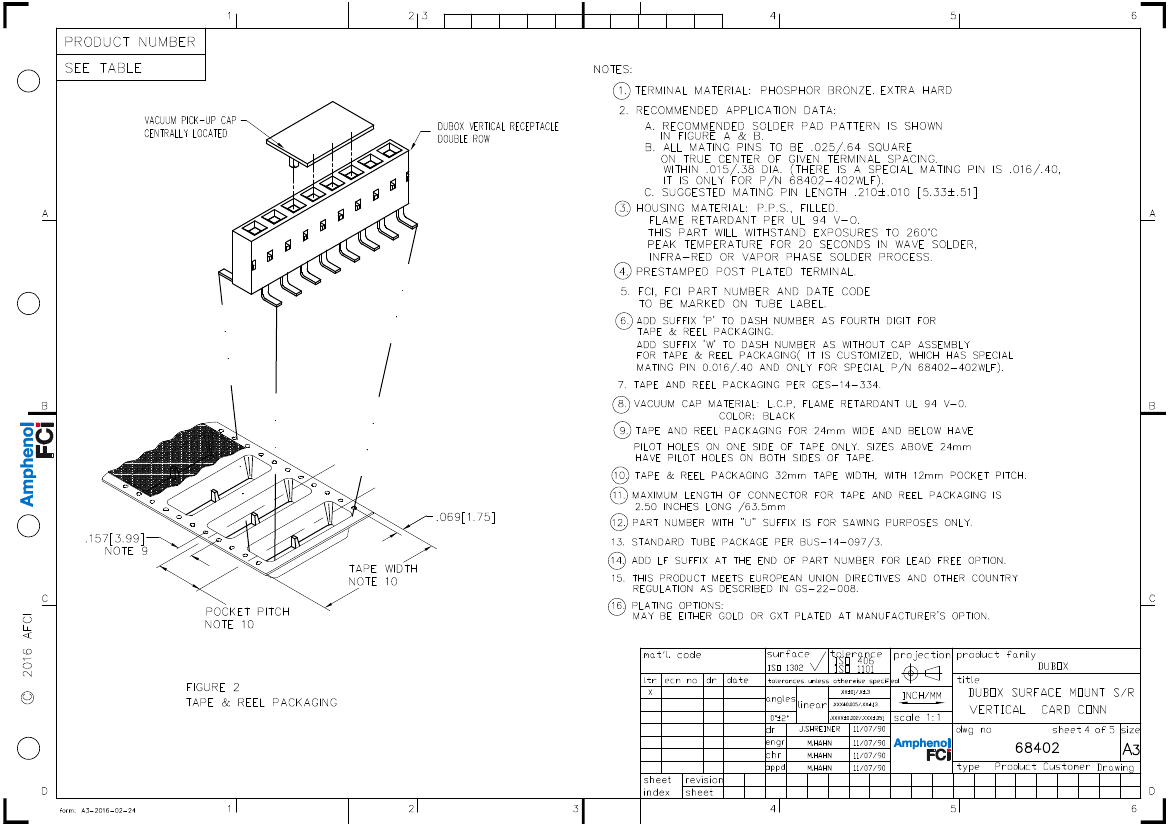

PDS: Rev :X

STATUS:Released

Printed: Feb 16, 2017

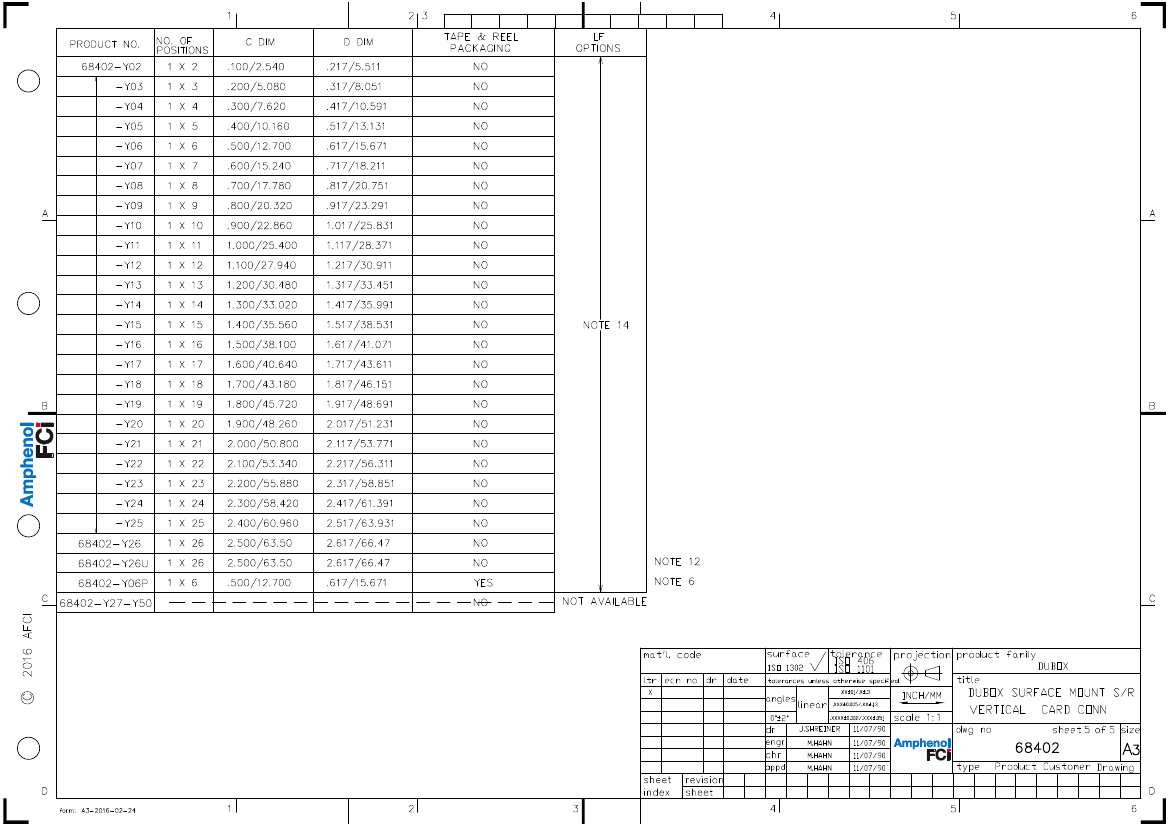

	68402-317	68402-206	68402-318LF
Description	Board-to-board and mezzanine connectors DUBOX RECPT, VERT.-SR, SMT, 30 GOLD, 17 POS	Board-to-board and mezzanine connectors DUBOX RECPT, VERT.-SR, SMT, 15 GOLD, 6 POS	Dubox, Board to board connector, PCB Mounted Receptacle, Surface Mount, Dual Entry, Single Row, 18 Position, 2.54mm (0.100in) Pitch.
Reach Compliance Code	compliant	compliant	compliant
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (50) OVER NICKEL	GOLD (15) OVER NICKEL	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
MIL compliance	NO	NO	NO
Mixed contacts	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD
Number of rows loaded	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	17	6	18
UL Flammability Code	94V-0	94V-0	94V-0
Maker	Amphenol	Amphenol	-
Contact completed and terminated	TIN (100)	TIN (100)	-
JESD-609 code	e3	e3	-
Manufacturer's serial number	68402	68402	-
