DF61-2S-2.2C(11) datasheet, PDF

Datasheet> All Categories > The connector> Header and line shell> DF61-2S-2.2C(11)

DF61-2S-2.2C(11): DescriptionHeaders and Wire Housings 2P CRIMP SCKT 2.2MM PITCH LP RED; CategoryThe connector Header and line shell; File Size254KB，8 Pages; ManufacturerHirose; Websitehttp://www.hirose-connectors.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

DF61-2S-2.2C(11) Overview

Headers and Wire Housings 2P CRIMP SCKT 2.2MM PITCH LP RED

DF61-2S-2.2C(11) Parametric

Parameter Name	Attribute value
Maker	Hirose
Product Category	Headers and wire housings
product	Wire Housings
type	Receptacle Housing
Number of locations	2 Position
Pitch	2.2 mm
Number of rows	1 Row
Installation style	Cable
Termination type	Crimp
Installation angle	Straight
Contact type	Socket (Female)
Contact plating	Tin
series	DF61
Encapsulation	Bulk
application	Wire-to-Board
Current rating	4 A
Shell material	Polybutylene Terephthalate (PBT)
Voltage rating	350 V
Contact material	Copper Alloy
Flammability rating	UL 94 V-0
Insulation resistance	1000 MOhms
Maximum operating temperature	+ 85 C
Minimum operating temperature	- 35 C
Factory packaging quantity	1000
unit weight	27 mg

Preview

Download Datasheet

View All

Board-to-Wire Swing-Lock Connector for Low-Profile Power Source

DF61 Series

Swing-Lock Structure Illustration

Socket

Protrusion

Recess

Header lock

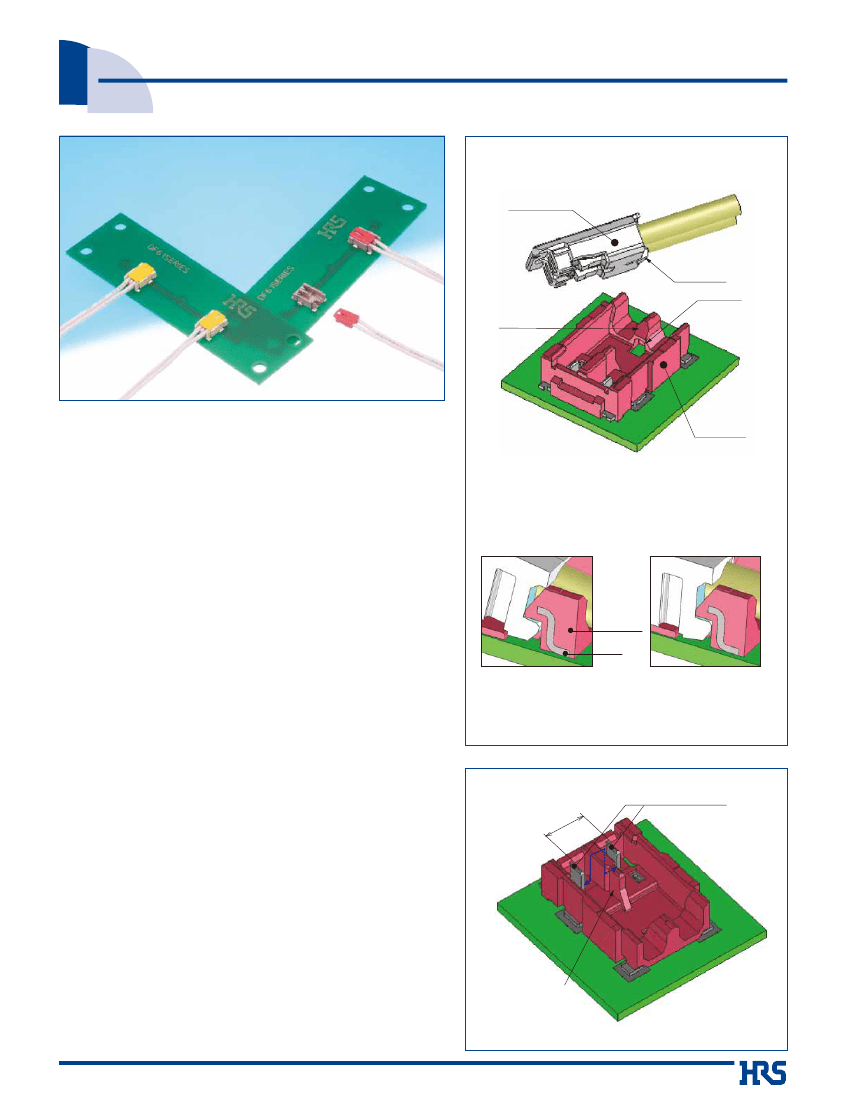

■Features

1.Reinforced Swing Lock Structure

Our unique swing-lock structure cradles the wire side plug

and resists the plug from becoming disengaged due to

handling strain or loads.

Header

The protrusion on the bottom side of the socket fits into a

corresponding recess on the header. This aligns the socket into

the correct mating position.

2.Header Lock Improves Plug Retention

During mating, the header lock engages with the plug

assembly. The lock is reinforced with metal which adds

strength to the lock and increases the retention between the

header and the plug.

Before Mating

After Mating

Header Lock

3.Compact Size- High Voltage

The compact 2.2 mm pitch connector has a voltage rating of

350V due to the long creep distance.

Reinforced with Metal

Metal

4.Solder Wicking Prevention

Header is molded in one piece. This ensures a tight fit

between the contact and the header and prevents solder

wicking.

The Header pushes down

the protrusion of the socket

and locks it in place.

5.High Current of MAX 5 Amps (AWG22)

A highly conductive material is used for the contacts. The

material provides for a high current flow by reducing the

contact resistance.

Maximum Creep Distance

■Applications

Digital cameras, digital video cameras, LED lights, laptop

computers, tablet computers, portable devices, power

supply equipment, etc.

2013.4

②

DF61-2S-2.2C(11) Related Products

	DF61-2S-2.2C(11)	DF61-2P-22V22	DF61-2S-22C01	DF61-2P-22V23	DF61-2226SCF(41)
Description	Headers and Wire Housings 2P CRIMP SCKT 2.2MM PITCH LP RED	Headers & Wire Housings 2P SMT HEADER 2.2MM PITCH LOW PROFILE	Headers & Wire Housings 2P CRIMP SCKT 2.2MM PITCH LOW PROFILE	Headers & Wire Housings 2P SMT HEADER 2.2MM PITCH LOW PROFILE	Header and wire housing SOCKET CRIMP CONTACT AWG 22-26
Product Category	Headers and wire housings	Headers & Wire Housings	Headers & Wire Housings	Headers & Wire Housings	-
Pitch	2.2 mm	2.2 mm	-	2.2 mm	-
Product Attribute	-	Attribute Value	Attribute Value	Attribute Value	-
Manufacturer	-	Hirose	Hirose	Hirose	-
RoHS	-	Details	Details	Details	-
Termination Style	-	SMD/SMT	Crimp	SMD/SMT	-
Current Rating	-	4 A	4 A	4 A	-
Housing Material	-	Liquid Crystal Polymer (LCP)	Polybutylene Terephthalate (PBT)	Liquid Crystal Polymer (LCP)	-
Flammability Rating	-	UL 94 V-0	UL 94 V-0	UL 94 V-0	-
Factory Pack Quantity	-	3000	1000	3000	-
