DF59SN-1P-FC(21) datasheet, PDF

Datasheet> All Categories > The connector> Lighting connector> DF59SN-1P-FC(21)

DF59SN-1P-FC(21): DescriptionLighting connector MONO-POLE PLUG B2B SLIM 1.7mm DEPTH; CategoryThe connector Lighting connector; File Size743KB，13 Pages; ManufacturerHirose; Websitehttp://www.hirose-connectors.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

DF59SN-1P-FC(21) Overview

Lighting connector MONO-POLE PLUG B2B SLIM 1.7mm DEPTH

DF59SN-1P-FC(21) Parametric

Parameter Name	Attribute value
Maker	Hirose
Product Category	lighting connector
product	Connectors
type	Plugs
Number of locations	1 Position
Termination type	SMD/SMT
Current rating	3 A
series	DF59
Encapsulation	Cut Tape
Encapsulation	MouseReel
Encapsulation	Reel
application	Board to Board
high	1.2 mm
Voltage rating	350 V
width	18.6 mm
Factory packaging quantity	10000
unit weight	52 mg

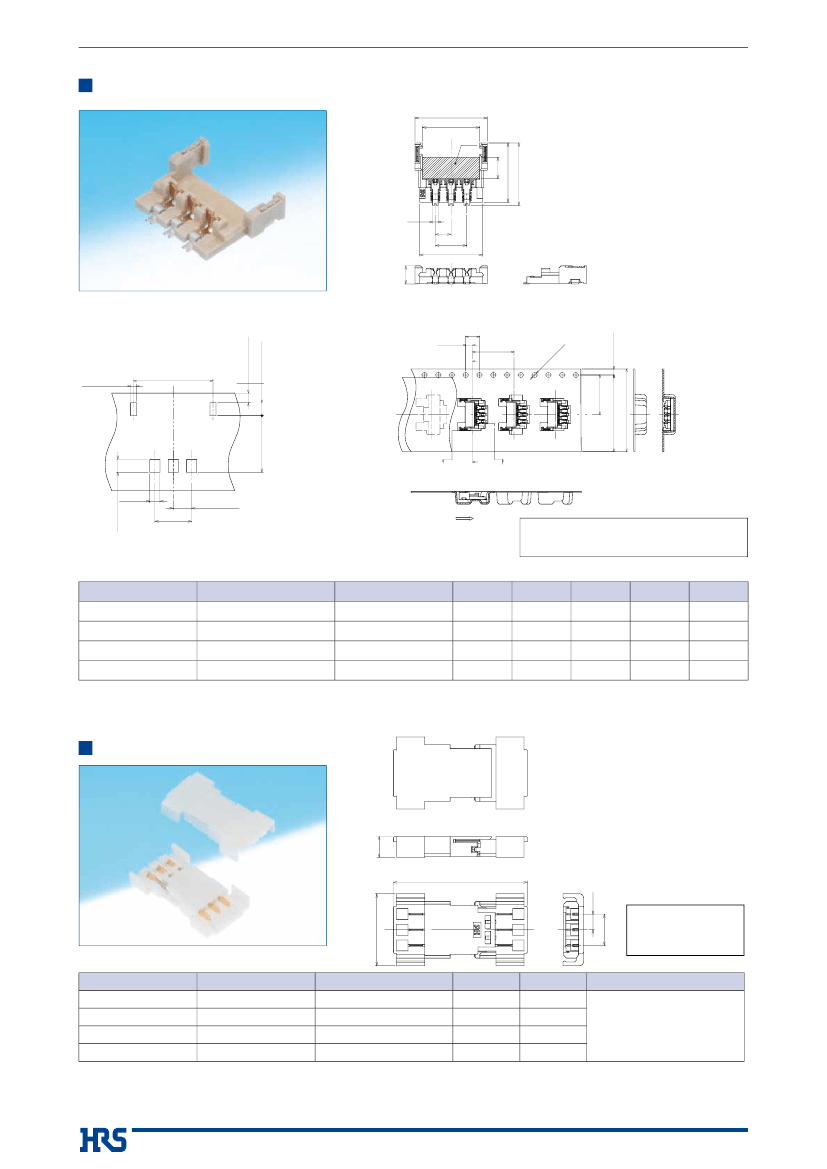

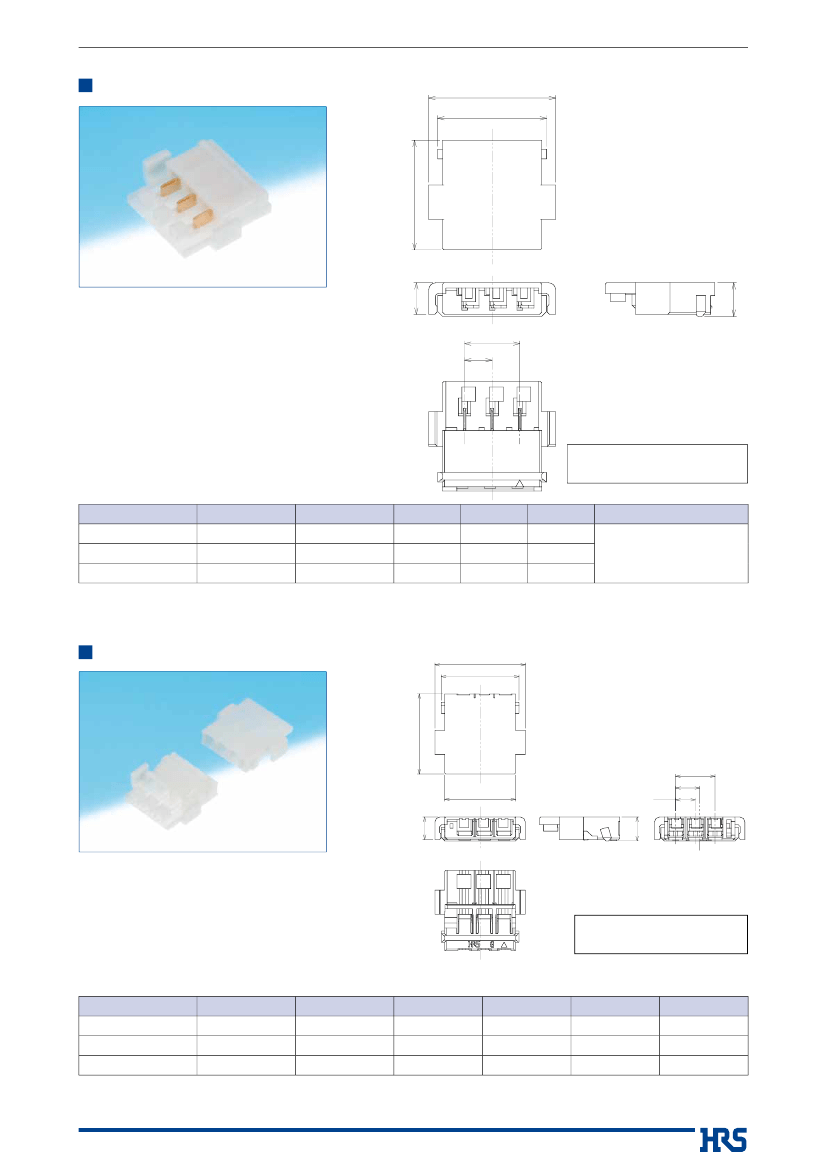

Preview

Download Datasheet

View All

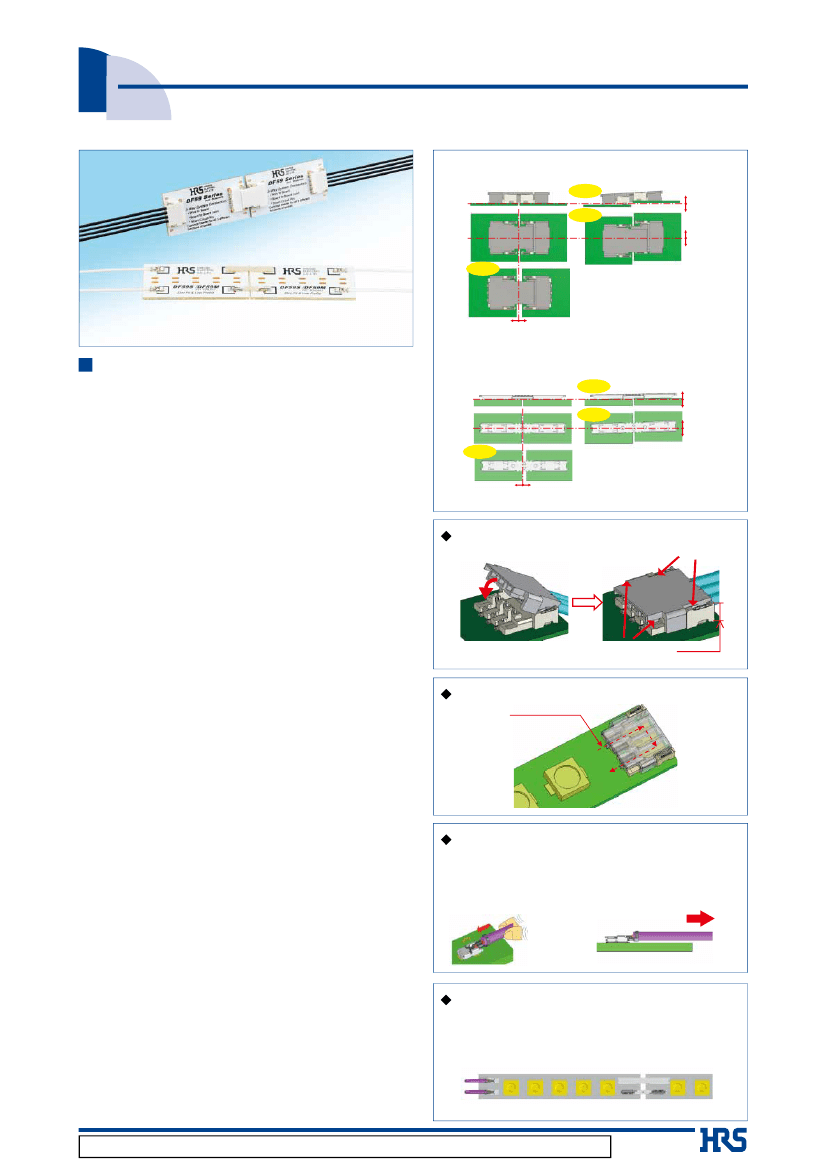

2mm Pitch, Multi Functional Connector System

(Floating [Board-to-Board], Swing-Lock [Wire-to-Board], Short-Circuit Pin)

DF59 Series

DF59 floating amount ±0.5mm(X,Y, Z directions)

DF59S/SN floating amount

●

Common to all series

Features

±0.5mm(X,Y direction), ±0.2mm(Z direction)

1. High Operating Temperature

●DF59

DF59’s are rated at temperatures up to 105 ç.

The DF59 features a “swing-lock” mechanism that employs

both a positive and friction lock. This helps to prevent

accidental unmating by severe wiring and mechanical stress.

2. Swing Lock Structure (Wire-to-Board)

3. Short-Circuit Pin

The Short-Circuit Pin allows the termination of an open circuit.

Typically used at the end of a series of connected circuit boards.

Fig.1

4. Multi Function Design

The DF59 has the ability to function as either a Board-to-

Wire or Board-to-Board System. The PCB mounted

receptacle is designed to mate with the W-to-B, B-to-B,

and Short Circuit Pin connectors. This multi function ability

allows versatility while keeping connectors to a minimum.

Swing-Lock Structure

(Board-to-Wire Type)

Positive Lock

5. Contact Design

The terminal design features two-point contact to

ensure a highly reliable connection.

Friction Lock

2.48mm

Fig.2

6. Common Applicator

Crimping can be performed using the applicator (AP105-

DF11-22S) for the existing series DF11-22S C F(A), by

replacing the die with the one for DF59 series.

* For crimping quality standards and crimping conditions,

crimping needs to be performed in accordance with the

specific conditions of DF59-22PCFA.

The Board-to-Board connector can be used to connect two PCB

together in a co-planar arrangement and features a “Stress free

contact” that floats ± 0.5mm in the X, Y and Z dimensions.

Short-Circuit Pin

●Common

to DF59/59S/59SN

7. Floating Structure (Board-to-Board)

W-to-B structure (DF59M)

Fig.3

8. Space Savings

The DF59 series offers high performance in a compact,

space saving design; featuring a 2mm pitch and coupled

with a mated height of only 2.48mm with AWG#22 cable.

The single position floating plugs DF59S and DF59SN

are specifically designed to save space, and can be

mounted in high density applications.

Clear tactile click and high locking strength achieved

by the robust locking mechanism

Mating force : 16N min. (in a horizontal direction)

16N min.

9. Robust locking structure on DF59M (W-to-B Connection)

The lock mechanism on compact DF59M provides

16N horizontal lock strength. (Fig.4)

Fig.4

10. Standardization of PCB layout

The DF59S/SN type is used on board-to-board connections,

and the DF59M type is intended for wire-to-board

connections. Although they have different receptacles, the

PCB mounting pattern can be used for these two types.

Different combinations of these connectors can be used in the

same system with a common PCB. This allows for

standardization of PCB. (Fig.5)

Note : Each stencil mask is necessary

Standardization of PCB pattern

DF59S/SN type and DF59M type can be used in the

same system by using a common PCB.

Fig.5

In cases where the application will demand a high level of reliability, such as automotive,

please contact a company representative for further information.

2017.9t

DF59SN-1P-FC(21) Related Products

	DF59SN-1P-FC(21)	DF59-3P-2SP(50)	DF59-3P-2FC(50)	DF59-2S-4V(51)	AP105-DF59-22P(62)	AP105-DF59-22P(65)	AP105-DF59-22P(90)
Description	Lighting connector MONO-POLE PLUG B2B SLIM 1.7mm DEPTH	Lighting connector 3P SHORTING PLUG MALE, SWING-LOCK	Lighting Connector 3P MALE B2B BRIDGE SWING-LOCK 2MM PITCH	Lighting Connector 2P Straight Receptacle	Crease tool TOOL DF59 ACCESSORY	Crease tool TOOL DF59 ACCESSORY	Crease tool TOOL DF59 ACCESSORY
Maker	Hirose	Hirose	Hirose	Hirose	Hirose	Hirose	Hirose
Product Category	lighting connector	lighting connector	lighting connector	lighting connector	crimper	crimper	crimper
series	DF59	DF59	DF59	DF59	DF59	DF59	DF59
Factory packaging quantity	10000	1	1	2000	1	1	1
product	Connectors	Connectors	Connectors	Connectors	-	-	-
type	Plugs	Short Pin	Floating Plug	Receptacle	-	-	-
Current rating	3 A	3 A	3 A	3 A	-	-	-
Encapsulation	Reel	Tray	Tray	Reel	-	-	-
Voltage rating	350 V	230 V to 350 V	230 V to 350 V	230 V to 350 V	-	-	-
Shipping restrictions	-	-	-	Mouser does not currently sell this product.	Mouser does not currently sell this product.	Mouser does not currently sell this product.	Mouser does not currently sell this product.
