1mm Pitch Double Rows Low Profile Wire-to-Board Connectors
DF20 series
5.4
Socket
DF20A-
**DS-1C
DF20F(G)-
**DP-1V(56)
Pin
Header
5.8
Cable
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
PCB
DF20A-
**DS-1C
Socket
Cable
6.2
DF20F
**DP-1H(59)
Pin
Header
5.5
PCB
DF20A-**DS-1C
Socket
DF20F(G)-**DP-1V(56)
Pin Header
1

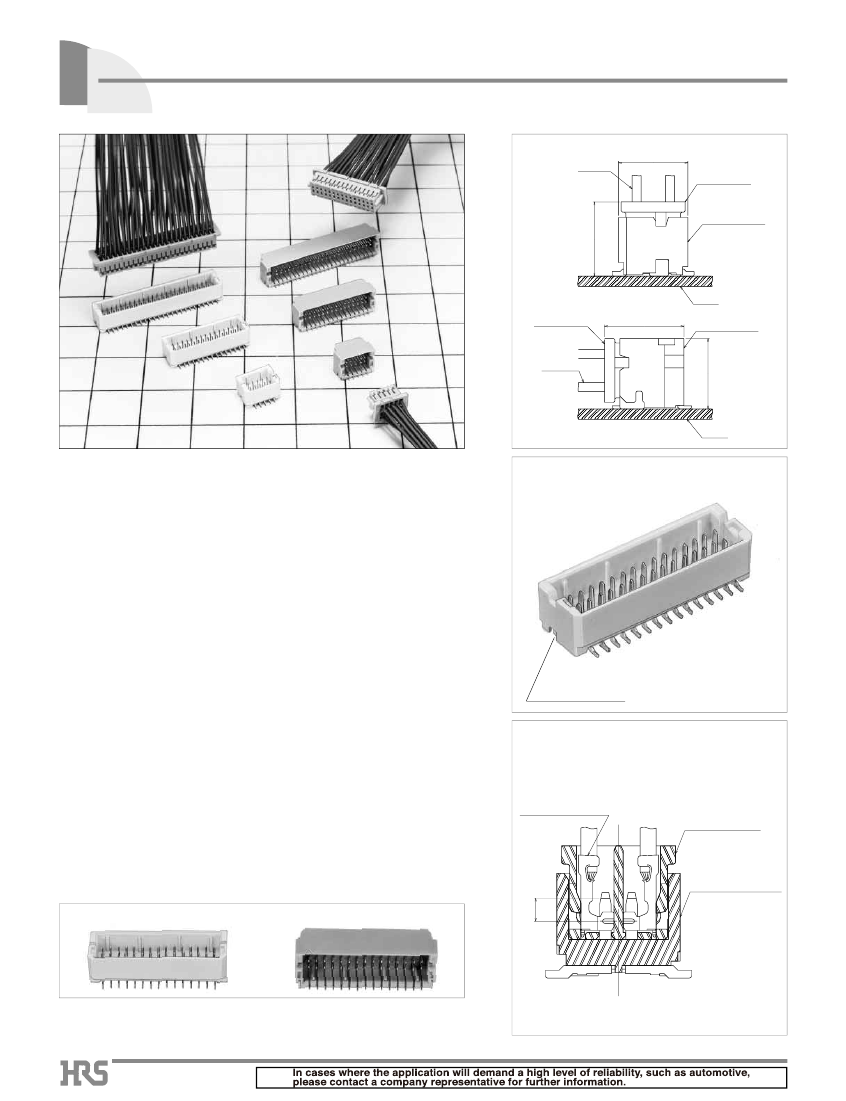

■Features
1. Contact Pitch
1mm contact pitch allows reliable solder and cable
termination.
Narrower external width and length
2. Reliable electrical connection wipe
Effective electrical connection is assured with a 1mm wipe of
mating contacts.
3. Narrower external width and length
Redesigned metal fittings decreased the overall length of the
board- mount receptacle and permit end-to-end mounting of
several connectors.
4. Automatic equipment board placement
Straight type pin headers are supplied with a 5.4mm X 4.6mm
flat platform to allow vacuum pick-up and placement on the
board.
Metal fitting
5. Product variations
(1) Available with 10, 20, 30, 40, and 50 contacts.
(2) Pin headers are available in two types : with or without
board positioning bosses.
(3) Depending on specific application pin headers can be
ordered in straight or right angle types.
■Applications
DF20F-****SCFA
Contact
Notebook PC, small office automation equipment, small
consumer devices, portable devices.
Any application requiring low profile reliable board-to-cable
connection with a 28 AWG, 30 AWG, 32 AWG conductors.
1mm Pitch, Double Rows
B266
DF20 Series●1mm Pitch Double Rows Low Profile Wire-to-Board Connectors
■Product
Specifications
Rating
28 AWG : 1A
30 AWG : 0.9A
32 AWG : 0.7A
Rated voltage
100V AC
Rated current
Operating temperature range -35°C to 85°C (Note 1,2) Storage temperature range -10°C to 60°C (Note 2)
Operating humidity range
-40%
to 80%
Storage humidity range
-40%
to 70%
Conditions
Measured at 100V DC
Conduction of 300V AC applied for 1 minute
Measure at 100mA.
Measured with a steel pin of 0.2 ±0.005 thickness
Frequency of 10 to 55 Hz, single amplitude of 0.75 mm, in 3 directions for 2hours
(-55ç : 30min
/
5ç to 35ç : 2 to 3min
/
85ç : 30min
/
5ç to 35ç : 2 to 3min ) for 5 cycles
50 cycles
Reflow : At the recommended temperature profile, manual
solder : Soldering iron temperature of 300°C for 3 seconds
Item
1.Insulation resistance
500Mø min.
30Mø max.
Specifications
2.Withstanding voltage No flashover or insulation breakdown
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
3.Contact resistance
4.Insertion-Extraction force
0.2 N Min., 2 N Max.
4.(per
contact)
5.Vibration
6.Humidity
7.Temperature cycle
9.Resistance to
Soldering heat
No electrical discontinuity of 1µs min.
Contact resistance of 30mø max,insulation resistance of 500Mø min.
No deformation of the insulator parts that will
affect performance
Contact resistance of 30mø max., insulation resistance of 100Mø min.
Temperature of 40±2ç, humidity of 90% to 95%, left standing for 96 hours
8.Mechanical operation
Contact resistance of 30mø
max.
Note1 : Includes temperature rise caused by current flow.
Note2 : The term “storage” refers to products stored for long periods of time prior to mounting and use.
Note2 :
Operating temperature range and Humidity range covers non-conducting conditions of installed connectors in storage,
Note2 :
shipment or transportation.
Note3 : Information contained in this catalog represents general requirements for this Series. Contact us for the drawings and
specifications for a specific part number shown.
■Materials
/ Finish
Item
Socket
Socket contact
Pin header
Part
Insulator
Contact
Insulator
Contact
Metal Fitting
Material
Polyamide
Phosphor bronze
Polyamide
Phosphor bronze
Brass
Finish
Color : Beige
Gold plating
Color : Beige
Gold plating
Tin-Copper plating
Remarks
UL94V-0
----------
UL94V-0
----------
----------
■Product
Number Structure
Refer to the chart below when determining the product specifications from the product number.
Please select from the product numbers listed in this catalog when placing orders.
●Connectors
DF20 # -
*
DS - 1 C
1
2
3
4
5
6
4
Connector type
DS: Double-row socket
DP: Double-row pin header
5
Contact pitch: 1 mm
6
Type of housing, header
7
C: Crimp housing
V: Straight SMT header
H: Right angle SMT header
1
Series name : DF20
2
Boss Type
■Pin
header
■
F : Without boss
■G
: With boss
■Crimp
socket: A
3
Number of contacts : 10, 20, 30, 40, 50
●Contacts
DF20 F - 2830 SCF A
1
2
3
2
Contact & packaging type
SCF : Socket contact reel
3
Plating type
A : Gold plating
(
* *
)
4
4
Packaging Specifications
04 : 1 reel = 10,000 pieces
44 : 1 reel = 20,000 pieces
F
1
Applicable wire size
2830 : 28 to 30 AWG
3032 : 30 to 32 AWG
B267

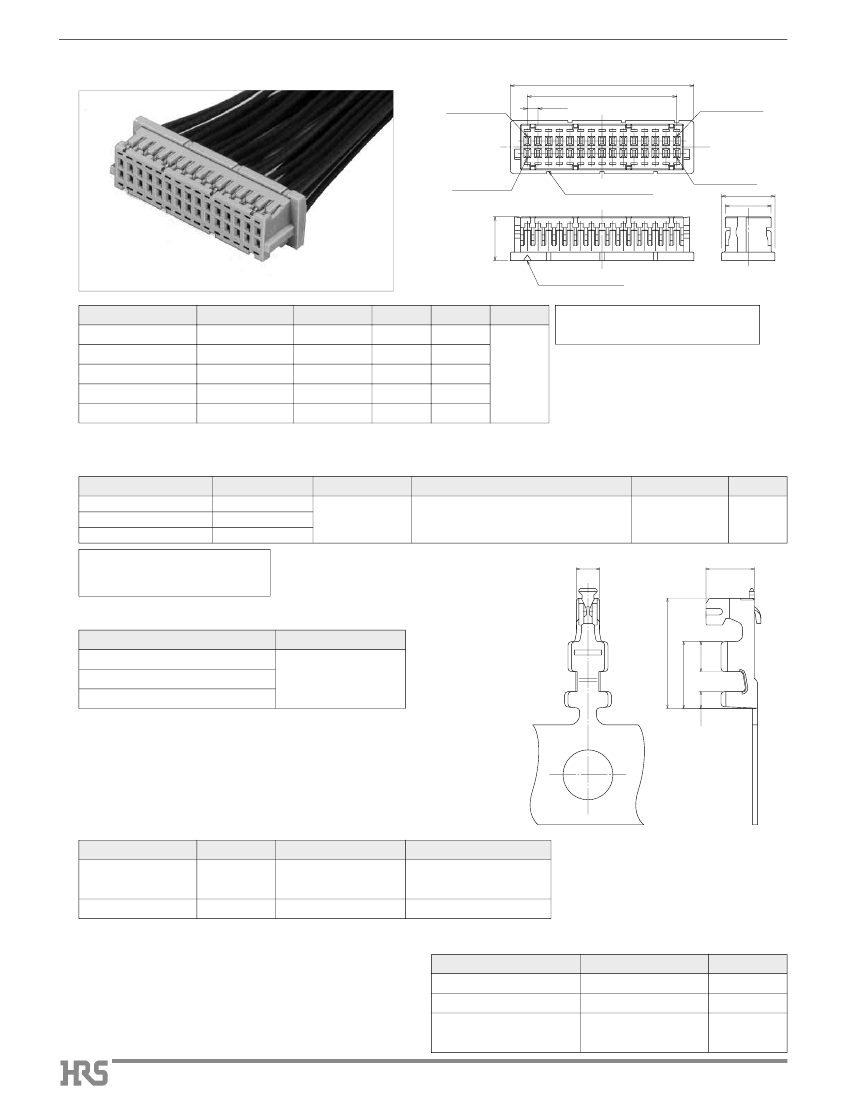

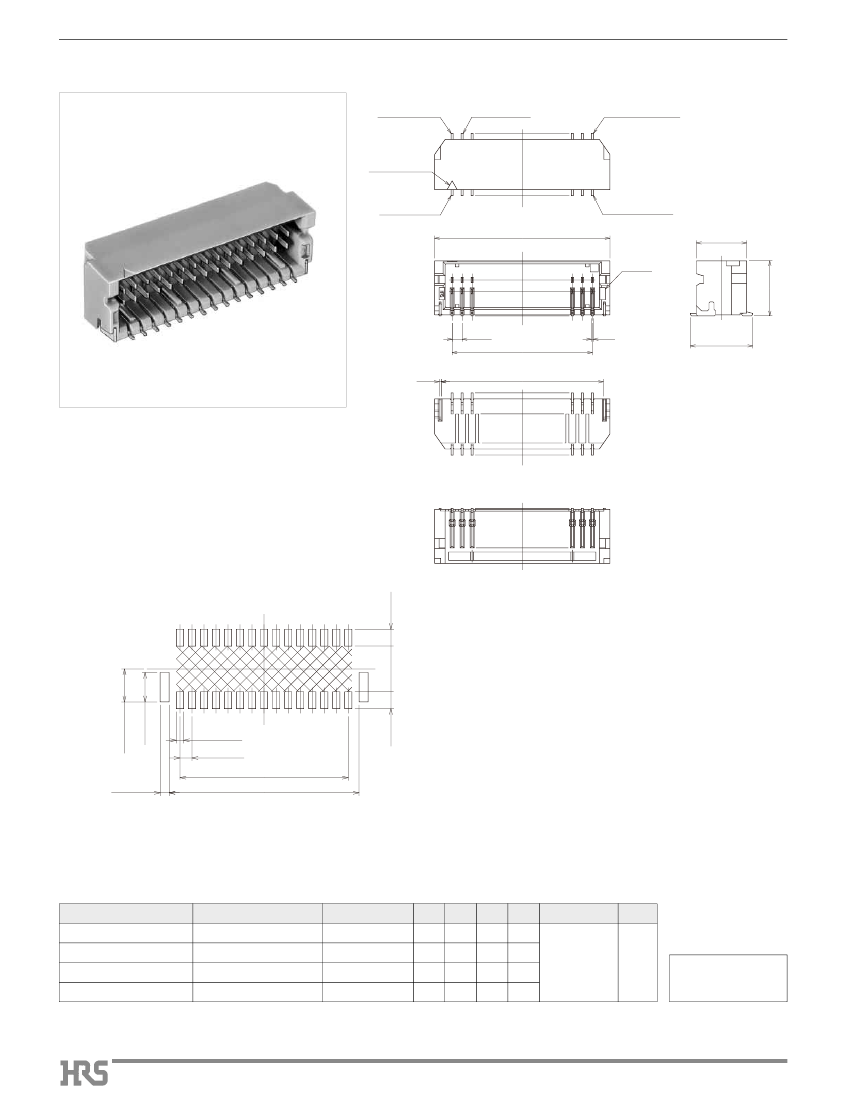

DF20 Series●1mm Pitch Double Rows Low Profile Wire-to-Board Connectors
■Double
Row Socket
Contact No. 2
P=1
A
B
Contact No. *
Contact No. 1
5th contact marking
Contact No. *
5
4.28
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Shown with terminated and installed contacts
Part No.
DF20A-10DS-1C
DF20A-20DS-1C
DF20A-30DS-1C
DF20A-40DS-1C
DF20A-50DS-1C
HRS No.
686-0020-3
686-0021-6
686-0022-9
686-0023-1
686-0024-4
No. of Contacts
10
20
30
40
50
A
17.2
12.2
17.2
22.2
27.2
B
14.0
19.0
14.0
19.0
24.0
YES
4.1
Contact No. 1 mark
Unit : mm
RoHS
[Specifications number]-*, (**)
Blank : Bag packaging (100 pcs / pack)
Note : Sales quantities are by the package unit (containing 100 pieces). Please order by package unit.
■Socket
Crimp Contacts
Part No.
HRS No.
DF20F-2830SCFA(
**
)
686-0042-6
**
(
**
)
DF20F-3032SCFA
686-0043-9
**
DF20F-36SCFA(
**
) (Note 2) 686-0051-7
**
[Specifications number] -*, (**)
(04) : 10,000 pcs / reel
(44) : 20,000 pcs / reel
Type of contacts
Reel contacts
Quantity
See specifications number column
Plating type
Gold plating
RoHS
YES
0.7
1.45
●Applicable
Wire (Tin plated solid soft conductor)
3.3
Applicable Wire Size (Stranded wire conductor)
28 AWG (7/0.127mm)
30 AWG (7/0.1mm)
32 AWG (7/0.08mm)
Jacket diameter
0.5 to 0.6mm
2
●Recommended
wire
●UL1571(thin
type) (Note 2)
●Strip
length
●1.2
to 1.9mm
Note 1 : When using other than the recommended wire, contact your nearest
Hirose representative.
Note 2 : Contact your Hirose sales representative when using 36 AWG.
●Applicable
Crimping Tools
Type
Applicator
Press
HRS No.
Part No.
Applicable contact
DF20F-2830SCFA(**)
DF20F-3032SCFA(**)
----
901-4572-6 AP105-DF20-2830S
901-0001-0 CM-105C
Note 1 : Hirose Electric will not be responsible for any
problems caused by use of tools other than specified.
Note 2 : Please conduct crimping work according to the
"Crimping work standards" and "Crimp condition
table".
■Replacement
Parts List for Applicator
Type
Insulation crimper
Wire crimper
Part No.
HRS No.
AP105-DF20-2830S(61) 901-4572-6 61
AP105-DF20-2830S(62) 901-4572-6 62
Insulation anvil and wire anvil AP105-DF20-2830S(63) 901-4572-6 63
B268
0.5
0.9

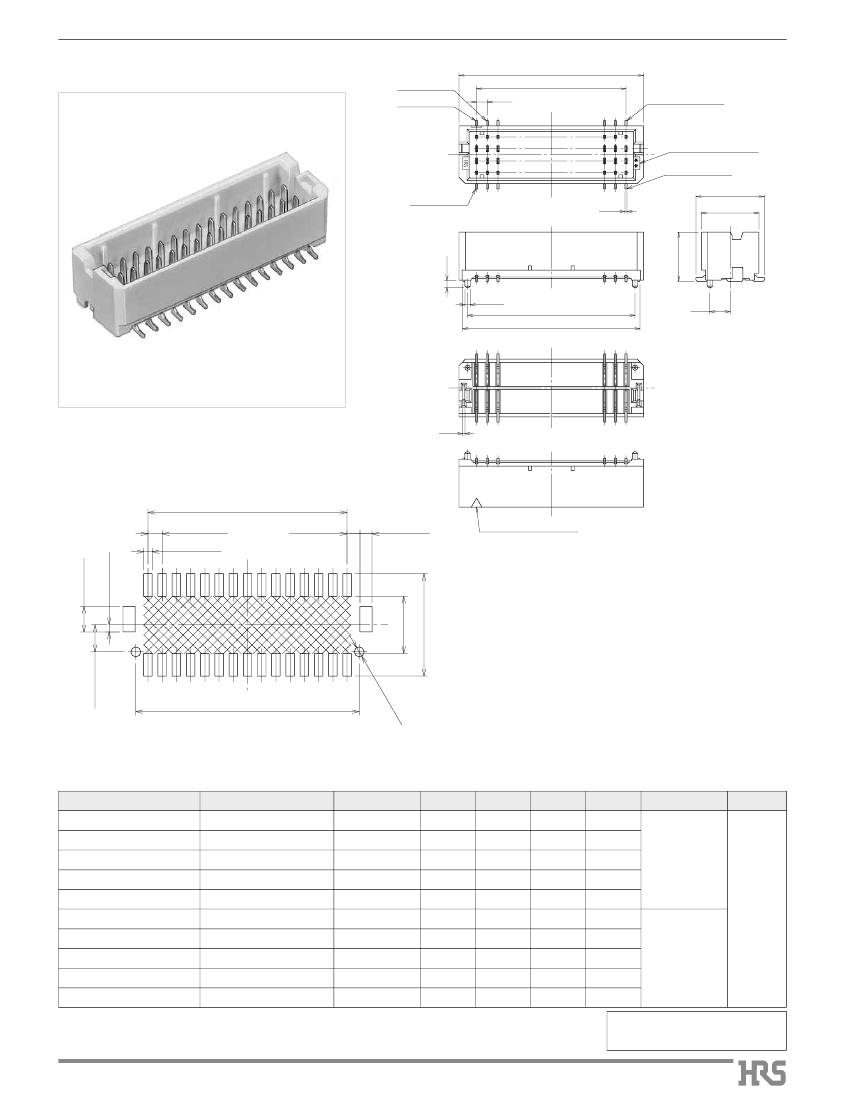

DF20 Series●1mm Pitch Double Rows Low Profile Wire-to-Board Connectors
■
Double Row Straight Pin header
Contact No.3
Contact No.1
P=1
B
A
Contact No. **-1
Indication of number
of contacts
Contact No. **
Contact No.2
6.4
0.2
5.4
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
0.7
Ø0.5
D
C
4.6
1.9
A
0.2
BPCB
Footprints
A ±0.05
P=1±0.03
0.6±0.05
1.8 ±0.1
0.5±0.05
0.9±0.05
0.85±0.1
Contact No. 1 marking
1.9±0.05
D±0.05
Note 1 : Shaded area must be free of any electrically conductive traces to avoid contact with soldered pin header terminations.
Note 2 : Required only for pin headers supplied with the positioning boss.
Unit : mm
Part No.
DF20F -10DP-1V(56)
DF20F -20DP-1V(56)
DF20F -30DP-1V(56)
DF20F -40DP-1V(56)
DF20F -50DP-1V(56)
DF20G-10DP-1V(56)
DF20G-20DP-1V(56)
DF20G-30DP-1V(56)
DF20G-40DP-1V(56)
DF20G-50DP-1V(56)
HRS No.
686-0032-2 56
686-0033-5 56
686-0034-8 56
686-0035-0 56
686-0036-3 56
686-0037-6 56
686-0038-9 56
686-0039-1 56
686-0040-0 56
686-0041-3 56
No. of contacts
10
20
30
40
50
10
20
30
40
50
7.2 ±0.1
4±0.1
Note 1 : Order embossed tape packaging items by the reel. (1 reel contains 1,000 pieces)
Note 2 : Vacuum pick-up cap are included with embossed tape packaged connectors.
.1
+0 0
.7
Ø0
A
14.0
19.0
14.0
19.0
24.0
14.0
19.0
14.0
19.0
24.0
B
17.3
12.3
17.3
22.3
27.3
17.3
12.3
17.3
22.3
27.3
C
16.6
11.6
16.6
21.6
26.6
16.6
11.6
16.6
21.6
26.6
D
----
----
----
----
----
15.7
10.7
15.7
20.7
25.7
Remarks
RoHS
Without boss
YES
With boss
[Specifications number]-*, (**)
(56) : Gold plating, embossed tape
packaging
B269
DF20 Series●1mm Pitch Double Rows Low Profile Wire-to-Board Connectors
■Double
Row Right angle Pin header
Contact No.1
Contact No.3
Contact No.**-1
Contact No.1
marking
Contact No.2
B
Contact No.**
5
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
A
Indication of
number of
contacts
**
P= 1
A
0.2
6.2
0.2
C
BPCB
Footprints
1.4
+0.1
0
2.75 ±0.05
+0.1
0
2.45
0.6 ±0.05
P= 1 ±0.03
A ±0.05
0.75 ±0.1
D ±0.05
Note : Shaded area must be free of any electrically conductive traces to avoid contact with soldered pin header terminations.
Unit : mm
Part No.
DF20F -10DP-1H(59)
DF20F -20DP-1H(59)
DF20F -30DP-1H(59)
DF20F -40DP-1H(59)
HRS No.
686-0027-2(59)
686-0028-5(59)
686-0029-8(59)
686-0030-7(59)
No. of contacts
10
20
30
40
1.4
+0.1
0
3.8 ±0.05
A
B
C
D
Remarks
RoHS
24.0 27.5 26.2 25.8
29.0
12.5 11.2 10.8
14.0 17.5 16.2 15.8
19.0 22.5 21.2 20.8
Without boss
YES
[Specifications number]-*, (**)
(59) : Gold plating,
embossed tape packaging
Note : Order embossed tape packaging items by the reel. (1 reel contains 1,000 pieces)
B270
5.5
