SRV
CONNECTOR
Wire-to-wire/Sealed Connectors

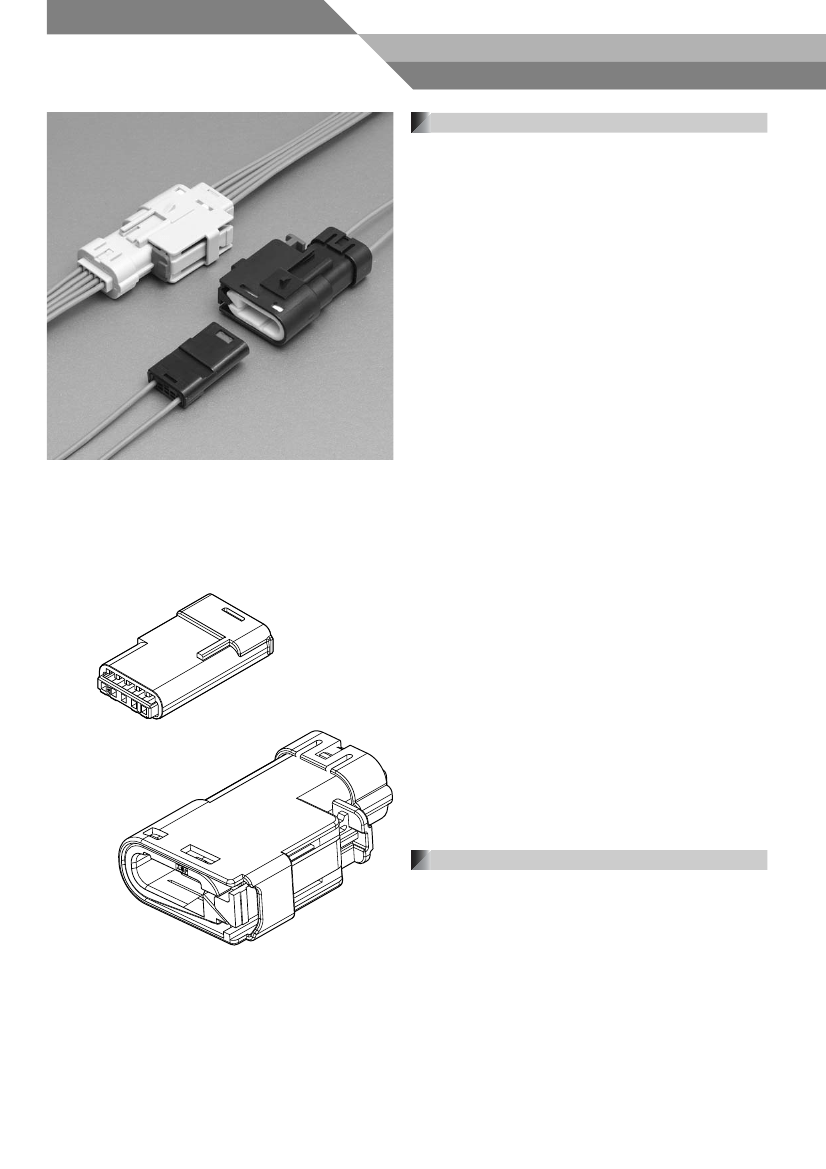

Features
●2
circuits to 5 circuits, Wire-to-Wire Connection
●Connector
Position Assurance (CPA) Mechanism
●Sealed
Inline Connector
●1.2
Clean Body Terminals
●Designed
for Small Packaging
1.2 Sealed Connector
Specifications
¡Current
rating: 7 A AC, DC max.
¡Voltage
rating: 14 V AC, DC
¡Temperature
range: -40°C to +125°C
(including temperature rise in applying
electrical current)
¡Contact
resistance: Initial value/ 8.0 mΩ max.
After environmental tests/ 8.0 mΩ max.
¡Insulation
resistance: 100 MΩ min.
¡Withstanding
voltage: 1,000 VAC/minute
¡Applicable
wire: FLR2X-B
0.35 mm
2
to 0.75 mm
2
∗
Compliant with ELV/RoHS .
∗
Contact JST for details.
1
SRV
CONNECTOR

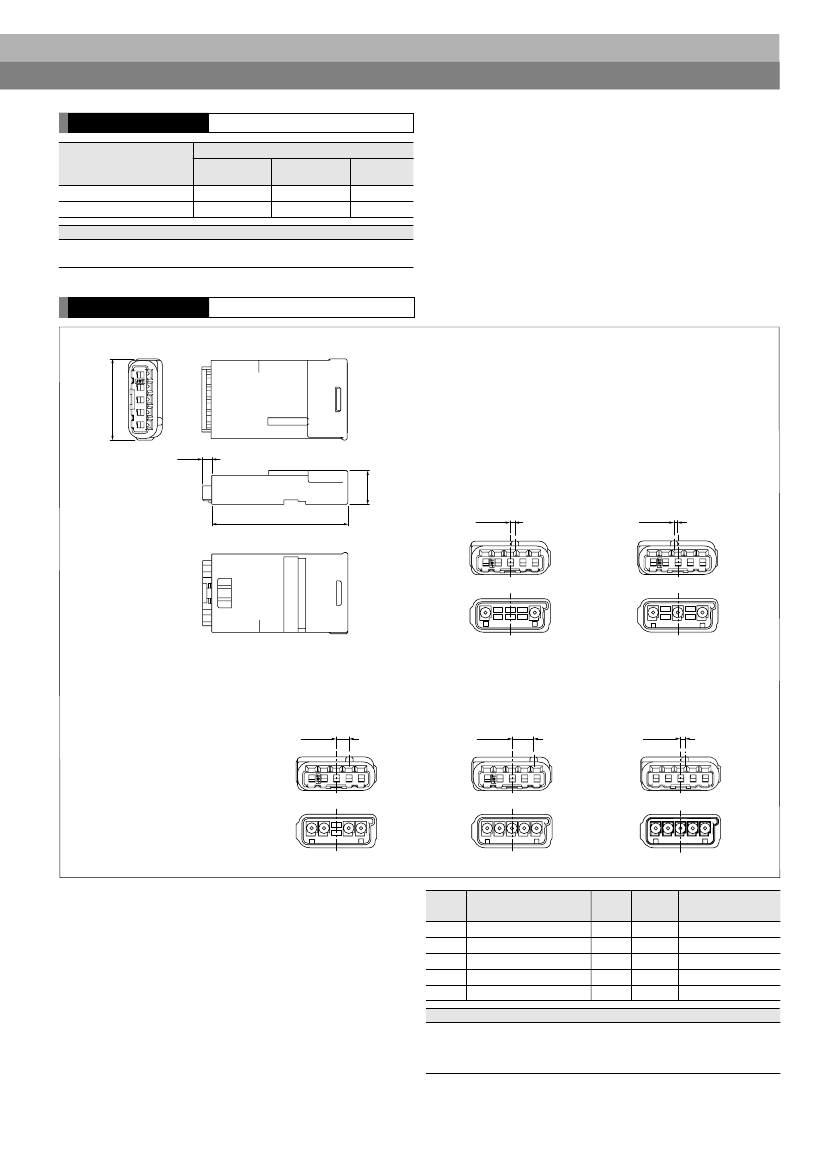

Female terminal
Applicable wire range
Model No.
1670144-1 or equivalent
1534594-1 or equivalent
Conductor
(mm
2
)
0.5 to 0.75
0.35
Material and Finish
Copper alloy, tin-plated (refer to TE Connectivity for details)
Note: Contact JST for details.
Insulation O.D.
(mm)
1.4 to 1.9
1.2 to 1.4
Gage Size
18-20AWG
22AWG
Female connector
16.5
(1.8)
6.9
¡2
circuits (Key D)
(0.97)
¡3
circuits (Key C)
(0.78)
27.7
¡4
circuits (Key B)
(2.72)
¡5
circuits (Key A)
(4.47)
¡5
circuits (Key D)
(0.97)
Circuits
2
3
4
5
5
Model No.
SRVPB-D02-K
SRVPB-C03-N
SRVPB-B04-S
SRVPB-A05-H
SRVPB-D05-K
Key
D
C
B
A
D
Q’ty/box
6,000
6,000
6,000
6,000
6,000
Color of Housing and
Back Cover
Black
Brown
Natural
Light gray
Black
Material and Finish
Housing: Glass-filled PBT
TPA: Glass-filled PBT, Red
Matte seal: Silicone, Green
Back cover: Glass-filled PBT
1
1
5
5
1
1
5
5
1
5
2
SRV
CONNECTOR

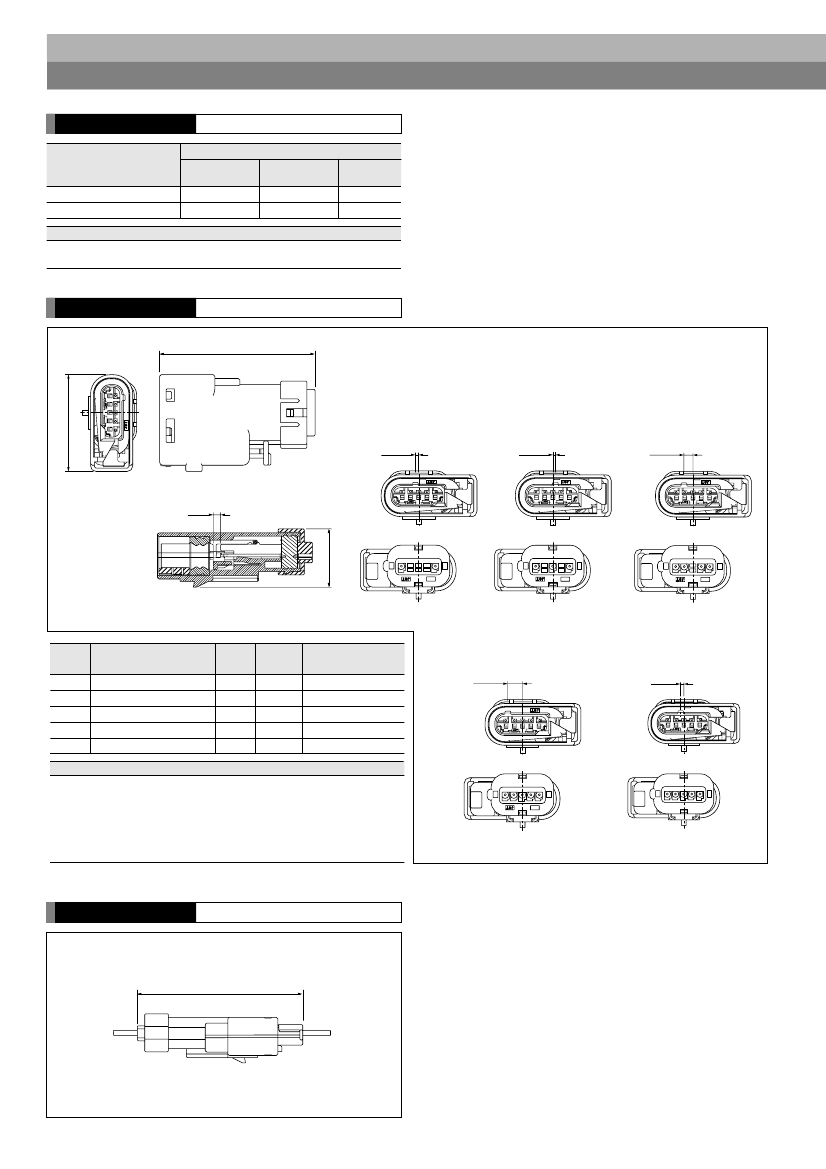

Male terminal
Applicable wire range
Model No.
1718350-1 or equivalent
1718348-1 or equivalent
Conductor
(mm
2
)
0.5 to 0.75
0.35
Material and Finish
Copper alloy, tin-plated (refer to TE Connectivity for details)
Note: Contact JST for details.
Insulation O.D.
(mm)
1.4 to 1.9
1.2 to 1.4
Gage Size
18-20AWG
22AWG
Male connector
(47.5)
29.54
¡2
circuits (Key D)
(0.97)
¡3
circuits (Key C)
(0.78)
¡4
circuits (Key B)
(2.72)
(2.3)
(16.5)
Circuits
2
3
4
5
5
Model No.
SRVWSB-02A-DK
SRVWSB-03A-CN
SRVWSB-04A-BS
SRVWSB-05A-AH
SRVWSB-05A-DK
Key
D
C
B
A
D
Q’ty/box
900
900
900
900
900
Color of Housing and
Back Cover
Black
Brown
Natural
Light gray
Black
¡5
circuits (Key A)
(4.47)
¡5
circuits (Key D)
(0.97)
Material and Finish
5
1
Assembly Layout
(55.9)
Note: Tolerances are non-cumulative: ±0.05 mm for all centers.
3
5
1
Housing: Glass-filled PBT
TPA: Glass-filled PBT, Red
Ring seal: Silicone, Green
Back cover: Glass-filled PBT
CPA: Glass-filled PBT, Red
Mat seal: Silicone, Green
Retainer clip: Glass-filled PBT, Natural
5
1
5
1
5
1
