MBRB2045CTHE3_A/I datasheet, PDF

Datasheet> All Categories > Discrete semiconductor> diode> MBRB2045CTHE3_A/I

MBRB2045CTHE3_A/I: DescriptionSchottky Diode and Rectifier 20A, 45V, TO-263AB AEC-Q101 Qualified; CategoryDiscrete semiconductor diode; File Size113KB，6 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric Compare View All

MBRB2045CTHE3_A/I Overview

Schottky Diode and Rectifier 20A, 45V, TO-263AB AEC-Q101 Qualified

MBRB2045CTHE3_A/I Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Vishay
package instruction	R-PSSO-G2
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	FREE WHEELING DIODE, LOW POWER LOSS
application	EFFICIENCY
Shell connection	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.84 V
JEDEC-95 code	TO-263AB
JESD-30 code	R-PSSO-G2
JESD-609 code	e3
Humidity sensitivity level	1
Maximum non-repetitive peak forward current	150 A
Number of components	2
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Maximum output current	10 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	245
Guideline	AEC-Q101
Maximum repetitive peak reverse voltage	45 V
Maximum reverse current	100 µA
surface mount	YES
technology	SCHOTTKY
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal location	SINGLE
Maximum time at peak reflow temperature	30

Preview

Download Datasheet

View All

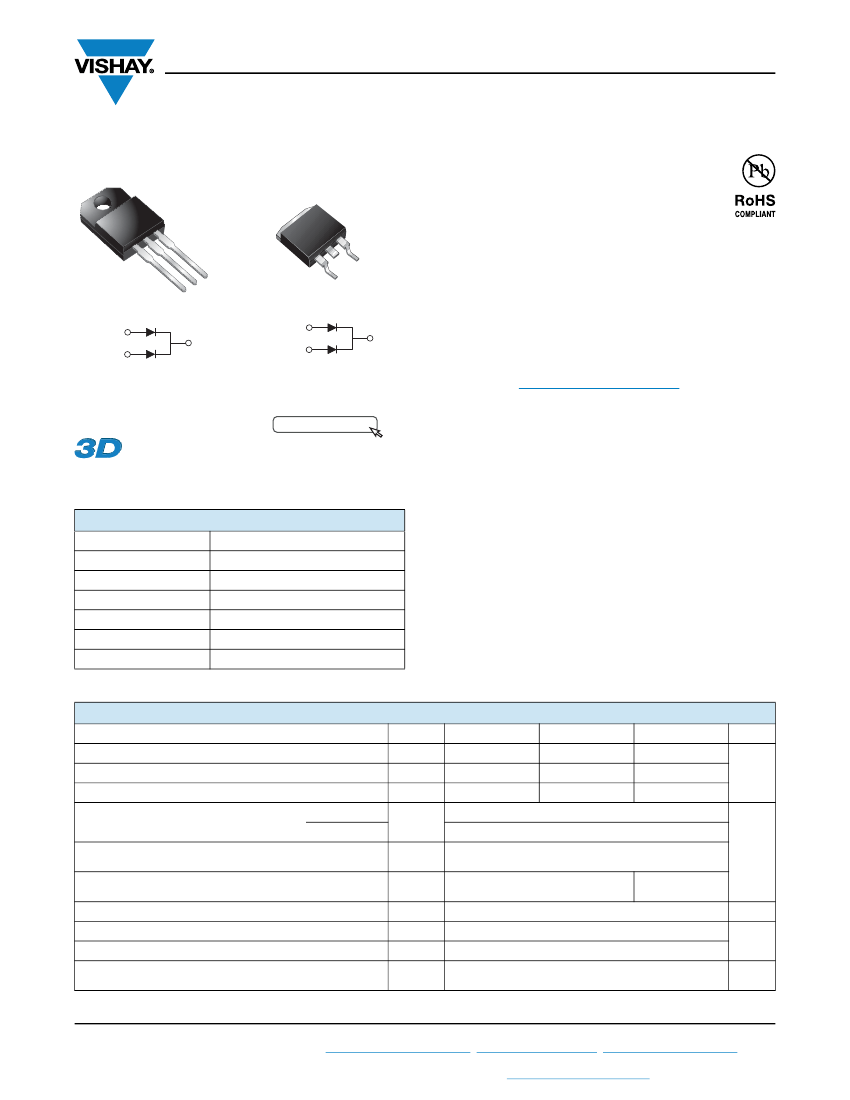

MBRF20xxCT, MBRB20xxCT

www.vishay.com

Vishay General Semiconductor

Dual Common Cathode Schottky Rectifier

ITO-220AB

PAK (TO-263AB)

FEATURES

Power pack

Guardring for overvoltage protection

Low power loss, high efficiency

Low forward voltage drop

High forward surge capability

High frequency operation

Meets MSL level 1, per J-STD-020, LF maximum peak

of 245 °C (for D

PAK (TO-263AB) package)

• Solder bath temperature 275 °C maximum, 10 s, per

JESD 22-B106 (for ITO-220AB package)

• AEC-Q101 qualified

• Material categorization: for definitions of compliance

please see

www.vishay.com/doc?99912

•

MBRB20xxCT

PIN 1

PIN 2

HEATSINK

MBRF20xxCT

PIN 1

PIN 3

PIN 2

TYPICAL APPLICATIONS

DESIGN SUPPORT TOOLS

Models

Available

click logo to get started

For use in low voltage, high frequency rectifier of switching

mode power supplies, freewheeling diodes, DC/DC

converters, and polarity protection application.

MECHANICAL DATA

Case:

ITO-220AB, D

PAK (TO-263AB)

Molding compound meets UL 94 V-0 flammability rating

Base P/N-E3 - RoHS-compliant, commercial grade

Base P/NHE3 - RoHS-compliant, AEC-Q101 qualified

Base P/NHE3_X - RoHS-compliant, AEC-Q101 qualified

(“_X” denotes revision code, e.g. A, B, ...)

Terminals:

matte tin plated leads, solderable per

J-STD-002 and JESD 22-B102

E3 suffix meets JESD 201 class 1A whisker test, HE3 suffix

meets JESD 201 class 2 whisker test

Polarity:

as marked

Mounting Torque:

10 in-lbs maximum

PRIMARY CHARACTERISTICS

F(AV)

RRM

FSM

max.

Package

Circuit configuration

2 x 10 A

35 V, 45 V, 60 V

150 A

0.57 V, 0.70 V

150 °C

ITO-220AB, D

PAK (TO-263AB)

Common cathode

MAXIMUM RATINGS

= 25 °C unless otherwise noted)

PARAMETER

Maximum repetitive peak reverse voltage

Working peak reverse voltage

Maximum DC blocking voltage

Maximum average forward rectified current



at T

= 135 °C

total device

per diode

SYMBOL

RRM

RWM

F(AV)

FSM

RRM

dV/dt

STG

1.0

10 000

-65 to +150

-65 to +175

1500

MBRB2035CT

MBRB2045CT

150

0.5

V/μs

°C

MBRB2060CT

UNIT

Peak forward surge current 8.3 ms single half sine-wave

superimposed on rated load per diode

Peak repetitive reverse surge current per diode at t

= 2.0 μs,

1 kHz

Voltage rate of change (rated V

)

Operating junction temperature range

Storage temperature range

Isolation voltage (ITO-220AB only) from terminal to heatsink



t = 1 min

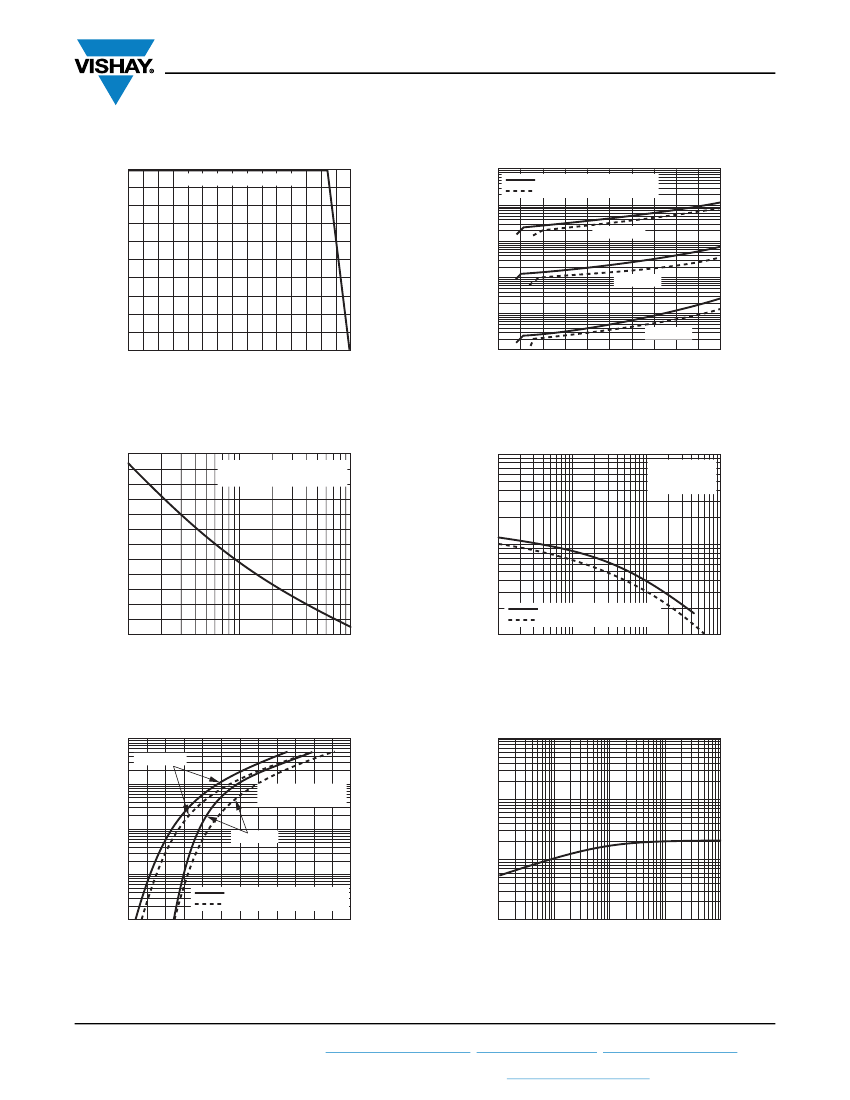

Revision: 13-Jun-2018

Document Number: 88674

For technical questions within your region:

DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000

Legal Disclaimer Notice

www.vishay.com

Vishay

Disclaimer



ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE

RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.

Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,

“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other

disclosure relating to any product.

Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or

the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all

liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,

consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular

purpose, non-infringement and merchantability.

Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of

typical requirements that are often placed on Vishay products in generic applications. Such statements are not binding

statements about the suitability of products for a particular application. It is the customer’s responsibility to validate that a

particular product with the properties described in the product specification is suitable for use in a particular application.

Parameters provided in datasheets and / or specifications may vary in different applications and performance may vary over

time. All operating parameters, including typical parameters, must be validated for each customer application by the customer’s

technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,

including but not limited to the warranty expressed therein.

Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining

applications or for any other application in which the failure of the Vishay product could result in personal injury or death.

Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk.

Please contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for

such applications.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document

or by any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.

Revision: 08-Feb-17

Document Number: 91000

MBRB2045CTHE3_A/I Related Products

	MBRB2045CTHE3_A/I	MBRB2035CTHE3_A/P	MBRB2060CTHE3_A/P
Description	Schottky Diode and Rectifier 20A, 45V, TO-263AB AEC-Q101 Qualified	Schottky Diode and Rectifier 20A, 35V, TO-263AB AEC-Q101 Qualified	Schottky Diode and Rectifier 20A, 60V, TO-263AB AEC-Q101 Qualified
Is it Rohs certified?	conform to	conform to	conform to
Maker	Vishay	Vishay	Vishay
package instruction	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Other features	FREE WHEELING DIODE, LOW POWER LOSS	FREE WHEELING DIODE, LOW POWER LOSS	FREE WHEELING DIODE, LOW POWER LOSS
application	EFFICIENCY	EFFICIENCY	EFFICIENCY
Shell connection	CATHODE	CATHODE	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.84 V	0.84 V	0.95 V
JEDEC-95 code	TO-263AB	TO-263AB	TO-263AB
JESD-30 code	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2
JESD-609 code	e3	e3	e3
Humidity sensitivity level	1	1	1
Maximum non-repetitive peak forward current	150 A	150 A	150 A
Number of components	2	2	2
Phase	1	1	1
Number of terminals	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C
Maximum output current	10 A	10 A	10 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	245	245	245
Guideline	AEC-Q101	AEC-Q101	AEC-Q101
Maximum repetitive peak reverse voltage	45 V	35 V	60 V
Maximum reverse current	100 µA	100 µA	150 µA
surface mount	YES	YES	YES
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal form	GULL WING	GULL WING	GULL WING
Terminal location	SINGLE	SINGLE	SINGLE
Maximum time at peak reflow temperature	30	30	30
