BFS 17P E6433 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Discrete semiconductor> The transistor> Bipolar transistor - a bipolar junction transistor (BJT)> BFS 17P E6433

Preview

BFS 17P E6433: DescriptionBipolar Transistor - Bipolar Junction Transistor (BJT) NPN Silicon RF TRANSISTOR; Categorysemiconductor Discrete semiconductor The transistor Bipolar transistor - a bipolar junction transistor (BJT); File Size231KB，11 Pages; ManufacturerInfineon; Websitehttp://www.infineon.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BFS 17P E6433 Overview

Bipolar Transistor - Bipolar Junction Transistor (BJT) NPN Silicon RF TRANSISTOR

BFS 17P E6433 Parametric

Parameter Name	Attribute value
Maker	Infineon
Product Category	Bipolar Transistor - Bipolar Junction Transistor (BJT)
Installation style	SMD/SMT
Package/box	SOT-23-3
Transistor polarity	NPN
Configuration	Single
Collector-emitter maximum voltage VCEO	15 V
Collector-base voltage VCBO	25 V
Emitter-Base voltage VEBO	2.5 V
Maximum DC collector current	0.025 A
Gain bandwidth product fT	2.5 MHz
Minimum operating temperature	- 65 C
Maximum operating temperature	+ 150 C
high	1 mm
length	2.9 mm
Encapsulation	Cut Tape
Encapsulation	Reel
width	1.3 mm
Collector continuous current	0.025 A
Pd-power dissipation	280 mW
Factory packaging quantity	10000
unit weight	8 mg

Preview

Download Datasheet

View All

BFS17P

NPN Silicon RF Transistor

Features

•

Maximum collector-emitter voltage V

CE0

= 15 V

Maximum collector current I

= 25 mA

Noise figure NF = 3.5 dB

3rd order output intercept point OIP

= 21.5 dBm

1 dB output compression point P

-1dB

= 10 dBm

Transition frequency f

= 1.4 GHz

Maximum total power dissipation P

tot

= 280 mW

Package: SOT23

Pb-free (RoHS compliant) package

Potential Applications

•

For broadband amplifiers up to 1 GHz at collector currents from 1 mA to 20 mA

For mixers and oscillators in sub-GHz applications

Device Information

ESD

(Electrostatic

discharge)

sensitive device, observe handling precaution!

Type / Ordering code

BFS17P / BFS17PE6327HTSA1

Marking

MCs

1=B

Pin Configuration

2=E

3=C

Package

SOT23

Datasheet

www.infineon.com

Please read the Important Notice and Warnings at the end of this document

Revision 1.1

2017-06-01

NPN Silicon RF Transistor

Table of contents

BFS17P

Table of contents

Features

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Potential Applications

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Device Information

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Table of contents

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

5.1

Maximum Ratings

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Thermal Resistance

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Electrical Characteristics

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

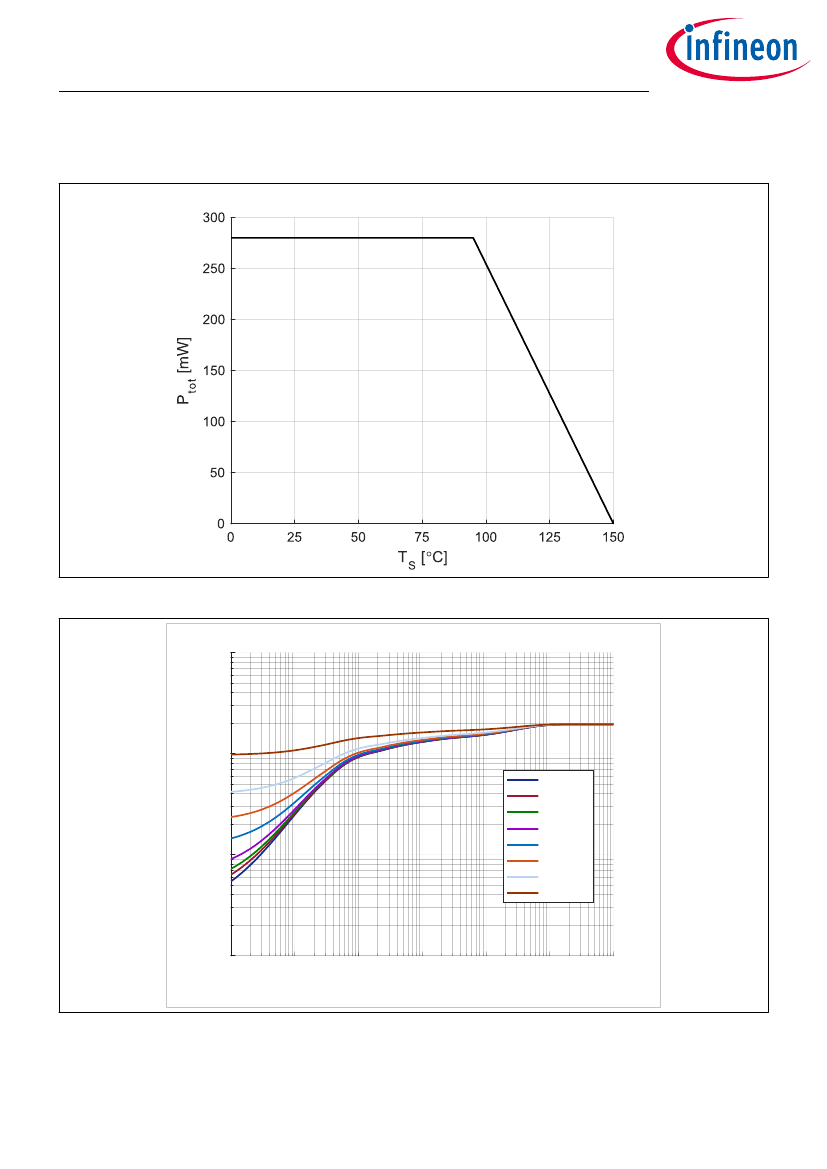

Typical characteristics diagrams

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Package information

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

SOT23 package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Revision History

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Trademarks

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Datasheet

Revision 1.1

2017-06-01
