15136-0600 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wire/cable> Cable package> Sensor/actuator cable> 15136-0600

15136-0600: DescriptionSensor Cable/Actuator Cable MicroClasp 6CKT CBL ASSY SR 50MM WHITE; CategoryWire/cable Cable package Sensor/actuator cable; File Size41KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

15136-0600 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	15136-0600	-	-	View	Buy Now

15136-0600 Overview

Sensor Cable/Actuator Cable MicroClasp 6CKT CBL ASSY SR 50MM WHITE

15136-0600 Parametric

Parameter Name	Attribute value
Maker	Molex
Product Category	Sensor cable/actuator cable
Shipping restrictions	Mouser does not currently sell this product.
series	15136
Connector port A	Socket
Connector Port A Pin Count	6 Position
Connector port B	Socket
Connector Port B Pin Count	6 Position
Type	Female / Female
length	50 mm
Current rating	3 A
Voltage rating	250 VAC/DC
Number of conductors	6 Conductor
Wire Gauge – American Wire Gauge (AWG)	22 AWG
Encapsulation	Bulk
color	White
Factory packaging quantity	100
unit weight	2.732 g

Preview

Download Datasheet

View All

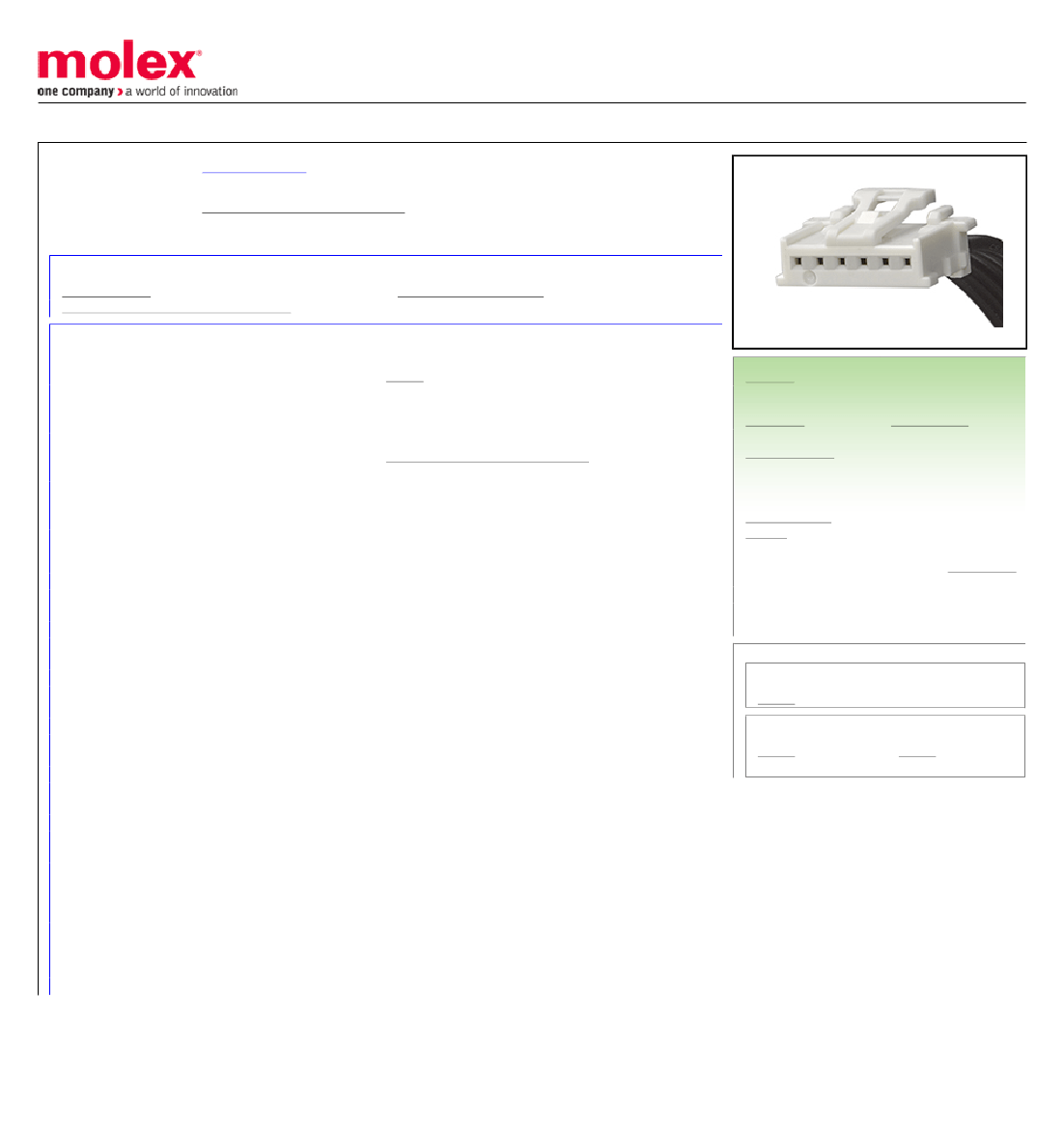

This document was generated on 05/14/2019

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0151360606

Active

MicroClasp Wire-to-Board System

MicroClasp-to-MicroClasp Off-the-Shelf (OTS) Cable Assembly, Single Row,

600.00mm Length, 6 Circuits, White

Documents:

Drawing (PDF)

RoHS Certificate of Compliance (PDF)

General

Product Family

Series

Application

Assembly Configuration

Connector to Connector

Overmolded

Overview

Product Literature Order No

Product Name

Type

UPC

Physical

Cable Length

Circuits (Loaded)

Color - Resin

Gender

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Packaging Type

Pitch - Mating Interface

Plating min - Mating

Plating min - Termination

Single Ended

Termination Interface: Style

Wire Insulation Diameter

Wire Size AWG

Wire/Cable Type

Electrical

Current - Maximum per Contact

Voltage - Maximum

Material Info

Reference - Drawing Numbers

Sales Drawing

Product Literature (PDF)

Series image - Reference only

Cable Assemblies

15136

Signal, Wire-to-Board

Dual Ended Connectors

MicroClasp-to-MicroClasp

MicroClasp Wire-to-Board System

987651-6143

MicroClasp OTS

Discrete Wire Assembly

191128149488

600.00mm

White

Female-Female

Yes

Phosphor Bronze

Tin

Nylon

16.590/g

Bag

2.00mm

0.889µm

0.914µm

Crimp or Compression

1.28mm

UL 1061

3.0A

250V AC (RMS)/DC

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per

-ED/88/2018 (15

January 2019)

Halogen-Free

Status

Not Low-Halogen

For more information, please visit Contact US

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Search Parts in this Series

15136 Series

Mates With

55932 Vertical Header, 55935 Right Angle

Header

2012341709-000

This document was generated on 05/14/2019

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
