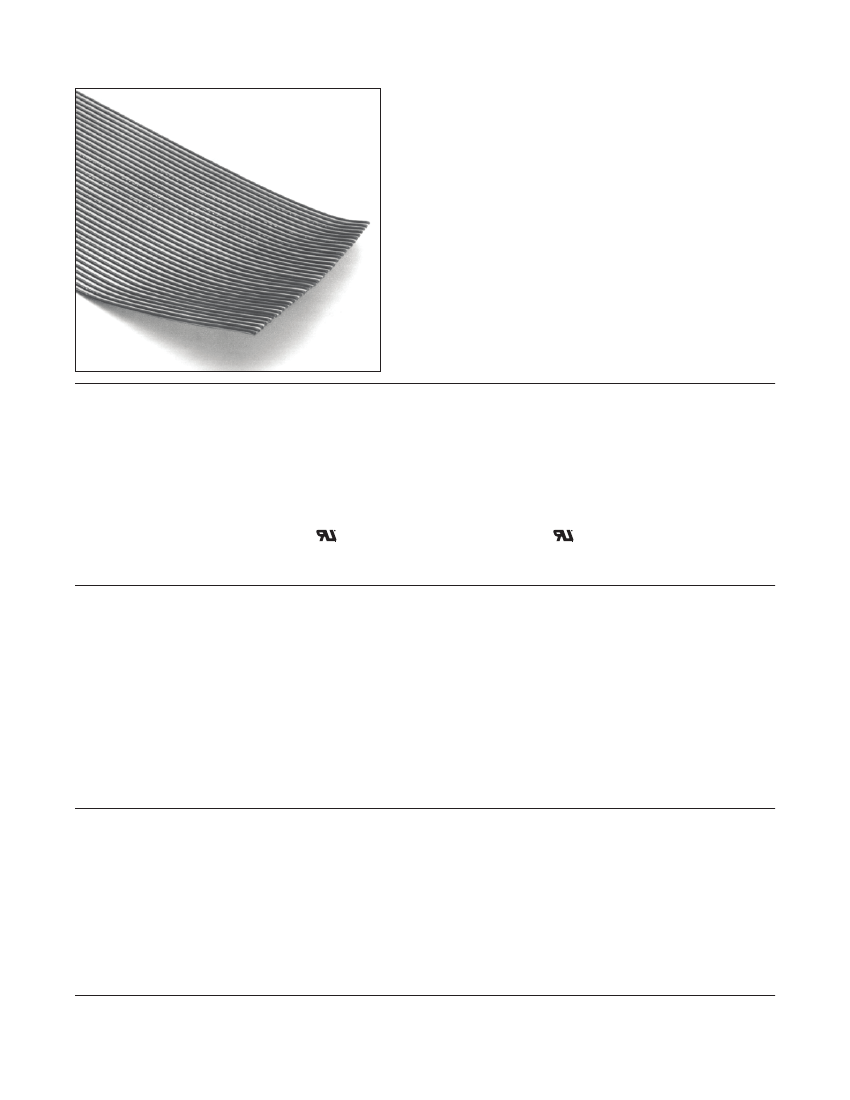

Individually insulated conductors are laminated to a
PVC backing which can be zipped apart for
branching or discrete terminations
•
See Regulatory Information Appendix (RIA) for
chemical compliance information
(RIA E1 & C1 apply)
Date Modified: May 15, 2009
TS-0084-B
Sheet 1 of 2
Physical
Insulation:
Material: Polyvinyl Chloride (PVC)
Color: Dark Gray Wires on Light Gray Carrier
Marking:
Standard: None
Canadian Option:
AWM 20462 105C 300V VW1 3M NU C
AWM IA 80C 150V FT1 EU <50V
Conductors:
22 AWG 7
×
30 [ 7
×
0.254 ] Tinned Stranded Copper
Electrical
Voltage Rating:
Insulation Resistance:
Characteristic Impedance:
Capacitance:
Inductance:
Propagation Delay:
Velocity of Propagation:
USA: 300V
> 1 × 10
10
Ω/10
ft. [ 3 m ]
Unbalanced: 119
Ω
Unbalanced: 11.0 pF/ft [ 36.1 pF/m ]
Unbalanced: 0.15 μH/ft [ 0.49 μH/m ]
Unbalanced: 1.30 ns/ft [ 4.27 ns/m ]
Unbalanced: 78%
Canada: 150V
EU: <50V
Note: Unbalanced is measured between ground-signal-ground conductors.
Environmental
Temperature Rating:
-20°C to +105°C
Flammability Rating:
USA: VW-1
Canada: -20°C to +80°C
Canada: FT1
UL File No.: E42769, Style No: 20462
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Round Conductor Flat Cable
.100" 22 AWG Stranded, PVC
Number of
Conductors
C
(OPTIONAL)
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
A
B
.034 Ref
[ 0.86 ]
.100 Typ
[ 2.54 ]
8124 Series
3M Part
Number
8124/05
8124/06
8124/07
8124/08
8124/09
8124/10
8124/11
8124/12
8124/13
8124/14
8124/15
8124/16
8124/17
8124/18
8124/19
8124/20
8124/21
8124/21
8124/23
8124/24
8124/25
8124/26
8124/27
8124/28
8124/29
8124/30
8124/31
8124/32
8124/33
8124/34
8124/35
8124/36
8124/37
8124/38
8124/39
8124/40
Dimension A
0.468 ± .015 [ 11.89 ]
0.568 ± .015 [ 14.43 ]
0.668 ± .015 [ 16.97 ]
0.768 ± .015 [ 19.51 ]
0.868 ± .015 [ 22.05 ]
0.968 ± .015 [ 24.59 ]
1.068 ± .020 [ 27.13 ]
1.168 ± .020 [ 29.67 ]
1.268 ± .020 [ 32.21 ]
1.368 ± .020 [ 34.75 ]
1.468 ± .020 [ 37.29 ]
1.568 ± .020 [ 39.83 ]
1.668 ± .020 [ 42.37 ]
1.768 ± .020 [ 44.91 ]
1.868 ± .020 [ 47.45 ]
1.968 ± .020 [ 49.99 ]
2.068 ± .025 [ 52.53 ]
2.168 ± .025 [ 55.07 ]
2.268 ± .025 [ 57.61 ]
2.368 ± .025 [ 60.15 ]
2.468 ± .025 [ 62.69 ]
2.568 ± .025 [ 65.23 ]
2.668 ± .025 [ 67.77 ]
2.768 ± .025 [ 70.31 ]
2.868 ± .025 [ 72.85 ]
2.968 ± .025 [ 75.39 ]
3.068 ± .025 [ 77.93 ]
3.168 ± .025 [ 80.47 ]
3.268 ± .025 [ 83.01 ]
3.368 ± .025 [ 85.55 ]
3.468 ± .025 [ 88.09 ]
3.568 ± .025 [ 90.63 ]
3.668 ± .025 [ 93.17 ]
3.768 ± .025 [ 95.71 ]
3.868 ± .025 [ 98.25 ]
3.968 ± .025 [ 100.79 ]
Dimension B
0.400 ± .010 [ 10.16 ]
0.500 ± .010 [ 12.70 ]
0.600 ± .010 [ 15.24 ]
0.700 ± .010 [ 17.78 ]
0.800 ± .010 [ 20.32 ]
0.900 ± .010 [ 22.86 ]
1.000 ± .015 [ 25.40 ]
1.100 ± .015 [ 27.94 ]
1.200 ± .015 [ 30.48 ]
1.300 ± .015 [ 33.02 ]
1.400 ± .015 [ 35.56 ]
1.500 ± .015 [ 38.10 ]
1.600 ± .015 [ 40.64 ]
1.700 ± .015 [ 43.18 ]
1.800 ± .015 [ 45.72 ]
1.900 ± .015 [ 48.26 ]
2.000 ± .020 [ 50.80 ]
2.100 ± .020 [ 53.34 ]
2.200 ± .020 [ 55.88 ]
2.300 ± .020 [ 58.42 ]
2.400 ± .020 [ 60.96 ]
2.500 ± .020 [ 63.50 ]
2.600 ± .020 [ 66.04 ]
2.700 ± .020 [ 68.58 ]
2.800 ± .020 [ 71.12 ]
2.900 ± .020 [ 73.66 ]
3.000 ± .020 [ 76.20 ]
3.100 ± .020 [ 78.74 ]
3.200 ± .020 [ 81.28 ]
3.300 ± .020 [ 83.82 ]
3.400 ± .020 [ 86.36 ]
3.500 ± .020 [ 88.90 ]
3.600 ± .020 [ 91.44 ]
3.700 ± .020 [ 93.98 ]
3.800 ± .020 [ 96.52 ]
3.900 ± .020 [ 99.06 ]
.060
±
.003
[ 1.52 ]
Inch
[mm]
Tolerance Unless Noted
.0
Inch
±.1
.00
±.01
.000
±.005
Dark Gray PVC Insulation Typ
22 AWG 7 X 30 [ 7 X 0.254 ] Tinned
Stranded Copper Conductors
Light Gray PVC
Carrier
[ ] Dimensions for Reference Only
Note: Red marking on one edge of cable designates wire #1.
Ordering Information
8124 / XX
Blank = Standard
C = Canadian Certified Version
Number of Conductors
(See Table)
Note: Standard length is 100 ft/roll.
TS-0084-B
Sheet 2 of 2
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Regulatory Information Appendix
3M Electronic Solutions Division/Interconnect
EUROPE
Appendix E1: European Union RoHS
Directive 2002/95/EC, Restriction of the Use of Certain Hazardous Substances in Electrical & Electronic Equipment, as
amended by EU Commission Decision 2005/618/EC.
This product is RoHS Compliant 2005/95/EC.
“RoHS Compliant 2005/95/EC” means that the product or part (“Product”) does not contain any of the substances in excess of
the maximum concentration values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/EC, unless
