Note: Unbalanced is measured between ground-signal-ground conductors, with shield grounded. Balanced is measured between signal conductors within a pair, with the shield floating.
Environmental
Temperature Rating:
Flammability Rating:
USA: CL2; 75°C or AWM: -20°C to +80°C
USA: N.E.C. 725, CL2
Canada: 80°C
Canada: FT1
UL File No.: E118773, Power Limited Circuit Cable: CL2 (or AWM Style 20879)
3
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™

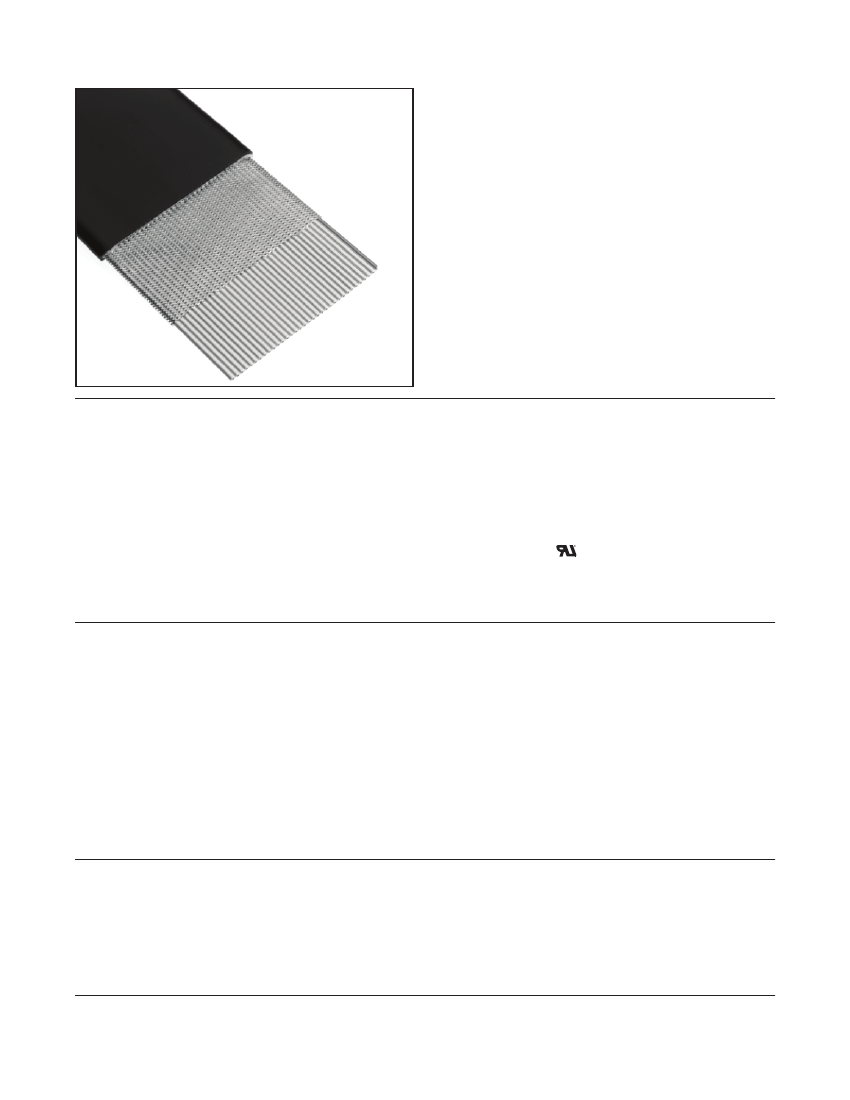

Shielded/Jacketed, Flat Cable
.050" 28 AWG Stranded, PVC/PVC
Number of
Conductors
09
10
C
14
15
16
3M Part Number
3517/09
3517/10
Dimension A
± .040"
.58 [ 14.7 ]
.63 [ 16.0 ]
.83 [ 21.1 ]
.88 [ 22.4 ]
.93 [ 23.6 ]
3517 Series
Dimension B
0.400 ± .007 [ 10.16 ]
0.450 ± .007 [ 11.43 ]
Inch
[mm]
Tolerance Unless Noted
.0
Inch
±.1
.00
±.01
.000
±.005
[ ] Dimensions for Reference Only
20
24
25
26
30
34
36
37
40
50
60
64
3517/14
3517/15
3517/16
3517/20
3517/24
3517/25
3517/26
3517/30
3517/34
3517/36
3517/37
3517/40
3517/50
3517/60
3517/64
1.13 [ 28.7 ]
1.33 [ 33.8 ]
1.38 [ 35.0 ]
1.43 [ 36.3 ]
1.63 [ 41.4 ]
1.83 [ 46.5 ]
1.93 [ 49.0 ]
1.98 [ 50.3 ]
2.13 [ 54.1 ]
2.63 [ 66.8 ]
3.13 [ 79.5 ]
3.38 [ 85.9 ]
0.650 ± .007 [ 16.51 ]
0.700 ± .007 [ 17.78 ]
0.750 ± .011 [ 19.05 ]
0.950 ± .011 [ 24.13 ]
1.150 ± .011 [ 29.21 ]
1.200 ± .011 [ 30.48 ]
1.250 ± .011 [ 31.75 ]
1.450 ± .015 [ 36.83 ]
1.650 ± .015 [ 41.91 ]
1.750 ± .015 [ 44.45 ]
1.800 ± .015 [ 45.72 ]
1.950 ± .015 [ 49.53 ]
2.450 ± .015 [ 62.23 ]
2.950 ± .015 [ 74.93 ]
3.150 ± .015 [ 80.01 ]
A
B
.050 ± .002 Typ
[ 1.27 ]
.11 ± .03
[ 2.8 ]
Paper
(Mfgr. Option)
.005 [ 0.13 ] Ref
Expanded Copper
PVC Primary
Insulation
28 AWG 7 X 36 AWG [ 7 X Ø 0.127 ]
Tinned Stranded Copper Conductors
.030 Min [ 0.76 ]
PVC Jacket
Note: Red marking on edge of primary cable designates wire #1.
Ordering Information
3517/XX XX
Blank = Standard
C = Canadian Certified Version
Number of Conductors
(See Table)
Blank = Standard
SF = Splice Free
Note: Available in standard 100 ft or 300 ft rolls, please specify when
ordering. Contact 3M for availability of additional conductor
counts and/or custom roll lengths.
TS-0069-D
Sheet 2 of 2
