8US4-CB119-00-0.50 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Wire/cable> Cable package> Computer line> 8US4-CB119-00-0.50

Preview

8US4-CB119-00-0.50: DescriptionComputer cable HD MiniSAS, ST-ST W/O SIDEBANDS, .5M; CategoryWire/cable Cable package Computer line; File Size801KB，2 Pages; Manufacturer3M; Websitehttp://3M.com/esd; Environmental Compliance

Download Datasheet Parametric Compare View All

8US4-CB119-00-0.50 Overview

Computer cable HD MiniSAS, ST-ST W/O SIDEBANDS, .5M

8US4-CB119-00-0.50 Parametric

Parameter Name	Attribute value
Maker	3M
Product Category	computer cable
Shipping restrictions	Mouser does not currently sell this product.
product	I/O Cables
type	Twin Axial
Connector port A	Mini-SAS
Connector Port A Pin Count	36 Position
Connector port B	Mini-SAS
Connector Port B Pin Count	36 Position
Type	Male / Male
length	0.5 m
Current rating	500 mA
Description/Function	High routability internal HD MiniSAS cable assemblies
Shell material	Thermoplastic Elastomer (TPE)
series	8US4 Series
Factory packaging quantity	70
unit weight	4.276 g

Preview

Download Datasheet

View All

8

7

6

5

4

3

2

1

3M

TM

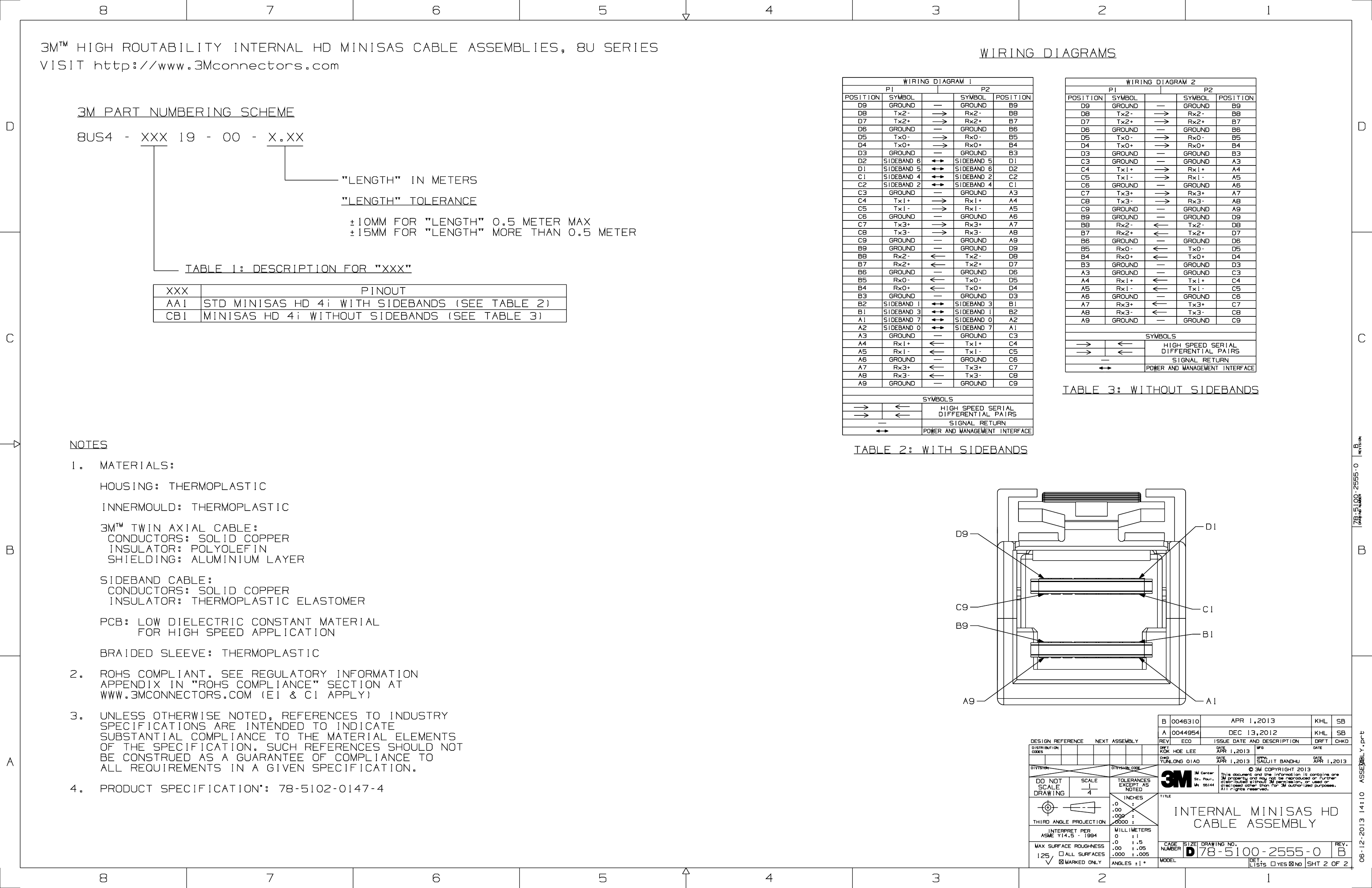

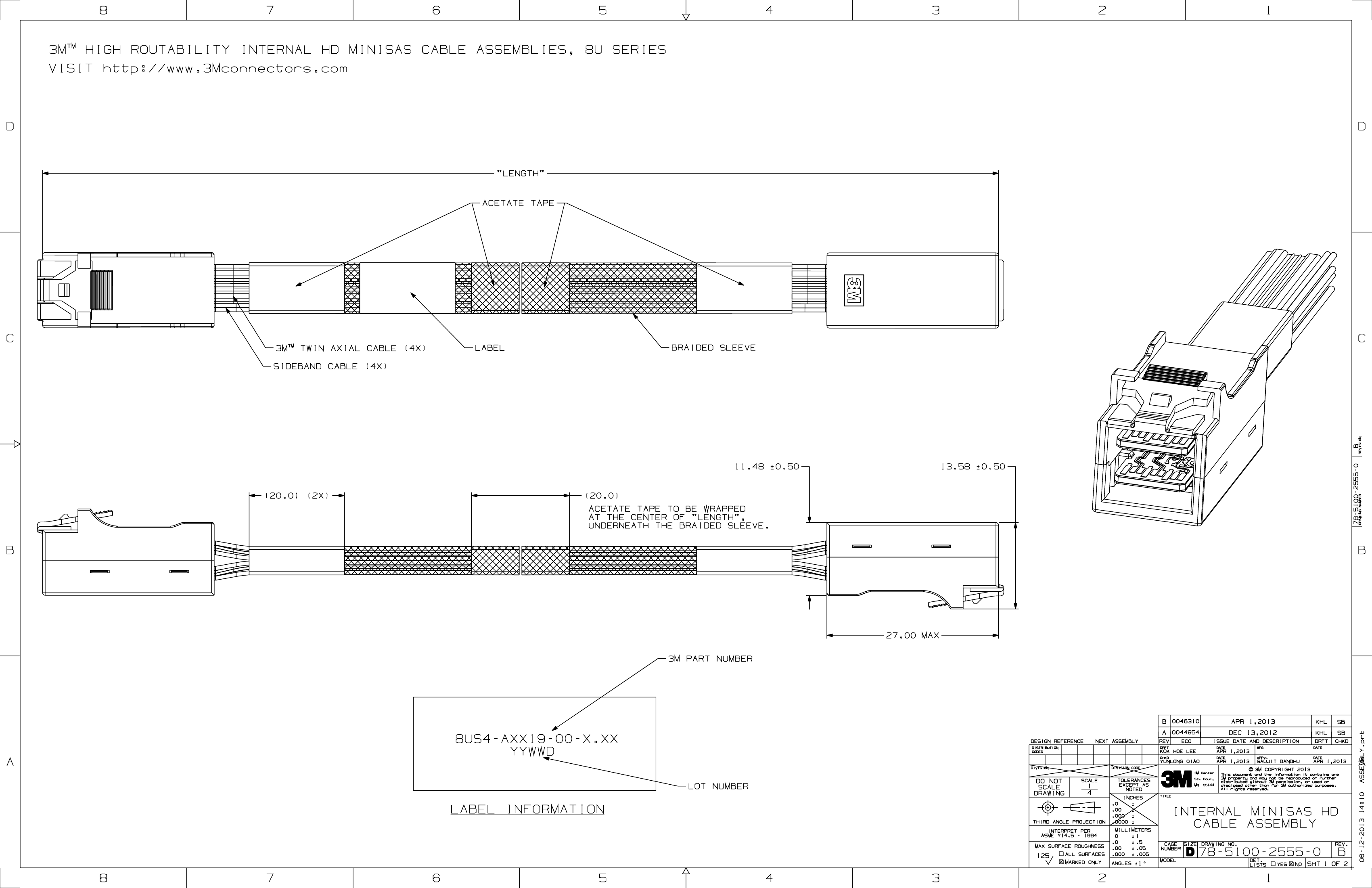

HIGH ROUTABILITY INTERNAL HD MINISAS CABLE ASSEMBLIES, 8U SERIES

VISIT http://www.3Mconnectors.com

D

"LENGTH"

ACETATE TAPE

C

3M

TM

C

TWIN AXIAL CABLE (4X)

LABEL

BRAIDED SLEEVE

SIDEBAND CABLE (4X)

11.48

0.50

13.58

0.50

ACETATE TAPE TO BE WRAPPED

AT THE CENTER OF "LENGTH",

UNDERNEATH THE BRAIDED SLEEVE.

B

27.00 MAX

3M PART NUMBER

B

0046310

APR 1,2013

DEC 13,2012

ISSUE DATE AND DESCRIPTION

DATE

MFG

KHL

DRFT

DATE

SB

CHKD

8US4-AXX19-00-X.XX

YYWWD

A

LOT NUMBER

A

0044954

DESIGN REFERENCE

DISTRIBUTION

CODES

NEXT ASSEMBLY

REV

DRFT

ECO

KOK HOE LEE

CHKD

APR 1,2013

DATE

APPVL

DATE

YUNLONG QIAO

DIVISION

DIVISION CODE

3M Center

APR 1,2013

C

SAUJIT BANDHU

APR 1,2013

A

06-12-2013 14:10

DO NOT

SCALE

DRAWING

SCALE

1

4

TOLERANCES

EXCEPT AS

NOTED

INCHES

.0

.00

.000

.0000

MILLIMETERS

0

1

.0

.5

.00

.05

.000

.005

ANGLES

TITLE

St. Paul,

MN

55144

This document and the information it contains are

3M property and may not be reproduced or further

distributed without 3M permission, or used or

disclosed other than for 3M authorized purposes.

LABEL INFORMATION

THIRD ANGLE PROJECTION

INTERPRET PER

ASME Y14.5 - 1994

MAX SURFACE ROUGHNESS

INTERNAL MINISAS HD

CABLE ASSEMBLY

CAGE SIZE

NUMBER

MODEL

DRAWING NO.

REV.

125

ALL SURFACES

MARKED ONLY

78-5100-2555-0

DET.

LISTS

YES

NO

B

1

SHT 1 OF 2

8

7

6

5

4

3

2

1

ASSEMBLY.prt

DRAWING NUMBER

(20.0) (2X)

(20.0)

78-5100-2555-0

REVISION

B

8US4-CB119-00-0.50 Related Products

	8US4-CB119-00-0.50	8US4-AA119-00-1.00	8US4-CB119-00-1.00	8US4-AA119-00-0.50
Description	Computer cable HD MiniSAS, ST-ST W/O SIDEBANDS, .5M	Computer cable HD MiniSAS, ST-ST W/ SIDEBANDS, 1M	Computer cable HD MiniSAS, ST-ST W/O SIDEBANDS, 1M	Computer cable HD MiniSAS, ST-ST W/ SIDEBANDS, .5M
Maker	3M	3M	3M	3M
Product Category	computer cable	computer cable	computer cable	computer cable
product	I/O Cables	I/O Cables	I/O Cables	I/O Cables
type	Twin Axial	Twin Axial	Twin Axial	Twin Axial
Connector port A	Mini-SAS	Mini-SAS	Mini-SAS	Mini-SAS
Connector Port A Pin Count	36 Position	36 Position	36 Position	36 Position
Connector port B	Mini-SAS	Mini-SAS	Mini-SAS	Mini-SAS
Connector Port B Pin Count	36 Position	36 Position	36 Position	36 Position
Type	Male / Male	Male / Male	Male / Male	Male / Male
length	0.5 m	1 m	1 m	0.5 m
Current rating	500 mA	500 mA	500 mA	500 mA
Description/Function	High routability internal HD MiniSAS cable assemblies	High routability internal HD MiniSAS cable assemblies	High routability internal HD MiniSAS cable assemblies	High routability internal HD MiniSAS cable assemblies
Shell material	Thermoplastic Elastomer (TPE)	Thermoplastic Elastomer (TPE)	Thermoplastic Elastomer (TPE)	Thermoplastic Elastomer (TPE)
series	8US4 Series	8US4 Series	8US4 Series	8US4 Series
Factory packaging quantity	70	35	35	70
unit weight	4.276 g	5.305 g	4.489 g	5.632 g
