Customer Specification
PART NO: 802 Series
M8 Plastic Passive I/O Box

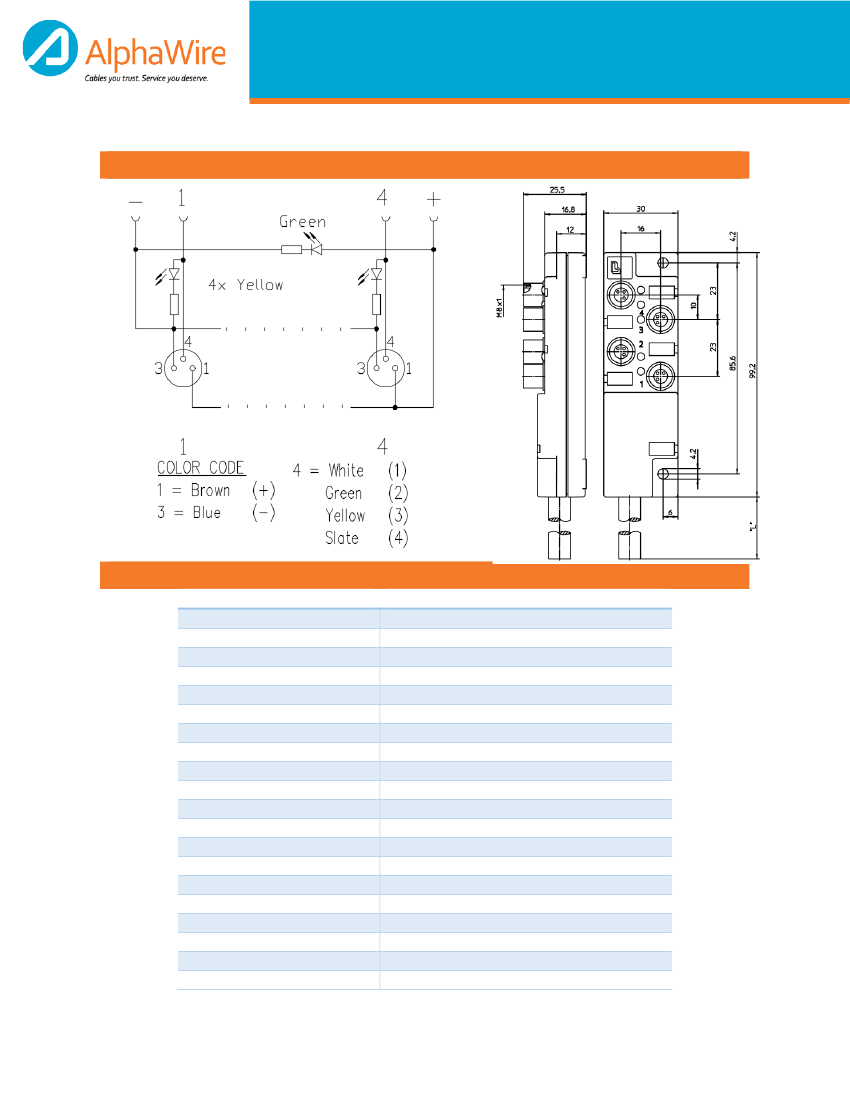

Dimensions
Issue: 1 Issue Date: 8/20/2016 Effective Date: 8/20/2016
Technical Data
Box Configuration
Ports
LED
Housing
Contact
Receptacle Shell
O-Ring
Electrical
Contact Resistance
Voltage Rating
Current Rating
Insulation Resistance
UL File
Cable Construction
Conductor Size
Outer Jacket Material
Outer Diameter
Color
Suitable for C-Track
Environmental
Degree of Protection
4
Yes
Black PBT
Copper Alloy, Gold Plated
Copper Alloy, Nickel Plated
FKM
≤5mΩ
10-30V DC
1.5A per port @ 40°C, 1.5A Max.
>10
9
Ω
E485582
6
x 0.50mm
2
Zero Halogen PUR
.201”
Black
Yes
IP 67/ NEMA 6P
•••••••••••••••••••••••••••••••••••••••
Alpha Wire | 711 Lidgerwood Ave, Elizabeth, NJ 07207
www.alphawire.com | 1-800-52 ALPHA
1
Customer Specification
PART NO: 802 Series
M8 Plastic Passive I/O Box
Operating Temperature
Range
RoHS
-25C
(-13F)/
+70C
(+158F)
All materials used in the manufacture of
this part meet the requirements of
European Directive 2011/65/EU regarding
the restriction of use of certain hazardous
substances in electrical and electronic
equipment. Exemption used; 6a.
This product does not contain Substances
of Very High Concern (SVHC) listed on the
European Union’s REACH candidate list in
excess of 0.1% mass of the item.
REACH Regulation (EC
1907/2006)
Accessories Included
2 Dust Covers for unused
sockets
5
attachable labels
Ordering Information
802-5M
NC032
802-10M
NC032
802-CN
NC032
Issue: 1 Issue Date: 8/20/2016 Effective Date: 8/20/2016
Description
5 Meters
10 Meters
Connectorized
Quantity
Each
Each
Each
Although Alpha Wire (“Alpha”) makes every reasonable effort to ensure their accuracy at the time
of this publication, information and specifications described herein are subject to error or omission
and to change without notice, and the listing of such information and specifications does not
ensure product availability. Alpha provides the information and specification herein on an “AS IS”
basis, with no representations or warranties, whether express, statutory or implied. In no event
will Alpha be liable any
damages (including consequential, indirect, incidental, special, punitive, or
exemplary damages) whatsoever, even if Alpha has been advised of the possibility of such
damages, whether in an action under contact, negligence or any other theory, arising out of or in
connection with the use, or inability to use, the information or specification described herein.
•••••••••••••••••••••••••••••••••••••••
