• Solid pleated copper foil provides flexibility and
35 db average shielding effectiveness
• CL2 rated, rugged design and high reliability for
peripheral applications
• See the Regulatory Information Appendix (RIA) in
the “RoHS compliance” section of
www.3Mconnectors.com for compliance information
(RIA E1 & C1 apply)
90101 Series
Date Modified: September 3, 2013
TS-0285-D
Sheet 1 of 2
Physical
Material:
Polyvinyl Chloride (PVC)
Primary Material:
Thermoplastic Elastomer (TPE)
Color:
Gray
Jacket:
Marking:
Conductors:
Shielding:
Standard:
(UL) CL2 75C 30 AWG 3M NU C
30 AWG [ 0.254 ] Tinned Solid Copper
Solid, Pleated, Copper Foil
AWM IIA/B 80C 150V FT1 EU <50V
Electrical
Voltage Rating:
Insulation Resistance:
Characteristic Impedance:
Capacitance:
Inductance:
Propagation Delay:
Velocity of Propagation:
USA: N.E.C. 725, CL2
Unbalanced
53
Ω
28.4 pF/ft [ 93.2 pF/m ]
0.08 μH/ft [ 0.26 μH/m ]
1.52 ns/ft [ 4.99 ns/m ]
67%
Canada: 150V
Balanced
104
Ω
EU: <50V
(Primary Cable) > 1 × 10
10
Ω/10
ft. [ 3 m ]
14.5 pF/ft [ 47.6 pF/m ]
0.16 μH/ft [ 0.52 μH/m ]
1.51 ns/ft [ 4.95 ns/m ]
67%
Note: Unbalanced is measured between ground-signal-ground conductors with shield grounded. Balanced is measured between signal conductors within a pair with the shield floating.
Environmental
Temperature Rating:
Flammability Rating:
USA: CL2: 75°C
USA: N.E.C. 725, CL2
Canada: 80°C
Canada: FT1
UL File No.: E118773, Power Limited Circuit Cable: CL2
3
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™

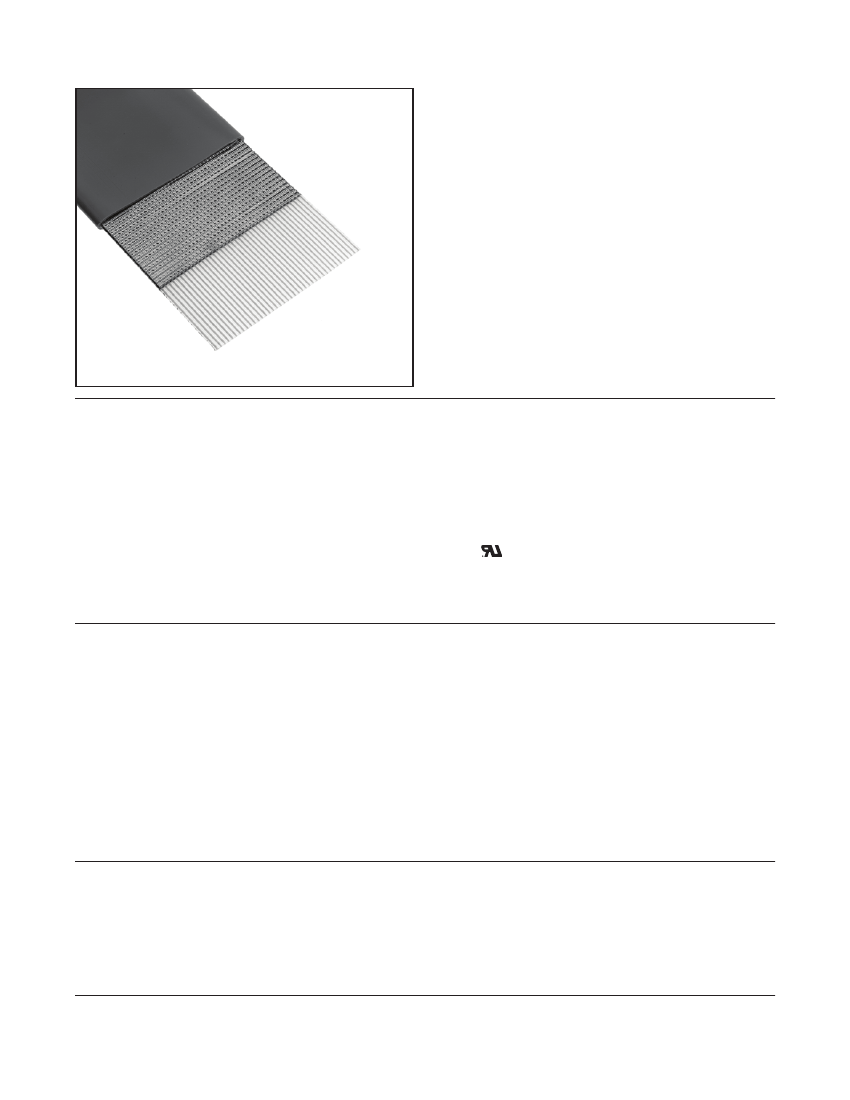

Pleated Foil Shielded Cable
.025" 30 AWG Solid, TPE Primary, PVC Jacket
Number of
Conductors
20
26
36
40
50
68
80
100
3M Part Number
90101/20
90101/26
90101/36
90101/40
90101/50
90101/68
90101/80
90101/100
Dimension A
0.60 [ 15.2 ]
0.75 [ 19.1 ]
1.00 [ 25.4 ]
1.10 [ 27.9 ]
1.35 [ 34.3 ]
1.80 [ 45.7 ]
2.10 [ 53.3 ]
2.60 [ 66.0 ]
90101 Series
Dimension B
0.475 ± .006 [ 12.07 ]
0.625 ± .006 [ 15.88 ]
0.875 ± .009 [ 22.23 ]
0.975 ± .009 [ 24.77 ]
1.225 ± .009 [ 31.12 ]
1.675 ± .012 [ 42.55 ]
1.975 ± .015 [ 50.17 ]
2.475 ± .017 [ 62.87 ]
A
B
.025
±
.002 Typ
[ 0.64 ]
.10
±
.03
[ 2.5 ]
30 AWG [ 0.254 ]
Tinned Solid Copper
Conductors
Paper
(Mfgr. Option)
TPE Primary
Insulation
.005 [ 0.13 ] Pleated Foil Shield
with Adhesive Backing using Solid
Copper Foil .001 [ 0.03 ] Thick
.026 (0.66) Min
PVC Jacket
Inch
[mm]
Tolerance Unless Noted
.0
Inch
Note: Blue marking on edge of primary cable designates wire #1.
.00
±.05
.000
±.010
±.1
[ ] Dimensions for Reference Only
Ordering Information
90101/XX XX
Number of Conductors
(See Table)
Blank = Standard
SF = Splice Free
Note: Standard lengths are 100 ft, 150 ft, and 300 ft rolls.
Please specify when ordering.
TS-0285-D
Sheet 2 of 2
3
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Important Notice
All statements, technical information, and recommendations related to 3M’s products are based on information believed to be reliable, but the accuracy or completeness
is not guaranteed. Before using this product, you must evaluate it and determine if it is suitable for your intended application. You assume all risks and liability associated
with such use. Any statements related to the product which are not contained in 3M’s current publications, or any contrary statements contained on your purchase order
shall have no force or effect unless expressly agreed upon, in writing, by an authorized officer of 3M.
Warranty; Limited Remedy; Limited Liability.
This product will be free from defects in material and manufacture for a period of one (1) year from the time of purchase.
3M MAKES NO OTHER WARRANTIES
INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
If this product is defective within the
warranty period stated above, your exclusive remedy shall be, at 3M’s option, to replace or repair the 3M product or refund the purchase price of the 3M product.
Except
where prohibited by law, 3M will not be liable for any indirect, special, incidental or consequential loss or damage arising from this 3M product, regardless of
