• Solid pleated copper foil provides flexibility and 35
db average shielding effectiveness
• See Regulatory Information Appendix (RIA) for
chemical compliance information
(RIA E1 & C1 apply)
90201 Series
Date Modified: September 3, 2013
TS-0402-C
Sheet 1 of 2
Physical
Cover Material:
Primary Material:
Thermoplastic Elastomer (TPE)
Cover Color:
Gray
Thermoplastic Elastomer (TPE)
Marking:
Canadian Option:
Standard:
None
C
AWM 20674 105C 150V VW1 3M NU
AWM IA 105C 150V FT1 EU <50V
Conductors:
Shielding:
Solid, Pleated, Copper Foil
30 AWG [ 0.254 ] Tinned Solid Copper
Electrical
Voltage Rating:
Insulation Resistance:
Characteristic Impedance:
Capacitance:
Inductance:
Propagation Delay:
Velocity of Propagation:
USA: 150V
Unbalanced
53
Ω
Canada: 150V
Balanced
104
Ω
EU: <50V
(Primary Cable) > 1 × 10
10
Ω/10
ft. [ 3 m ]
28.4 pF/ft [ 93.2 pF/m ]
0.08 μH/ft [ 0.26 μH/m ]
1.52 ns/ft [ 4.99 ns/m ]
67%
14.5 pF/ft [ 47.6 pF/m ]
0.16 μH/ft [ 0.52 μH/m ]
1.50 ns/ft [ 4.95 ns/m ]
67%
Note: Unbalanced is measured between ground-signal-ground conductors with shield grounded. Balanced is measured between signal conductors within a pair with the shield floating.
Environmental
Temperature Rating:
-20°C to +105°C
Canada: FT1
Flammability Rating:
USA: VW-1
UL File No.: E42769, Style No.: 20674
3
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™

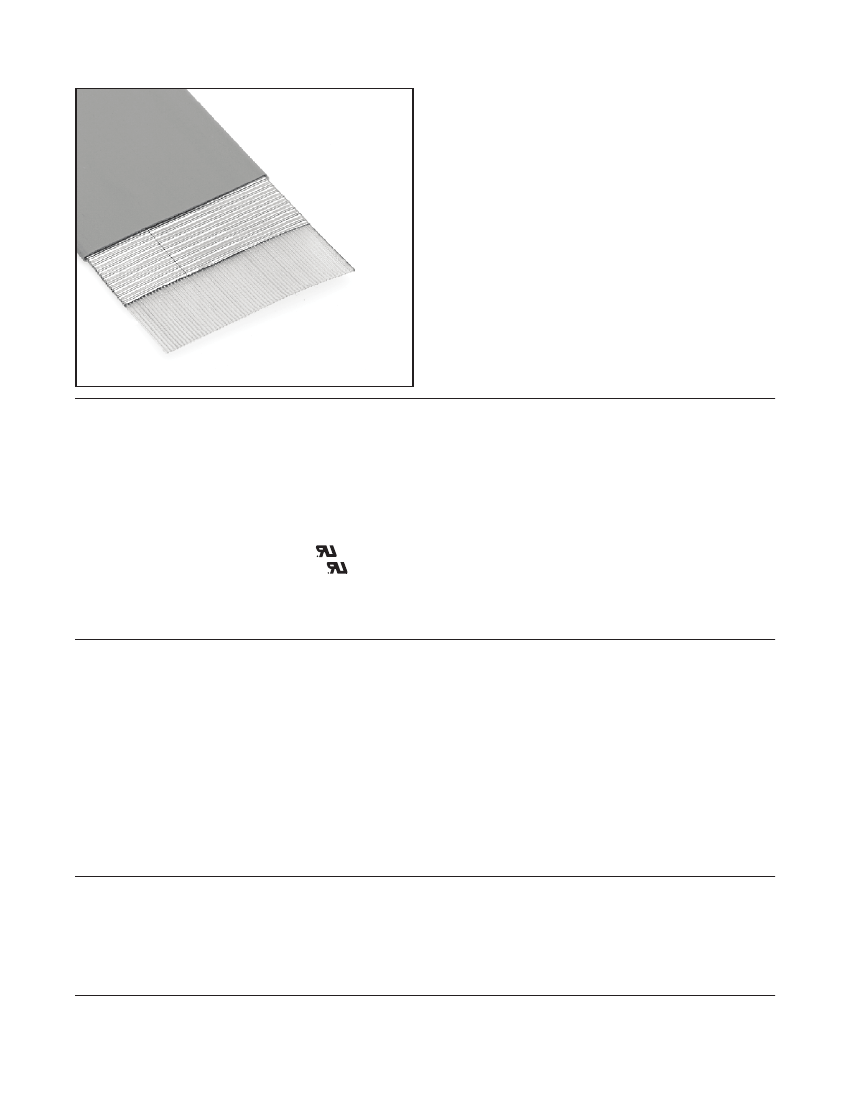

Pleated Foil Shielded Cable
.025" 30 AWG Solid, TPE Primary, Thin TPE Cover
Number of
Conductors
20
(OPTIONAL)
90201 Series
Dimension A
0.54 [ 13.7 ]
0.69 [ 17.5 ]
0.94 [ 23.9 ]
1.04 [ 26.4 ]
1.29 [ 32.8 ]
1.54 [ 39.1 ]
1.74 [ 44.2 ]
2.04 [ 51.8 ]
2.54 [ 64.5 ]
Dimension B
0.475 ± .006 [ 12.06 ]
0.625 ± .006 [ 15.88 ]
0.875 ± .009 [ 22.23 ]
0.975 ± .009 [ 24.77 ]
1.225 ± .009 [ 31.11 ]
1.475 ± .012 [ 37.47 ]
1.675 ± .012 [ 42.55 ]
1.975 ± .015 [ 50.17 ]
2.475 ± .017 [ 62.87 ]
3M Part Number
90201/20
90201/26
90201/36
90201/40
90201/50
90201/60
90201/68
90201/80
90201/100
26
36
40
50
60
68
80
100
A
B
.025
±
.002 Typ
[ 0.64 ]
.06
±
.02
[ 1.52 ]
30 AWG [ 0.254 ]
Tinned Solid Copper Conductors
TPE Primary
Insulation
.005 [ 0.13 ] Pleated Foil Shield
With Adhesive Backing Using
Solid Copper Foil .001 [ 0.03 ] Thick
.005 (0.13) Min
TPE Covering
Inch
[mm]
Tolerance Unless Noted
.0
Inch
Note: Blue marking on edge of primary cable designates wire #1.
.00
±.05
.000
±.010
±.1
[ ] Dimensions for Reference Only
Ordering Information
90201/XXX XX
Blank = Standard
C = CSA Certified Version
Number of Conductors
(See Table)
Blank = Standard
SF = Splice Free
Note: Available in standard 100 ft or 300 ft rolls, please specify when ordering. Contact
3M for availability of additional conductor counts and/or custom roll lengths.
TS-0402-C
Sheet 2 of 2
3
Interconnect Solutions
http://www.3Mconnectors.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
