Note: Unbalanced is measured between ground-signal-ground conductors.Balanced is measured between conductors within a pair.
Environmental
Temperature Rating:
-20°C to + 105°C
Flammability Rating:
USA: VW-1
UL File No.: E42769, Style No.: 20596
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Canada: FT1
3M
™

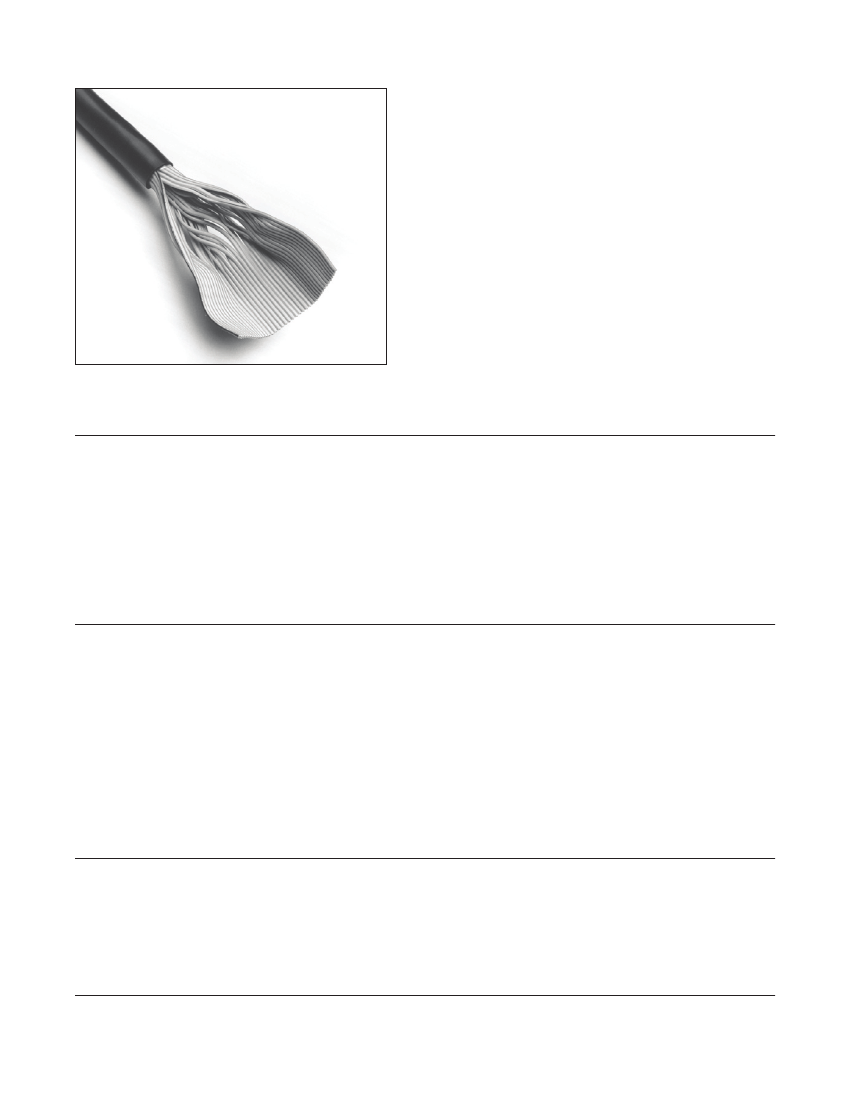

Round, Jacketed, Flat Cable
.025" 30 AWG Stranded, Mass-Term, PVC/PVC
Number of
Conductors
20
26
30
Inch
[Imm]
Tolerance Unless Noted
Inch
.0
±.1
.00
±.05
.000
±.010
32
34
36
40
50
52
60
68
80
100
3M Part
Number
3896/20
3896/26
3896/30
3896/32
3896/34
3896/36
3896/40
3896/50
3896/52
3896/60
3896/68
3896/80
3896/100
Diameter A ± .03
0.26 [ 6.6 ]
0.27 [ 6.9 ]
0.27 [ 6.9 ]
0.27 [ 6.9 ]
0.27 [ 6.9 ]
0.27 [ 6.9 ]
0.30 [ 7.6 ]
0.33 [ 8.4 ]
0.33 [ 8.4 ]
0.37 [ 9.4 ]
0.37 [ 9.4 ]
0.39 [ 9.9 ]
0.44 [ 11.2 ]
3896 Series
Dimension B
(See Note 2)
0.475 +/- .004 [12.70]
0.625 +/- .004 [15.88]
0.725 +/- .006 [18.42]
0.775 +/- .006 [19.69]
0.825 +/- .006 [20.96]
0.875 +/- .006 [22.23]
0.975 +/- .006 [24.77]
1.225 +/- .006 [31.12]
1.275 +/- .009 [32.39]
1.475 +/- .009 [37.47]
1.675 +/- .009 [42.55]
1.975 +/- .011 [50.17]
2.475 +/- .025 [62.87]
[ ] Dimensions for Reference Only
2.40
61.0
SPLIT
TYP
BONDED
1.00
25.4
Ø
"A"
Paper [Mfg
Optional]
Polyester Film
"B"
0.026 [.66] Min.
PVC Jacket
Thickness
.025 TYP
0.64
PVC Primary Insulation
30 AWG, 7 X 38 AWG [7X Ø 0.102]
Notes:
1. Red marking on edge of primary cable designates wire #1.
2. Dimension B refers to bonded area only.
Ordering Information
3896/XX XX XX
Blank = Standard
SF = Splice Free
Number of Conductors
(See Table)
Blank = Standard, Repeating Split/Bonded Wires
SO = Continuously Bonded Wire (No Split)
Note: Available in standard 275 ft roll length. Contact 3M for availability
of additional conductor counts and/or custom roll lengths.
TS-2173-D
Sheet 2 of 2
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
