3M
TM

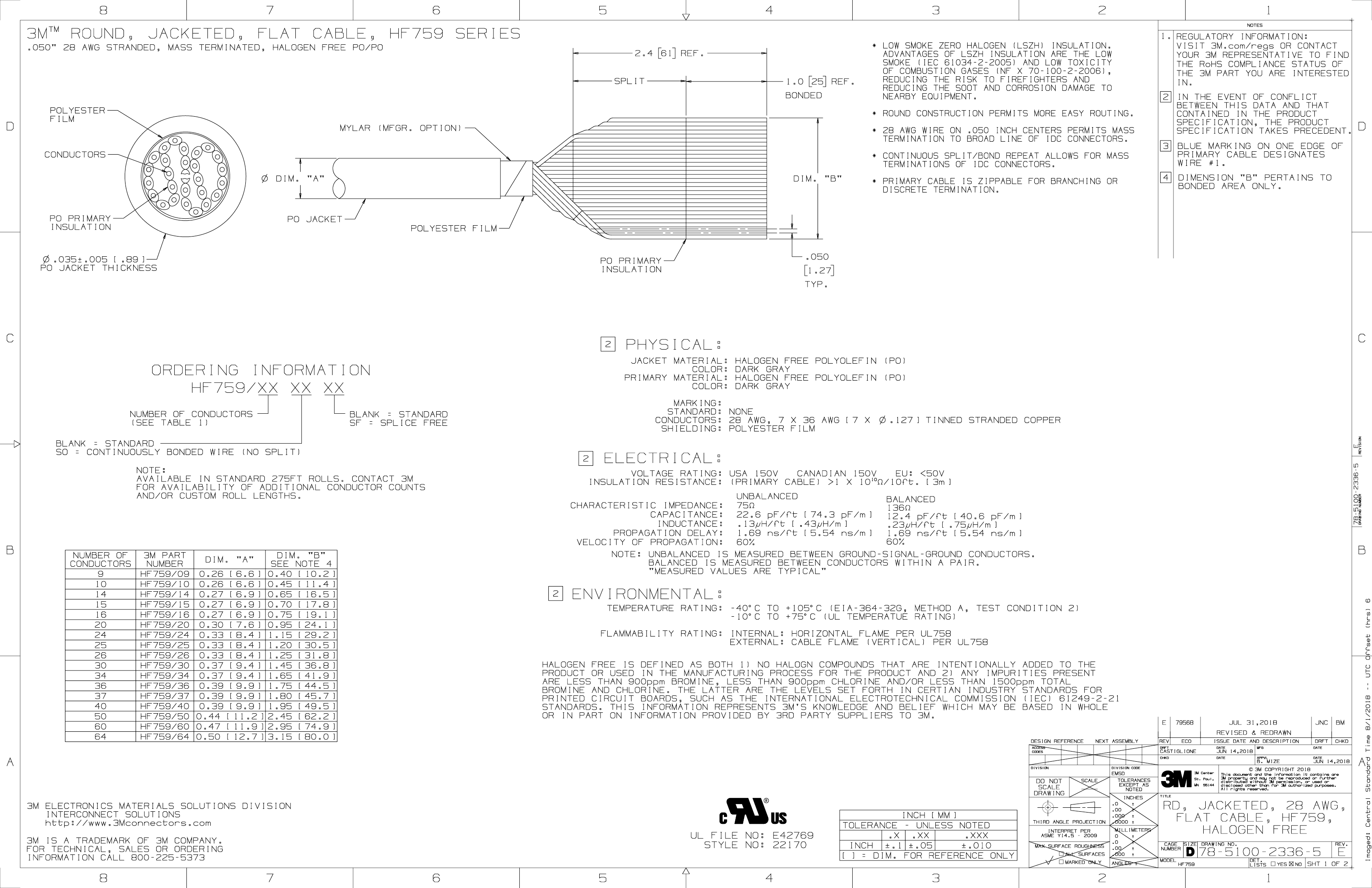

ROUND, JACKETED, FLAT CABLE, HF759 SERIES
2.4 61 REF.
* LOW SMOKE ZERO HALOGEN (LSZH)
INSULATION.
ADVANTAGES OF LSZH INSULATION ARE THE LOW
SMOKE (IEC 61034-2-2005) AND LOW TOXICITY
OF COMBUSTION GASES (NF X 70-100-2-2006),
REDUCING THE RISK TO FIREFIGHTERS AND
REDUCING THE SOOT AND CORROSION DAMAGE TO
NEARBY EQUIPMENT.
* ROUND CONSTRUCTION PERMITS MORE EASY ROUTING.
MYLAR (MFGR. OPTION)
* 28 AWG WIRE ON .050 INCH CENTERS PERMITS MASS
TERMINATION TO BROAD LINE OF IDC CONNECTORS.
* CONTINUOUS SPLIT/BOND REPEAT ALLOWS FOR MASS
TERMINATIONS OF IDC CONNECTORS.
DIM. "A"
DIM. "B"
* PRIMARY CABLE IS ZIPPABLE FOR BRANCHING OR
DISCRETE TERMINATION.
.050" 28 AWG STRANDED, MASS TERMINATED, HALOGEN FREE PO/PO
SPLIT
1.0 25 REF.
BONDED
D
POLYESTER
FILM
D
CONDUCTORS
4
PO PRIMARY
INSULATION
PO JACKET
POLYESTER FILM
.035 .005 [.89]
PO JACKET THICKNESS
PO PRIMARY
INSULATION
.050
1.27
TYP.
C
2
PHYSICAL:
JACKET MATERIAL: HALOGEN FREE POLYOLEFIN (PO)
COLOR: DARK GRAY
PRIMARY MATERIAL: HALOGEN FREE POLYOLEFIN (PO)
COLOR: DARK GRAY
MARKING:
STANDARD: NONE
CONDUCTORS: 28 AWG, 7 X 36 AWG [7 X
SHIELDING: POLYESTER FILM
C
ORDERING INFORMATION
HF759/XX XX XX
NUMBER OF CONDUCTORS
(SEE TABLE 1)
BLANK = STANDARD
SO = CONTINUOUSLY BONDED WIRE (NO SPLIT)
NOTE:
AVAILABLE IN STANDARD 275FT ROLLS. CONTACT 3M
FOR AVAILABILITY OF ADDITIONAL CONDUCTOR COUNTS
AND/OR CUSTOM ROLL LENGTHS.
BLANK = STANDARD
SF = SPLICE FREE
.127] TINNED STRANDED COPPER
REVISION
DRAWING NUMBER
2
VOLTAGE RATING: USA 150V
CANADIAN 150V
EU: <50V
10
INSULATION RESISTANCE: (PRIMARY CABLE) >1 X 10
/10ft. [3m]
CHARACTERISTIC IMPEDANCE:
CAPACITANCE:
INDUCTANCE:
PROPAGATION DELAY:
VELOCITY OF PROPAGATION:
UNBALANCED
75
22.6 pF/ft [74.3 pF/m]
.13 H/ft [.43 H/m]
1.69 ns/ft [5.54 ns/m]
60%
BALANCED
136
12.4 pF/ft [40.6 pF/m]
.23 H/ft [.75 H/m]
1.69 ns/ft [5.54 ns/m]
60%
B
TEMPERATURE
RATING: -40 C TO +105 C (EIA-364-32G, METHOD A, TEST CONDITION 2)
-10 C TO +75 C (UL TEMPERATUE RATING)
FLAMMABILITY RATING: INTERNAL: HORIZONTAL FLAME PER UL758
EXTERNAL: CABLE FLAME (VERTICAL) PER UL758
HALOGEN FREE IS DEFINED AS BOTH 1) NO HALOGN COMPOUNDS THAT ARE INTENTIONALLY ADDED TO THE
PRODUCT OR USED IN THE MANUFACTURING PROCESS FOR THE PRODUCT AND 2) ANY IMPURITIES PRESENT
ARE LESS THAN 900ppm BROMINE, LESS THAN 900ppm CHLORINE AND/OR LESS THAN 1500ppm TOTAL
BROMINE AND CHLORINE. THE LATTER ARE THE LEVELS SET FORTH IN CERTIAN INDUSTRY STANDARDS FOR
PRINTED CIRCUIT BOARDS, SUCH AS THE INTERNATIONAL ELECTROTECHNICAL COMMISSION (IEC) 61249-2-21
STANDARDS. THIS INFORMATION REPRESENTS 3M'S KNOWLEDGE AND BELIEF WHICH MAY BE BASED IN WHOLE
OR IN PART ON INFORMATION PROVIDED BY 3RD PARTY SUPPLIERS TO 3M.
E
DESIGN REFERENCE
ACCESS
CODES
79568
ECO
JUL 31,2018
REVISED & REDRAWN
ISSUE DATE AND DESCRIPTION
DATE
MFG
JNC
DRFT
DATE
BM
CHKD
NEXT ASSEMBLY
REV
DRFT
CASTIGLIONE
CHKD
JUN 14,2018
DATE
APPVL
DATE
A
B. MIZE
DIVISION
DIVISION CODE
JUN 14,2018
C
3M Center
St. Paul,
MN
55144
3M COPYRIGHT 2018
A
EMSD
DO NOT
SCALE
DRAWING
R
SCALE
TOLERANCES
EXCEPT AS
NOTED
INCHES
.0
.00
.000
.0000
MILLIMETERS
0
.0
.00
.000
ANGLES
TITLE
This document and the information it contains are
3M property and may not be reproduced or further
distributed without 3M permission, or used or
disclosed other than for 3M authorized purposes.
All rights reserved.
3M ELECTRONICS MATERIALS SOLUTIONS DIVISION
INTERCONNECT
SOLUTIONS
http://www.3Mconnectors.com
3M IS A TRADEMARK OF 3M COMPANY.
FOR TECHNICAL, SALES OR ORDERING
INFORMATION CALL 800-225-5373
UL FILE NO: E42769
STYLE NO: 22170
INCH [MM]
TOLERANCE - UNLESS NOTED
.X .XX
.XXX
INCH
.1 .05
.010
[] = DIM. FOR REFERENCE ONLY
THIRD ANGLE PROJECTION
INTERPRET PER
ASME Y14.5 - 2009
MAX SURFACE ROUGHNESS
ALL SURFACES
MARKED ONLY
RD, JACKETED, 28 AWG,
FLAT CABLE, HF759,
HALOGEN FREE
CAGE SIZE
NUMBER
MODEL
HF759
DRAWING NO.
REV.
78-5100-2336-5
DET.
LISTS
YES
NO
E
SHT 1 OF 2
8
7
6
5
4
3
2
1
Imaged: Central Standard Time 8/1/2018 -- UTC Offset (hrs) 6
NUMBER OF
CONDUCTORS
9
10
14
15
16
20
24
25
26
30
34
36
37
40
50
60
64
3M PART
DIM. "B"
DIM. "A"
NUMBER
SEE NOTE 4
HF759/09 0.26 [6.6] 0.40 [10.2]
HF759/10 0.26 [6.6] 0.45 [11.4]
HF759/14 0.27 [6.9] 0.65 [16.5]
HF759/15 0.27 [6.9] 0.70 [17.8]
HF759/16 0.27 [6.9] 0.75 [19.1]
HF759/20 0.30 [7.6] 0.95 [24.1]
HF759/24 0.33 [8.4] 1.15 [29.2]
HF759/25 0.33 [8.4] 1.20 [30.5]
HF759/26 0.33 [8.4] 1.25 [31.8]
HF759/30 0.37 [9.4] 1.45 [36.8]
HF759/34 0.37 [9.4] 1.65 [41.9]
HF759/36 0.39 [9.9] 1.75 [44.5]
HF759/37 0.39 [9.9] 1.80 [45.7]
HF759/40 0.39 [9.9] 1.95 [49.5]
HF759/50 0.44 [11.2] 2.45 [62.2]
HF759/60 0.47 [11.9] 2.95 [74.9]
HF759/64 0.50 [12.7] 3.15 [80.0]
NOTE: UNBALANCED IS MEASURED BETWEEN GROUND-SIGNAL-GROUND CONDUCTORS.
BALANCED IS MEASURED BETWEEN CONDUCTORS WITHIN A PAIR.
"MEASURED VALUES ARE TYPICAL"
2
ENVIRONMENTAL:
78-5100-2336-5
ELECTRICAL:
E
B
8
7
6
5
4
3
2
1
3M
TM
ROUND, JACKETED, FLAT CABLE, HF759 SERIES
.050" 28 AWG STRANDED, MASS TERMINATED, HALOGEN FREE PO/PO
D
D

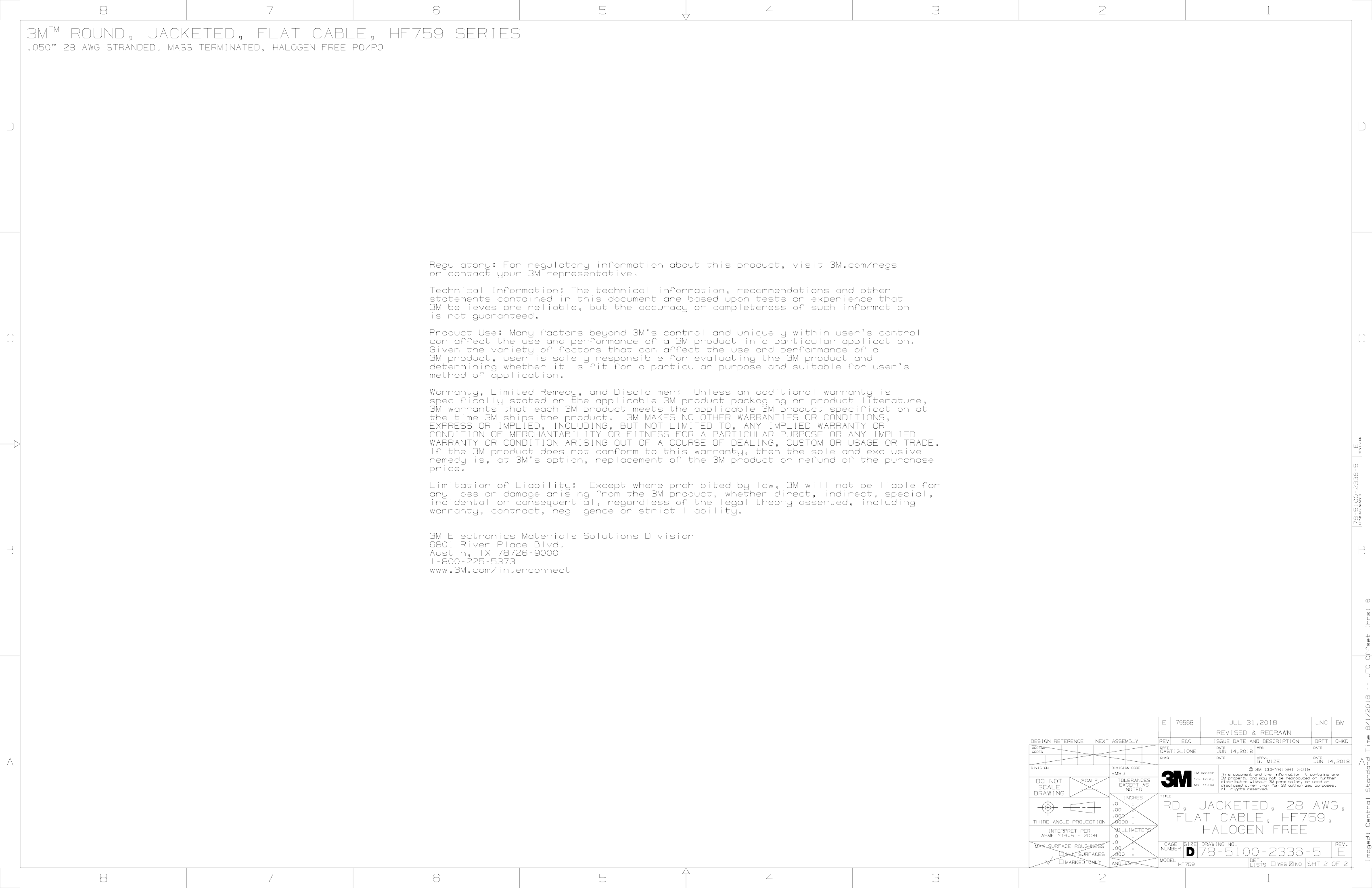

Regulatory: For regulatory information about this product, visit 3M.com/regs
or contact your 3M representative.
Technical Information: The technical information, recommendations and other
statements contained in this document are based upon tests or experience that
3M believes are reliable, but the accuracy or completeness of such information
is not guaranteed.
C
Product Use: Many factors beyond 3M's control and uniquely within user's control
can affect the use and performance of a 3M product in a particular application.
Given the variety of factors that can affect the use and performance of a
3M product, user is solely responsible for evaluating the 3M product and
determining whether it is fit for a particular purpose and suitable for user's
method of application.
Warranty, Limited Remedy, and Disclaimer: Unless an additional warranty is
specifically stated on the applicable 3M product packaging or product literature,
3M warrants that each 3M product meets the applicable 3M product specification at
the time 3M ships the product. 3M MAKES NO OTHER WARRANTIES OR CONDITIONS,
EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OR
CONDITION OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR ANY IMPLIED
WARRANTY OR CONDITION ARISING OUT OF A COURSE OF DEALING, CUSTOM OR USAGE OR TRADE.
If the 3M product does not conform to this warranty, then the sole and exclusive
remedy is, at 3M's option, replacement of the 3M product or refund of the purchase
price.
Limitation of Liability: Except where prohibited by law, 3M will not be liable for
any loss or damage arising from the 3M product, whether direct, indirect, special,
incidental or consequential, regardless of the legal theory asserted, including
warranty, contract, negligence or strict liability.
3M Electronics Materials Solutions Division
6801 River Place Blvd.
Austin, TX 78726-9000
1-800-225-5373
www.3M.com/interconnect
