Conductors: 30 AWG 7 X 38 [ 7 X 0.102 ] Tinned Stranded Copper
Electrical
Voltage Rating:
USA: 30V
Insulation Resistance:
>1 x 10
10
Ω
/10 ft [3 m]
Characteristic Impedance:
Unbalanced
73
Ω
Capacitance:
20.8 pF/ft (68.2 pF/m)
Inductance:
.11 μH/ft (0.36 μH/m)
EU: <50V
Balanced
122
Ω
12.0 pF/ft (39.4 pF/m)
.18 μH/ft (0.59 μH/m)
1.45 ns/ft (4.76 ns/m)
70%
Propagation Delay:
1.51 ns/ft (4.95 ns/m)
Velocity of Propagation:
67%
Note: Unbalanced is measured between ground-signal-ground conductors. Balanced is measured between signal conductors within a pair.
Environmental
Temperature Rating:
-20°C to +105°C
Flammability Rating:
USA:VW-1
UL File No.: E42769, Style No.: 20596
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M
™

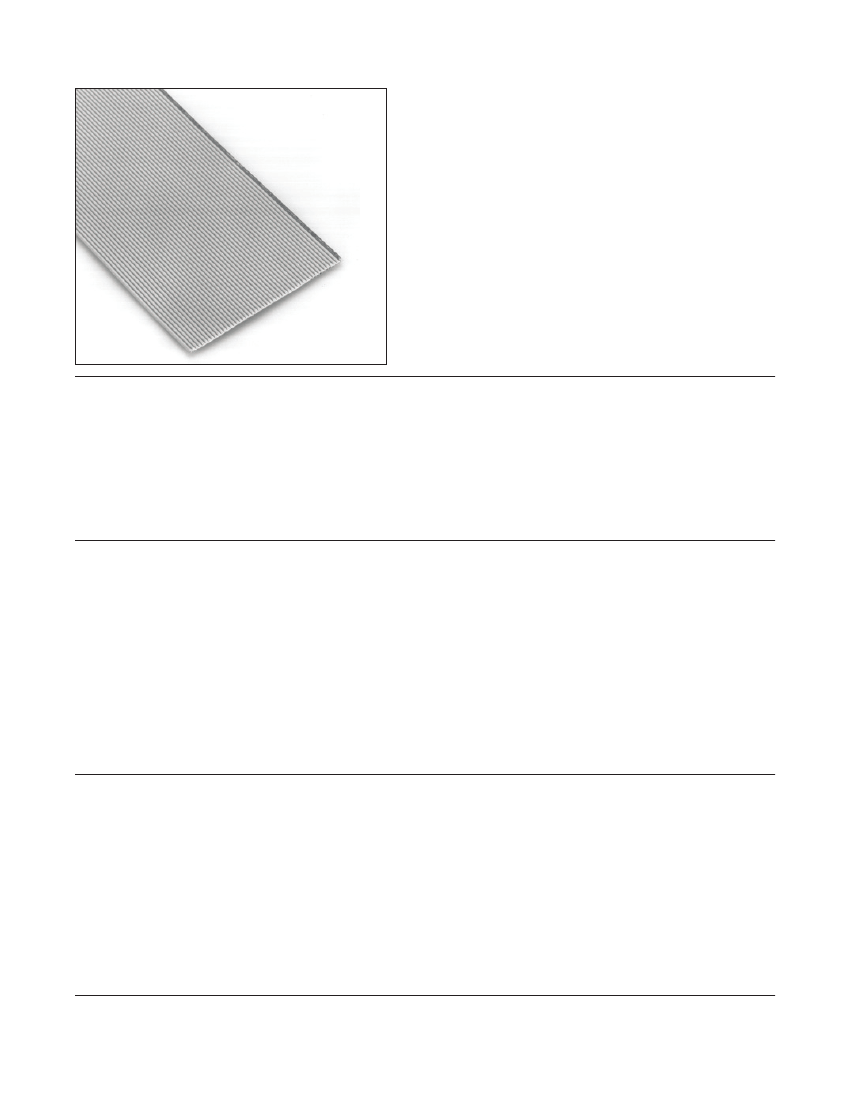

Round Conductor Flat Cable
.025" 30 AWG Stranded, PVC
Number of
Conductors
20
26
30
32
34
36
40
50
52
60
68
80
100
3M Part
Number
3754/20
3754/26
3754/30
3754/32
3754/34
3754/36
3754/40
3754/50
3754/52
3754/60
3754/68
3754/80
3754/100
Dimension A
0.500 ± .006 [ 12.70 ]
0.650 ± .006 [ 16.51 ]
0.750 ± .006 [ 19.05 ]
0.800 ± .008 [ 20.32 ]
0.850 ± .009 [ 21.59 ]
0.900 ± .009 [ 22.86 ]
1.000 ± .009[ 25.40 ]
1.250 ± .009 [ 31.75 ]
1.300 ± .009 [ 33.02 ]
1.500 ± .012 [ 38.10 ]
1.700 ± .012 [ 43.18 ]
2.000 ± .015 [ 50.80 ]
2.500 ± .015 [ 63.50 ]
A
B
.013
±
.005
[ 0.33 ]
.025
±
.002 Typ
[ 0.64 ]
3754 Series
Dimension B
0.475 ± .004 [ 12.07 ]
0.625 ± .004 [ 15.88 ]
0.725 ± .006 [ 18.42 ]
0.775 ± .006 [ 19.69 ]
0.825 ± .006 [ 20.96 ]
0.875 ± .006[ 22.23 ]
0.975 ± .006 [ 24.77 ]
1.225 ± .006 [ 31.12 ]
1.275 ± .006 [ 32.39 ]
1.475 ± .009 [ 37.47 ]
1.675 ± .009 [ 42.55 ]
1.975 ± .011 [ 50.17 ]
2.475 ± .012 [ 62.87 ]
.025
±
.003
[ 0.64 ]
30 AWG 7 X 38 ( 7 X 0.102 ) Tinned
Stranded Copper Conductors
PVC Insulation
Inch
[mm]
Tolerance Unless Noted
.0
Inch
Note: Red marking on one edge of cable designates wire #1.
.00
±.01
.000
±.005
±.1
[ ] Dimensions for Reference Only
Ordering Information
3754/XX
Number of Conductors
(See Table)
Note: Available in standard 100 ft or 300 ft rolls, please specify
when ordering. Contact 3M for availability of additional conductor
counts and/or custom roll lengths.
TS-0875-C
Sheet 2 of 2
3
Electronic Solutions Division
Interconnect Solutions
http://www.3M.com/interconnects/
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
