1mm Pitch SMT Board-to-Board Connectors(Standard Interface Connector Compliant with VESA FPDI-1)
DF9 Series
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
■Features
1. Compliant with the VESA FPDI-1 Standard Interface Connector
The 31 and 41 contact connectors comply with the standard connector specification for the flat panel display interface, which
U.S VESA. has selected as FPDI-1.
VESA: Video Electronics Standards Association
FPDI-1: Flat Panel Display Interface
2. Perfect Mis-insertion Prevention
The mating area is designed in a trapezoidal structure, and perfectly prevents the mis-insertion despite the miniature size.
3. Equipped with Easy Lock Mechanism
The easy lock mechanism assures the firm insertion and extraction properties as well as the insertion/extraction feeling touch.
4. Smooth Insertion and Extraction Feeling
The contact is constructed without the material fragible surface in the contact portion, and provides a smooth insertion and
use feeling.
5. Setting Two Type Platings as Standard
Two type platings, tin plated and gold plated, are prepared, and either appropriate plating can be selected under cost and use
conditions.

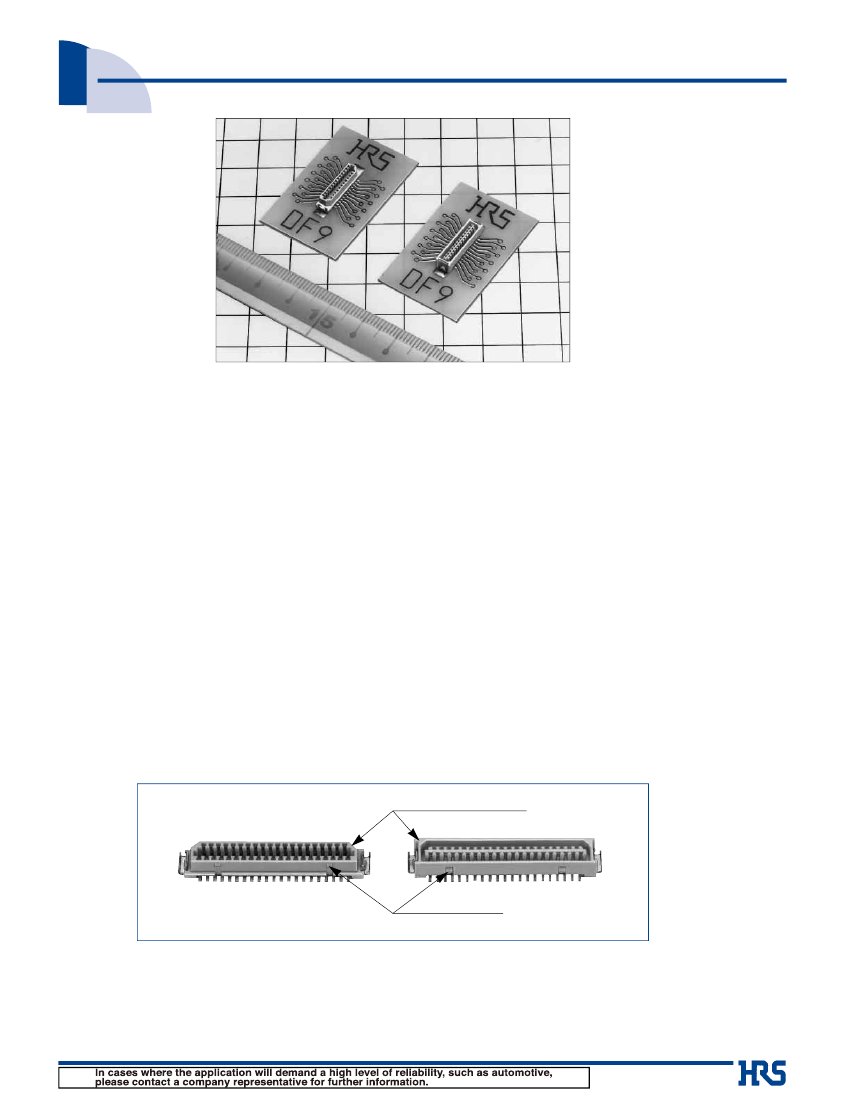

Structure to Prevent Mis-insertion
Lock Mechanism
A135
DF9 Series●1mm Pitch SMT Board-to-Board Connectors(Standard Interface Connector Compliant with VESA FPDI-1)
■Product
Specifications
Rating
Current rating 0.5A
Voltage rating150V AC
Operating Temperature Range
-45 to +125ç (Note
1) Storage Temperature Range
-10 to +60ç
(Note 2)
Operating Humidity Range 40
to
80%
Storage Humidity Range 40
to
70%
Item
1. Insulation Resistance
2. Withstanding voltage
3. Contact Resistance
4. Vibration
500MΩ
min.
specification
100V DC
250V AC/1 minute
100mA
Condition
No flashover or insulation breakdown.
50mΩ max.
No electrical discontinuity of 1μs or more
Frequency: 10 to 55Hz, single amplitude of 0.75mm, 2 hours in each of the 3 directions.
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
5.
Humidity (Steady state)
Contact resistance: 50mΩ max. Insulation resistance: 500MΩ min.
96 hours at temperature of 40ç and humidity of 90% to 95%
6. Temperature Cycle
Contact resistance: 50mΩ max. Insulation resistance: 500MΩ min. (-55ç: 30 minutes 5
to
35ç: 10 minutes 85ç: 30 minutes 5
to
35ç: 10 minutes) 5 cycles
Tin plating: 30 cycles
Gold plating: 100 cycles
7. Durability (Mating/un-mating) Contact resistance: 50mΩ max:
8. Resistance to Soldering heat
No deformation of components affecting performance.
Reflow: At the recommended temperature profile
Manual soldering: 380ç for 3 seconds
Note 1 : Includes temperature rise caused by current flow.
Note 2 : The term "storage" refers to products stored for long period of time prior to mounting and use. Operating Temperature
Range and Humidity range covers non conducting condition of installed connectors in storage, shipment or during
transportation.
■Material
/ Finish
Product
Receptacle/Header
Part
Insulator
Contact
Metal fitting
Material
Polyamide
Phosphor copper
Brass
Finish
Beige
Tin plated or gold plated
Tin plating
Remarks
UL94V-0
–––––––
–––––––
Note
:
The gold plated product contact area is plated with gold, and lead plated with tin.
■
Product Number Structure
●Receptacle/Header
DF9
q
q
Series Name
w
Type
: DF9
#
-
*
S - 1 V
(**)
w
e
r
t
y
u
r
Connector Type
S : Receptacle
Fitting Boss
P : Header
t
Contact Pitch
y
Contact Type
V : Straight SMT
u
Contact Surface Finish/Packaging Type
(22)(32) : Tin plated, embossed tape packaging
(1000pcs/reel)
(69) : Gold plated, embossed tape packaging
(1000pcs/reel)
: 1mm
Blank
A
B
C
e
Number of Contacts
9 to 25,31,41,51
K
∞
K
∞
K
K
∞
∞
A136
DF9 Series●1mm Pitch SMT Board-to-Board Connectors(Standard Interface Connector Compliant with VESA FPDI-1)
■Receptacle
With metal fitting
With boss
[Specific No.] _ **, (**)
(32)
: Tin plated, embossed tape packaging
(69)
: Gold plated, embossed tape packaging
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Unit: mm
Part No.
HRS No.
No. of Contacts
A
B
C
4
5
6
7
8
9
10
11
12
15
20
25
D
7.1
8.1
9.1
10.1
11.1
12.1
13.1
14.1
15.1
18.1
23.1
28.1
E
10.1
11.1
12.1
13.1
14.1
15.1
16.1
17.1
18.1
21.1
26.1
31.1
Spec. Spec.
(32) (69)
K
K
K
K
K
K
K
K
K
K
K
_
K
K
K
K
K
K
K
K
K
K
K
K
Remarks
RoHS
3
8.3
9
DF9- 9S-1V (**)
540-0054-0
**
4
9.3
11
DF9-11S-1V (**)
540-0055-2
**
5
10.3
13
DF9-13S-1V (**)
540-0056-5
**
6
11.3
15
DF9-15S-1V (**)
540-0057-8
**
7
12.3
17
DF9-17S-1V (**)
540-0058-0
**
8
13.3
19
DF9-19S-1V (**)
540-0059-3
**
9
14.3
21
DF9-21S-1V (**)
540-0060-2
**
15.3 10
23
DF9-23S-1V (**)
540-0061-5
**
16.3 11
25
DF9-25S-1V (**)
540-0062-8
**
19.3 14
31
DF9-31S-1V (**)
540-0063-0
**
24.3 19
41
DF9-41S-1V (**)
540-0213-1
**
29.3 24
51
DF9-51S-1V (**)
540-0064-3
**
Note 1 : Please order the embossed tape packaging product per reel. (1000 pcs/reel)
Note 2 :
_ are not available. Regarding blank, please contact Hirose sales representative.
With metal
fitting
With boss
With pick and
place tape
YES
■Receptacle
Without metal fitting
With boss
[Specific No.] _ **, (**)
(22): Tin plated, tube packaging
(69): Gold plated, embossed tape packaging
Unit: mm
Part No.
HRS No.
No. of Contacts
A
B
C
4
5
6
7
8
9
10
11
12
15
20
25
D
7.1
8.1
9.1
10.1
11.1
12.1
13.1
14.1
15.1
18.1
23.1
28.1
E
_
_
_
_
_
_
_
_
_
_
_
_
Spec. Spec.
(22) (69)
K
K
K
K
K
K
K
K
K
K
K
_
_
_
K
K
_
_
K
_
K
K
K
K
Remarks
RoHS
9
3
8.3
DF9A-09S-1V (**)
540-0004-1
**
9.3
11
4
DF9A-11S-1V (**)
540-0005-4
**
13
5
10.3
DF9A-13S-1V (**)
540-0006-7
**
15
6
11.3
DF9A-15S-1V
(**)
540-0007-0
**
17
7
12.3
DF9A-17S-1V
(**)
540-0008-2
**
19
8
13.3
DF9A-19S-1V
(**)
540-0009-5
**
21
14.3
9
DF9A-21S-1V
(**)
540-0010-4
**
15.3 10
23
DF9A-23S-1V
(**)
540-0011-7
**
16.3 11
25
DF9A-25S-1V
(**)
540-0012-0
**
19.3 14
31
DF9A-31S-1V
(**)
540-0013-2
**
24.3 19
41
DF9A-41S-1V
(**)
540-0222-2
**
29.3 24
51
DF9A-51S-1V
(**)
540-0014-5
**
Note 1 : Please order the emboss packaging product per reel. (1000 pcs/reel)
Note 2 :
_ are not available. Regarding blank, please contact Hirose sales representative.
Without metal
fitting
With boss
With pick and
place tape
YES
A137
DF9 Series●1mm Pitch SMT Board-to-Board Connectors(Standard Interface Connector Compliant with VESA FPDI-1)
■Receptacle
With metal fitting
Without boss
[Specific No.] _ **, (**)
(32): Tin plated, tube packaging
(69): Gold plated,
embossed tape
packaging
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Unit: mm
Part No.
HRS No.
No. of Contacts
A
B
C
04
05
06
07
08
09
10
11
12
15
20
25
D
_
_
_
_
_
_
_
_
_
_
_
_
E
10.1
11.1
12.1
13.1
14.1
15.1
16.1
17.1
18.1
21.1
26.1
31.1
Spec. Spec.
(32) (69)
K
K
K
K
_
_
K
K
K
K
K
_
K
_
K
K
K
K
K
_
_
K
K
K
Remarks
RoHS
08.3 03
09
DF9B-09S-1V
(**)
540-0125-6
**
09.3 04
11
DF9B-11S-1V
(**)
540-0126-9
**
10.3
05
13
DF9B-13S-1V
(**)
540-0127-1
**
11.3
06
15
DF9B-15S-1V
(**)
540-0128-4
**
12.3
07
17
DF9B-17S-1V
(**)
540-0129-7
**
13.3
08
19
DF9B-19S-1V
(**)
540-0247-3
**
14.3
09
21
DF9B-21S-1V
(**)
540-0131-9
**
15.3 10
23
DF9B-23S-1V
(**)
540-0132-1
**
16.3 11
25
DF9B-25S-1V
(**)
540-0133-4
**
19.3 14
31
DF9B-31S-1V
(**)
540-0143-8
**
24.3 19
41
DF9B-41S-1V
(**)
540-0216-0
**
29.3 24
51
DF9B-51S-1V
(**)
540-0145-3
**
Note 1 : Please order the embossed tape packaging product per reel. (1000 pcs/reel)
Note 2 :
_ are not available. Regarding blank, please contact Hirose sales representative.
With metal
fitting
Without boss
With pick and
place tape
YES
■Header
With metal fitting
With boss
[Specific No.] _ **, (**)
(32): Tin plated, tube packaging
(69): Gold plated,
embossed tape
packaging
Unit: mm
Part No.
HRS No.
No. of Contacts
A
B
C
04
05
06
07
08
09
10
11
12
15
20
25
D
07.1
08.1
09.1
10.1
11.1
12.1
13.1
14.1
15.1
18.1
23.1
28.1
E
10.1
11.1
12.1
13.1
14.1
15.1
16.1
17.1
18.1
21.1
26.1
31.1
Spec. Spec.
(32) (69)
K
K
K
K
K
K
K
K
K
K
K
_
K
K
K
K
K
K
K
K
K
K
K
K
Remarks
RoHS
08.3 03
09
DF9-09P-1V
(**)
540-0066-9
**
09.3 04
11
DF9-11P-1V
(**)
540-0067-1
**
10.3
05
13
DF9-13P-1V
(**)
540-0068-4
**
11.3
06
15
DF9-15P-1V
(**)
540-0069-7
**
12.3
07
17
DF9-17P-1V
(**)
540-0070-6
**
13.3
08
19
DF9-19P-1V
(**)
540-0071-9
**
14.3
09
21
DF9-21P-1V
(**)
540-0072-1
**
15.3 10
23
DF9-23P-1V
(**)
540-0073-4
**
16.3 11
25
DF9-25P-1V
(**)
540-0074-7
**
19.3 14
31
DF9-31P-1V
(**)
540-0075-0
**
24.3 19
41
DF9-41P-1V
(**)
540-0214-4
**
29.3 24
51
DF9-51P-1V
(**)
540-0088-1
**
Note 1 : Please order the emboss packaging product per reel. (1000 pcs/reel)
Note 2 :
_ are not available. Regarding blank, please contact Hirose sales representative.
With metal
fitting
With boss
With pick and
place tape
YES
A138
DF9 Series●1mm Pitch SMT Board-to-Board Connectors(Standard Interface Connector Compliant with VESA FPDI-1)
■Header
Without metal fitting
With boss
[Specific No.] _ **, (**)
(22)
: Tin plated, embossed tape packaging
(69)
: Gold plated, embossed tape packaging
Dec.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Unit: mm
Part No.
HRS No.
No. of Contacts
A
B
C
04
05
06
07
08
09
10
11
12
15
20
25
D
07.1
08.1
09.1
10.1
11.1
12.1
13.1
14.1
15.1
18.1
23.1
28.1
E
_
_
_
_
_
_
_
_
_
_
_
_
Spec. Spec.
(22) (69)
K
K
K
K
K
K
K
_
K
K
K
_
_
_
K
K
K
_
K
_
K
K
_
K
Remarks
RoHS
08.3 03
09
DF9A-09P-1V
(**)
540-0016-0
**
09.3 04
11
DF9A-11P-1V
(**)
540-0017-3
**
10.3
05
13
DF9A-13P-1V
(**)
540-0018-6
**
11.3
06
15
DF9A-15P-1V
(**)
540-0019-9
**
12.3
07
17
DF9A-17P-1V
(**)
540-0020-8
**
13.3
08
19
DF9A-19P-1V
(**)
540-0021-0
**
14.3
09
21
DF9A-21P-1V
(**)
540-0022-3
**
15.3 10
23
DF9A-23P-1V
(**)
540-0023-6
**
16.3 11
25
DF9A-25P-1V
(**)
540-0024-9
**
19.3 14
31
DF9A-31P-1V
(**)
540-0025-1
**
24.3 19
41
DF9A-41P-1V
(**)
540-0223-5
**
29.3 24
51
DF9A-51P-1V
(**)
540-0026-4
**
Note 1 : Please order the emboss packaging product per reel. (1000 pcs/reel)
Note 2 :
_ are not available. Regarding blank, please contact Hirose sales representative.
Without metal
fitting
With boss
With pick and
place tape
YES
■Header
With metal fitting
Without boss
[Specific No.] _ **, (**)
(32)
: Tin plated, embossed tape packaging
(69)
: Gold plated, embossed tape packaging
Unit: mm
Part No.
HRS No.
No. of Contacts
A
B
C
04
05
06
07
08
09
10
11
12
15
20
25
D
_
_
_
_
_
_
_
_
_
_
_
_
E
10.1
11.1
12.1
13.1
14.1
15.1
16.1
17.1
18.1
21.1
26.1
31.1
Spec. Spec.
(32) (69)
K
K
K
K
K
K
K
K
K
K
K
_
K
K
_
K
K
K
K
_
_
K
K
K
Remarks
RoHS
08.3 03
09
DF9B-09P-1V
(**)
540-0134-7
**
09.3 04
11
DF9B-11P-1V
(**)
540-0135-0
**
10.3
05
13
DF9B-13P-1V
(**)
540-0136-2
**
11.3
06
15
DF9B-15P-1V
(**)
540-0137-5
**
12.3
07
17
DF9B-17P-1V
(**)
540-0138-8
**
13.3
08
19
DF9B-19P-1V
(**)
540-0248-6
**
14.3
09
21
DF9B-21P-1V
(**)
540-0140-0
**
15.3 10
23
DF9B-23P-1V
(**)
540-0141-2
**
16.3 11
25
DF9B-25P-1V
(**)
540-0142-5
**
19.3 14
31
DF9B-31P-1V
(**)
540-0144-0
**
24.3 19
41
DF9B-41P-1V
(**)
540-0221-0
**
29.3 24
51
DF9B-51P-1V
(**)
540-0146-6
**
Note 1 : Please order the emboss packaging product per reel. (1000 pcs/reel)
Note 2 :
_ are not available. Regarding blank, please contact Hirose sales representative.
With metal
fitting
Without boss
With pick and
place tape
YES
A139
京公网安备 11010802033920号
EEWORLD
