1
(PG9)
+0.1
0
2
(M16*1.5)
13.6
+0.1
0
3
B
4
REV.
B
C
5
ECN NO.
LEN1580041~042
LEN1690062~063
QC
6
DATE
2015/07/26
2016/09/05
QC
7
SIGN
Yulong_wang
Yulong_wang
Add 3, 4 Pin
DESCRIPTION
Change to Share Drawing.
& IP69K.
8
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. IT IS CONFIDENTIAL AND A
F
13.6
#
0.1
5.5
2.5
23.0
18.0 (Hex.)
45.0 $
20.6 （Ref.）
2.0
M12*1.0
15.4
16.1
Recommended
Panel Cut-Out
Recommended
Panel Cut-Out
E
Liquid Glue
3
QC
1
4
5
Screw Nut
Connector
2
Shield
Panel O-Ring
PG9 or M16*1.5
D
PROPERTY OF Amphenol LTW. DISCLOSURE TO THIRD PARTY HAS TO BE AUTHORIZED BY
C
Note:
* Important Dimension.
QC
C
* Waterproof Rate: IP68, IP69K.
* Housing: Nylon+GF, Black.
* Male Pin: Copper Alloy, Gold Plated.
* Shield: Zinc Alloy, Nickel Plated.
* Screw Nut: Zinc Alloy, Nickel Plated.
* Panel O-Ring: Viton, Black.
& 4Pin 250V dc. or ac.
C
* Rated Voltage: 3
5Pin 60V dc. or ac.
* Rated Current: 4A
* Operating Temperature: -40~+105 $ C
* For Panel Thickness Max 4.5mm.
* Recommended Nut Torque:4-6 Kgf.cm.
ITEM NO
DRAWN BY
DATE
2
2
1
3
5
4
5P
1
C
T
A
L
W
CONFIDENTIAL
B
3
4
3P
1
3
4
4P
2016-09-05
R&D DEPT.
Pin Assignment Front View
A
UNIT:mm
TOLERANCE
.X
# 0.25
.XX
# 0.1
.XXX
# 0.05
ANGLES
# 1 $
TITLE

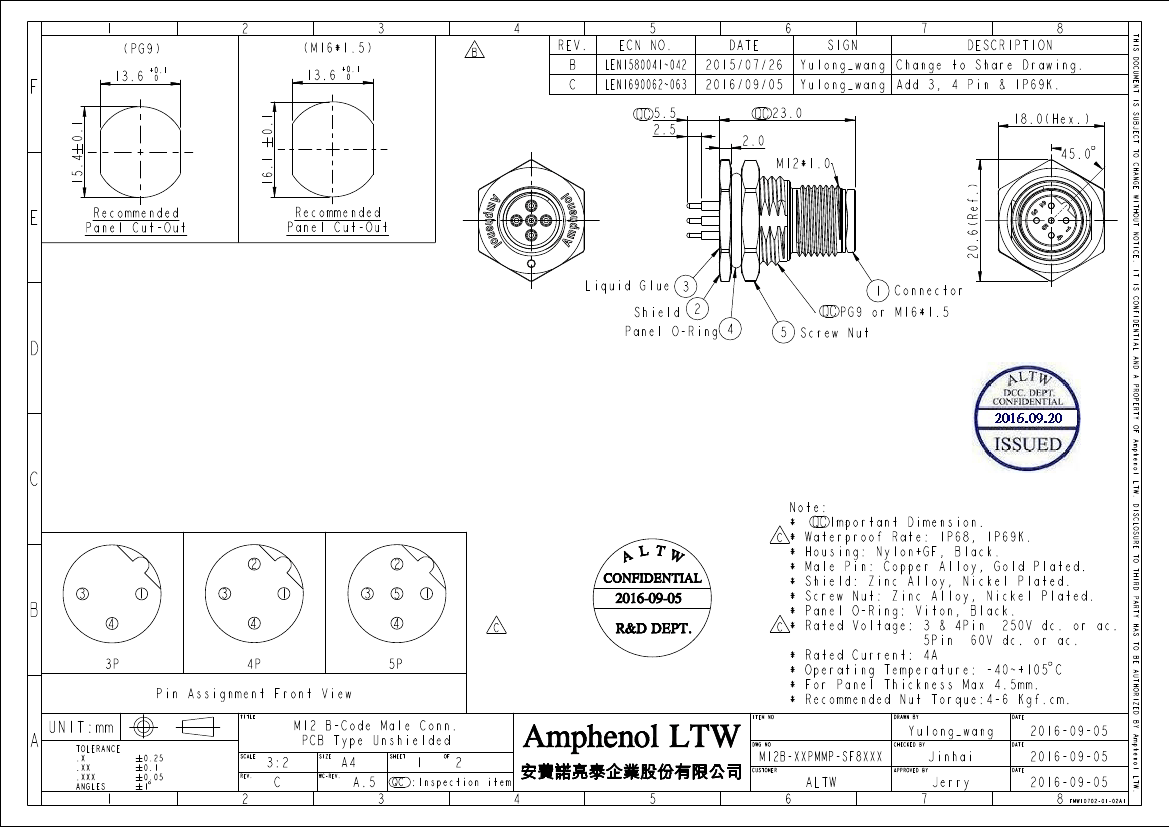

M12 B-Code Male Conn.
PCB Type Unshielded
3:2
C
SIZE
SCALE
A4
A.5
3
SHEET
1
OF
Amphenol LTW
2
4
5
Yulong_wang
DWG NO
CHECKED BY
DATE
2016-09-05
2016-09-05
DATE
Amphenol LTW.
M12B-XXPMMP-SF8XXX
CUSTOMER
APPROVED BY
Jinhai
Jerry
7
REV.
WC-REV.
QC :Inspection item
ALTW
6
1
2
2016-09-05
8
FMW10702-01-02A1
1
2
3
4
5
6
7
8
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. IT IS CONFIDENTIAL AND A
F

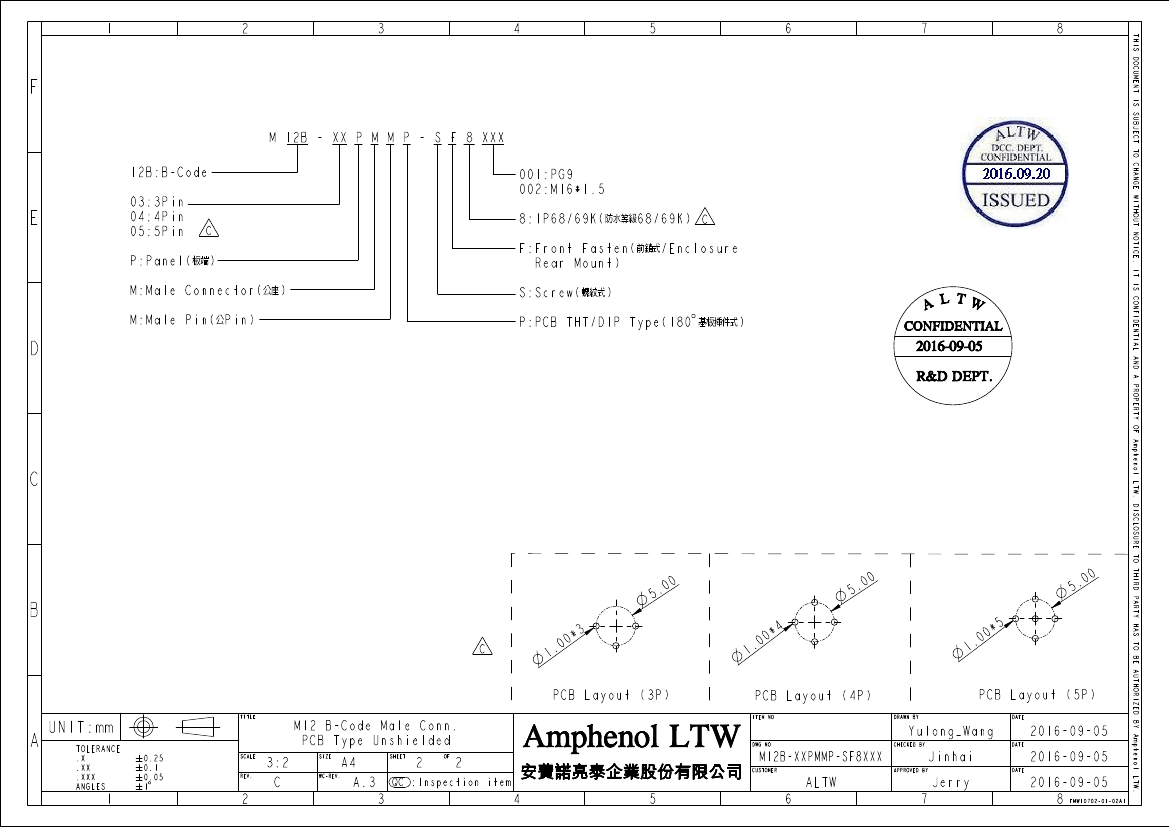

M 12B - XX P M M P - S F 8 XXX
12B:B-Code
001:PG9
002:M16*1.5
C
E
03:3Pin
04:4Pin
05:5Pin
8:IP68/69K(防水等級68/69K)
C
P:Panel(板端)
M:Male Connector(公座)
M:Male Pin(公Pin)
F:Front Fasten(前鎖式/Enclosure
Rear Mount)
S:Screw(螺紋式)
P:PCB THT/DIP Type(180
$
基板插件式)
T
A
L
W
CONFIDENTIAL
D
2016-09-05
R&D DEPT.
PROPERTY OF Amphenol LTW. DISCLOSURE TO THIRD PARTY HAS TO BE AUTHORIZED BY
C
B
C
0
5.0
5.0
0
5.0
0
1.0
0
*3
1.0
0
*4
1
.00
*5
PCB Layout (3P)
PCB Layout (4P)
ITEM NO
DRAWN BY
PCB Layout (5P)
DATE
A
UNIT:mm
TOLERANCE
.X
# 0.25
.XX
# 0.1
.XXX
# 0.05
ANGLES
# 1 $
TITLE
M12 B-Code Male Conn.
PCB Type Unshielded
3:2
C
SIZE
SCALE
A4
A.3
3
SHEET
2
OF
Amphenol LTW
2
4
5
Yulong_Wang
DWG NO
CHECKED BY
DATE
2016-09-05
2016-09-05
DATE
Amphenol LTW.
M12B-XXPMMP-SF8XXX
CUSTOMER
APPROVED BY
Jinhai
Jerry
7
REV.
WC-REV.
QC :Inspection item
ALTW
6
1
2
2016-09-05
8
FMW10702-01-02A1
