470-3155-100

Description
Board Connector, 570 Contact(s), 19 Row(s), Female, Straight, Surface Mount Terminal, Locking, Receptacle,
CategoryThe connector    The connector
File Size516KB,9 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric View All

470-3155-100 Online Shopping

Suppliers Part Number Price MOQ In stock
470-3155-100 - - View Buy Now

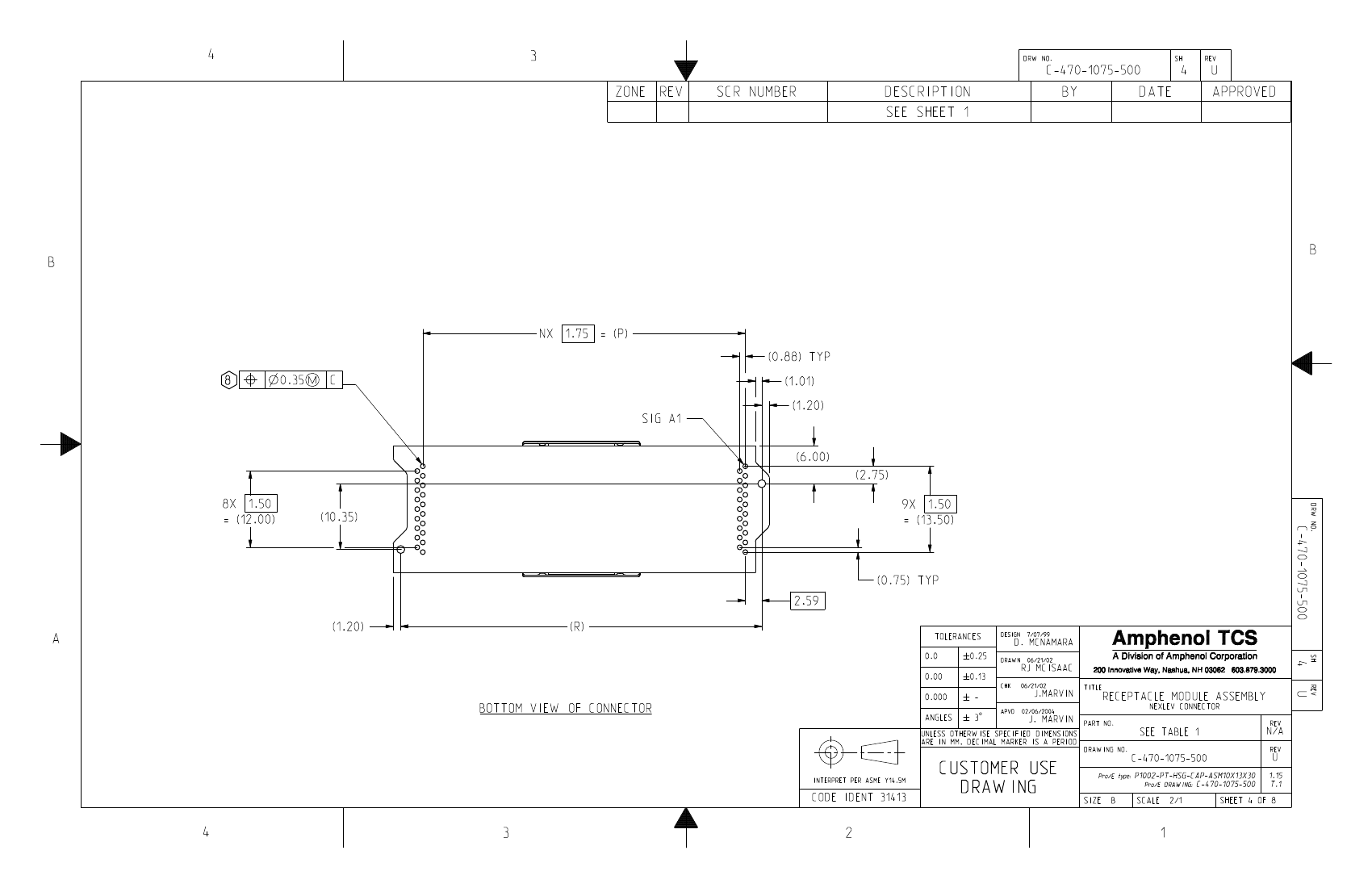

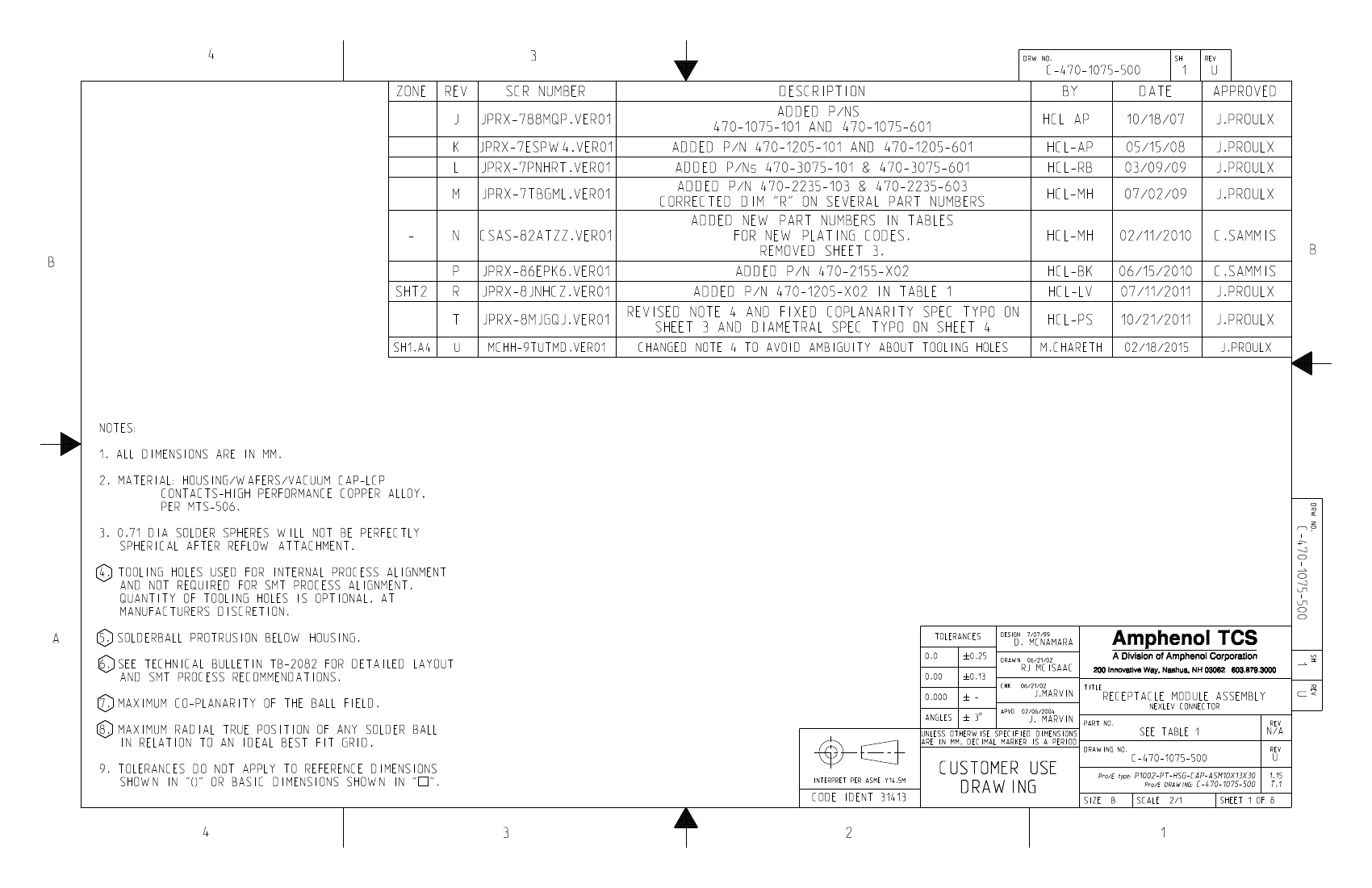

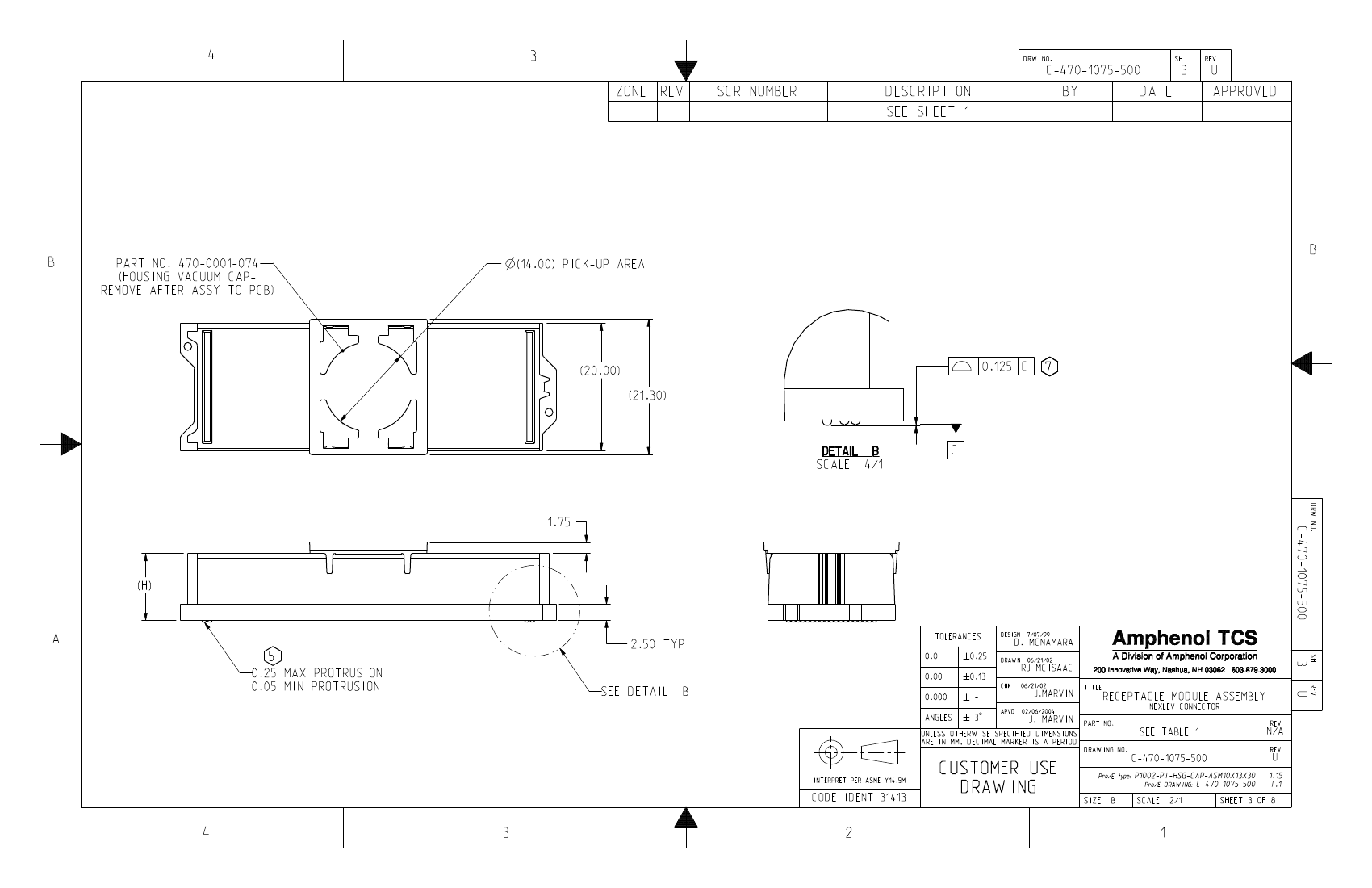

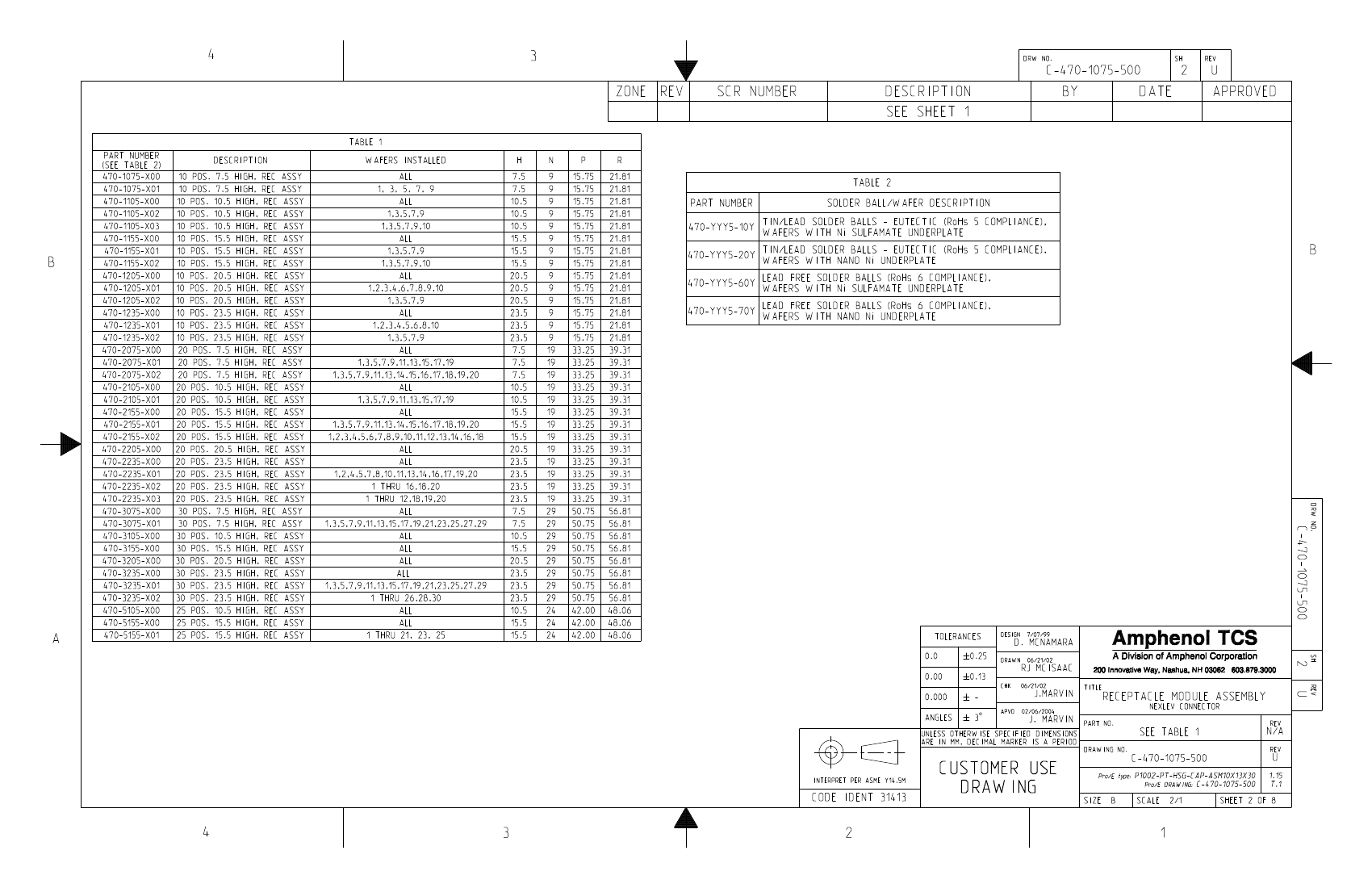

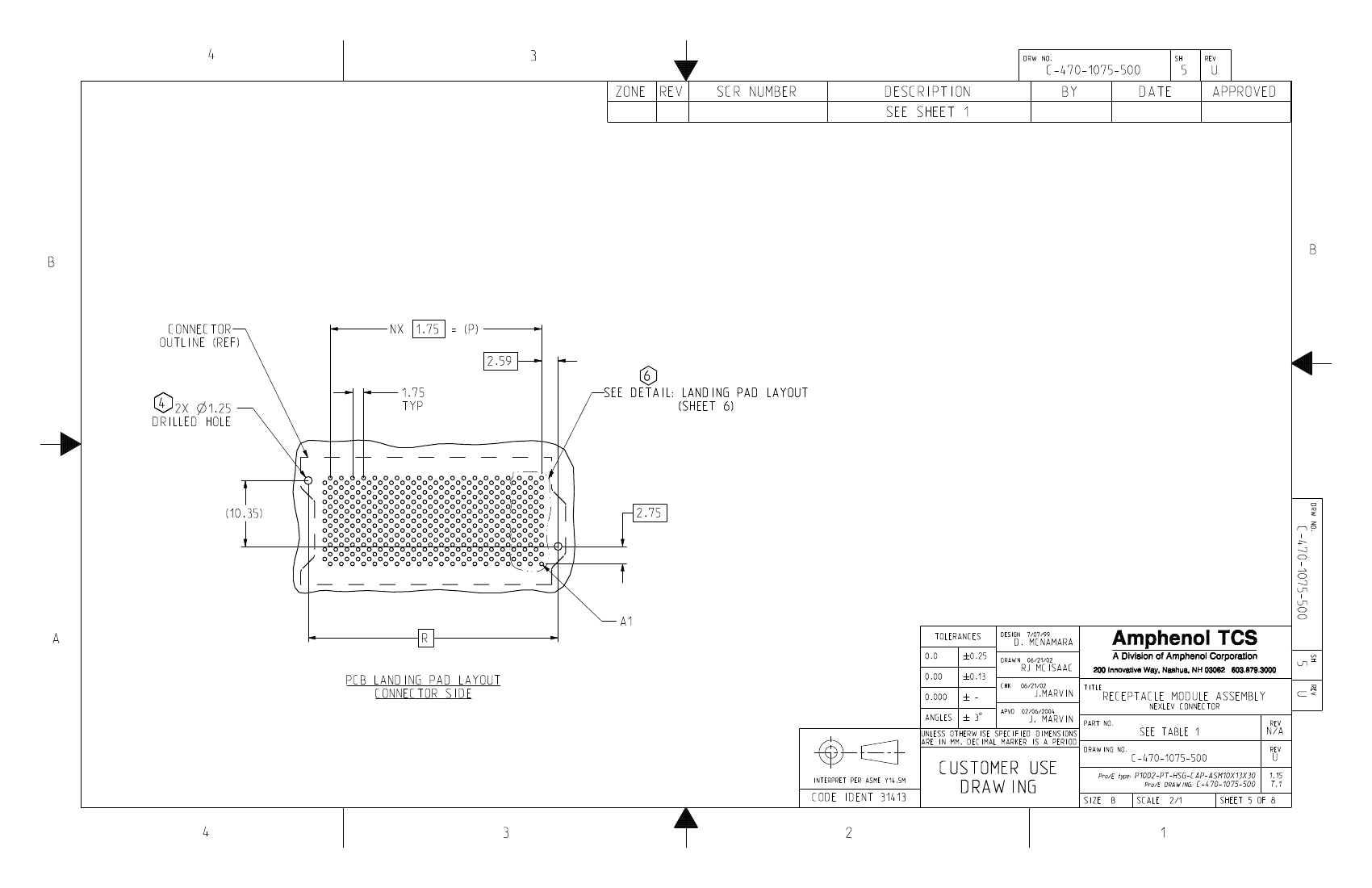

470-3155-100 Overview

Board Connector, 570 Contact(s), 19 Row(s), Female, Straight, Surface Mount Terminal, Locking, Receptacle,

470-3155-100 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Objectid1030002747
Reach Compliance Codeunknown
YTEOL8.2
body width0.787 inch
subject depth0.61 inch
body length2.331 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedTIN LEAD OVER NICKEL
Contact point genderFEMALE
Contact materialNOT SPECIFIED
DIN complianceNO
Filter functionNO
IEC complianceNO
insulator materialLIQUID CRYSTAL POLYMER
JESD-609 codee0
MIL complianceNO
Mixed contactsYES
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
Number of rows loaded19
OptionsGENERAL PURPOSE
PCB contact patternSTAGGERED
PCB contact row spacing1.4986 mm
reliabilityCOMMERCIAL
Terminal pitch0.75 mm
Termination typeSURFACE MOUNT
Total number of contacts570
