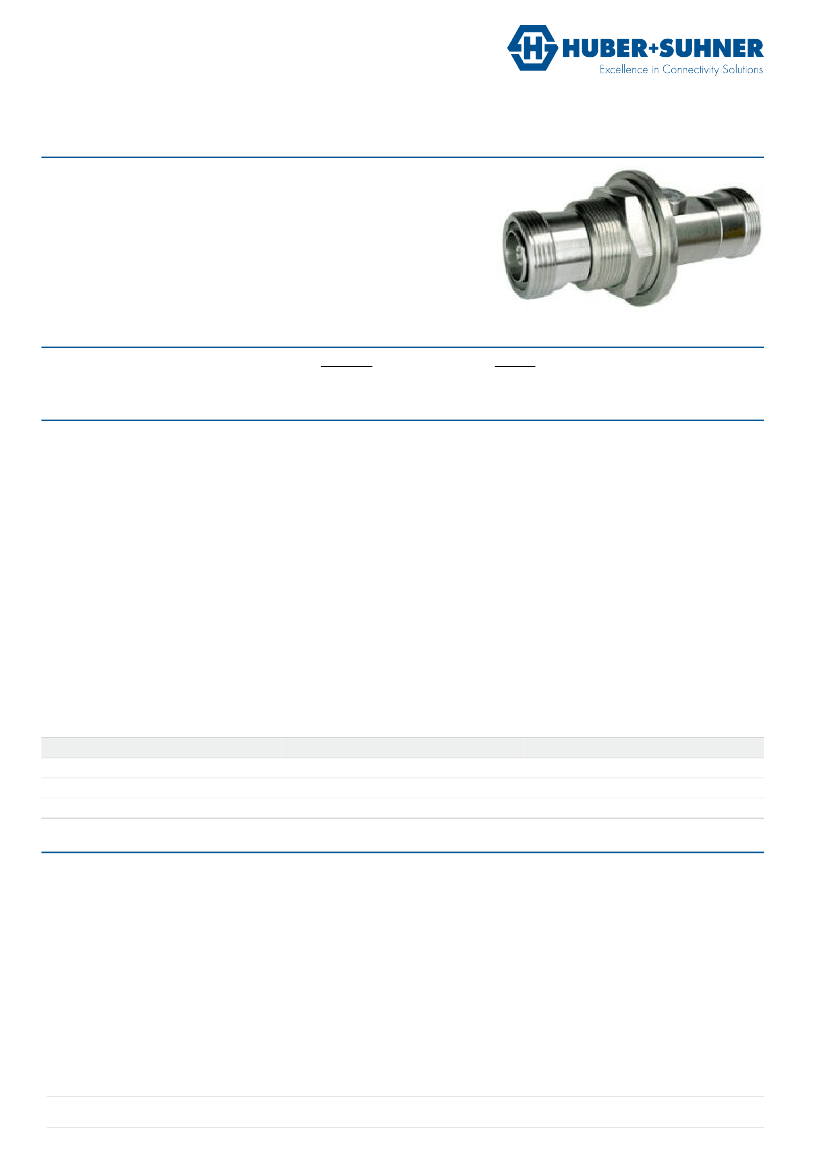

Data Sheet
EMP Protector
3402.41.A
Description
GDT technology up to 2.5 GHz
Benefits
Broad-band design
DC continuity for remote powering
The protector can also be installed reversely
Delivered without gas discharge tube
Data refer to GDT 9071.99.0547, 230 V
Compliant to IEC 61643-21
Product Configuration
Main path connectors
Mounting and grounding
Port 1: unprotected, 7/16 jack (female) - Port 2: protected, 7/16 jack (female)
MH72 (bulkhead mounting), brk (bracket)
Technical Data
Electrical Data
Impedance
Frequency range
Return loss
Insertion loss
RF CW power
PIM 3rd order
Surge current handling capability
Residual pulse energy
50 Ω
0 - 2500 MHz
≥ 20 dB
≤ 0.2 dB
≤ 150 W
not specified
30 single / 20 multiple kA (test pulse 8/20 µs)
350 µJ typically (test pulse 4 kV 1.2/50 µs / 2 kA 8/20 µs) main path - protected side
Mechanical Data
Number of matings
Weight
500
399 g
Environmental Data
Operating temperature
Waterproof degree
2011/65/EU (RoHS)
-40 °C to +85 °C
IP67 (according to IEC 60529, data refer to the coupled state)
compliant
Material Data
Piece Parts
Housing
Port 1 center contact
Port 2 center contact
Material
Brass
Copper Beryllium Alloy
Copper Beryllium Alloy
Surface Plating
SUCOPLATE (R) Plating
Silver Plating
Silver Plating
Related Documents
Outline drawing
Mounting instruction
DOU-00004154.1
DOC-0000176104
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, ISO/TS 16949 and IRIS
www.hubersuhner.com
Waiver: It is exclusively in written agreements that we provide our customers with warrants and representations as to the technical specifications and/or the fitness for any
particular purpose. The facts and figures contained herein are carefully compiled to the best of our knowledge, but they are intended for general information purposes only.
Document: DOC-0000177089 T / PDO K / date of publication: 06.01.2015 17:12:47 / uncontrolled copy
Page 1/1
