Voltage Selector
https://www.schurter.com /PG04

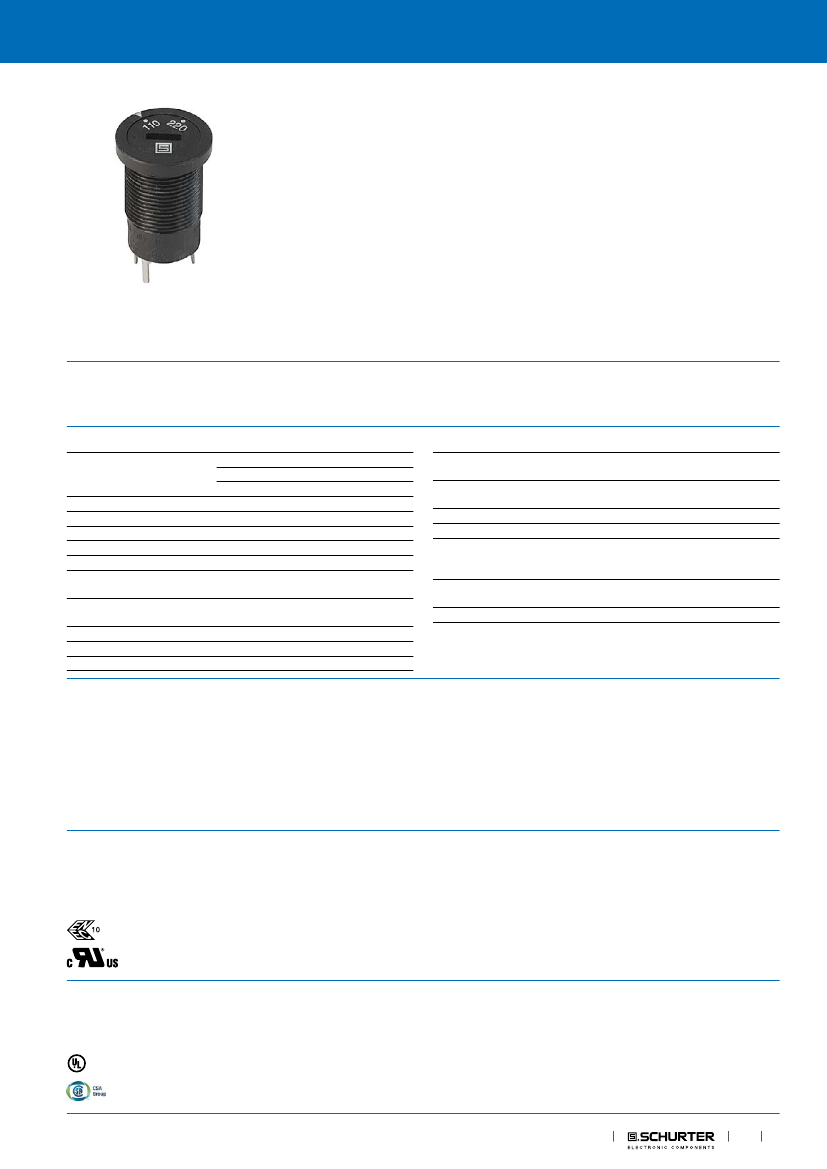

SWA2 (Print)
Voltage selector switch, 2 stages, series-parallel, PCB mounting
See below:
Approvals and Compliances
Description
- Voltage Selector , 2 positions
- Series-parallel connections
- PCB terminals
References
Alternative: version for panel mounting
SWA1 (Frontpl)
Technical Data
Ratings
IEC: 6.3 A / 250 VAC; 50 Hz
UL: 6.3 A / 250 VAC; 60 Hz
CSA: 6.3 A / 250 VAC; 60 Hz
PCB Mounting
Solder, THT
2
300 operating cycles (without load)
from front side IP40
Suitable for appliances with protection
class II acc. to IEC 61140
-40 °C to 85 °C
25/85/21 acc. to IEC 60068-1
Thermoplastic, black, UL 94V-0
3.9 g
Solderability
Resistance to Soldering Heat
Insulation Resistance
Contact Resistance
Dielectric Strength
235 °C / 2 sec acc. to IEC 60068-2-20,
Test Ta, method 1
260 °C / 5 sec acc. to IEC 60068-2-20,
Test Tb, method 1A
> 10'000MΩ (500VDC; 1min)
< 10 mΩ at 20 mV
> 2kVAC between L-N
> 4kVAC between L/N-PE
(1min; 50Hz)
> 3mm
> 8mm between L/N-PE
acc. to IEC 60068-2-6, test Fc
Mounting
Terminal
Number of Stages
Lifetime
Degree of Protection
Protection Class
Allowable Operation Tempe-
rature
Climatic Category
Material: Socket
Weight
Clearance and Creepage Di-
stance
Resistance to Vibration
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
SCHURTER products are designed for use in industrial environments. They have approvals from independent testing bodies according to national
and international standards. Products with specific characteristics and requirements such as required in the automotive sector according to IATF
16949, medical technology according to ISO 13485 or in the aerospace industry can be offered exclusively with customer-specific, individual agree-
ments by SCHURTER.
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: SWA2
Approval Logo
Certificates
VDE Approvals
UL Approvals
Certification Body
VDE
UL
Description
Certificate Number:
UL File Number: E72661
Product standards
Product standards that are referenced
Organization
Design
Designed according to
Designed according to
Standard
UL 508
CSA C22.2 no. 14
Description
Industrial control equipment
Fuseholder general requirements
Circuit Protection
1
SWA2 (Print)
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Designed for applications acc.
Standard
IEC/UL 60950
IEC 60335-1
Description
https://www.schurter.com /PG04
Voltage Selector
IEC 60950-1 includes the basic requirements for the safety of information
technology equipment.
Safety of electrical appliances for household and similar purposes. Meets
the requirements for appliances in unattended use. This includes the
enhanced requirements of glow wire tests acc. to IEC 60695-2-11 or -12
& -13.
Compliances
The product complies with following Guide Lines
Identification
Details
CE declaration of conformity
Initiator
SCHURTER AG
Description
The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
REACH
SCHURTER AG
Dimension [mm]
26.3 mm
ø15.2
2.3
Drilling diagram
ø9.4
20.8
21.8
+0.2
0
13.5
72°
72°
72°
1.1
M12.7x1.5
A)
4.5
1.3
+0.1
0
115V
230
V
5.5
A) double start thread
Diagrams
A)
1
2
3
2
3
4
2
3
115V
1
4
B)
1
230V
4
A) Power mains
B) Internal contact arrangement for series-parallel connection
2
Circuit Protection
1.
6
Voltage Selector
https://www.schurter.com /PG04
SWA2 (Print)
All Variants
Letterings
Stage 1
110
120
115
230
␣
120
100
█
Most Popular.
Availability for all products can be searched real-
time:https://www.schurter.com/en/Stock-Check/
Stock-Check-SCHURTER
Stufe 2
220
240
230
240
␣
230
230
0033.4601
0033.4603
0033.4604
0033.4610
0033.4614
0033.4615
0033.4619
█
█
Order Number
Packaging Unit
Accessories
100 Pcs
Description
Nut for fuse holder
Mounting accessories for fuse holder
The specifications, descriptions and illustrations indicated in this document are based on current
information. All content is subject to modifications and amendments. Information furnished is believed
to be accurate and reliable. However, users should independently evaluate the suitability and test each
product selected for their own applications.
Circuit Protection
3
09.07.2019
