55GFMSJD350E

Description
Special fuse 5.5KV 350A DIN E-RATED MED VOLT
CategoryCircuit protection    The fuse    Special fuse
File Size1MB,16 Pages
ManufacturerBussmann (Eaton)
Download Datasheet Parametric View All

55GFMSJD350E Online Shopping

Suppliers Part Number Price MOQ In stock
55GFMSJD350E - - View Buy Now

55GFMSJD350E Overview

Special fuse 5.5KV 350A DIN E-RATED MED VOLT

55GFMSJD350E Parametric

Parameter NameAttribute value
MakerBussmann (Eaton)
Product CategorySpecial fuse
Shipping restrictionsMouser does not currently sell this product.
RoHSN
seriesE-Rated DIN
productMedium Voltage Fuses
Current rating350 A
Voltage ratingAC5.5 kVAC
Termination typeCartridge (Non Standard)
Indicator typeStriker Pin
EncapsulationBulk
typeFuse Link, E-Rated
Factory packaging quantity1
unit weight4.808 kg

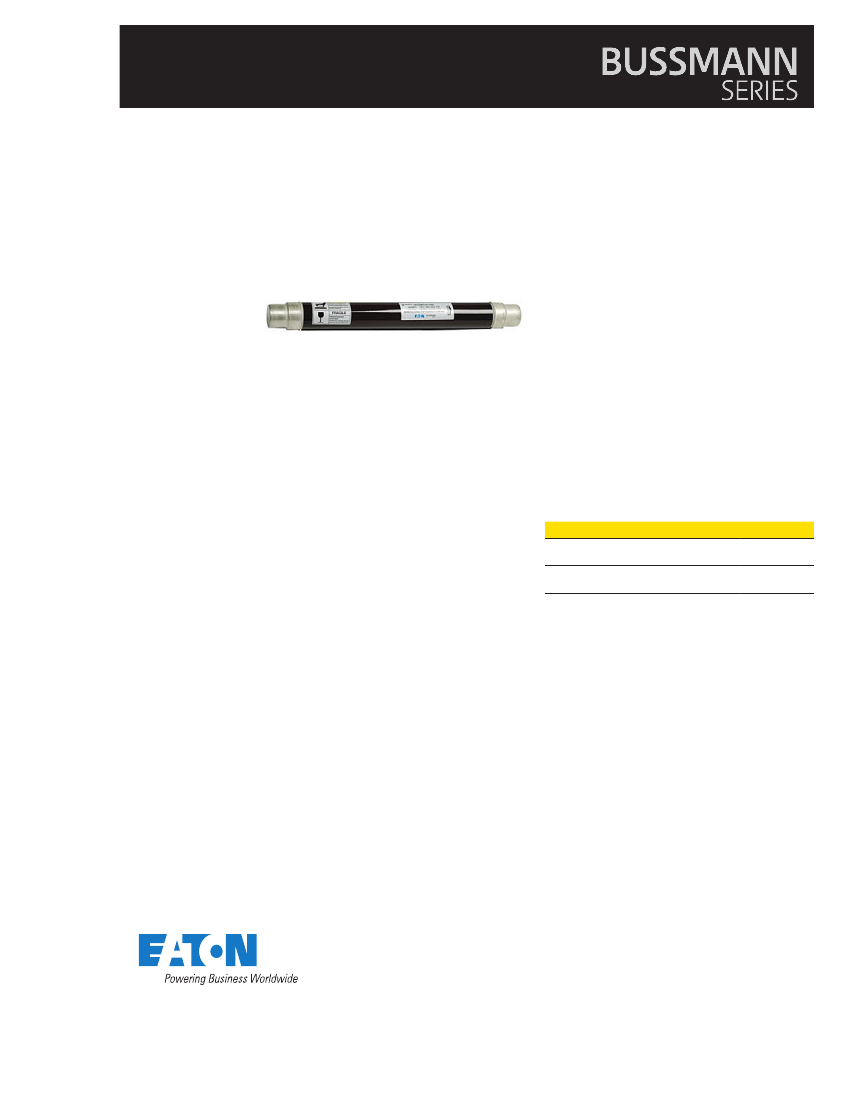

Technical Data 10638
Effective April 2017

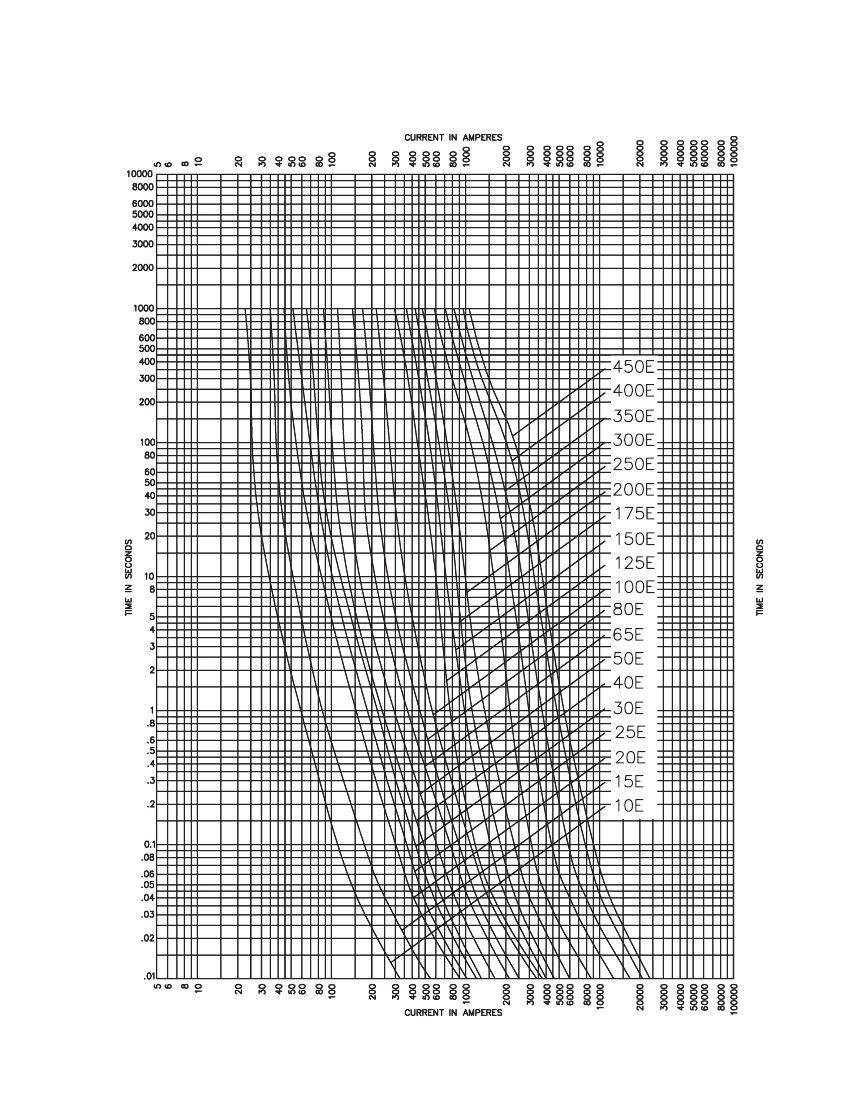

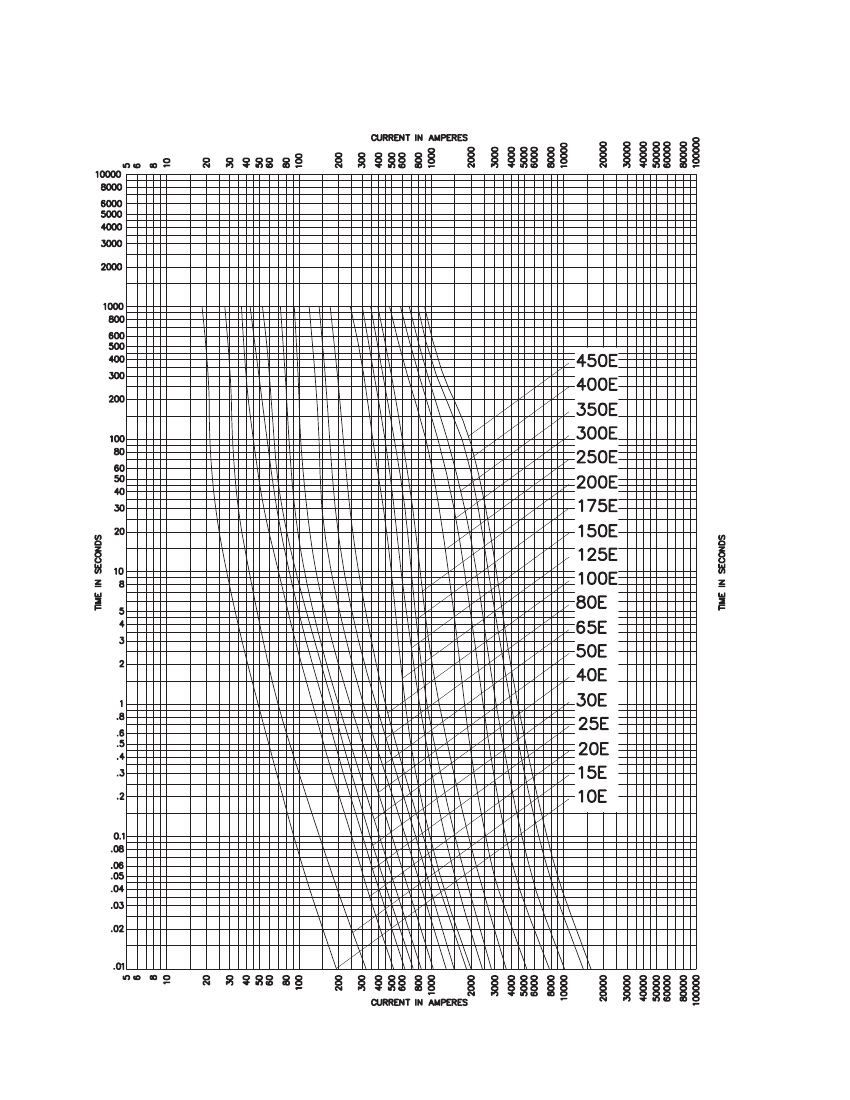

E-Rated DIN medium voltage fuses,
5.5 to 38 kV, 10 to 450 amps
Specifications:
Ratings
Volts 5.5 - 38 kV
Amps: 10 - 450
Interrupting rating: 25 - 65 kA
Catalog symbols:
Agency information
55GDMSJ_E
55GFMSJ_E
155GXQSJ_E
175GDMSJ_E
175GFMSJ_E
175GXMSJ_E
175GXQSJ_E
258GDQSJ_E
258GXQSJ_E
258GXZSJ_E
38GFZSJ_E
38GCZSJ_E
General purpose E-Rated per ANSI C37
.46
(5.5 to 17 kV)
.5
Full range E-Rated per ANSI C37
.40
(25.8 to 38 kV)
50 N (11 Lbs)
Striker force
Recommended fuseclips
See page 13 for dimensions.
Amp range
Up to 200 A
Up to 200 A
Description
Enclosed fuseclip with
wingnut tensioner
Open fuseclip with
spring tensioner
Catalog no.
A33574745*
270303
* Not sold in pairs.
Description:
Bussmann™ series DIN dimensioned E-Rated
medium voltage power fuses with striker for
indoor use. Available in general purpose (5.5 to
17 kV) and full range (25.8 to 38 kV) versions.
.5
Features and benefits
Cool running for lower watts loss
100% X-ray inspected to help assure fuse
integrity
Striker provides visual indication of fuse
operation or a means to activate a remote
monitoring system
Primary protection for medium voltage
transformers and switch gear
Protection of medium voltage feeder circuits
Direct OEM replacement fuses for 600 A
Square D HVLCC and HVL switches — see
page 14 for applicable Square D switch catalog
symbols and Bussmann series fuse voltage and
amp ranges
Typical applications
