EM392310

Description
Fixed terminal block 10P EM3923 Series
CategoryThe connector    connection terminal    Fixed terminal
File Size860KB,2 Pages
ManufacturerBussmann (Eaton)
Environmental Compliance
Download Datasheet Parametric View All

EM392310 Online Shopping

Suppliers Part Number Price MOQ In stock
EM392310 - - View Buy Now

EM392310 Overview

Fixed terminal block 10P EM3923 Series

EM392310 Parametric

Parameter NameAttribute value
MakerBussmann (Eaton)
Product CategoryFixed terminal block
Shipping restrictionsMouser does not currently sell this product.
Number of locations10 Position
Pitch3.5 mm
connection methodSpring Cage
Current rating10 A
Voltage rating300 V
Wire gauge range26 AWG to 16 AWG
seriesEM3923
EncapsulationBulk
Contact platingTin
productFixed Terminal Blocks
Termination typeThrough Hole
Contact materialBrass
Flammability ratingUL 94 V-0
Factory packaging quantity100

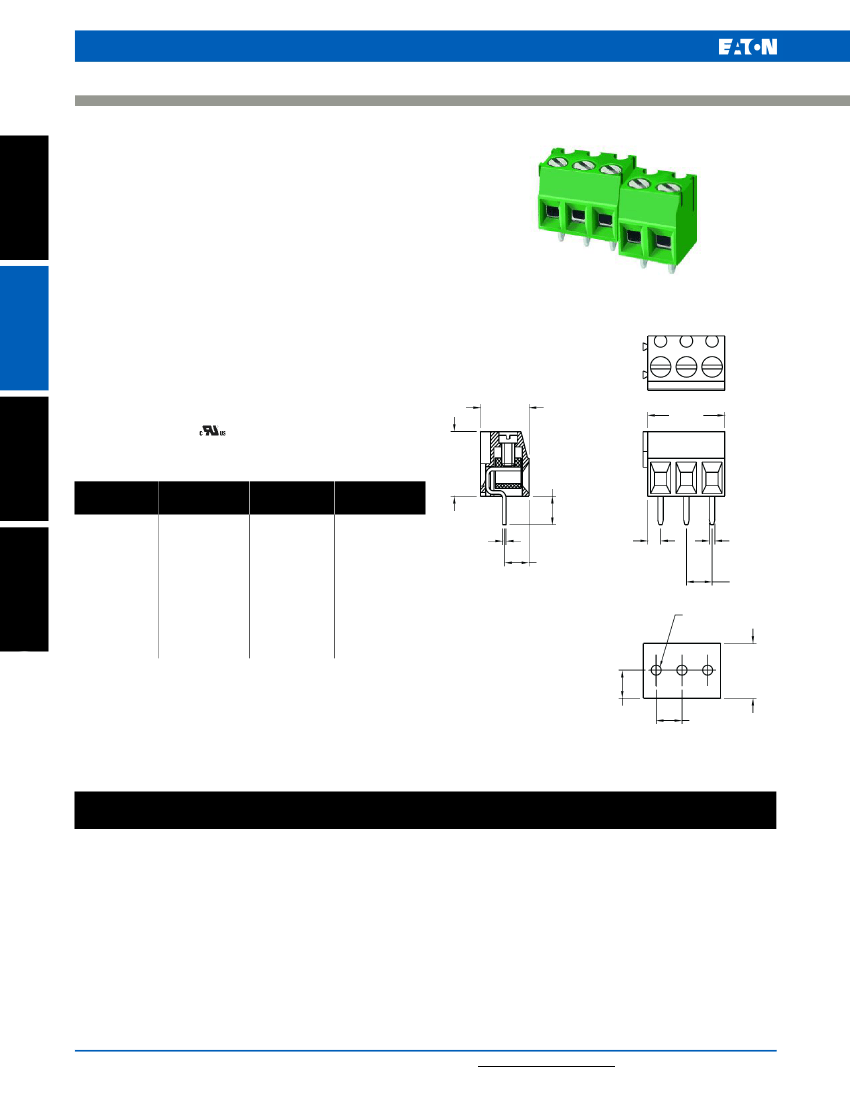

EuroMag Series PCB Mount Terminal Blocks
Terminal Blocks:
Single Row
EM3923 Series
EuroMag Terminal Blocks
3.50 Centers; Modular
SPECIFICATIONS
Rating:
10A,
300V
Center Spacing:
0.138” (3.50mm)
Wire Range:
#16-26 AWG
Housing Material:
UL rated 94V0 Thermoplastic
Contact Material:
Brass Tin-Plated
Cage Material:
Brass, Nickel-Plated
Screw Size:
M2.0
Zinc-Plated
Steel
Operating Temperature:
105°C (221°F) max., -40°C
(-67°F) min.
Torque Rating:
1.5
lb-in.
Recommended PCB Hole Diameters:
0.055" (1.40mm)
Construction:
Modular design features dovetails for
interlocking to achieve longer lengths
Agency Information:
File E62622; CE Certified
EM392305
EuroMag Series
Cage
& Screw
Dimensions - mm (in)
Edge Connectors,
One-Sided Boards
7.2+0.3
_
(0.283")
8.5+0.3
_
(0.335")
3.5+0.3
_
(0.138")
L+0.5
_
Poles
2
3
4
5
6
7
8
9
10
11
12
13
L (mm)
7.0
10.5
14.0
17.5
21.0
24.5
28.0
31.5
35.0
38.5
42.0
45.5
Poles
14
15
16
17
18
19
20
21
22
23
24
L (mm)
49.5
52.5
56.0
59.5
63.0
66.5
70.0
73.5
77.0
80.5
84.0
0.5+0.1
_
(0.020")
1.75+0.3
_
(0.069")
0.9+0.1
_
(0.035")
3.5+0.1
_
(0.137")
ø1.3
(ø0.051")
7.2+0.3
_
(0.283")
3.7+0.3
_
(0.146")
3.5+0.1
_
(0.137")
Compliance
References
3.7+0.3
_
(0.146")
To convert to inches, divide by 25.4
PCB Hole Layout
Part Numbering System
EM3923
nnnnnn nn
Series
02
to
24
# of Poles
For additional product information, visit
www.eaton.com/connectors
38
