85084-3612

Description
Automotive connector SRC POWER 36+12ACEG FEM RECPT HSG
CategoryThe connector    The connector
File Size39KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

85084-3612 Online Shopping

Suppliers Part Number Price MOQ In stock
85084-3612 - - View Buy Now

85084-3612 Overview

Automotive connector SRC POWER 36+12ACEG FEM RECPT HSG

85084-3612 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time8 weeks
Connector typeCOMBINATION LINE CONNECTOR
Contact point genderMALE
Contact styleHYBRID
empty shellNO
Filter functionNO
maximum insertion force200 N
Mixed contactsYES
Installation typeCABLE
Maximum operating temperature125 °C
Minimum operating temperature-40 °C
OptionsGENERAL PURPOSE
Rated current (signal)40 A
Termination typeCRIMP
Total number of contacts48

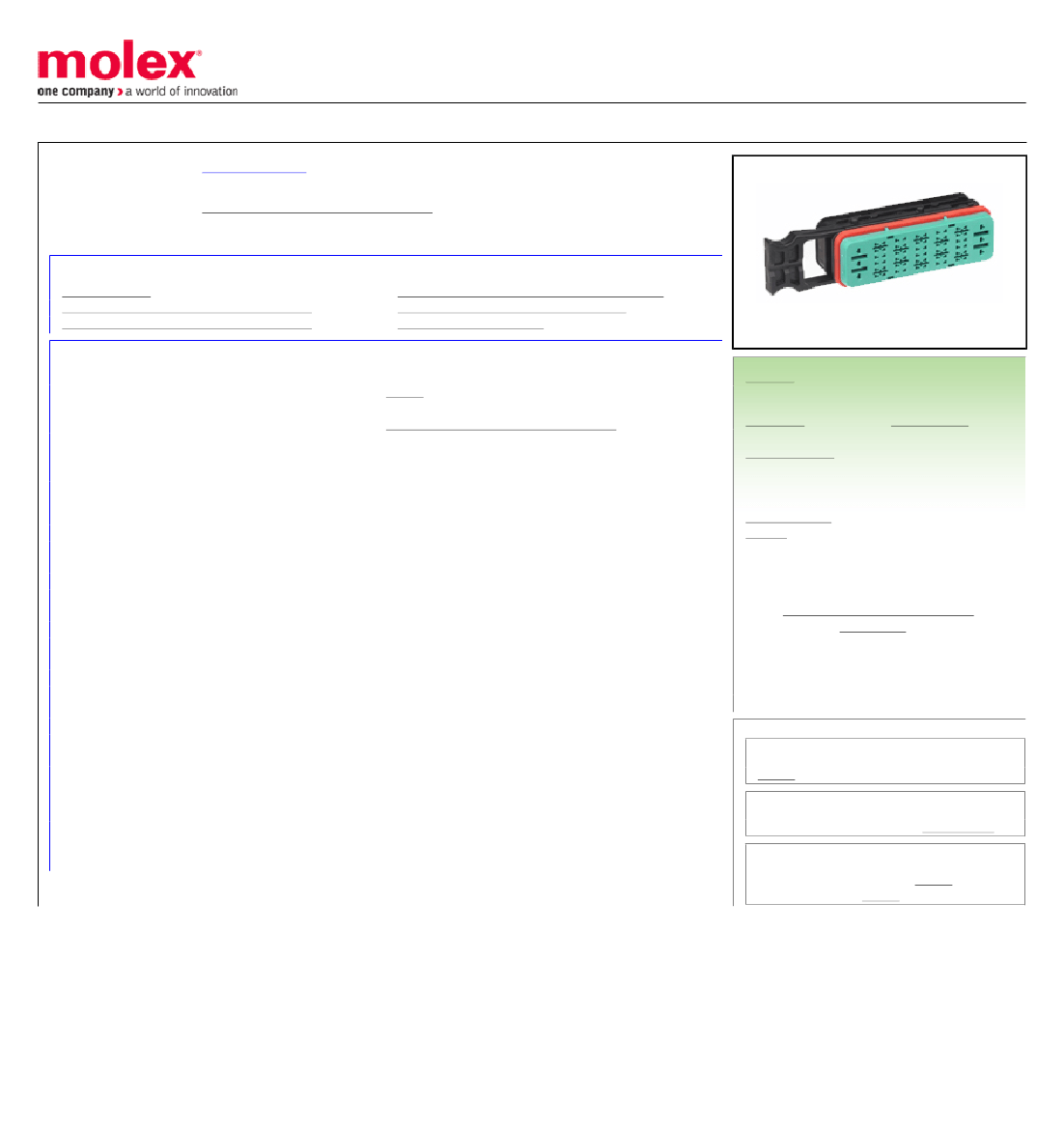

This document was generated on 06/21/2018
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
0850843612
Active
SRC - Sealed Rectangular Connectors
SRC Housing, Female, Hybrid 48 Pin Mixed Power and Signal (36 x MX150 + 12 x
MX150L), SPS/Nylon, Black
Documents:
Drawing (PDF)
Product Specification 850700010-K (PDF)
Product Specification 937320001-P (PDF)
General
Product Family
Series
Application
Overview
Product Literature Order No
Product Name
UPC
Physical
Circuits (maximum)
Circuits Detail
Color - Resin
Gender
Glow-Wire Capable
Keying to Mating Part
Lock to Mating Part
Material - Resin
Net Weight
Number of Rows
Packaging Type
Panel Mount
Pitch - Mating Interface
Polarized to Mating Part
Stackable
Temperature Range - Operating
Material Info
Reference - Drawing Numbers
Packaging Specification
Product Specification
Sales Drawing
Packaging Specification 937320001-K (PDF)
RoHS Certificate of Compliance (PDF)
Product Literature (PDF)
Series image - Reference only
Crimp Housings
85084
Power, Signal, Wire-to-Wire
SRC - Sealed Rectangular Connectors
987650-7391
SRC
887191068138
48
36 x MX150™ + 12 x MX150L™
Black
Receptacle
No
None
Yes
SPS/Nylon
108.180/g
10
Tray
No
0.30mm
Yes
No
-40°C to +125°C
EU ELV
Not Relevant
EU RoHS
China RoHS
Compliant
REACH SVHC
Not Contained Per -
ED/30/2017 (7 July
2017)
Halogen-Free
Status
Not Low-Halogen
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
RoHS Phthalates
Green Image
Not Relevant
Not Contained
Search Parts in this Series
85084 Series
Mates With
SRC Power Blade Housing 93792-3612
Use With
MX150 Female Terminals 33012 . MX150L
Female Terminal 19434
937320001-K
850700010-K, 937320001-P
850840700-000
This document was generated on 06/21/2018
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
