85_QMA-S50-0-5/111_NH

Description
RF Connector/Coaxial Connector
CategoryThe connector    The connector
File Size101KB，2 Pages
ManufacturerHUBER+SUHNER
Download Datasheet Parametric View All

85_QMA-S50-0-5/111_NH Overview

RF Connector/Coaxial Connector

85_QMA-S50-0-5/111_NH Parametric

Parameter NameAttribute value
MakerHUBER+SUHNER
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
Body/casing typeJACK
Characteristic impedance50 Ω
Connector typeRF CONNECTOR
Contact to complete cooperationGOLD OVER NICKEL
Contact completed and terminatedGOLD OVER NICKEL
Contact point genderMALE
Coupling typeSNAP
DIN complianceNO
Filter functionNO
IEC complianceNO
insulator materialPFA/PTFE
JESD-609 codee4
MIL complianceNO
Installation methodRIGHT ANGLE
Installation typeBOARD
Maximum operating frequency18 GHz
OptionsGENERAL PURPOSE
Panel mountingNO
Termination typeSURFACE MOUNT
Base Number Matches1

Preview

Download Datasheet

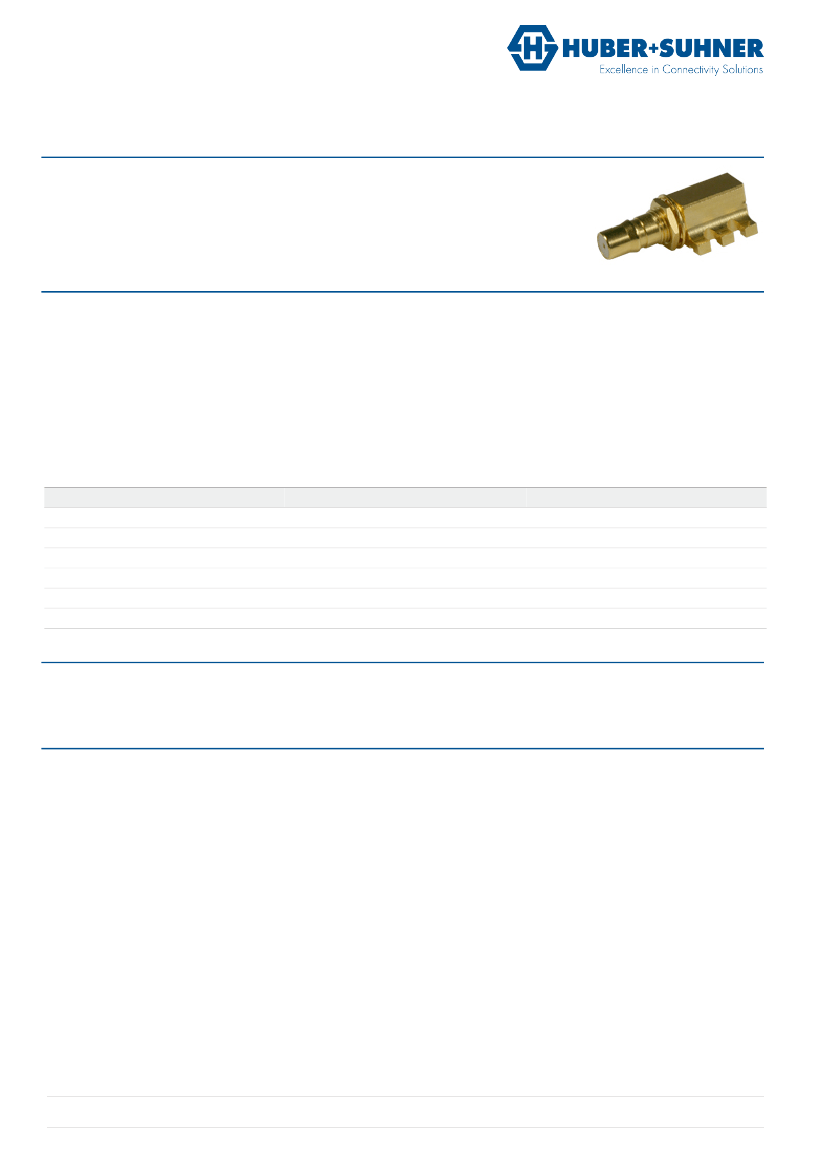

Data Sheet
Coaxial PCB Connector
85_QMA-S50-0-5/111_N
Description
Right angle PCB jack
Interface Standards
QMA QLF compliant
Technical Data
Electrical Data
Impedance
Interface frequency max.
50 Ω
18 GHz
Mechanical Data
Board mounting type
surface mount
Environmental Data
Operating temperature
2011/65/EU (RoHS)
-40 °C to 85 °C
compliant
Material Data
Piece Parts
Centre contact
Outer contact
Body
Insulator
Fastening nut
Washer
Material
Copper Beryllium / Bronze
Brass
Brass
PFA / PTFE
Brass
Bronze
SUCOPRO Plating
SUCOPRO Plating
Surface Plating
SUCOPRO Plating
SUCOPRO Plating
SUCOPRO Plating
Related Documents
Outline drawing
Catalogue drawing
Mounting hole
DOU-00013324
DCA-00086813
DOU-00013090
Ordering Information
Bulk 100 pcs package
85_QMA-S50-0-5/111_NH
HUBER+SUHNER is certified according to ISO 9001, ISO 14001, ISO/TS 16949 and IRIS
www.hubersuhner.com
Waiver: It is exclusively in written agreements that we provide our customers with warrants and representations as to the technical specifications and/or the fitness for any
particular purpose. The facts and figures contained herein are carefully compiled to the best of our knowledge, but they are intended for general information purposes only.
Document: DOC-0000193815 Q / PDO K / date of publication: 05.04.2016 17:37:21 / uncontrolled copy
Page 1/1
