EM244807: DescriptionFixed Terminal Blocks 7P EM2448 Series; CategoryThe connector connection terminal Fixed terminal; File Size1MB，2 Pages; ManufacturerBussmann (Eaton); Environmental Compliance

Download Datasheet Parametric View All

EM244807 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	EM244807	-	-	View	Buy Now

EM244807 Overview

Fixed Terminal Blocks 7P EM2448 Series

EM244807 Parametric

Parameter Name	Attribute value
Maker	Bussmann (Eaton)
Product Category	Fixed terminal block
Shipping restrictions	Mouser does not currently sell this product.
Number of locations	7 Position
Pitch	3.81 mm
connection method	Spring Cage
Current rating	10 A
Voltage rating	300 V
Wire gauge range	26 AWG to 16 AWG
series	EM2448
Encapsulation	Bulk
Contact plating	Tin
product	Fixed Terminal Blocks
Termination type	SMD/SMT
Contact material	Brass
Flammability rating	UL 94 V-0
Factory packaging quantity	100

Preview

Download Datasheet

View All

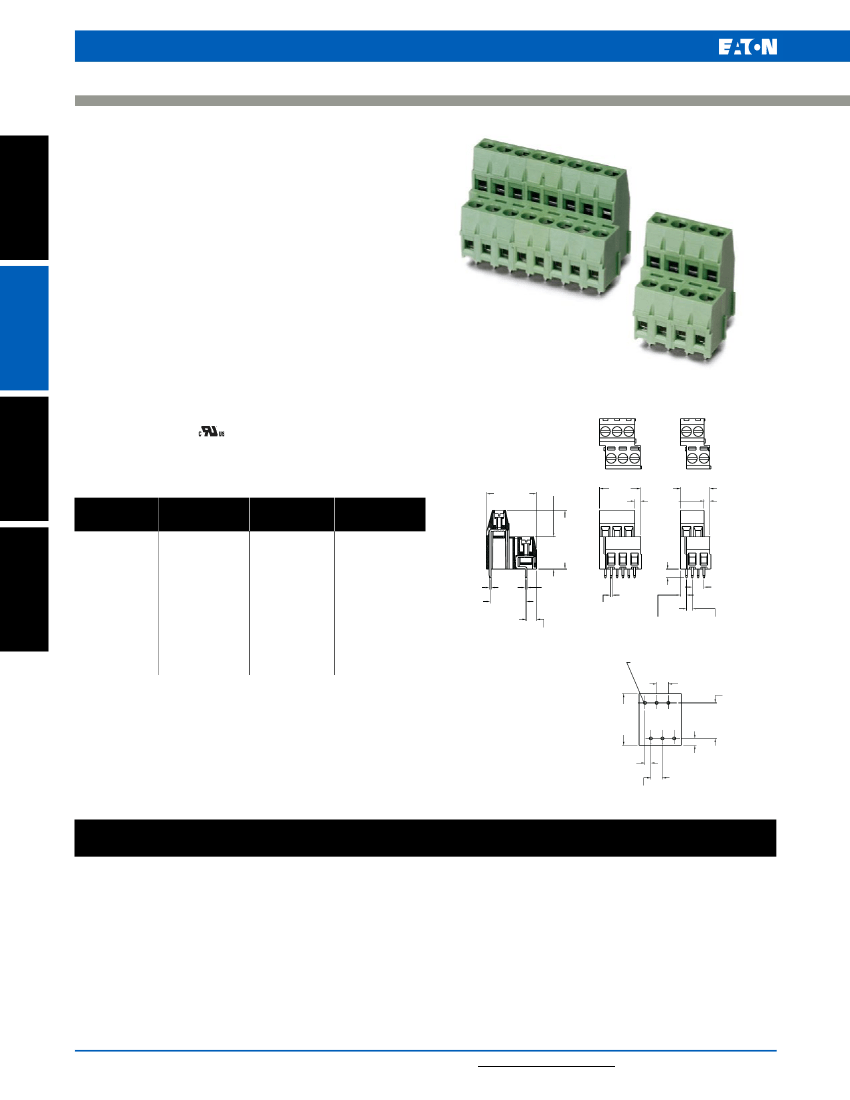

EuroMag Series PCB Mount Terminal Blocks

Terminal Blocks:

Single Row

EM2448 Series

EuroMag Terminal Blocks

Two Tier; 5.08 Centers; Modular

SPECIFICATIONS

Rating:

16A, 300V

Center Spacing:

0.20” (5.08mm)

Wire Range:

#12-26 AWG

Housing Material:

UL rated 94V0 Thermoplastic

Contact Material:

Brass Tin-Plated

Cage Material:

Brass, Nickel-Plated

Screw Size:

M2.6

Zinc-Plated

Steel

Operating Temperature:

105°C (221°F) max., -40°C

(-40°F) min.

Torque Rating:

5.0

lb-in.

Recommended PCB Hole Diameters:

0.055" (1.40mm)

Construction:

Modular design features dovetails for

interlocking to achieve longer lengths

Agency Information:

File E62622; CE Certified

Two

Three Tier

EuroMag Series

EM244808

EM244804

Edge Connectors,

One-Sided Boards

Dimensions - mm (in)

13.8+0.3

(0.543")

21.4+0.3

(0.843")

L+0.5

2.54+0.3

(0.100")

Poles

L (mm)

10.16

15.24

20.32

25.40

30.48

35.56

40.64

45.72

50.80

55.88

60.96

66.04

Poles

L (mm)

25.1+0.3

(0.988")

71.12

76.20

81.28

86.36

91.44

96.52

101.60

106.68

111.76

116.84

121.92

Compliance

References

0.8+0.1

(0.031")

15.5+0.2

(0.610")

0.8+0.1

(0.031")

3.7+0.3

(0.146")

0.8+0.1

(0.031")

5.08+0.1

(0.200")

2.54+0.3

(0.100")

ø1.4~1.5

(ø0.055"~0.059")

2.54+0.2

(0.100")

4.6+0.3

(0.181")

To convert to inches, divide by 25.4

PCB Hole Layout

5.08+0.1

(0.200")

21.4+0.3

(0.843")

15.5+0.2

(0.610")

2.54+0.2

(0.100")

5.08+0.1

(0.200")

4.6+0.3

(0.181")

Part Numbering System

EM2 44 8

nnnnnn nn

Series

# of Poles

For additional product information, visit

www.eaton.com/connectors

Recommended Resources
