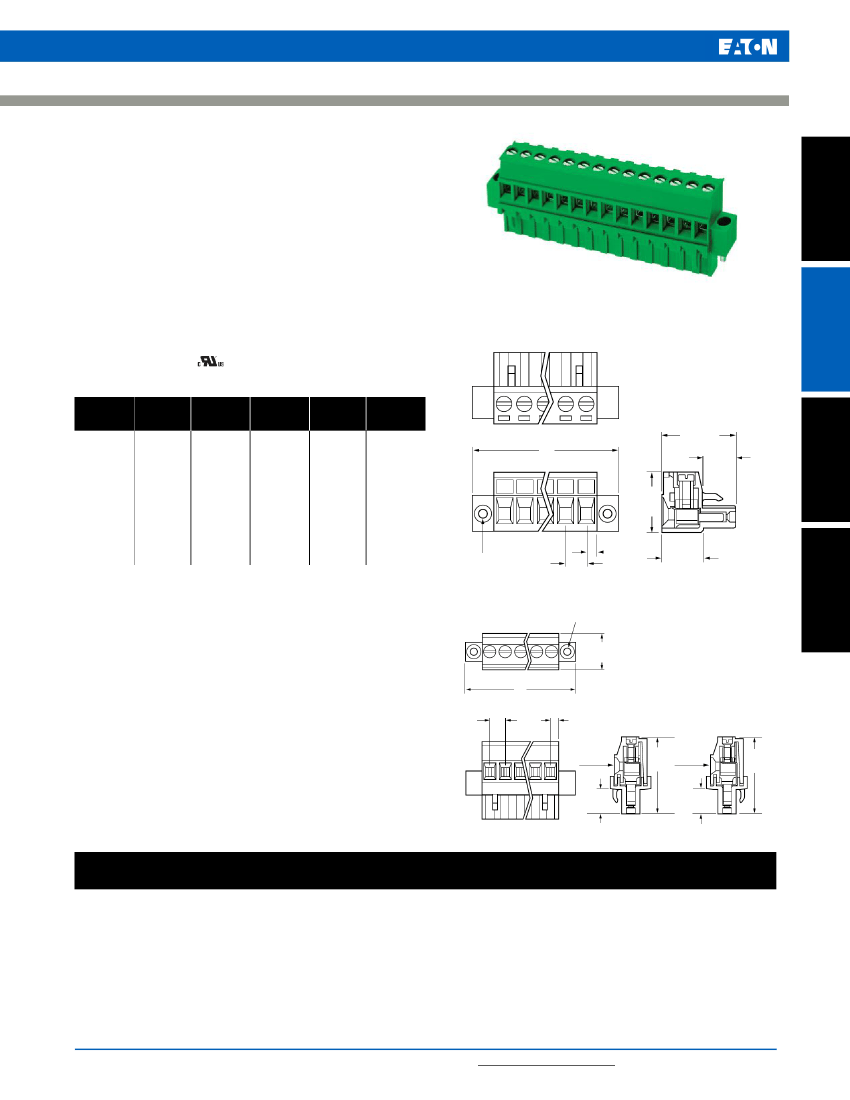

EuroMag Series PCB Mount Pluggable Terminal Blocks
Series EM2115 Series
Pluggable Terminal Block with Flanges;
(Mates with EM2215 Series);5.00 Centers
SPECIFICATIONS:
Rating:
16A, 300V
Center Spacing:
0.197" (5.00mm)
Wire Range:
#12-24 AWG
Housing Material:
UL rated 94V0 Thermoplastic
Contact Material:
Tin-Plated Phosphor Bronze
Screw Size:
M2.6 Nickel-Plated Steel
Operating Temperature:
105°C (221°F) max., -55°C (-67°F) min.
Torque Rating:
7.0
lb-in.
Construction:
Mold-to-Length
Agency Information:
File E62622; CE Certified
Terminal Blocks:
Single Row
EM211514VL
EuroMag Series
Plug & Header
Dimensions - in (mm)
HORIZONTAL
Poles
2
3
4
5
6
7
8
9
10
11
12
L (mm)
20.0
25.0
30.0
35.0
40.0
45.0
50.0
55.0
60.0
65.0
70.0
L (Inch)
0.787
0.984
1.181
1.378
1.575
1.772
1.969
2.165
2.362
2.559
2.756
Poles
13
14
15
16
17
18
19
20
21
22
L (mm)
75.0
80.0
85.0
90.0
95.0
100.0
105.0
110.0
115.0
120.0
L (Inch)
2.952
3.149
3.346
3.543
3.740
3.937
4.133
4.330
4.527
4.724
Edge Connectors,
One-Sided Boards
L
0.71"
(18.00)
0.32"
(8.20)
0.59"
(15.0)
Ø.11"
(2.70)
0.197"
(5.00)
Ø.11"
(2.70)
0.10"
(2.50)
0.39"
(9.80)
Compliance
References
VERTICAL
0.49"
(12.5)
L
0.197"
(5.00)
0.10"
(2.50)
WIRE
ENTRY
0.32"
(8.20)
LEFT
1.02"
(25.8) WIRE
ENTRY
0.32"
(8.20)
RIGHT
1.02"
(25.8)
Part Numbering System
Series
Inches (Millimeters)
E M2 11 5
nnnnnn
nn
02
to
22
# of Poles
n
Orientation
n
Wire Entry
Mating Header:
EM2215 pg.
95
V
- Vertical
H
- Horizontal
L
- Left wire entry
R
- Right wire entry
(specify for V orientation)
For additional product information, visit
www.eaton.com/connectors
