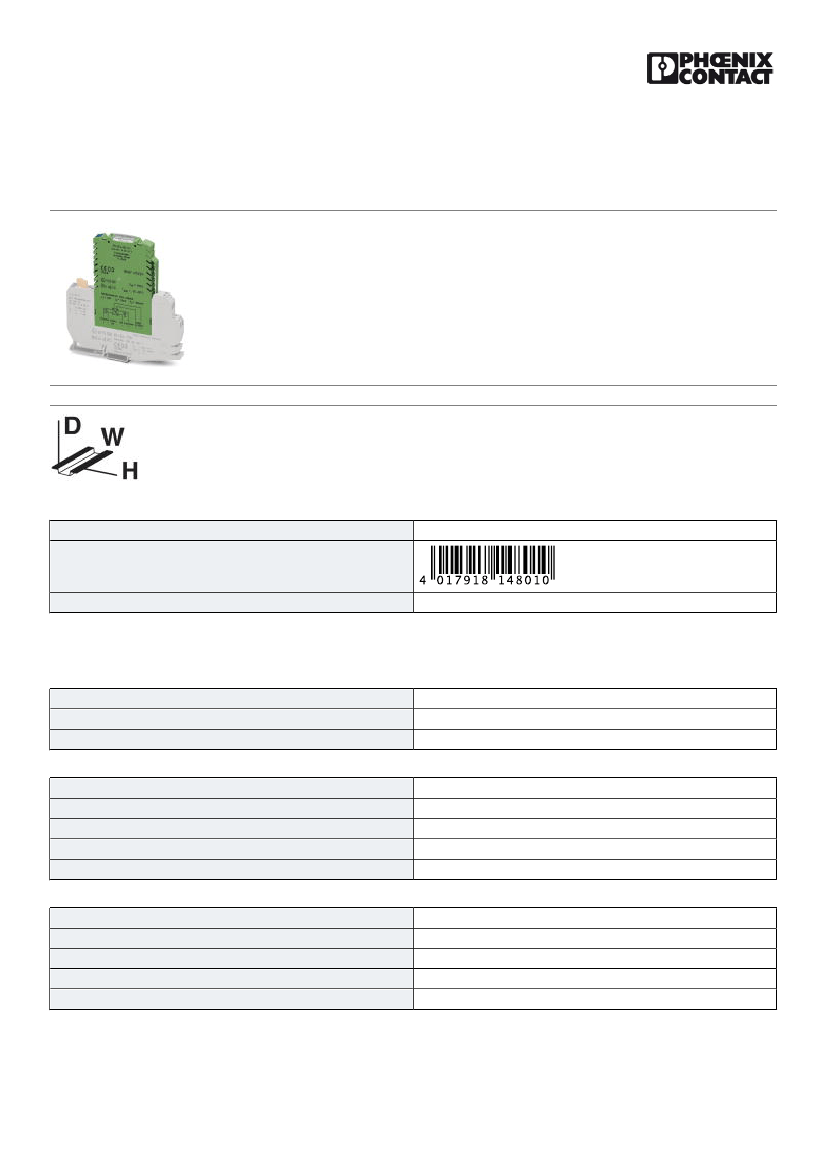

Signal isolator - PI-EX-ID-I/I - 2835024
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Ex i Analog Output: output isolating driver. Isolates and drives 0/4-20mA signals from a controller located in
the safe area to a load (I/P converters, control valves, indicators) in the hazardous area. 3-way isolated (input/
output/supply).
Key Commercial Data
Packing unit
GTIN
GTIN
4017918148010
1 pc
Technical data
Dimensions
Width
Height
Depth
12.4 mm
145 mm
147 mm
Ambient conditions
Ambient temperature (operation)
Ambient temperature (storage/transport)
Permissible humidity (operation)
Noise immunity
-20 °C ... 60 °C (vertical assembly)
-20 °C ... 50 °C (horizontal assembly)
-40 °C ... 80 °C
5 % ... 95 % (relative humidity, non-condensing)
EN 61326:1998
Input data
Signal input
Current input signal
Input resistance current input
Input current range
Current input
4 mA ... 20 mA
0 mA ... 20 mA
< 4 V (at 20 mA)
0 mA ... 24 mA
Output data
11/05/2018 Page 1 / 3
https://www.phoenixcontact.com/pi/products/2835024
Signal isolator - PI-EX-ID-I/I - 2835024
Technical data
Output data
Signal output
Current output signal
Load/output load current output
Output resistor
Output ripple
Output voltage
Intrinsically safe
4 mA ... 20 mA
0 mA ... 20 mA
≤ 800 Ω
> 2 MΩ
< 40 μA
pp
(800 Ω)
16 V (at 20 mA)
Power supply
Supply voltage range
Max. current consumption
Power consumption
20 V DC ... 35 V DC
50 mA (at 24 V)
1 W (at 24 V)
General
No. of channels
Maximum transmission error
Maximum temperature coefficient
Step response (10-90%)
Status display
Flammability rating according to UL 94
Electromagnetic compatibility
Interference emission
Housing material
Color
Designation
Electrical isolation
Designation
Electrical isolation
Designation
Electrical isolation
1
≤ 0.1 % (Of end value (at 20°C))
< 0.01 %/K
< 250 µs
Green LED (supply voltage)
V0
Conformance with EMC directive 89/336/EC
EN 61326:1998
PBT and polyamide PA non-reinforced
green
Input/output
250 V
rms
(acc. to EN 50020)
Input/power supply
1.5 kV (50 Hz, 1 min., test voltage)
Output/supply
250 V
rms
(acc. to EN 50020)
Standards and Regulations
Electromagnetic compatibility
Noise emission
Noise immunity
Flammability rating according to UL 94
Group
Conformance with EMC directive 89/336/EC
EN 61326:1998
EN 61326:1998
V0
IIA
IIB
IIC
EEX specification
EX II (1)GD, [EEx ia] IIC, BAS 97 ATEX 1211
Drawings
11/05/2018 Page 2 / 3
https://www.phoenixcontact.com/pi/products/2835024
Signal isolator - PI-EX-ID-I/I - 2835024
Dimensional drawing
145
12,4
Phoenix Contact 2018 © - all rights reserved
http://www.phoenixcontact.com
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg
Germany
Tel. +49 5235 300
Fax +49 5235 3 41200
http://www.phoenixcontact.com
147
