FTP-628MCL401#01 / 451#01
BATTERY DRIVEN, FTP-608 Series
2” HIGH SPEED THERMAL PRINTER
FTP-628MCL401#01/451#01
n
OVERVIEW

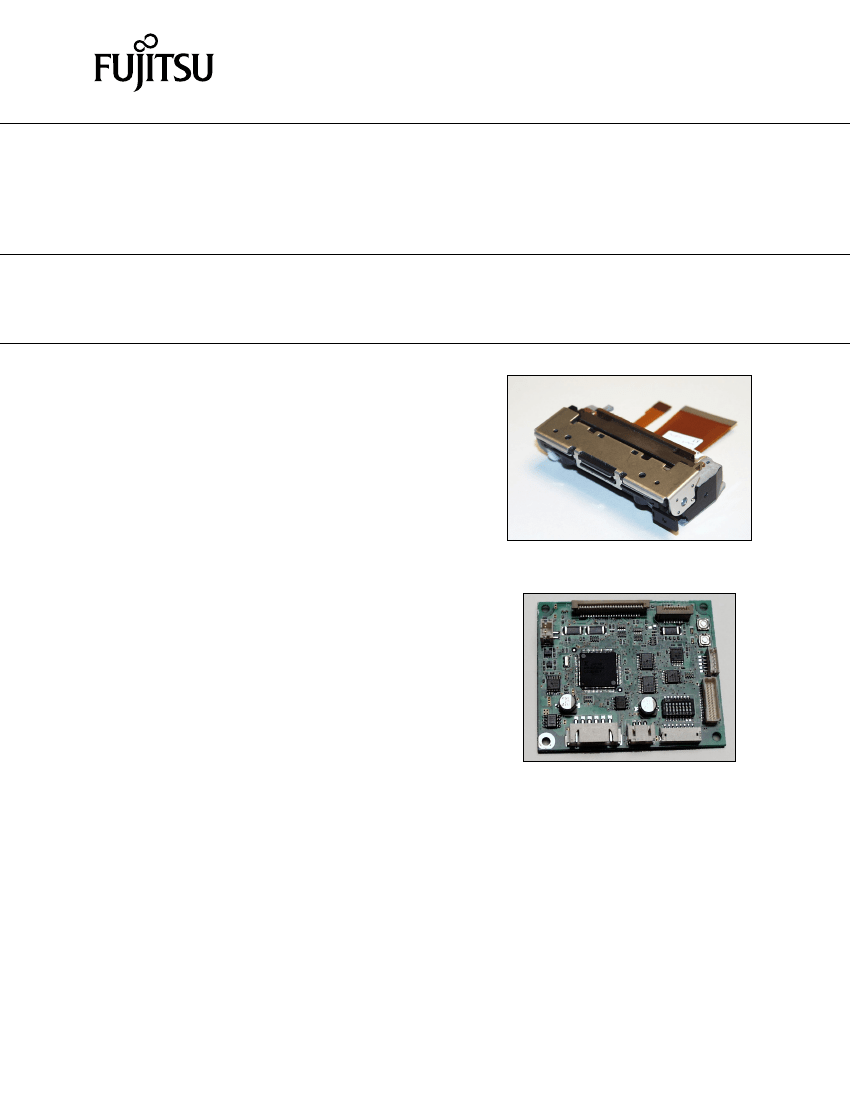

The FTP-628 MCL Series are battery driven high-speed
printers with a 2-inch paper width equivalent.
The FTP-628 MCL Series can be used for a variety of
applications, such as portable terminals, POS, banking
terminals, and measurement and medical equipment.
n
HIGHLIGHTS
• Ultra low profile
Height 21.8 mm, width 81.2 mm, depth 42.2 mm
• High speed printing
It can print at 80 mm/s (640 dotlines/s) maximum by using
Fujitsu's unique head drive control.
• Auto Cutter
Full cut type and partial cut type printers are available by
user selection.
• Easy paper loading
Our unique platen release mechanism allows a
wide paper route even if the printer is ultra-compact, so
paper can be easily inserted.
• Multifunctional die-cast form
Wide operating temperature range, long continuous
printing, high ESD absorbtion and discharge of static
electricity vibration and shock resistant.
• RoHS compliant
FTP-628MCL401#01
FTP-628DSL491R
1
FTP-628MCL401#01 / 451#01
n
PART NUMBERS
Name
Printer mechanism with cutter
Printer mechanism without cutter
LSI for driving
Interface board for
Mechanism/Cutter
Interface cable
Power cables
Cutter supported
Part Number
FTP-628MCL401#01 (Easy Load Model)
FTP-628MCL451#01 (Easy Load Model with platen bracket +
lock lever)
FTP-629CU451R
FTP-628DSL491R Parallel (Centronics) / Serial (RS-232C)
Parallel (Centronics) FTP-628Y202
Serial (RS-232C)
Head, motor, logic
FTP-628Y302
FTP-628Y402
n
SPECIFICATIONS
Item
Part number
Printing method
Dot structure
Dot pitch (Horizontal)
Dot pitch (Vertical)
Effective printing area
Number of columns
Paper width
Paper thickness
Printing Speed
Character types
Specifications
FTP-628MCL401#01/451#01
Thermal-line dot method
384 dots/line
0.125 mm (8 dots/mm)—Dot density
0.125 mm (8 dots/mm)—Line feed pitch
48 mm
ANK 32 columns/line (maximum 12 x 24 dot font)
58 mm
60 to 85 µ m (some paper in this range may not be used because
of paper characteristics)
Maximum 80mm/sec. (640 dot line/sec.) at 8.5V
Alphanumeric, kana:
International characters:
JIS Kanji (Kanji CG loaded board):
159 types
195 types
about 6800 types
Character, dimensions (W×H), number
of columns
12 × 24 dots, (1.5 × 3.0 mm), 32 columns: ANK
24 × 24 dots, (3.0 × 3.0 mm), 16 columns: ANK
8 × 16 dots, (1.0 × 2.0 mm), 48 columns: ANK
16 × 16 dots, (2.0 × 2.0 mm), 24 columns: ANK
2
FTP-628MCL401#01 / 451#01
n
SPECIFICATIONS
Item
Interface
For print head
Power
supply
For motor
For cutter motor
For logic
Dimensions
Mechanism with cutter
Interface board
Mechanism with cutter
Interface board
Head
Cutter
Platen
Operating temperature*
Operating humidity
Operating
environment Storage temperature
Storage humidity
Head temperature
detection
Detection
function
Paper out/mark detection
Platen release
Movable blade
Specification
Conforms to RS232C / Centronics
4.2 - 8.5 VDC average current, 1.8 (2.4)A at 7.2V
(print ratio: 12.5%, print speed: 60mm/sec. )
4.2 - 8.5 VDC, 1A maximum
4.75 - 8.5 VDC, 1A maximum
3.0 to 5.25 VDC, 0.1A maximum
81.2 x 42.2 x 21.8 mm (WxDxH)
70 x 60 x12 mm
Approximately 98g
Approximately 25g
Pulse resistance: 100 million pulses/dot (under our standard
conditions); Abrasion resistance: paper traveling distance 50km
(print ratio: 25% or less)
500,000 cuts
5,000 times (open/close)
0˚ C to 50˚ C
20 to 85% RH (no condensation)
-20˚ C to +60˚ C (paper not included)
5 to 90% RH (no condensation)
Detected by thermistor
Detected by photo-interrupter
Detected by sliding switch
Detected by photo-interrupter
High Sensitive Paper
Standard paper:
TF50KS-E4 (Nippon Paper)
TF60KS-E(Nippon Paper), FTP-
020PU001 (58mm), PD105R (Oji Paper),
FTP-020P0701 (58mm)
TF60KS-F1, FTP-020P0102 (58mm),
PD170R (Oji Paper), P220VBB-1
Mitsubishi Paper)
PD160R-N (Oji Paper), AFP-235
(Mitsubishi Paper), TP50KJ-R (Nippon
Paper), HA220AA (Nippon Paper)
Wei gh t
Life
Recommended thermal sensitive paper
Medium Life Paper
Long Life Paper
*+5˚C to +40˚C printing density assurance rance (-25 to 70˚C capability)
3
FTP-628MCL401#01 / 451#01
n
FUNCTION OF INTERFACE BOARD
Item
1.
2.
3.
4.
5.
6.
7.
Test print function
Paper out detection
Paper near end detection
Platen open detection
Thermal head temperature abnormality detection
Blow-out fuse detection
Head voltage abnormality detection
8.
9.
10.
11.
12.
13.
14.
Item
Cutter trouble detect
Motor power saving function
Mark detection function
MCU operation abnormality detection
Power ON/OFF sequence protection
Motor over-current protection
Hardware timer
n
DIMENSIONS

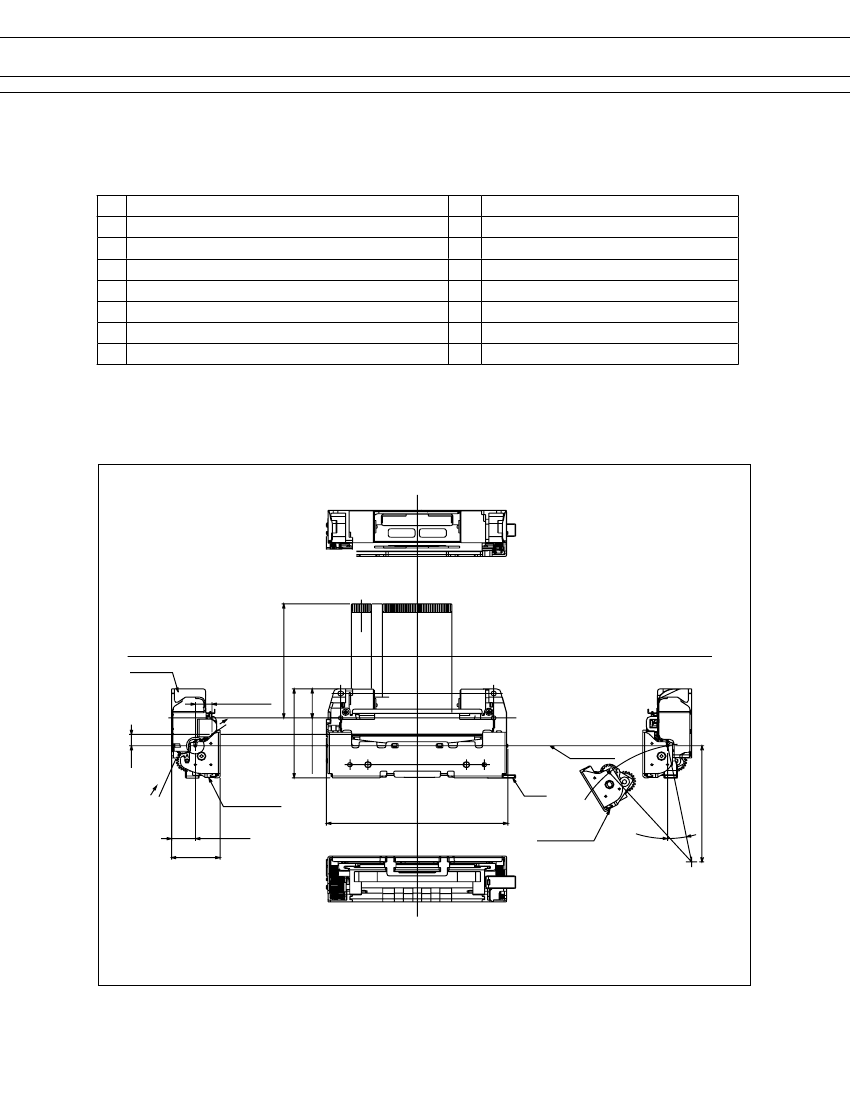

1. Printer mechanism
FTP-628MCL401#01
printer
13.9
7.5
cutting position
(54)
printer position standard
42.2
13.1
5.4
platen center
paper exhaust position
pa
pe
r
platen unit
81.2
10.7
21.8
lever
platen unit
11
Note: 1. Dimensions are nominal value (tolerance ±5 unless otherwise specified).
2. Platen unit (lever, platen, etc) moves by approximately 0.7mm toward paper insertion direction when
platen is open.
Unit: mm
4
FTP-628MCL401#01 / 451#01

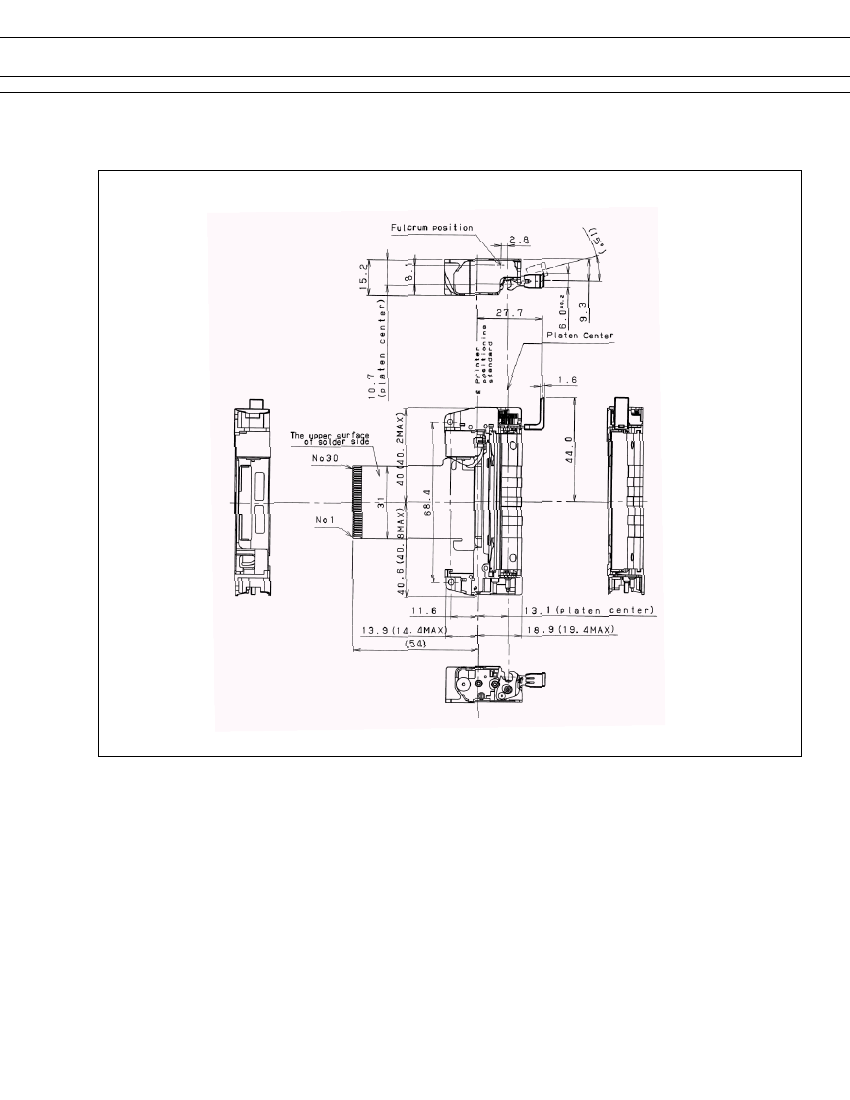

1. Printer mechanism
FTP-628MCL451#01
5
