FTR-C2GB024G Overview

Low Signal Relay - PCB SIGNAL

FTR-C2GB024G Parametric

Parameter Name	Attribute value
Maker	FUJITSU
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
body width	9.85 mm
body height	11.4 mm
Body length or diameter	20.05 mm
Maximum coil current (DC)	0.006 A
Coil operating voltage (DC)	18 V
Coil power	150 mW
Coil release voltage (DC)	-18 V
Coil resistance	3840 Ω
Maximum coil voltage (DC)	24 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	2A@250VAC
Maximum contact current (AC)	2 A
Maximum contact current (DC)	2 A
Contact (DC) maximum rated R load	2A@220VDC
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	220 V
Contact/Output Power Type	AC/DC
Electrical life	100000 Cycle(s)
Manufacturer's serial number	FTR-C2
Installation features	SURFACE MOUNT-STRAIGHT
operating hours	15 ms
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
method of packing	TUBE
physical size	20.05mm X 9.85mm X 11.4mm
Guideline	CSA; EN; IEC; UL
Relay action	LATCHED
Relay function	DPDT
Relay type	POWER/SIGNAL RELAY
release time	15 ms
surface mount	NO
Termination type	SOLDER

Preview

Download Datasheet

View All

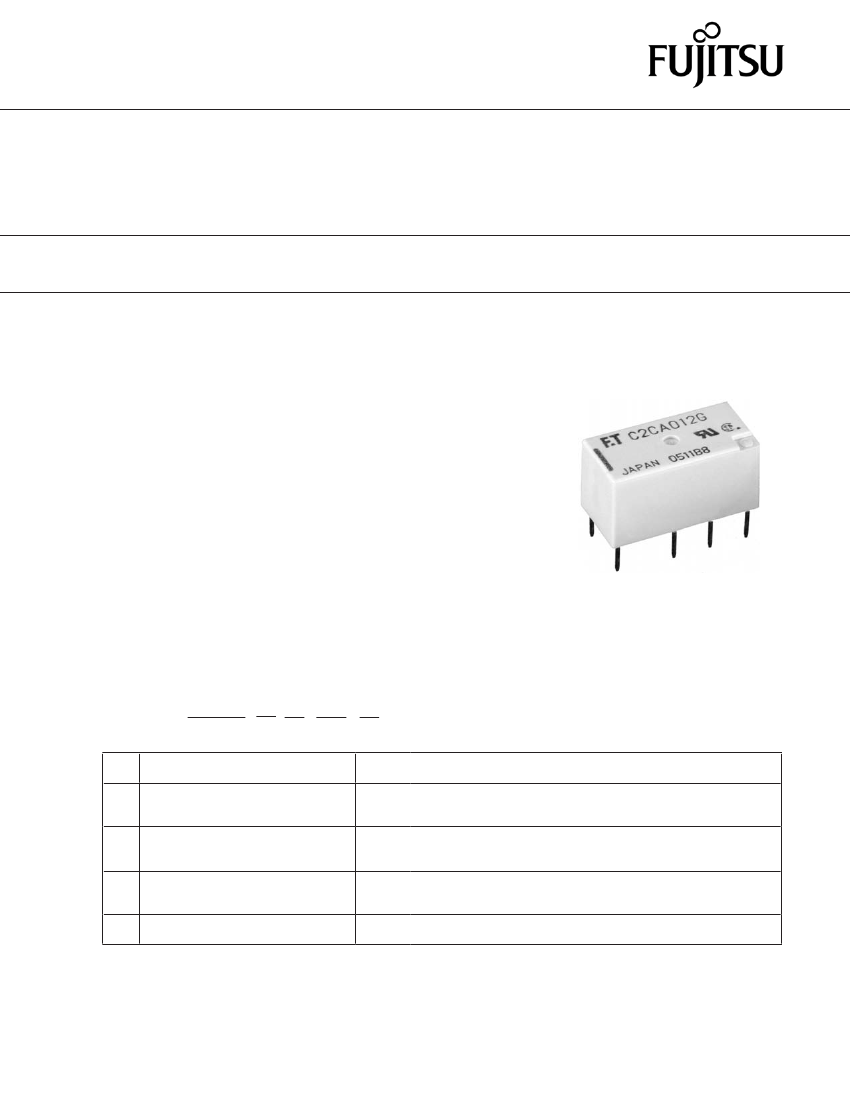

FTR-K1 SERIES

SIGNAL RELAY

2 POLES - 2A High Isolation Wide Contact Gap

FTR-C2 Series

FEATURES

DPDT 2A

Contact gap: more than 2.0mm

Conforms to IEC60950 / EN60950 / UL1950/

CSA C22.2 No.950

Working voltage 250V

Insulation:

Clearance 2.0 mm (between open contacts, coil and contacts,

contact sets)

Creepage 2.5 mm (between open contacts,coil and contacts,

contact sets)

High reliability bifurcated contacts

Power consumption 300 mW

Latching types available

RoHS compliant

Please see page 7 for more information

Plastic sealed

PARTNUMBER INFORMATION

[Example]

(a)

(b)

(c)

(d)

(e)

FTR-C2

(a)

C A

(b) (c)

012

(d)

(e)

FTR-C2

012

: FTR-C2-Series

: Through hole type

: Surface mount type

: Standard type

: Latching type

: 3.....24 VDC

Coil rating table at page 3

: Gold plated silver alloy

Relay type

Terminal type

Coil type

Coil rated voltage

Contact material

Remarks: Actual marking on relay would not carry code FTR and be as below:

Ordering code: FTR-C2CA012G

Actual marking: C2CA012G

Note: FTR-C2 series available in tube packaging only.

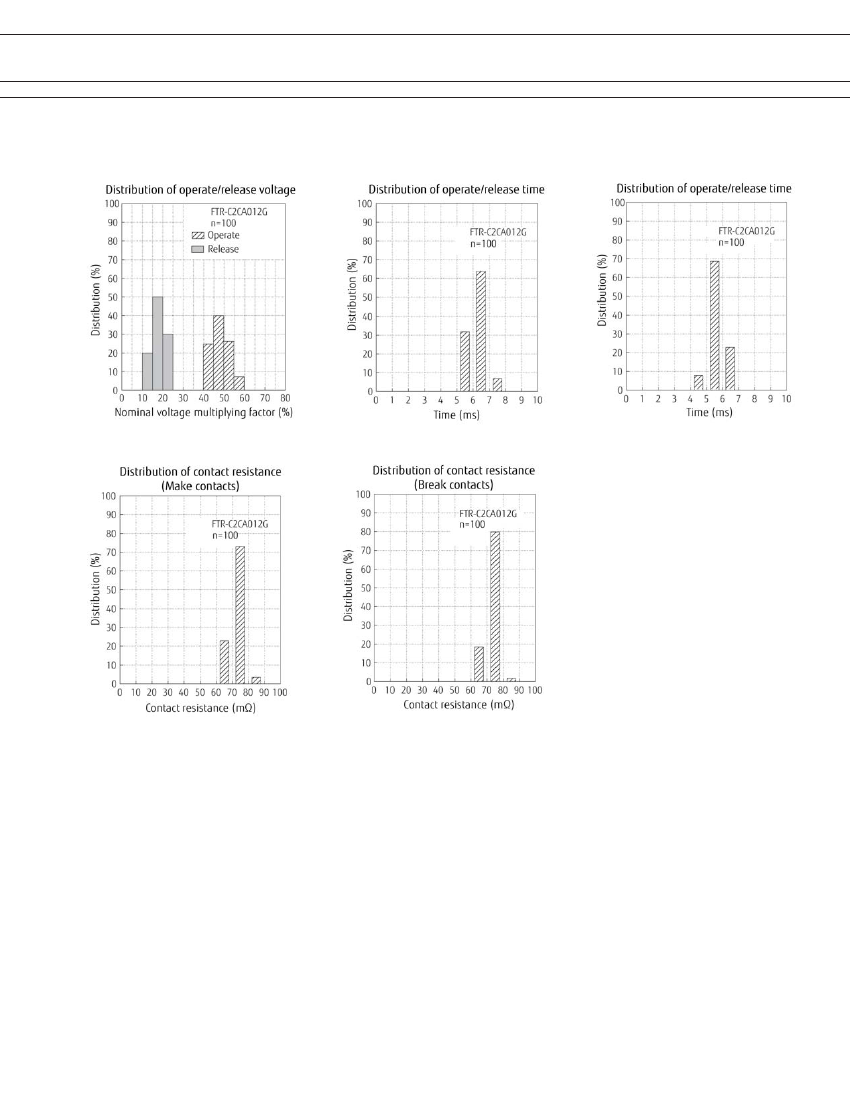

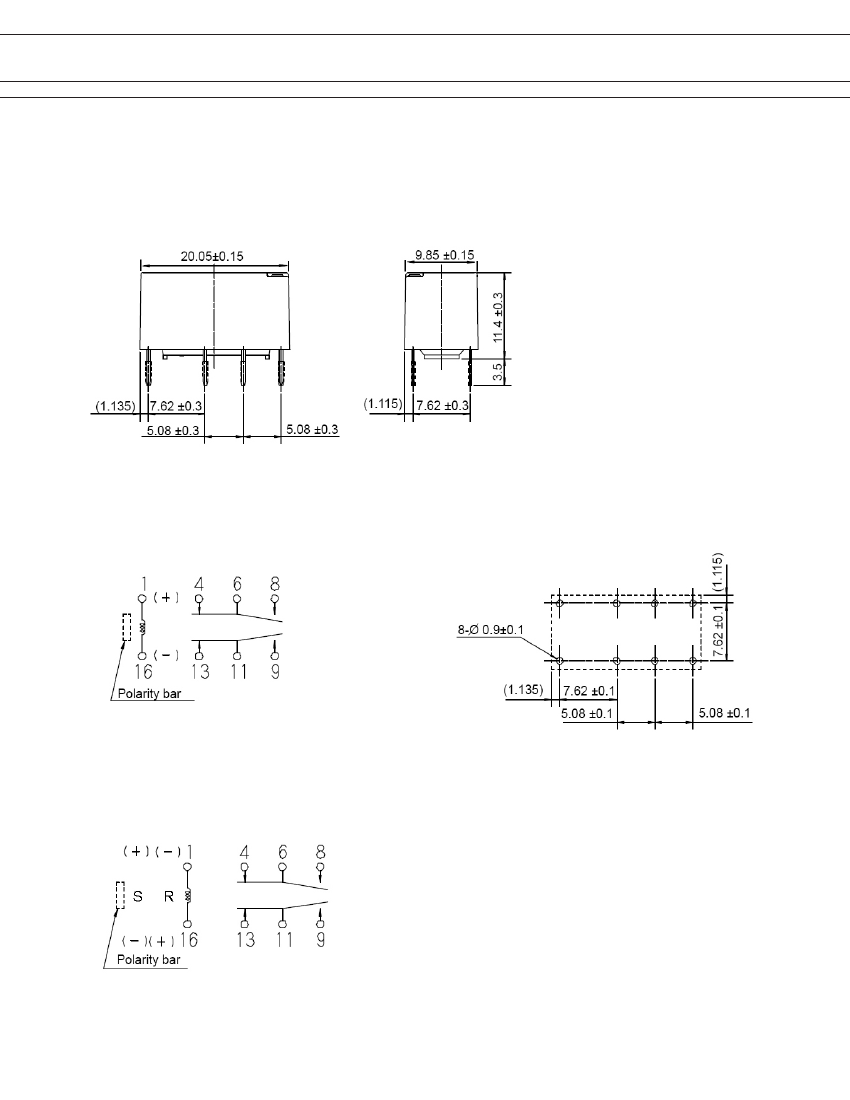

FTR-C2GB024G Related Products

	FTR-C2GB024G	FTR-C2CB024G	FTR-C2GB005G	FTR-C2GB012G-B05	FTR-C2CA003G	FTR-C2CA005G	FTR-C2GB005G-B05	FTR-C2CB005G	FTR-C2GB024G-B05
Description	Low Signal Relay - PCB SIGNAL	Low Signal Relay - PCB SIGNAL	Low Signal Relay - PCB SIGNAL	Low Signal Relay - PCB SIGNAL	Low Signal Relay - PCB SIGNAL	Low Signal Relay - PCB SIGNAL	Low Signal Relay - PCB SIGNAL	Low Signal Relay - PCB SIGNAL	Low Signal Relay - PCB SIGNAL
Maker	FUJITSU	FUJITSU	FUJITSU	FUJITSU	FUJITSU	FUJITSU	FUJITSU	FUJITSU	FUJITSU
Coil resistance	3840 Ω	3840 Ω	167 Ω	960 Ohms	30 Ω	83.3 Ω	167 Ohms	167 Ω	3.84 kOhms
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	-	ROHS COMPLIANT	ROHS COMPLIANT	-	ROHS COMPLIANT	-
Reach Compliance Code	unknown	unknown	unknown	-	unknown	unknown	-	unknown	-
ECCN code	EAR99	EAR99	EAR99	-	EAR99	EAR99	-	EAR99	-
body width	9.85 mm	9.85 mm	9.85 mm	-	9.85 mm	9.85 mm	-	9.85 mm	-
body height	11.4 mm	11.4 mm	11.4 mm	-	11.4 mm	11.4 mm	-	11.4 mm	-
Body length or diameter	20.05 mm	20.05 mm	20.05 mm	-	20.05 mm	20.05 mm	-	20.05 mm	-
Maximum coil current (DC)	0.006 A	0.006 A	0.03 A	-	0.1 A	0.06 A	-	0.03 A	-
Coil operating voltage (DC)	18 V	18 V	3.75 V	-	2.25 V	3.75 V	-	3.75 V	-
Coil power	150 mW	150 mW	150 mW	-	300 mW	300 mW	-	150 mW	-
Coil release voltage (DC)	-18 V	-18 V	-3.75 V	-	0.3 V	0.5 V	-	-3.75 V	-
Maximum coil voltage (DC)	24 V	24 V	5 V	-	3 V	5 V	-	5 V	-
Coil/Input Power Type	DC	DC	DC	-	DC	DC	-	DC	-
Contact (AC) maximum rated R load	2A@250VAC	2A@250VAC	2A@250VAC	-	2A@250VAC	2A@250VAC	-	2A@250VAC	-
Maximum contact current (AC)	2 A	2 A	2 A	-	2 A	2 A	-	2 A	-
Maximum contact current (DC)	2 A	2 A	2 A	-	2 A	2 A	-	2 A	-
Contact (DC) maximum rated R load	2A@220VDC	2A@220VDC	2A@220VDC	-	2A@220VDC	2A@220VDC	-	2A@220VDC	-
Maximum contact voltage (AC)	250 V	250 V	250 V	-	250 V	250 V	-	250 V	-
Maximum contact voltage (DC)	220 V	220 V	220 V	-	220 V	220 V	-	220 V	-
Contact/Output Power Type	AC/DC	AC/DC	AC/DC	-	AC/DC	AC/DC	-	AC/DC	-
Electrical life	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)	-	100000 Cycle(s)	100000 Cycle(s)	-	100000 Cycle(s)	-
Manufacturer's serial number	FTR-C2	FTR-C2	FTR-C2	-	FTR-C2	FTR-C2	-	FTR-C2	-
Installation features	SURFACE MOUNT-STRAIGHT	THROUGH HOLE-STRAIGHT MOUNT	SURFACE MOUNT-STRAIGHT	-	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT	-	THROUGH HOLE-STRAIGHT MOUNT	-
operating hours	15 ms	15 ms	15 ms	-	15 ms	15 ms	-	15 ms	-
Maximum operating temperature	85 °C	85 °C	85 °C	-	85 °C	85 °C	-	85 °C	-
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-	-40 °C	-40 °C	-	-40 °C	-
method of packing	TUBE	TUBE	TUBE	-	TUBE	TUBE	-	TUBE	-
physical size	20.05mm X 9.85mm X 11.4mm	20.05mm X 9.85mm X 11.4mm	20.05mm X 9.85mm X 11.4mm	-	20.05mm X 9.85mm X 11.4mm	20.05mm X 9.85mm X 11.4mm	-	20.05mm X 9.85mm X 11.4mm	-
Guideline	CSA; EN; IEC; UL	CSA; EN; IEC; UL	CSA; EN; IEC; UL	-	CSA; EN; IEC; UL	CSA; EN; IEC; UL	-	CSA; EN; IEC; UL	-
Relay action	LATCHED	LATCHED	LATCHED	-	MOMENTARY	MOMENTARY	-	LATCHED	-
Relay function	DPDT	DPDT	DPDT	-	DPDT	DPDT	-	DPDT	-
Relay type	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	-	POWER/SIGNAL RELAY	POWER/SIGNAL RELAY	-	POWER/SIGNAL RELAY	-
release time	15 ms	15 ms	15 ms	-	15 ms	15 ms	-	15 ms	-
surface mount	NO	NO	NO	-	NO	NO	-	NO	-
Termination type	SOLDER	SOLDER	SOLDER	-	SOLDER	SOLDER	-	SOLDER	-
