D3V-164M-3A5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> D3V-164M-3A5

D3V-164M-3A5: DescriptionBasic/snap-action switchMINIATURE; CategoryMechanical and electronic products switch; File Size3MB，13 Pages; ManufacturerOMRON; Websitehttps://www.omron.com; Environmental Compliance

Download Datasheet Parametric View All

D3V-164M-3A5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	D3V-164M-3A5	-	-	View	Buy Now

D3V-164M-3A5 Overview

Basic/snap-action switchMINIATURE

D3V-164M-3A5 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	OMRON
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	18 weeks
Actuator stroke	5.6 mm
Actuator type	SIMULATED ROLLER LEVER
body width	10.3 mm
body height	15.9 mm
Body length or diameter	27.8 mm
Contact (AC) maximum rated R load	16A@250VAC
Maximum contact current (AC)	16 A
Maximum contact current (DC)	16 A
Contact (DC) maximum rated R load	16A@8VDC
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	8 V
Electrical life	100000 Cycle(s)
Manufacturer's serial number	D3V
Installation features	PANEL MOUNT
Maximum operating force	1.23 N
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
Maximum pre-travel	4 mm
seal	IP00
surface mount	NO
Switch action	MOMENTARY
switch function	SPST
Switch type	SNAP ACTING/LIMIT SWITCH
Termination type	QUICK CONNECT

Preview

Download Datasheet

View All

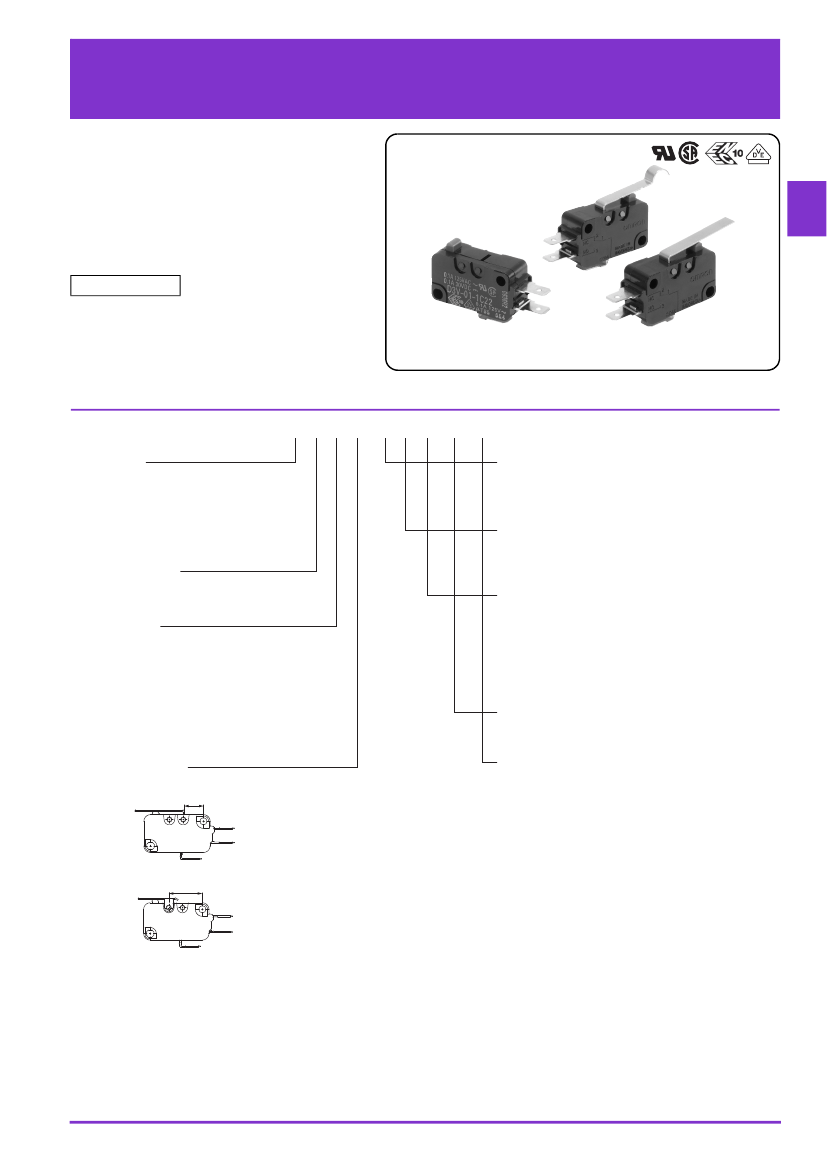

D3V

Miniature Basic Switch

Reliable Basic Switch with

External Lever

●

Available by 21 A, 16 A, 11 A, 6 A and 0.1 A

models, all with self-cleaning contacts.

●

Available with internally or externally fitted

levers.

RoHS Compliant

Model Number Legend

D 3 V-

1. Ratings

21 : 20 (4) A at 250 VAC

16 : 16 (3) A at 250 VAC

11 : 11 (3) A at 250 VAC

6 : 16 (2) A at 250 VAC

01 : 0.1 A at 125 VAC

2. Contact Gap

None : 1 mm (F gap)

G : 0.5 mm (G gap)

3. Actuator

None : Pin plunger

1 : Short hinge lever

2 : Hinge lever

3 : Long hinge lever

4 : Simulated roller lever

5 : Short hinge roller lever

6 : Hinge roller lever

4. Hinge Position

None : Internal/Far from plunger

8.1

2 3 4

5 6 7

@ @ @

5. Contact Form

1 : SPDT

2 : SPST-NC

3 : SPST-NO

6. Terminals

A : Solder terminals

C2 : Quick-connect terminals (#187)

C : Quick-connect terminals (#250)

7. Maximum Operating Force

5 : 1.96 N {200 gf}

4A : 1.23 N {125 gf}

4 : 0.98 N {100 gf}

3 : 0.49 N {50 gf}

2 : 0.25 N {25 gf}

Note. These values are for the pin plunger models.

8. Mounting Hole Size

None : 3.1 mm

K : 2.9 mm

9. Special Code

None : Standard

H : High temperature (125°C) (See note)

E : Special rating: 21 (8) A

Note. Consult your OMRON sales representative for high

temperature models.

: External/Near plunger

14.3
