SCL-1-DPDT-110 VDC datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> relay> General relay> SCL-1-DPDT-110 VDC

SCL-1-DPDT-110 VDC: DescriptionGeneral Purpose Relay 10A, General Purpose Relay; CategoryMechanical and electronic products relay General relay; File Size116KB，7 Pages; ManufacturerSong Chuan; Environmental Compliance

Download Datasheet Parametric Compare View All

SCL-1-DPDT-110 VDC Overview

General Purpose Relay 10A, General Purpose Relay

SCL-1-DPDT-110 VDC Parametric

Parameter Name	Attribute value
Maker	Song Chuan
Product Category	General purpose relay
Shipping restrictions	Mouser does not currently sell this product.
product	Power Relays
series	SCL
Factory packaging quantity	25

Preview

Download Datasheet

View All

SONG CHUAN

SCL

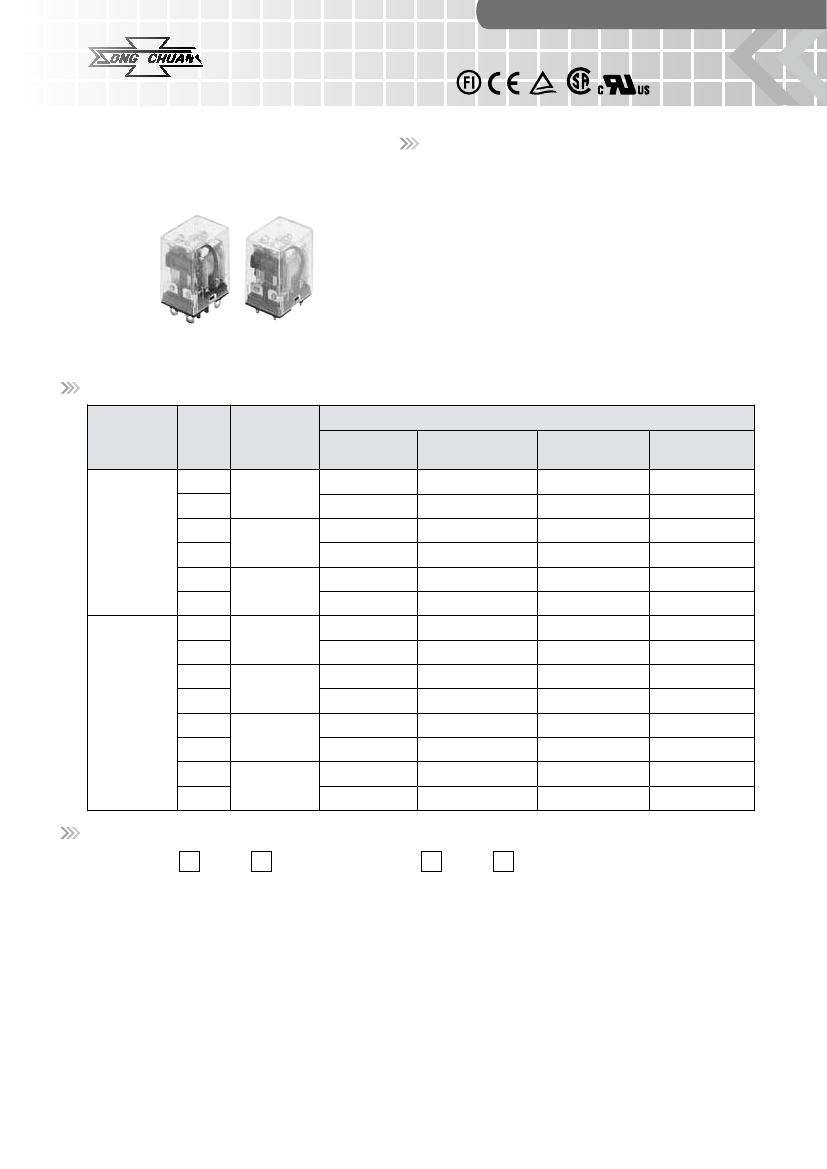

Features

10 general purpose Power Relay.

Contact rating up to 12A 250VAC (DPNO).

Epoxy sealed type and flux free.

Quick connect terminal or PCB terminal available.

Special version of larger contact gap 1.9mm.

(IEC 255/VDE 0436) (DPNO Only)

Optional to be equipped with lamp, diode, flashed

contact, and flanged cover.

Comply with RoHS-Directive 2002/95/EC.

Type List

Terminal

style

Contact

form

DPDT

DPNO

Quick terminal

DPDT

DPNO

DPDT

DPNO

DPDT

DPNO

DPDT

PCB terminal

DPNO

DPDT

DPNO

DPDT

DPNO

Manual

Lamp

Diode

-------

Lamp

Diode

Designation

(

provided with

)

Straight cover

-------

SCL-DPDT

SCL-DPNO

SCL-D-DPDT

SCL-D-DPNO

SCL-L-DPDT

SCL-L-DPNO

SCL-1-DPDT

SCL-1-DPNO

SCL-1-D-DPDT

SCL-1-D-DPNO

SCL-1-L-DPDT

SCL-1-L-DPNO

SCL-1-M-DPDT

SCL-1-M-DPNO

Enclosure style

Flanged cover

SCL-DPDT-C1

SCL-DPNO-C1

SCL-D-DPDT-C1

SCL-D-DPNO-C1

SCL-L-DPDT-C1

SCL-L-DPNO-C1

----------

Sealed type

SCL-DPDT-V

SCL-DPNO-V

SCL-D-DPDT-V

SCL-D-DPNO-V

SCL-L-DPDT-V

SCL-L-DPNO-V

SCL-1-DPDT-V

SCL-1-DPNO-V

SCL-1-D-DPDT-V

SCL-1-D-DPNO-V

SCL-1-L-DPDT-V

SCL-1-L-DPNO-V

----------

Sealed type

washable

SCL-DPDT-S

SCL-DPNO-S

SCL-D-DPDT-S

SCL-D-DPNO-S

SCL-L-DPDT-S

SCL-L-DPNO-S

SCL-1-DPDT-S

SCL-1-DPNO-S

SCL-1-D-DPDT-S

SCL-1-D-DPNO-S

SCL-1-L-DPDT-S

SCL-1-L-DPNO-S

----------

Ordering Information

SCL

1. SCL

DPDT

4. DPDT

DPNO

5. Blank

6. Blank

-- Double pole double throw

-- Double pole normally open

-- Standard type

-- Class F

Straight cover

Flanged cover

Sealed type

Sealed type washable

-- Basic series designation

2. Blank -- Quick terminal

-- PCB terminal

3. Blank -- Without special features

-- Provided with pilot light

-- Diode across coil

-- Provided with manual operator

-- 2 mm contact gap (For DPNO and DC

coil type only)

195
