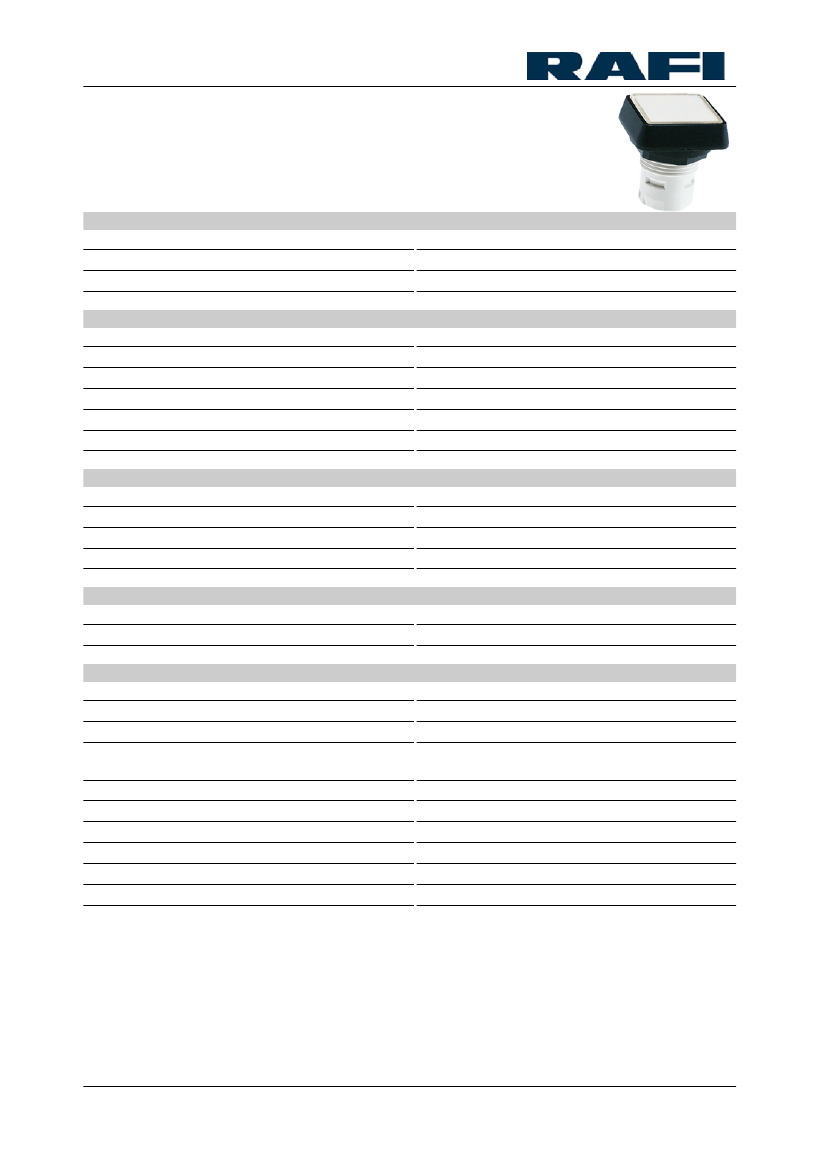

RAFIX 16 - Pushbutton, illuminated, flush lens, square collar
1.30.070.001/1403
General information
Actuator
Color of lens
Form of collar
Dimensions
Collar dimensions
Collar dimensions
Overall height
Mounting depth
Mounting hole
Key grid
Mechanical design
Mounting
Contact function
Contact arrangement
Illumination
Mechanical characteristics
Operating travel
Robustness max.
Other specifications
Operating life (operations)
Degree of protection from front side
Operation temperature min.
Ambient temp. operating max. without lamp /
LED
Ambient temp. operating max. with lamp /LED
Storage temperature min.
Storage temperature max.
Environmental restistance
ROHS compliant
REACH compliant
flat lens
transparent yellow
square
24.95 x 24.95 mm
24.95 x 24.95 mm
7.15 mm
44.7 mm
16.2 mm
25 x 25 mm
ring nut, max. 1.2 Nm
according to contact block
according to contact block
yes
3 mm
100 N
2,000,000 cycle
IP65 (DIN EN 60529)
-25 °C
+70 °C
+55 °C
-40 °C
+85 °C
acc. to IEC 60068-2-14, -30, -33 and -78
yes
yes
Technical data are approximate and intended solely for general orientation in the selection of a product.
Subject to modifications and errors. Images and other graphics may only be similar.
For more information, refer to www.rafi.de chapter Imprint / Data Protection.
01.06.2018

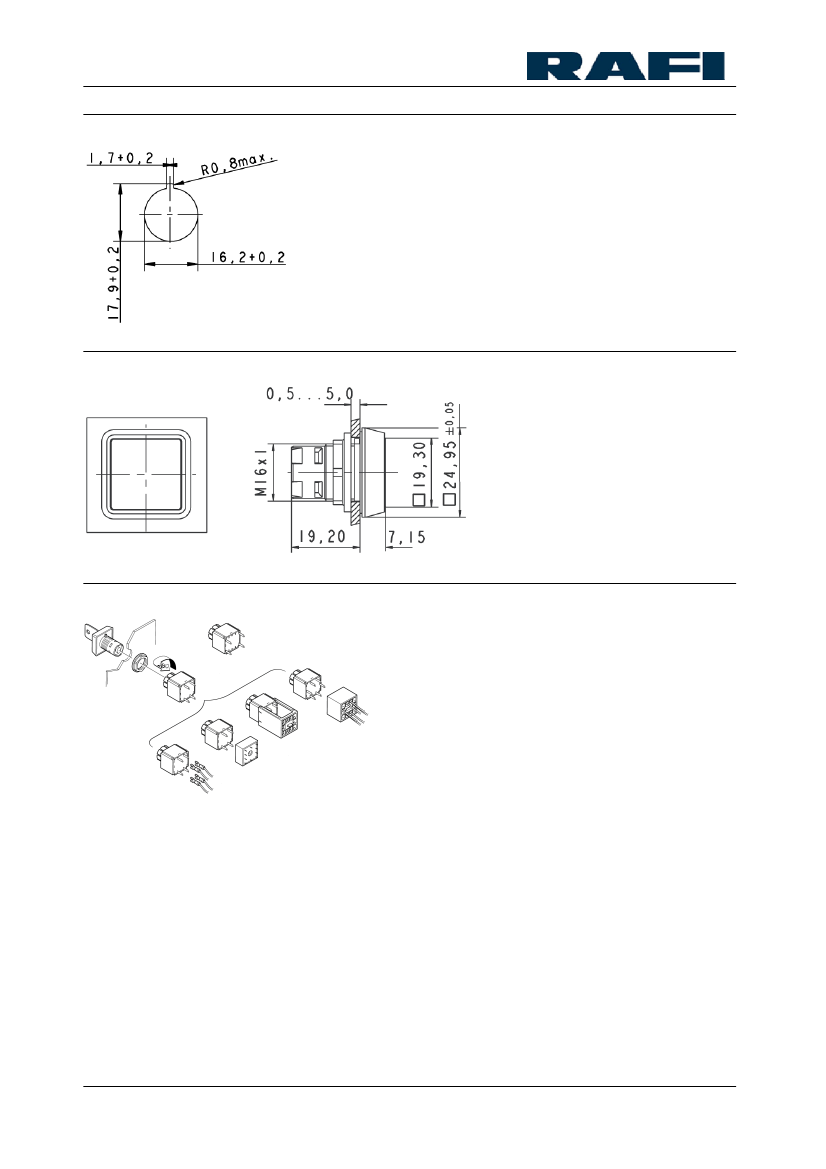

Panel cut-out
Technical data are approximate and intended solely for general orientation in the selection of a product.
Subject to modifications and errors. Images and other graphics may only be similar.
For more information, refer to www.rafi.de chapter Imprint / Data Protection.
PCB Design
