Single relay - REL-OR/LDP-110DC/1 - 2901909
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

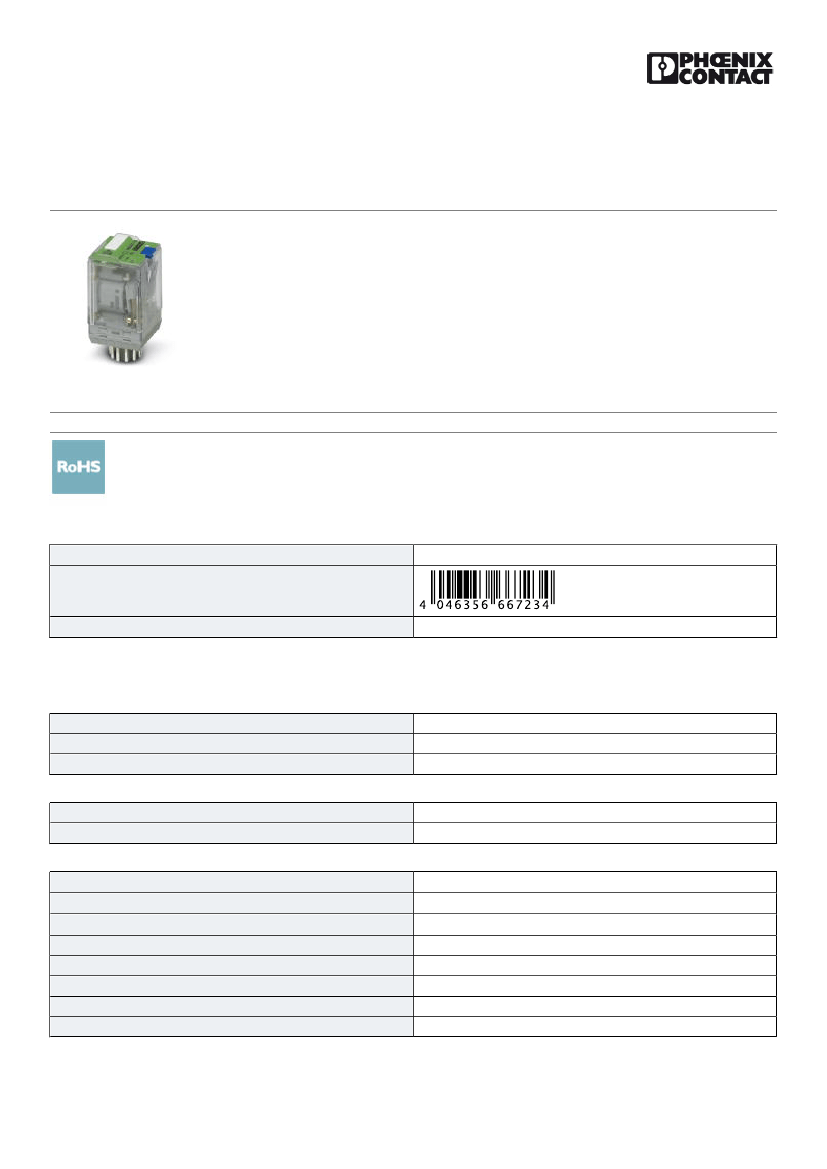

Plug-in octal relay with power contacts, specially designed for switching high DC loads, 1 N/O contact,
detectable manual operation, status LED, coil voltage: 110 V DC
The figure shows the 24 V DC
version
Key Commercial Data
Packing unit
GTIN
GTIN
4046356667234
10 pc
Technical data
Dimensions
Width
Height
Depth
35 mm
35 mm
58.5 mm
Ambient conditions
Ambient temperature (operation)
Ambient temperature (storage/transport)
-40 °C ... 60 °C
-40 °C ... 80 °C
Coil side
Nominal input voltage U
N
Input voltage range in reference to U
N
Typical input current at U
N
Typical response time
Typical release time
Protective circuit
Operating voltage display
Coil resistance
110 V DC
see diagram
13 mA
20 ms
30 ms
Damping diode
Yellow LED
9.2 kΩ ±10 %
11/05/2018 Page 1 / 3
https://www.phoenixcontact.com/pi/products/2901909
Single relay - REL-OR/LDP-110DC/1 - 2901909
Technical data
Coil side
Power dissipation for nominal condition
1.43 W
Contact side
Contact type
Type of switch contact
Note regarding the switch contact
Contact material
Maximum switching voltage
Minimum switching voltage
Min. switching current
Maximum inrush current
Limiting continuous current
Interrupting rating (ohmic load) max.
Switching capacity according to IEC 60947-5-1
1 N/O contact
Single contact
Series connection, 2 N/O contacts
AgNi
250 V AC
220 V DC
10 V (at 10 mA)
10 mA (at 10 V)
30 A (20 ms)
10 A
2500 VA (for 250 V AC)
1.2 A (110 V (DC13))
0.3 A (220 V DC/ 230 V AC (DC13))
6 A (220 V DC/ 230 V AC (AC15))
General
Test voltage relay winding/relay contact
Operating mode
Degree of protection
Mechanical service life
Mounting position
Assembly instructions
2.5 kV
rms
(50 Hz, 1 min.)
100% operating factor
RT I
approx. 10 cycles
any
On relay base PR3
7
Standards and Regulations
Connection in acc. with standard
Standards/regulations
Degree of pollution
Overvoltage category
CUL
IEC 61810
EN 60947
3
III
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 5
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Drawings
11/05/2018 Page 2 / 3
https://www.phoenixcontact.com/pi/products/2901909
Single relay - REL-OR/LDP-110DC/1 - 2901909
Circuit diagram
2,0
Diagram
14
A1
12
22
U/U
N
1,5
11
21
31
24
A2
34
32
1,0
0,5
30
40
50
60
70
Ambient temperature [°C]
1
Maximum operating voltage without load current (0 A)
2
Maximum operating voltage at limiting continuous current (10 A)
3
Minimum pick-up voltage without pre-excitation
0
10
20
Operating voltage range of the relay
Diagram
20
Switching current [A]
10
6
4
2
1
0,5
0,3
0,2
0,1
10
20
30
50 70 100
200
Switching voltage [V]
300
DC, ohmic load
L/R = 40 ms
DC interrupting rating
